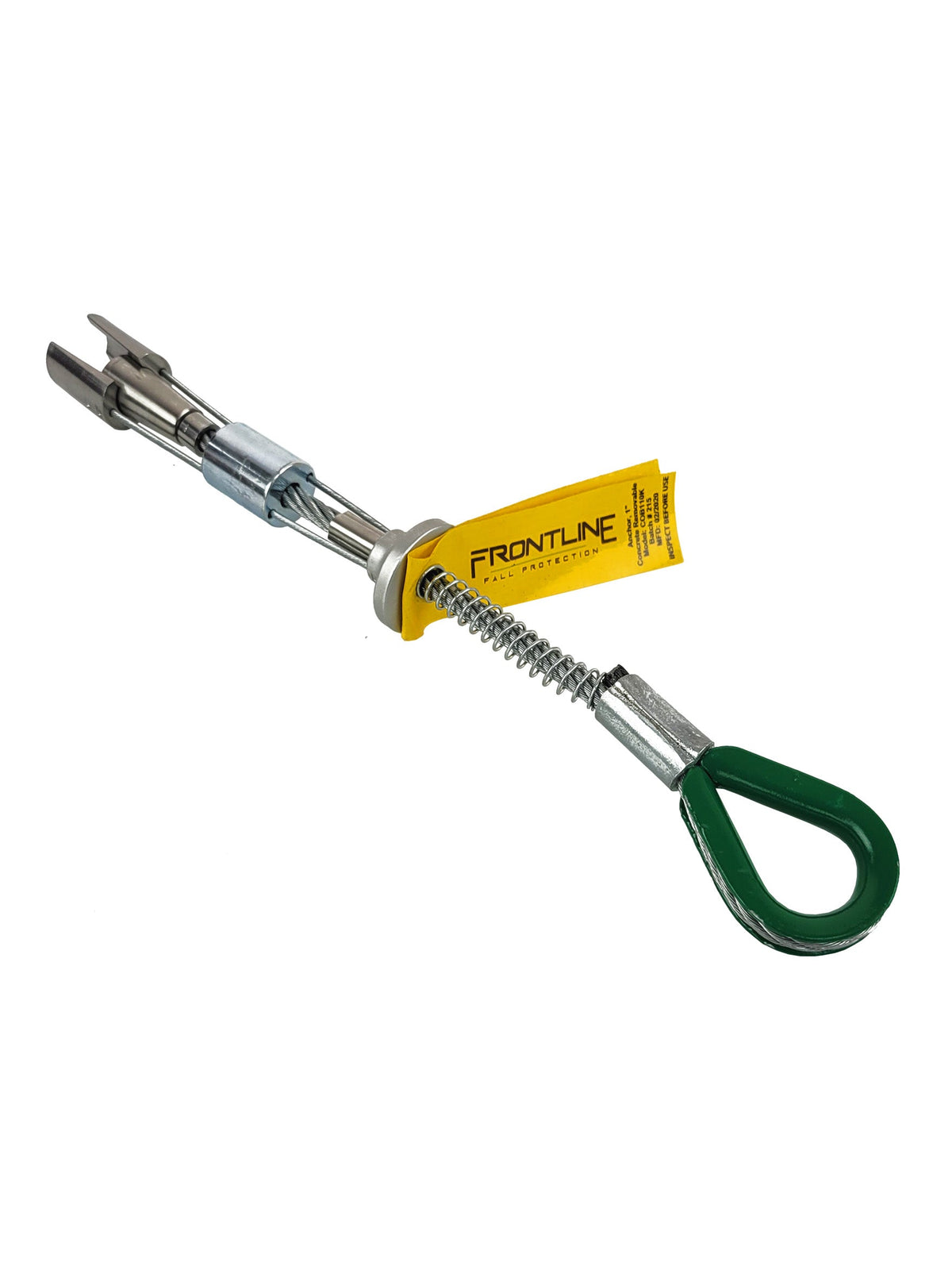

Frontline COB110K Reusable 10K Concrete Anchor Bolt, 1 in Hole | Canada
Frontline COB110K Reusable 10K Concrete Anchor Bolt, 1 in Hole | Canada. The 10,000 lbf version of Frontline's most popular reusable concrete anchor. Drill a 1 in hole, drop the bolt in and it is a tie-off in seconds; pull back on the spring to remove it and reuse it on the next pour. 1 lb, compact, built tough, rugged and corrosion resistant for any environment.
Frontline COB110K 10K concrete anchor bolt key features
- Installs in just minutes with minimal tools once the 1 in hole is drilled
- Removes easily by pulling back on the spring; fully reusable
- 10,000 lbf (44 kN) breaking strength, double the 5K bolt
- One of the lightest, most durable and most versatile anchors in Frontline's line at 1 lb
- Built tough, rugged and corrosion resistant to outlast the jobsite
- Compact and lightweight; carries in the pouch between holes
Frontline COB110K concrete anchor bolt specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | COB110K |
| Substrate | Concrete |
| Install hole diameter | 1 in |
| Breaking strength | 10,000 lbf (44 kN) |
| User capacity | 310 lb |
| Unit weight | 1 lb |

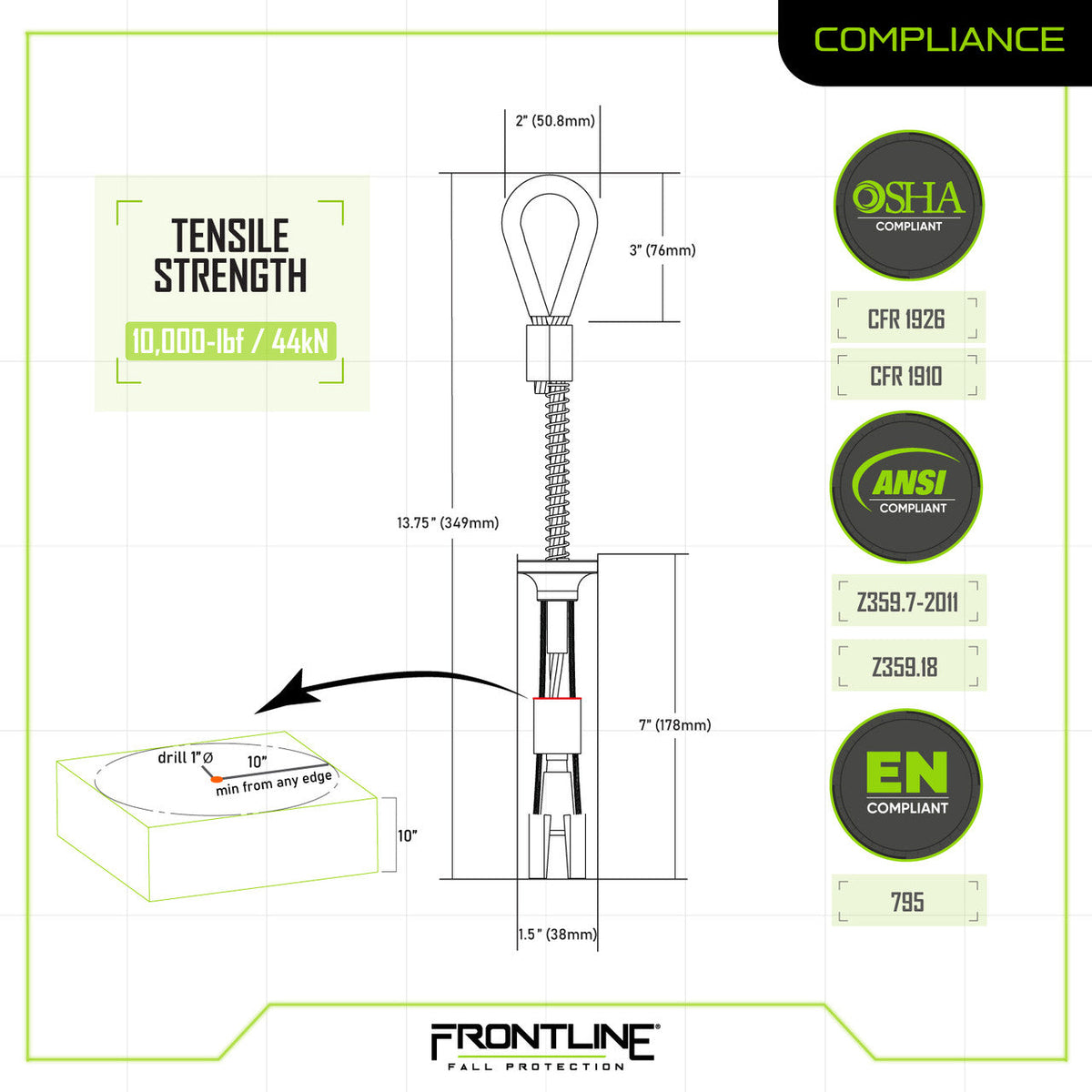

| Standards | Meets or exceeds OSHA 1910.140, OSHA 1926.502, ANSI Z359.7 and CE-EN 795 |
| Materials / embedment depth | Not published as text by Frontline; ask us |
| Region | Stocked in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline COB110K anchor bolt
Cast-in-place concrete
Reusable tie-off on slabs, walls and columns as the pour cures.
Parkades and bridges
A 1 in hole and a 10K bolt where the engineer wants more than a 5K anchor.
Formwork and shoring
Move the same bolt from hole to hole as the work progresses.
Tilt-up and precast
Temporary anchor that comes out clean when the panel is done.
Is the Frontline COB110K CSA certified? Compliance in Canada
Is the Frontline COB110K CSA certified?
No. Frontline rates it to OSHA 1910.140, OSHA 1926.502, ANSI Z359.7 and CE-EN 795. For CSA-marked anchors, see our Safety Direct range.
What hole size does the COB110K need?
A 1 in hole in concrete, per Frontline. Frontline does not publish the embedment depth as text; ask us for the instruction sheet.
COB110K or COB345K: which one?
The COB110K is the 10,000 lbf bolt for a 1 in hole; the COB345K is the 5,000 lbf bolt for a 3/4 in hole. Pick by the strength your engineer or site plan calls for.
How do I remove the COB110K?
Pull back on the spring and lift it out of the hole. Inspect it before the next use.
How often should the COB110K be inspected?
Before every use, and formally by a competent person at least once a year. Retire it after any fall or if the bolt, spring or thread is damaged.
Pair the Frontline COB110K anchor with an SRL or lanyard
The COB110K is the anchorage connector. Add a full-body harness and an SRL or shock-absorbing lanyard for a complete personal fall arrest system.
