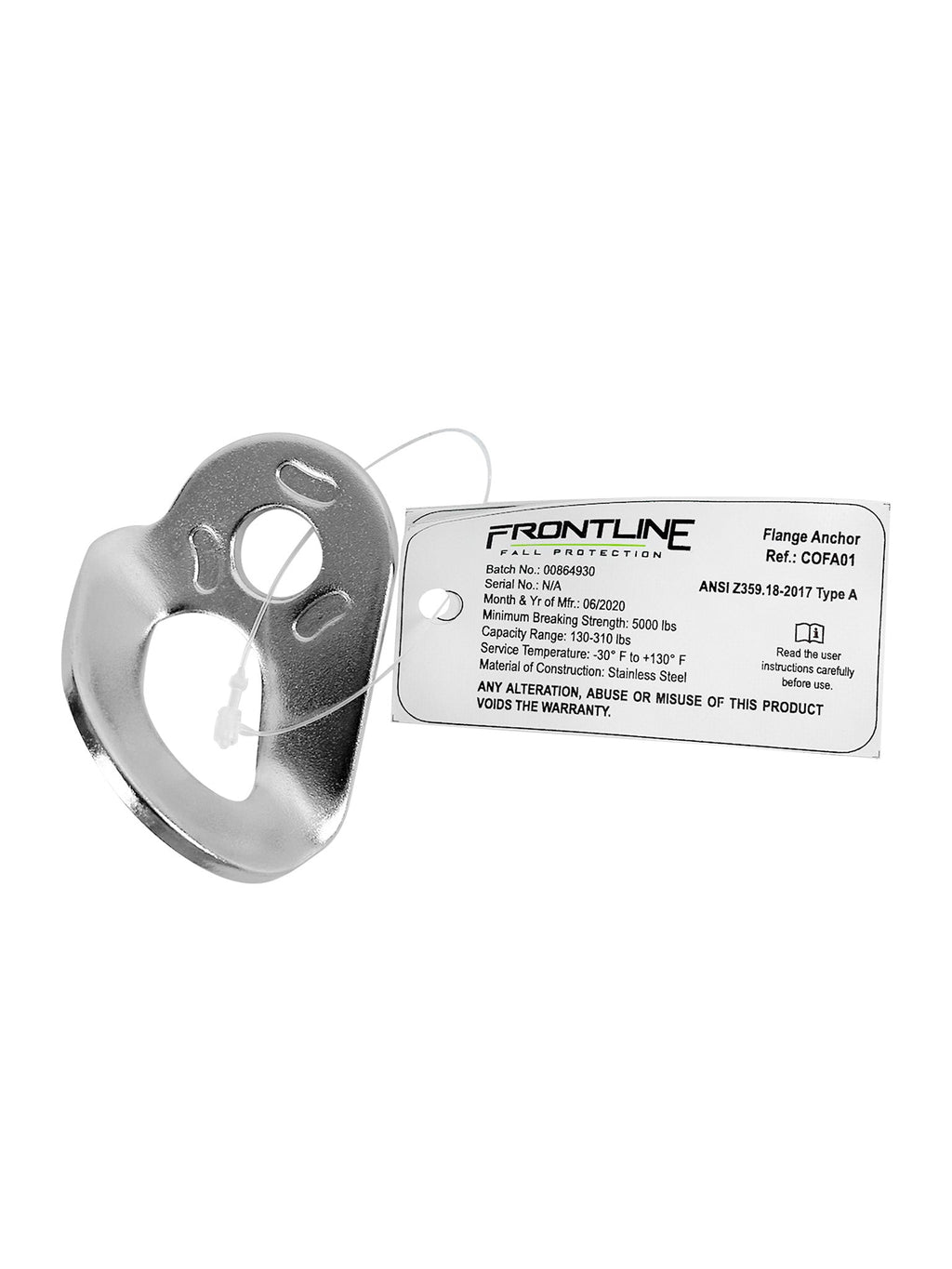

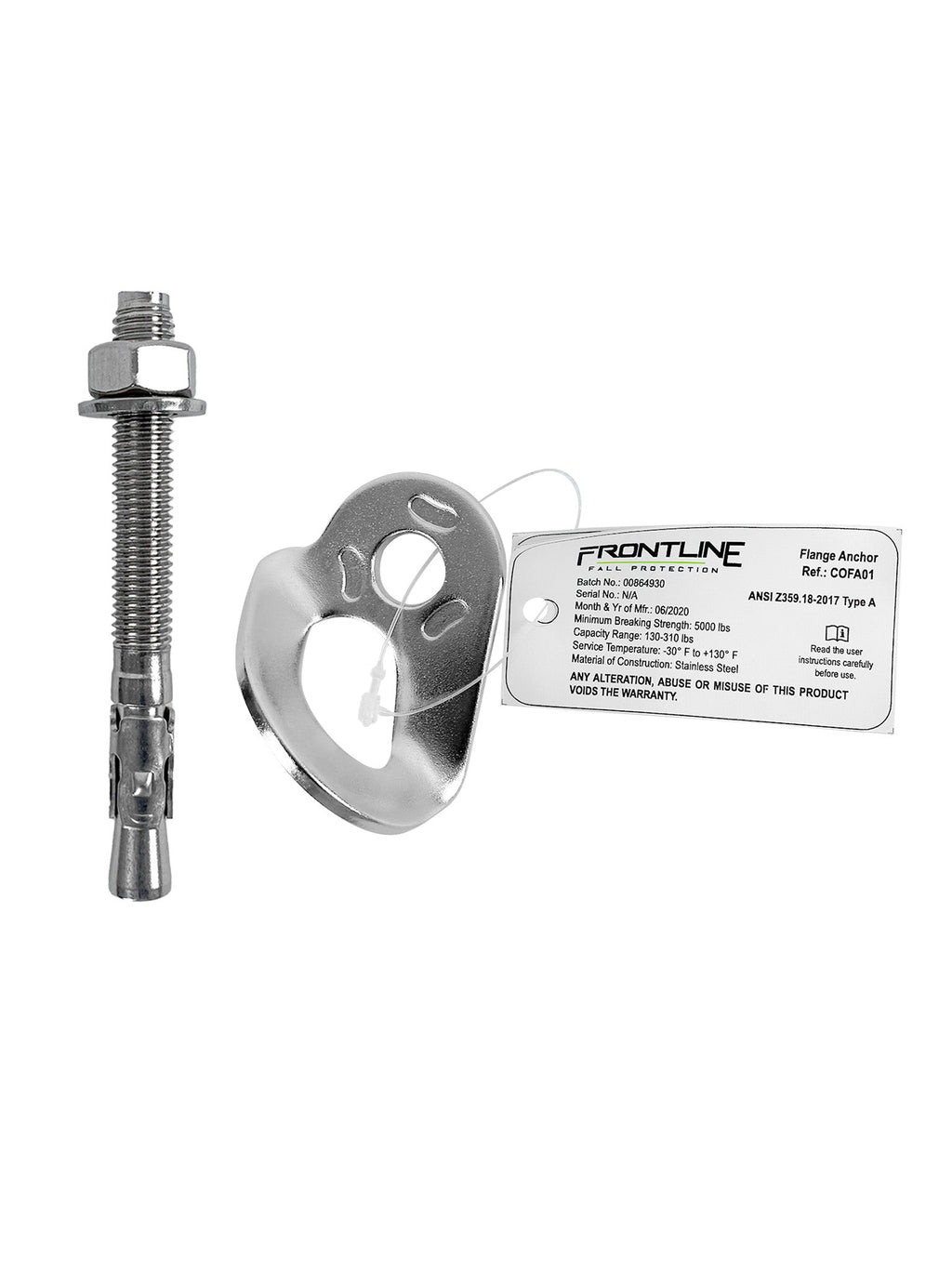

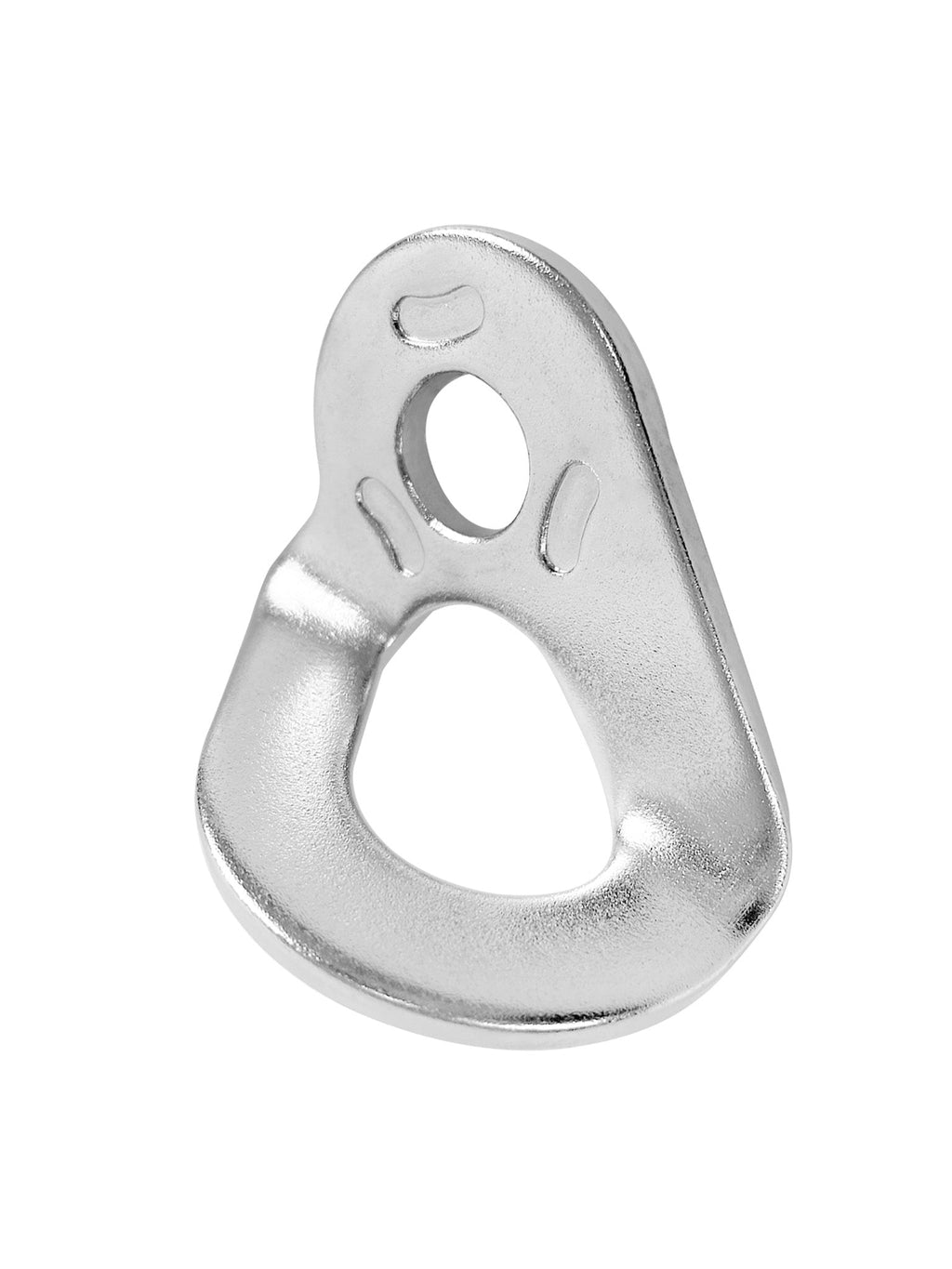

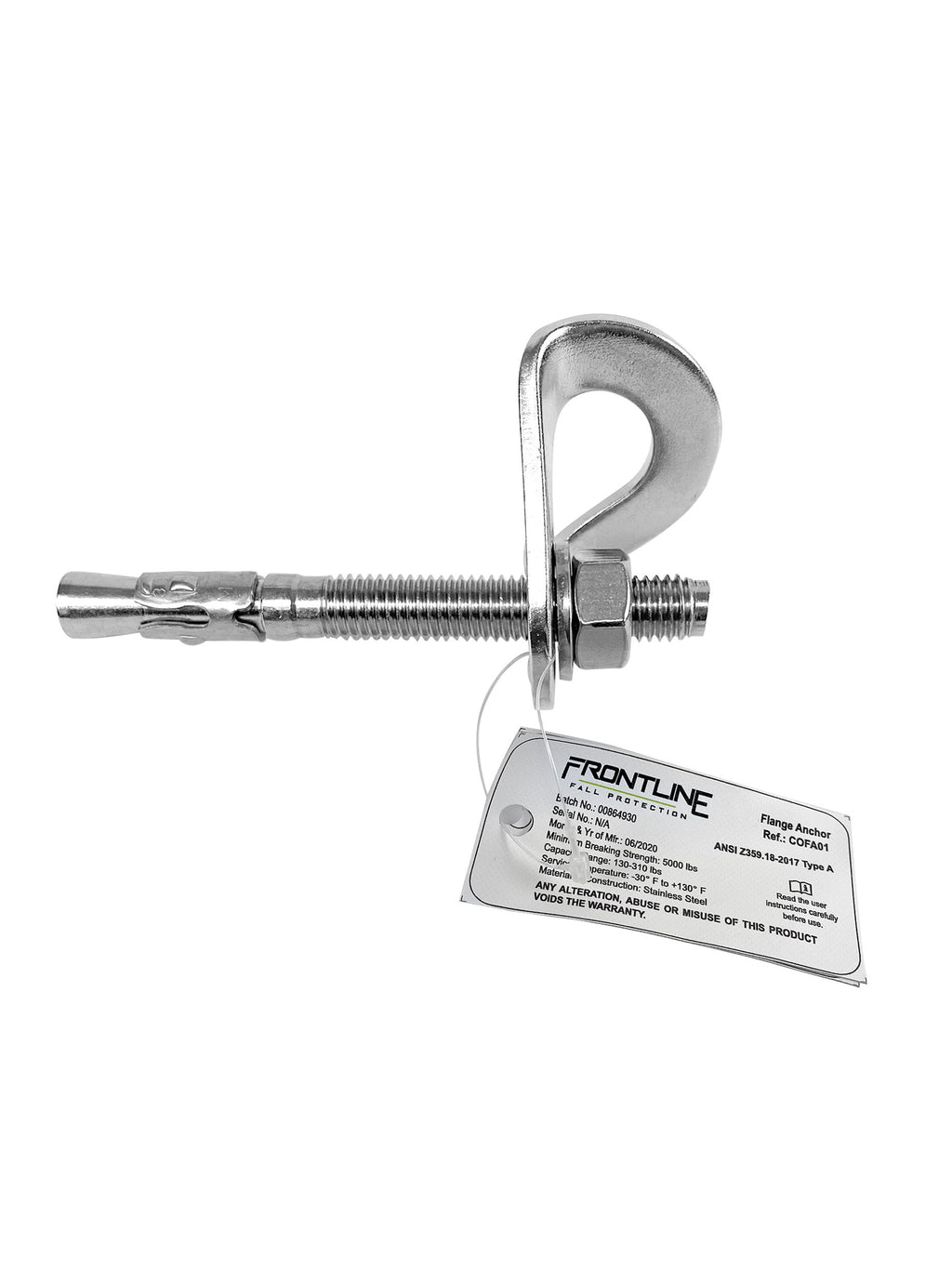

Frontline COFA01 Stainless Steel Flange Anchor with Bolt | Canada
Frontline COFA01 Stainless Steel Flange Anchor with Bolt. A stainless steel flange anchor with bolt for walls, ceilings, rooftops and steel structures, for temporary or permanent installation in steel or cured concrete. Stainless steel resists corrosion in open and outdoor areas. It takes chemical or mechanical nut-and-bolt fasteners through pre-defined 0.39 in and 0.47 in holes, with a 3.74 in drilling depth. 5,000 lb breaking strength; 0.13 lb.
Frontline COFA01 stainless steel flange anchor key features
- For walls, ceilings, rooftops or steel structures
- Temporary or permanent installation in steel or cured concrete
- Stainless steel for better corrosion resistance in open or outdoor areas
- Chemical or mechanical nut-and-bolt fasteners in pre-defined 0.39 in and 0.47 in holes
- Supplied with bolt; quick and easy to install
- Very light at 0.13 lb
Frontline COFA01 flange anchor specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | COFA01 + COFA01RB (anchor with bolt) |
| Material | Stainless steel |
| Substrate | Steel or cured concrete |
| Fastener holes | 0.39 in and 0.47 in, pre-defined |
| Drilling depth | 3.74 in |
| Breaking strength | 5,000 lb |
| Net weight | 0.13 lb |
| Standards | Meets or exceeds applicable ANSI and OSHA standards |
| Region | Stocked by Fall Protection Canada in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline COFA01 flange anchor
Exterior walls and rooftops
Stainless steel for anchors left outdoors.
Ceilings and overhead points
A compact anchor fixed into cured concrete above the work.
Steel structures
Bolt through the pre-defined holes on steel members.
Is the Frontline COFA01 CSA certified? Compliance in Canada
Is the Frontline COFA01 CSA certified?
No. Frontline states it meets or exceeds applicable ANSI and OSHA standards. For CSA-marked anchors, see our Safety Direct range.
What fasteners does it take?
Chemical or mechanical nut-and-bolt fasteners in the pre-defined 0.39 in and 0.47 in holes, with a 3.74 in drilling depth.
Is the bolt included?

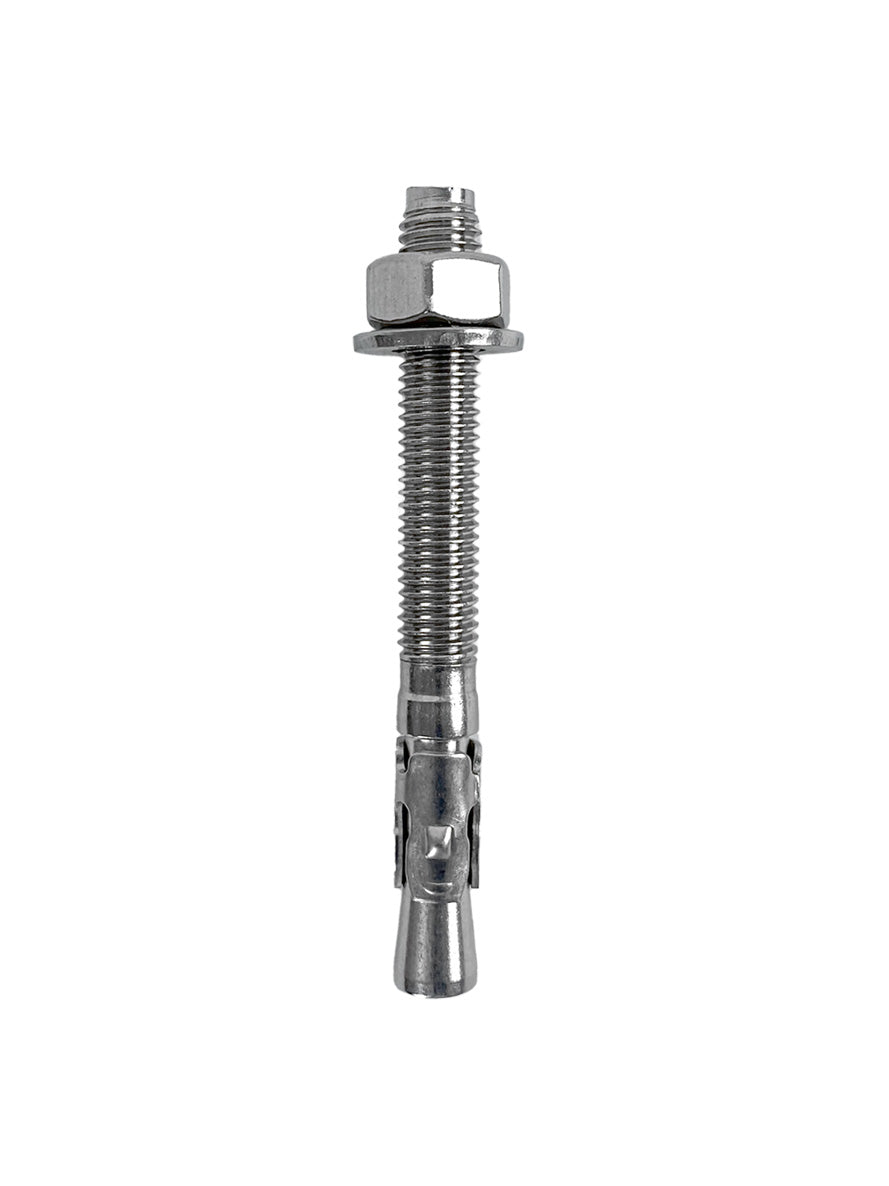

Yes, this is the COFA01 anchor with the COFA01RB bolt.
Can it stay installed permanently?
Yes, Frontline lists it for temporary or permanent installation in steel or cured concrete.
Pair the Frontline COFA01 anchor with an SRL or lanyard
Connect an SRL or shock-absorbing lanyard and a full body harness. See our other concrete and steel anchors. Questions on fit or quantities? Contact Fall Protection Canada.
