Frontline COT345K Reusable 5K Toggle Bolt Anchor, Concrete & Steel | Canada

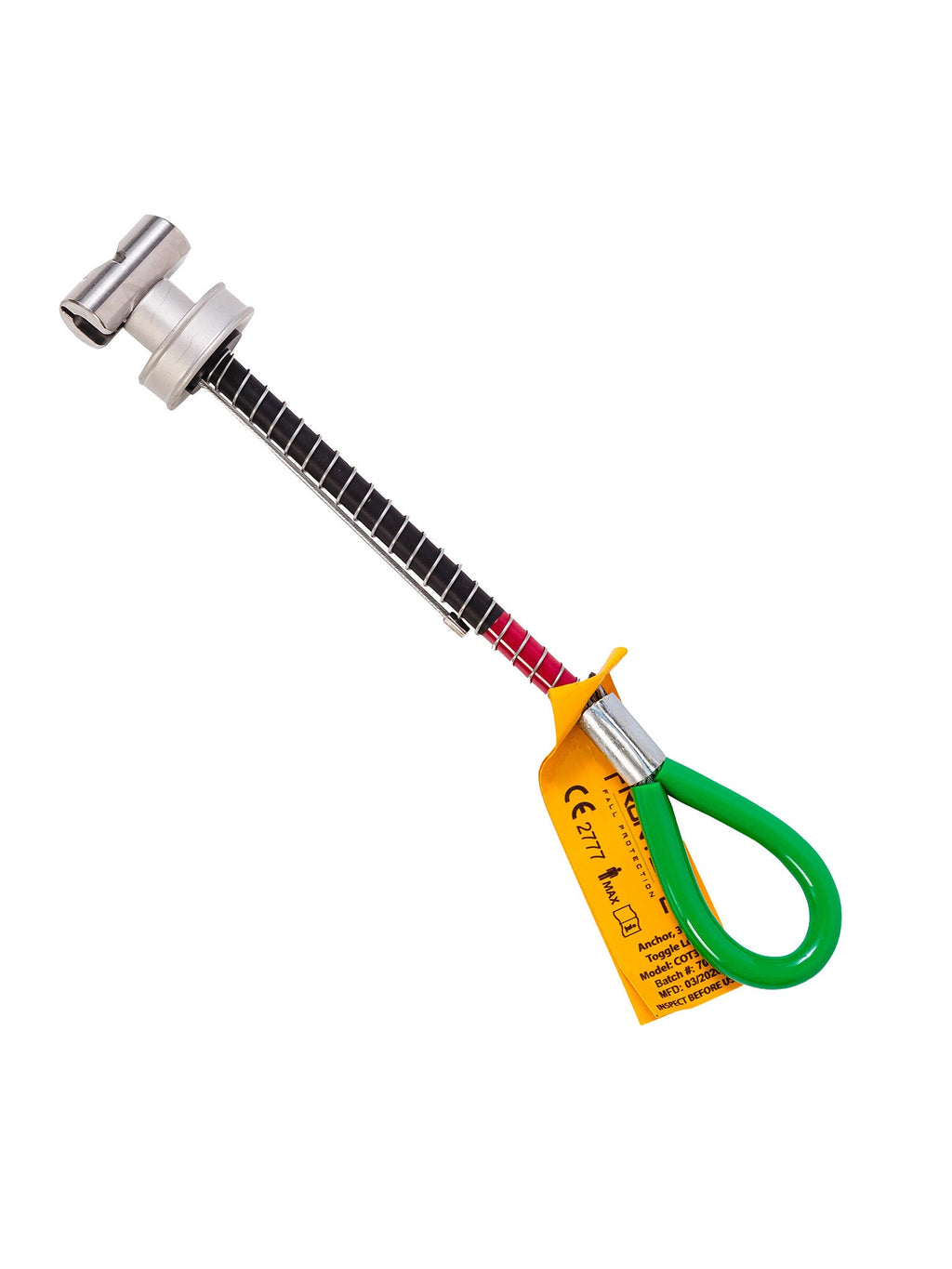

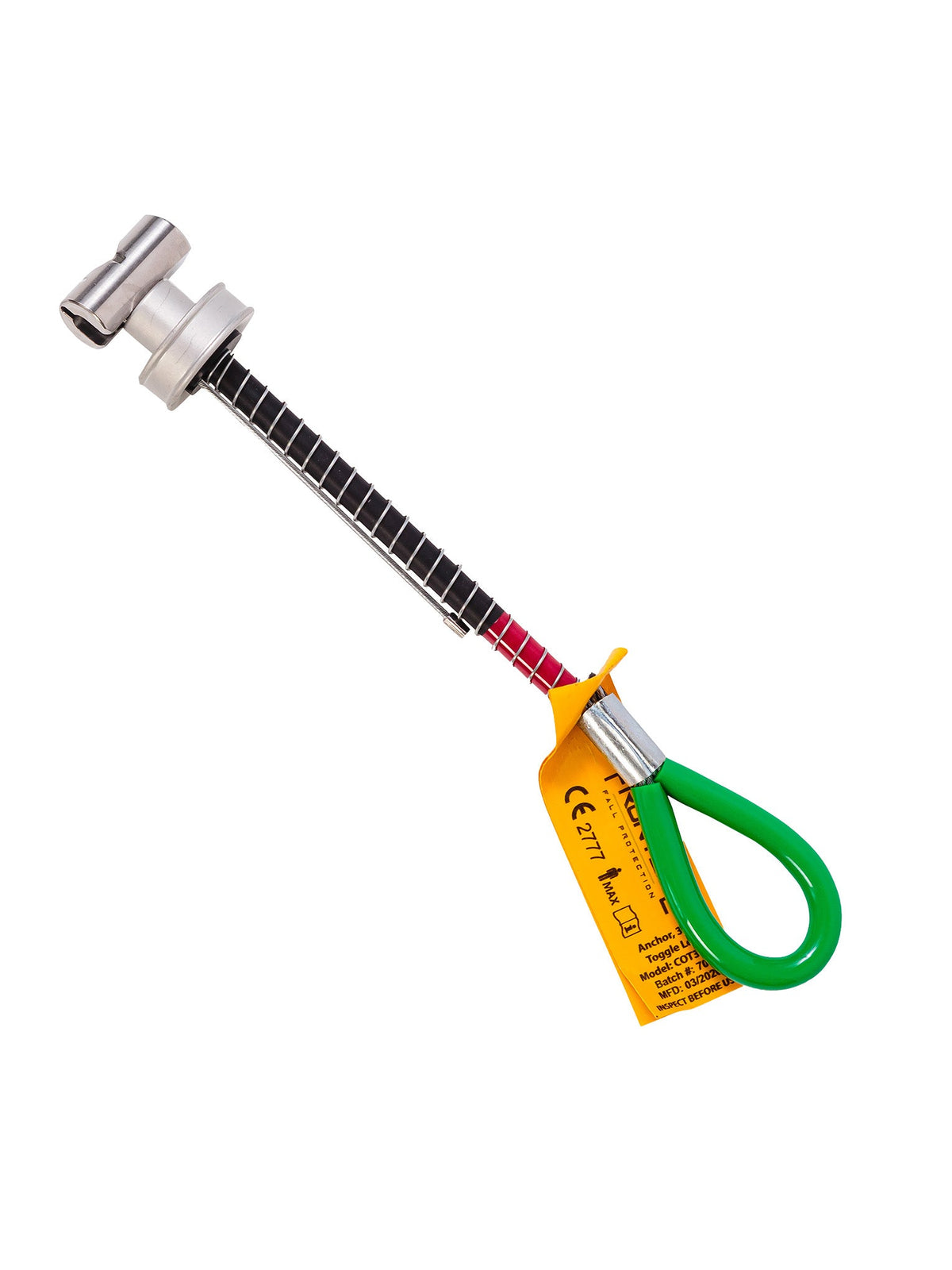

Frontline COT345K Reusable 5K Toggle Bolt Anchor, Concrete & Steel | Canada. Frontline's reusable toggle bolt anchor for hollow concrete and steel: drop it into a 3/4 in hole in precast, hollow-core or a steel flange, and it is a 5,000 lbf tie-off point in seconds. Pull back on the spring to remove it and move on to the next hole. Vertical or horizontal, 0.45 lb, built tough, rugged and corrosion resistant.
Frontline COT345K toggle bolt anchor key features
- Inserts into precast concrete or steel flanges with a 3/4 in hole, for lifting, hoisting or tie-back
- Installs in seconds once the opening is drilled, with minimal tools

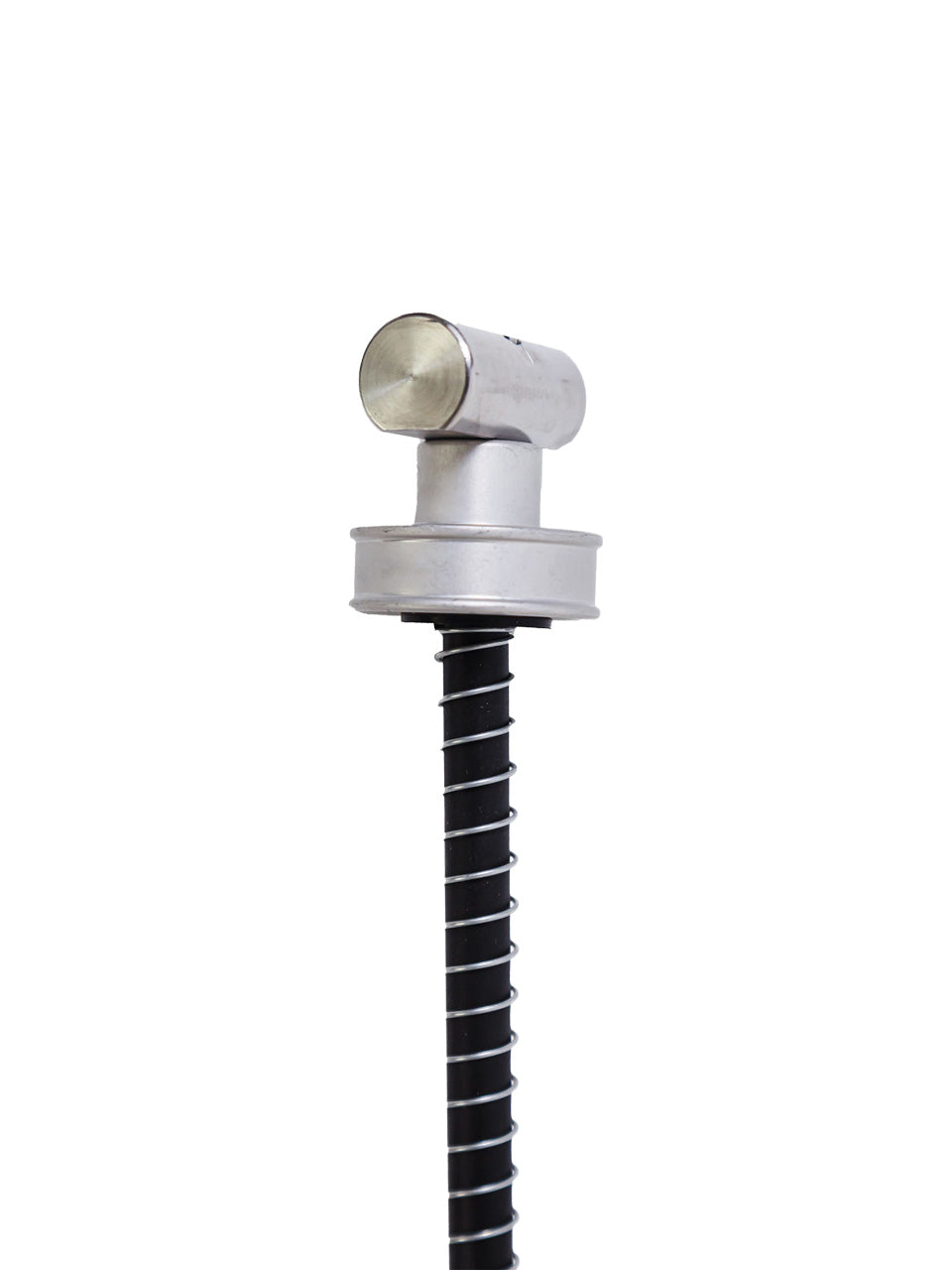

- Removes easily by pulling back on the spring; fully reusable
- Vertical or horizontal applications
- One of the lightest, most durable and most versatile anchors in Frontline's line at 0.45 lb
- Built tough, rugged and corrosion resistant for every environment

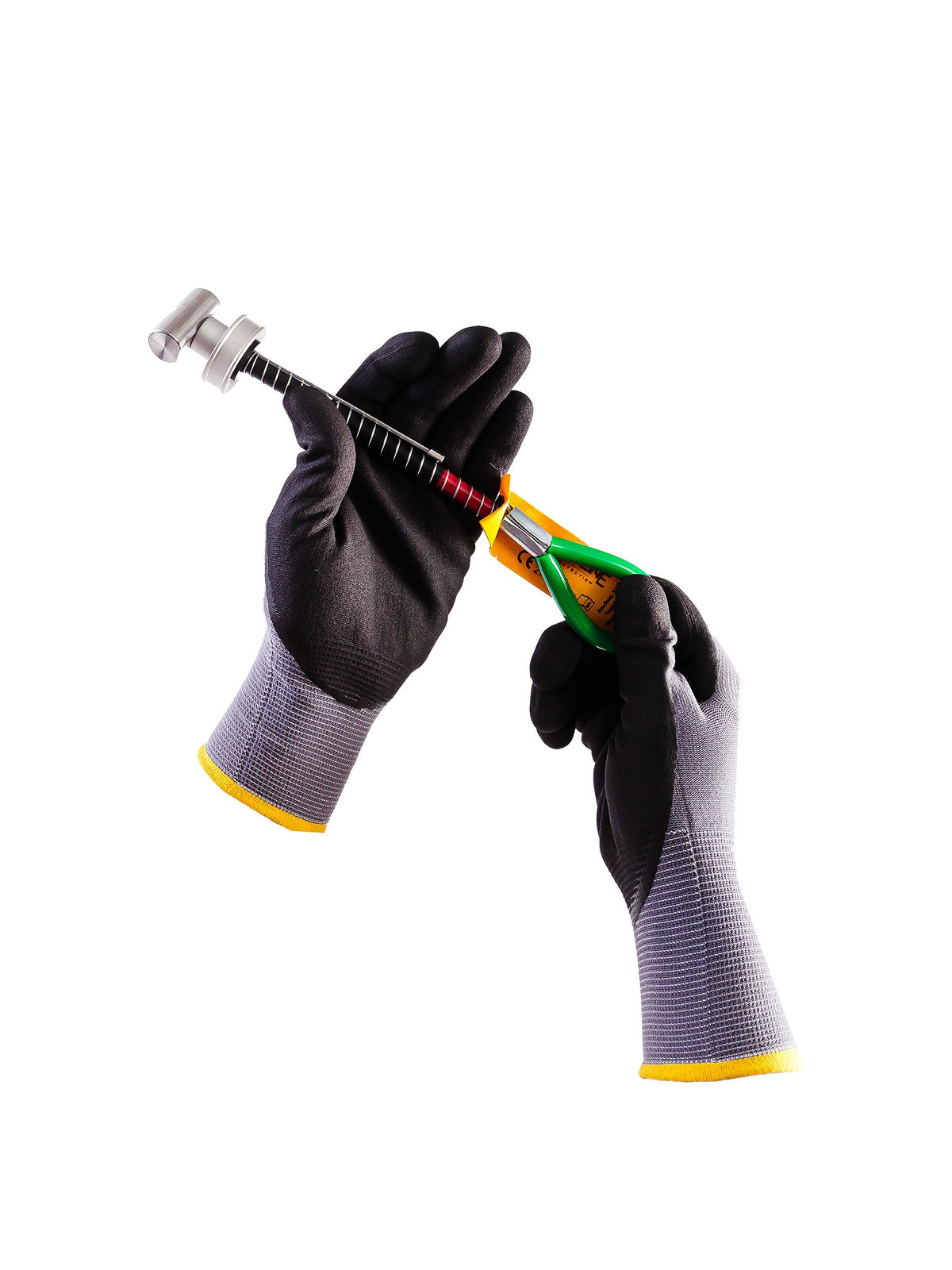

- Compact and lightweight; lives in the tool pouch
Frontline COT345K 5K toggle bolt anchor specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | COT345K |
| Substrate | Hollow concrete, precast, or steel flanges |
| Install hole diameter | 0.75 in (3/4 in) |
| Breaking strength | 5,000 lbf (22 kN) |
| User capacity | 310 lb |
| Unit weight | 0.45 lb |
| Orientation | Vertical or horizontal |

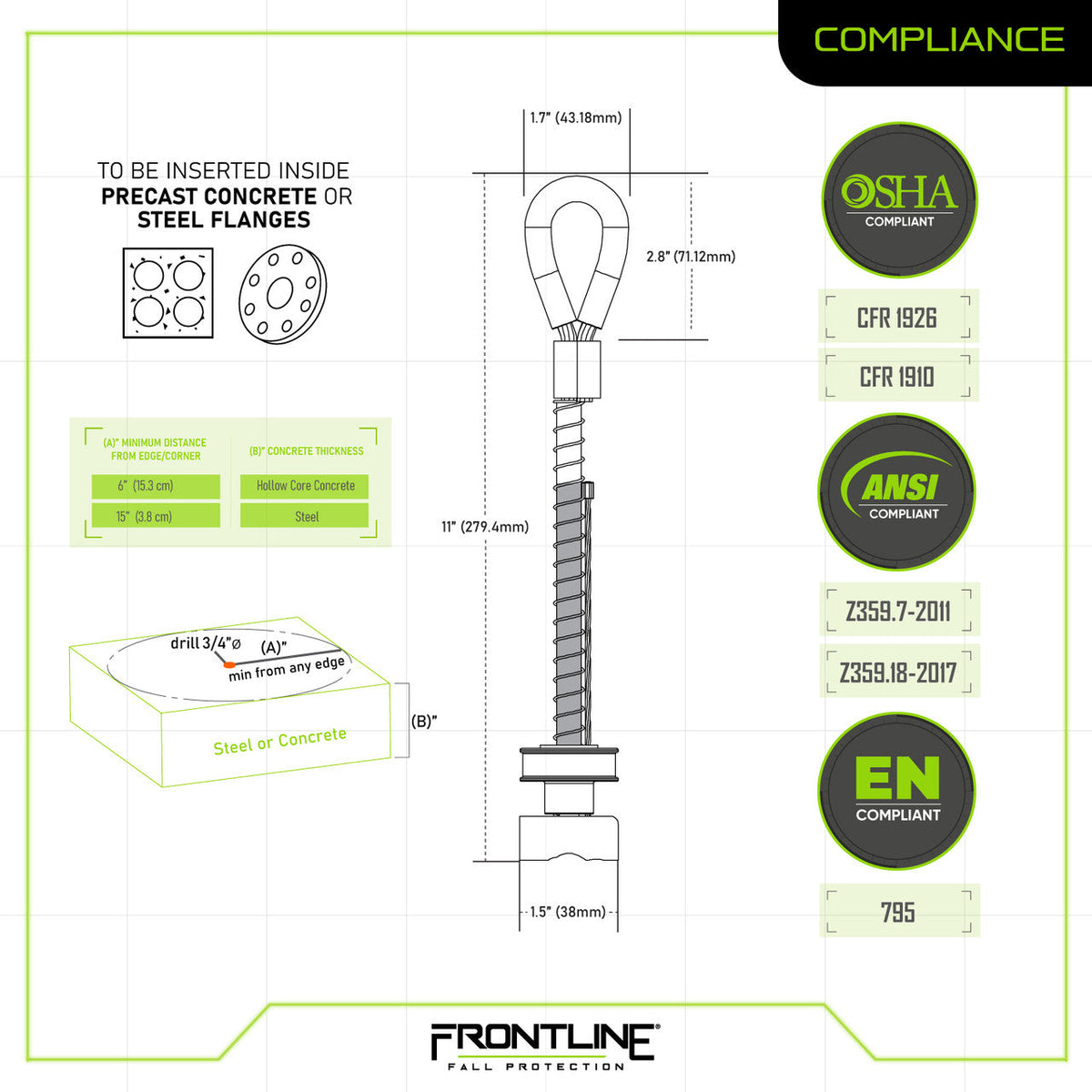

| Standards | Meets or exceeds OSHA 1910, OSHA 1926.502, ANSI Z359.7 and CE-EN 795 |

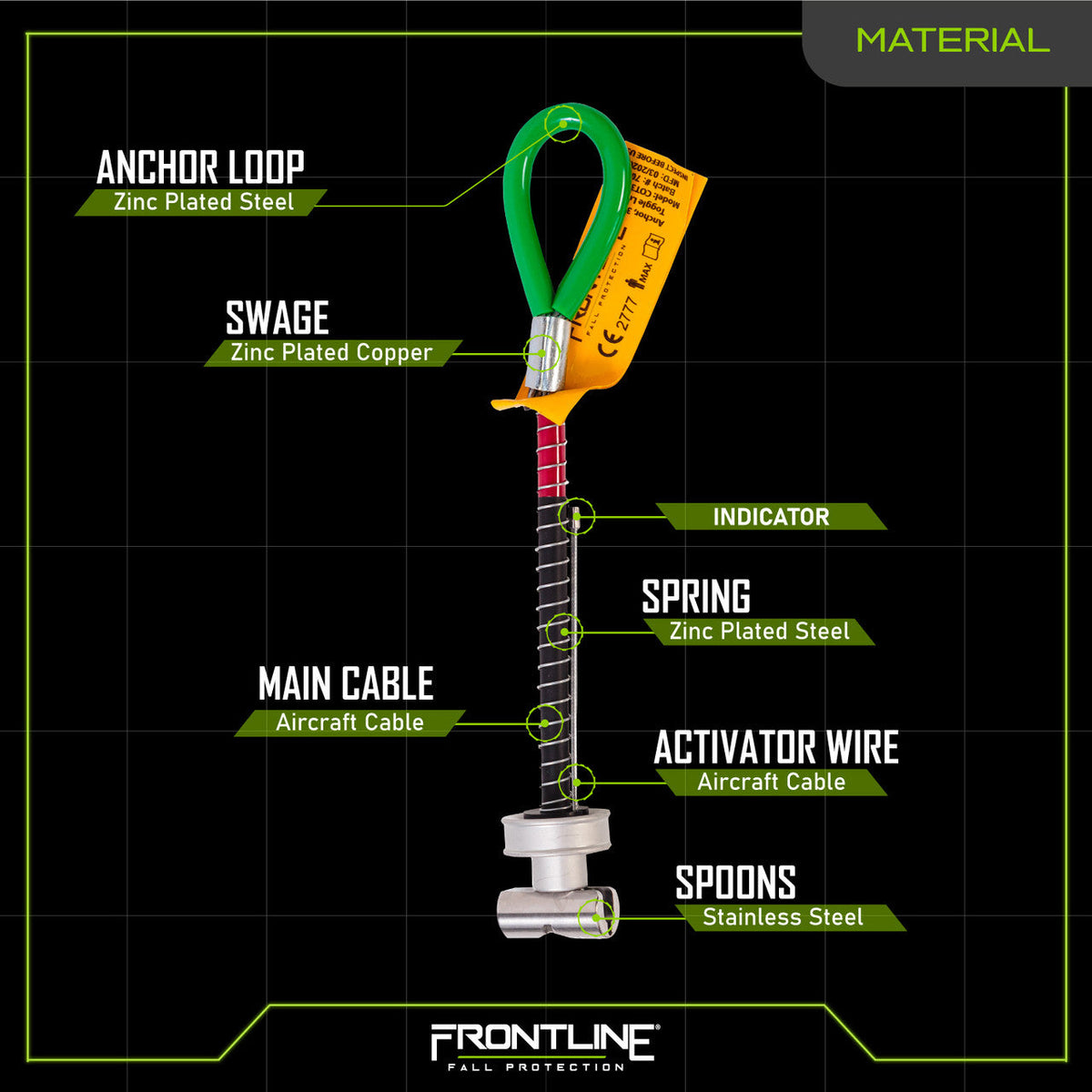

| Materials / dimensions | Not published as text by Frontline; ask us |
| Region | Stocked in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline COT345K toggle bolt
Hollow-core and precast
Through a core hole or sleeve in hollow-core plank and precast panels.
Steel flanges

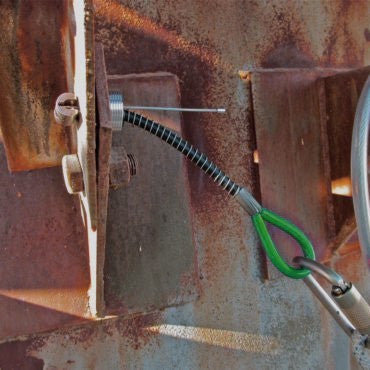

A 3/4 in hole in a beam flange or plate becomes a reusable anchor point.
Parkades and tilt-up
Temporary tie-off that leaves nothing behind in the finished structure.
Lifting and tie-back
Frontline lists it for lifting, hoisting or tie-back as well as fall protection.
Is the Frontline COT345K CSA certified? Compliance in Canada
Is the Frontline COT345K CSA certified?
No. Frontline rates it to OSHA 1910, OSHA 1926.502, ANSI Z359.7 and CE-EN 795. For CSA-marked anchors, see our Safety Direct range.
What hole size does the COT345K need?
A 3/4 in (0.75 in) hole in hollow concrete, precast or a steel flange, per Frontline.
COT345K toggle bolt or COB345K anchor bolt: which one?
The COT345K toggles behind a hollow section (hollow-core, steel flange); the COB345K-style anchor bolt expands in a drilled hole in solid concrete. Match the anchor to the substrate.
How do I remove the COT345K?
Pull back on the spring and lift it out. Inspect it before the next use.
How often should the COT345K be inspected?
Before every use, and formally by a competent person at least once a year. Retire it after any fall or if the toggle, spring or thread is damaged.
Pair the Frontline COT345K anchor with an SRL or lanyard
The COT345K is the anchorage connector. Add a full-body harness and an SRL or shock-absorbing lanyard for a complete personal fall arrest system.
