Frontline CSQ120 Large Steel Locking Carabiner Hook, 1.97 in Gate | Canada. A large alloy steel carabiner hook with a gate opening of about 1.97 in for clipping to rebar, cable, large D-rings and anchor eyes that a standard carabiner will not reach around. Self-closing double-action auto-lock gate, galvanized with golden-yellow passivation, proof tested by Frontline to 5,000 lb minimum breaking strength with a 3,600 lb gate. 1.65 lb.
Frontline CSQ120 large steel carabiner key features
- High-strength alloy steel built for the toughest and harshest working conditions
- Large gate opening, approximately 1.97 in
- Self-closing double-action auto-lock gate for added safety
- Galvanized with golden-yellow passivation finish
- Proof tested for quality assurance to withstand the required forces and standards
- Connection point to an SRL or a suitable anchor; 1.65 lb
Frontline CSQ120 carabiner hook specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | CSQ120 |
| Material | High-strength alloy steel |
| Finish | Galvanized, golden-yellow passivation |

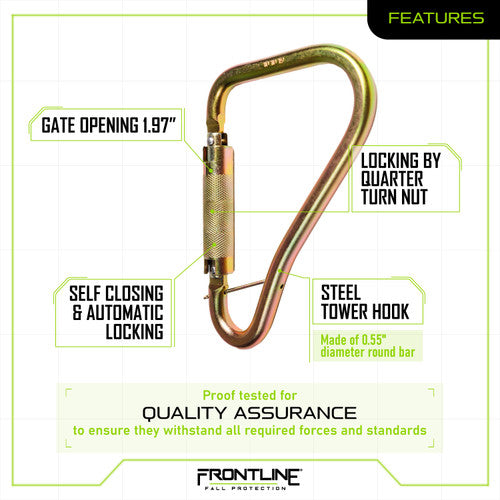

| Gate | Self-closing, double-action auto lock, quarter turn |
| Gate opening | Approximately 1.97 in |

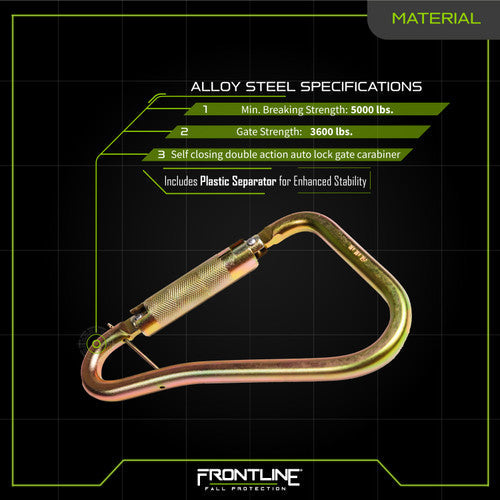

| Minimum breaking strength | 5,000 lb |
| Gate strength | 3,600 lb |
| Net weight | 1.65 lb ± 0.02 lb |
| Standards | Meets or exceeds applicable ANSI and OSHA standards, as Frontline states them |
| Region | Stocked in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline CSQ120 carabiner hook
Rebar and cable
The 1.97 in gate reaches around rebar, wire rope and large anchor eyes.
Anchor straps and slings
Clips large D-rings on cross-arm straps and chokers in one motion.
Steel and bridge work
Alloy steel body for hot, abrasive and heavy-use connections.
Tie-back and restraint
Large hook for lanyard tie-back where the anchor is oversized.
Is the Frontline CSQ120 CSA certified? Compliance in Canada
Is the Frontline CSQ120 CSA certified?
We list it to the ANSI and OSHA requirements Frontline states; we do not sell it as a CSA-marked connector. If your site requires CSA-marked connectors, see our Safety Direct range.
How wide is the gate?
Approximately 1.97 in, per Frontline, which is why it clips over rebar and large anchor rings.
CSQ120 or CSQ184: which one?
The CSQ120 is the large-gate (about 1.97 in) hook at 1.65 lb; the CSQ184 is Frontline's standard steel quarter-turn carabiner, lighter with a smaller gate. Both are 5,000 lb.
Is the gate auto-locking?
Yes. Frontline describes it as a self-closing double-action auto-lock gate.
How often should the CSQ120 be inspected?
Before every use, and formally by a competent person at least once a year. Retire it after any fall, or if the gate does not close and lock on its own.
Pair the Frontline CSQ120 with an SRL, lanyard and anchor
The CSQ120 is a connector. Add a full-body harness, an SRL or shock-absorbing lanyard and a rated anchor for a complete personal fall arrest system.
