Frontline DT Drop-Thru Anchor, 6 in / 12 in Plate | Canada. A fast anchor for openings in concrete floors, steel girders, grating and similar surfaces: drop the plate through the opening, let it seat against the underside, and clip to the swivel ring on top. No tools, no drilling, nothing left behind. Coated steel plate in 6 in or 12 in, aircraft cable in 2 ft or 6 ft, 5,000 lbf (22 kN) static strength.
Frontline DT drop-thru anchor key features
- Lightweight, portable and reusable
- No tools required, sets up in seconds
- Non-penetrating: keeps the structure intact
- For overhead openings in concrete floors, steel girders, steel grates and similar surfaces

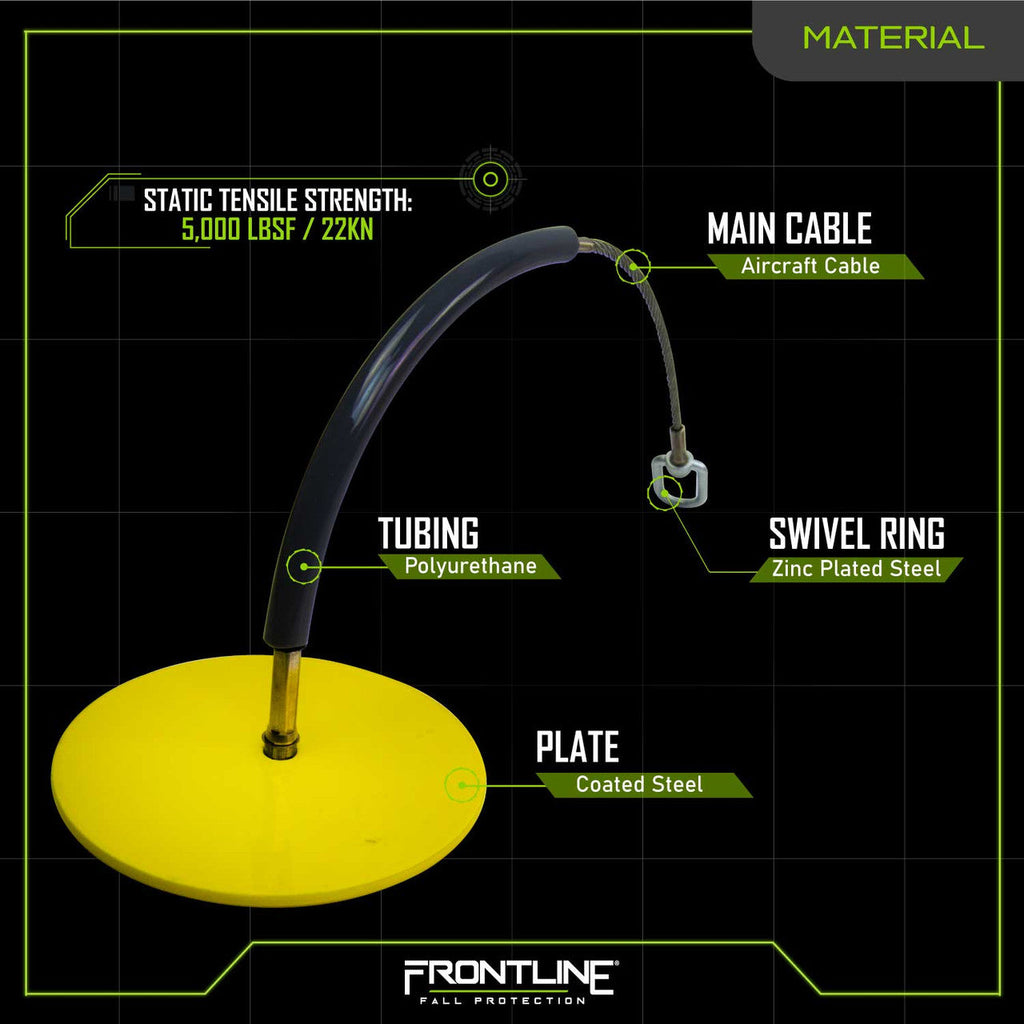

- Coated steel plate with polyurethane tubing over the aircraft cable
- Zinc-plated steel swivel ring on top, stainless steel end termination

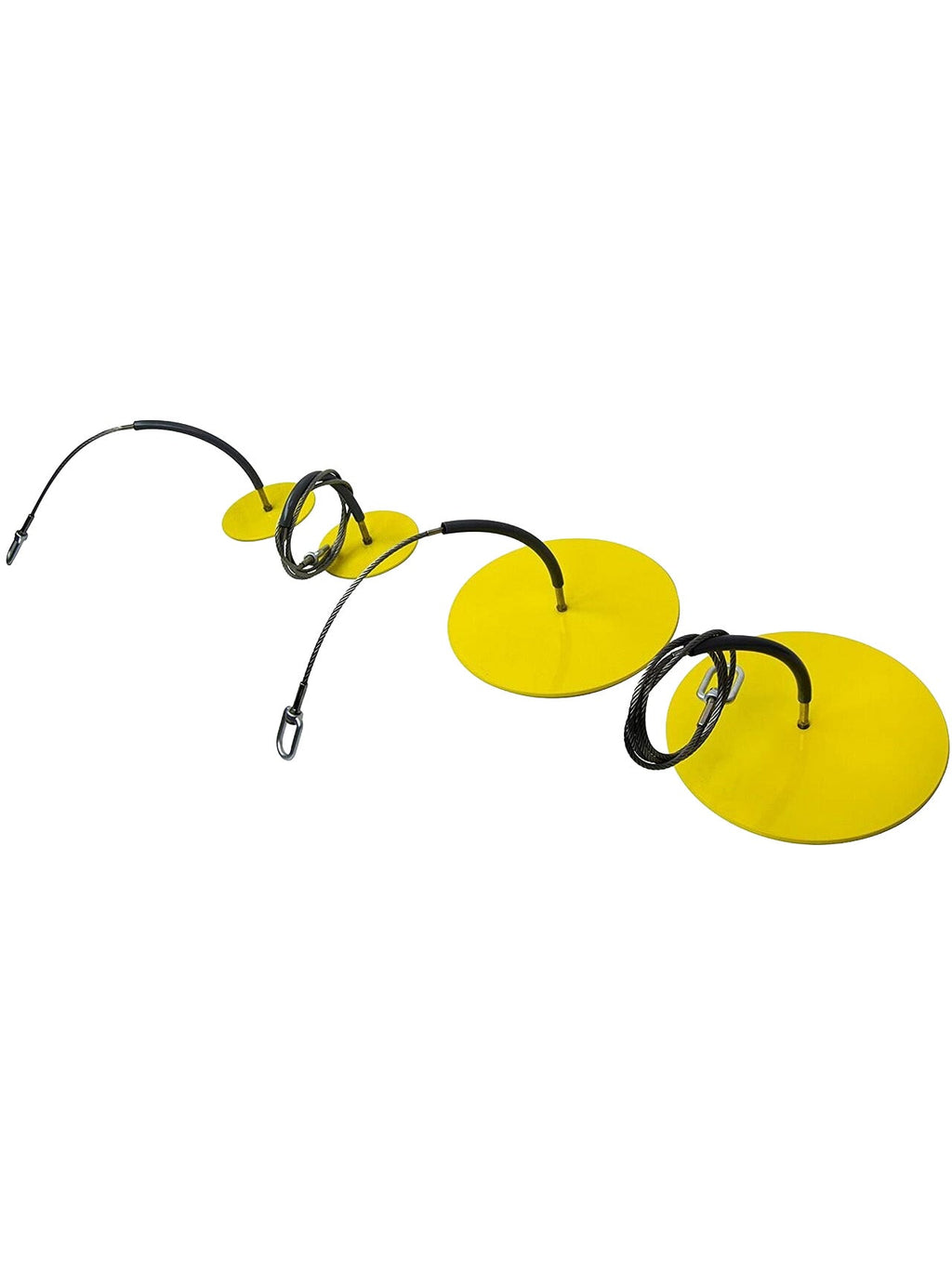

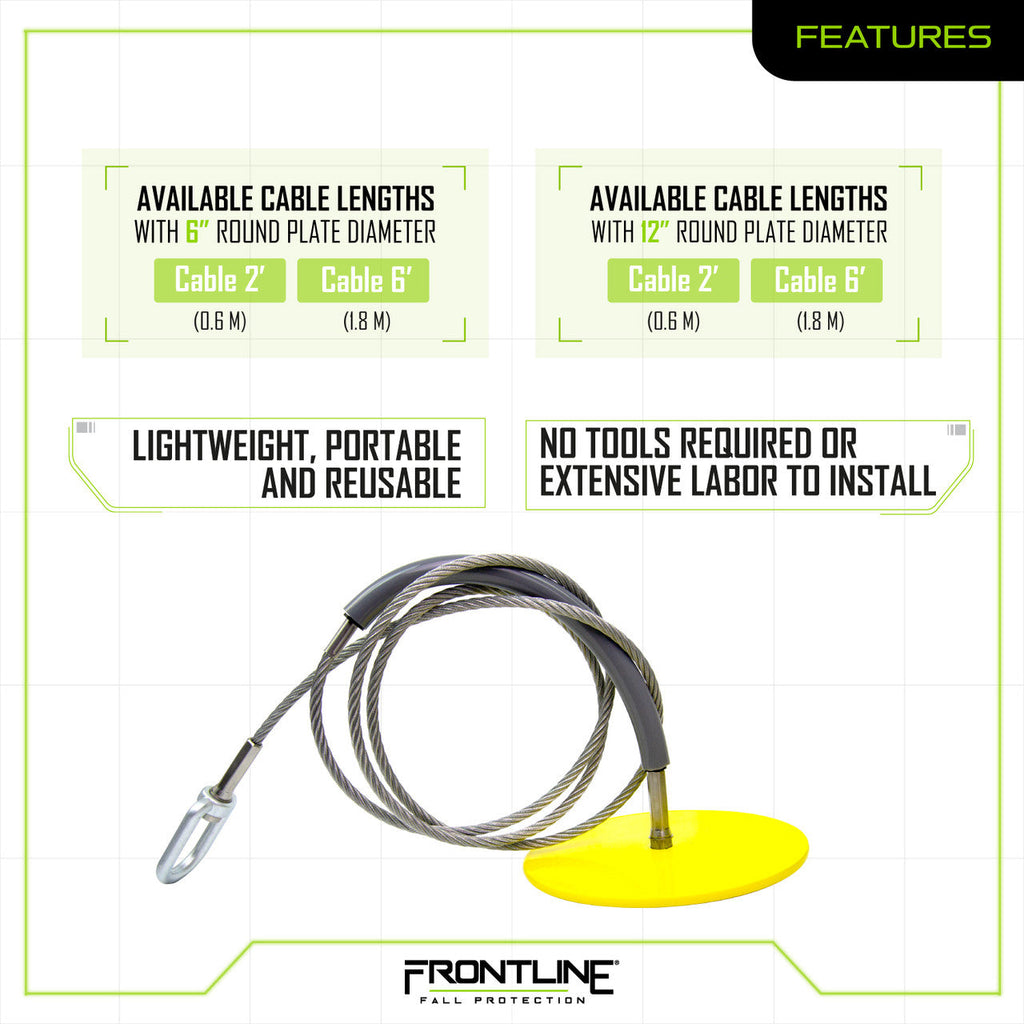

- Four combinations: 6 in or 12 in plate with 2 ft or 6 ft cable
Frontline DT602 to DT1206 drop-thru anchor specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | DT602 (6 in plate, 2 ft cable) · DT606 (6 in, 6 ft) · DT1202 (12 in, 2 ft) · DT1206 (12 in, 6 ft) |

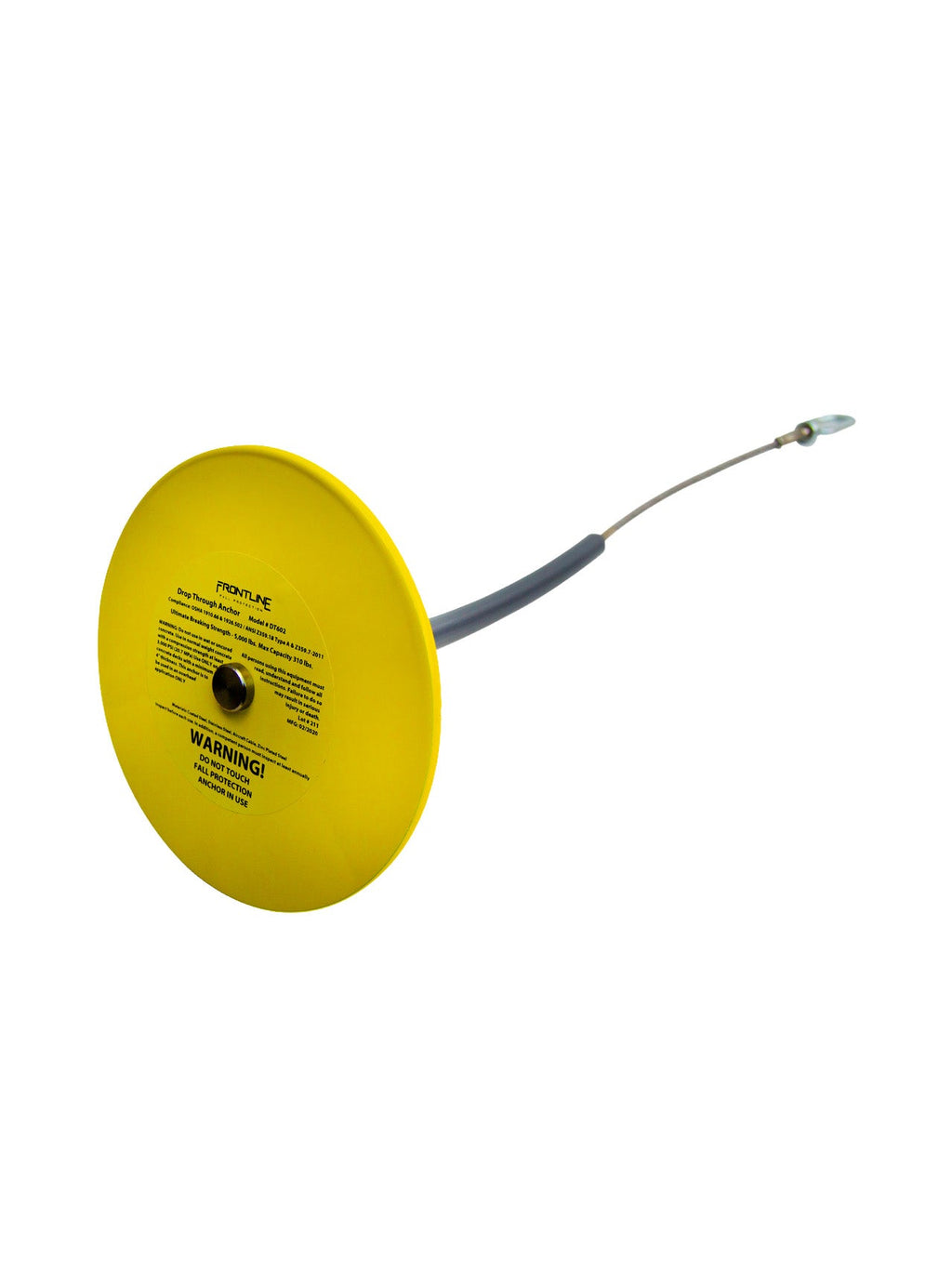

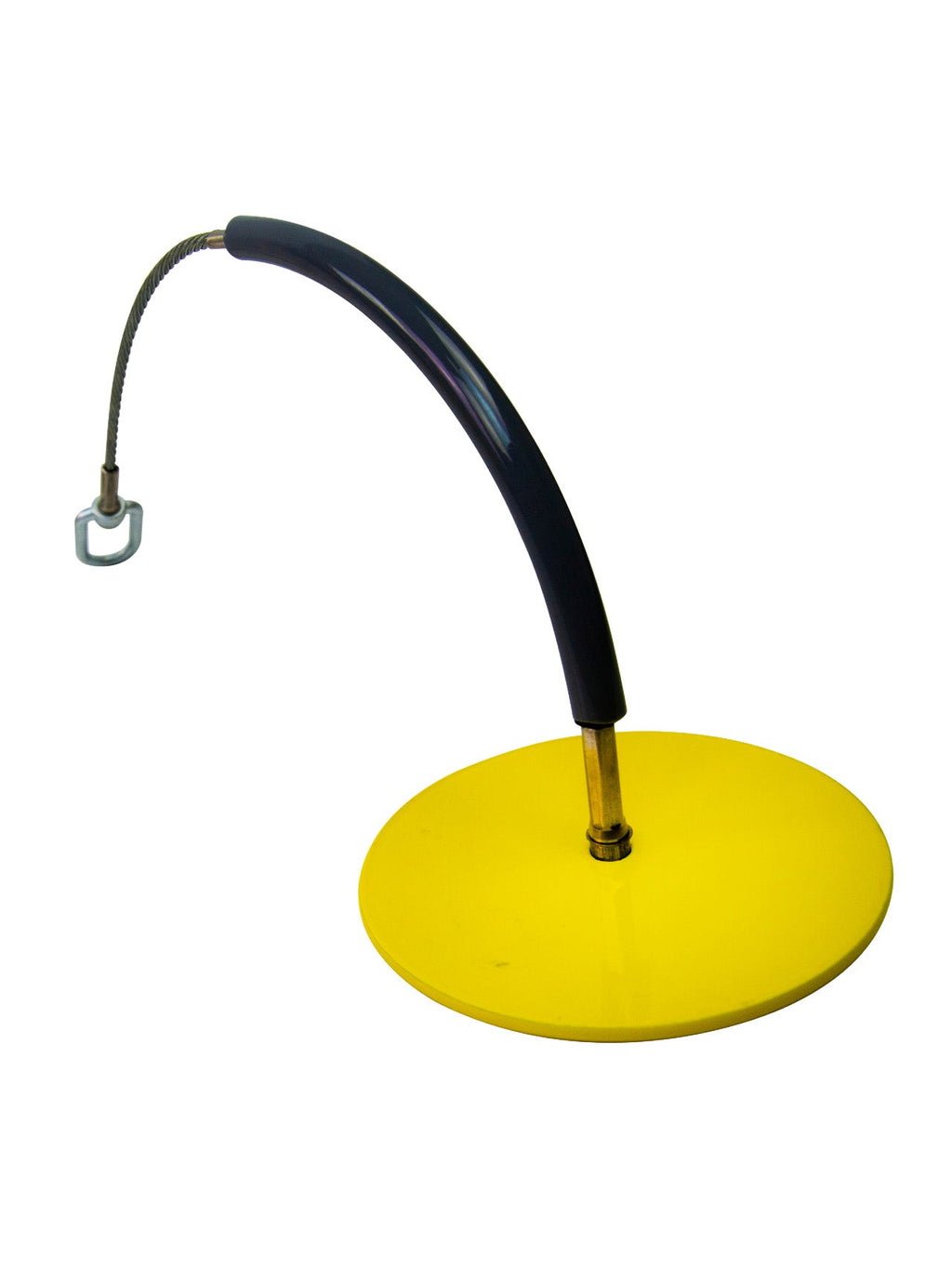

| Plate | 6 in or 12 in round, coated steel |
| Cable | Aircraft cable, 2 ft or 6 ft, polyurethane tubing |
| Connector | Zinc-plated steel swivel ring; stainless steel end termination |
| Static tensile strength | 5,000 lbf (22 kN) |
| User capacity | 310 lb |

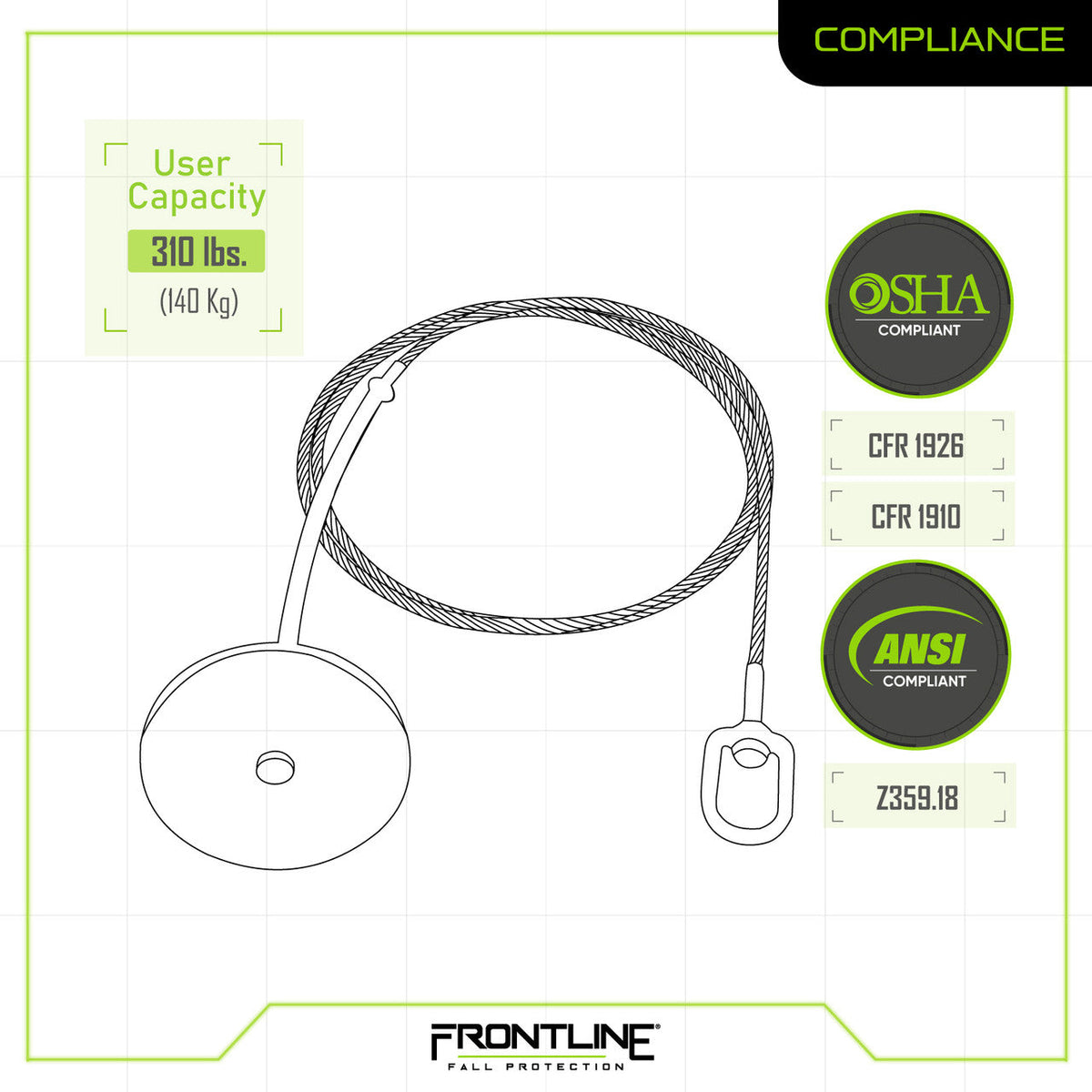

| Standards | Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140 and OSHA 1926.503 |
| Unit weight / dimensions | Not published by Frontline; ask us |
| Region | Stocked in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline DT drop-thru anchor
Concrete decks and floors
Drop through a sleeve, core hole or floor opening on the slab above and tie off below.
Steel grating and mezzanines
Seat the plate across the grating from above for work on the level below.
Bridge and girder work
Overhead anchor through gaps between girders or deck panels.
Precast and parkades
Reusable anchor that leaves no hole or insert behind in the finished structure.
Is the Frontline DT anchor CSA certified? Compliance in Canada
Is the Frontline DT drop-thru anchor CSA certified?
No. Frontline rates it to ANSI Z359.18, ANSI Z359.7, OSHA 1910.140 and OSHA 1926.503. For CSA-marked anchors, see our Safety Direct range.
Which plate size do I need, 6 in or 12 in?
The plate must be larger than the opening it drops through and bear fully on a surface that can take the load. Use the 12 in plate for larger openings or grating; measure the opening first.
Which cable length should I pick?
2 ft keeps the connection point close to the surface; 6 ft reaches down through thick decks or to a lower connection point. Keep the total system fall clearance in mind.
Is the DT anchor penetrating?
No. It is a non-penetrating anchor; nothing is drilled, cast in or welded, and it lifts out when the job is done.
How often should the DT anchor be inspected?
Before every use, and formally by a competent person at least once a year. Retire it after any fall or if the cable, tubing or plate coating is damaged.
Pair the Frontline DT anchor with an SRL or lanyard
The DT is the anchorage connector. Add a full-body harness and an SRL or shock-absorbing lanyard for a complete personal fall arrest system.
