Frontline MPW Wire Rope Choker Anchor 4' / 6' | Canada

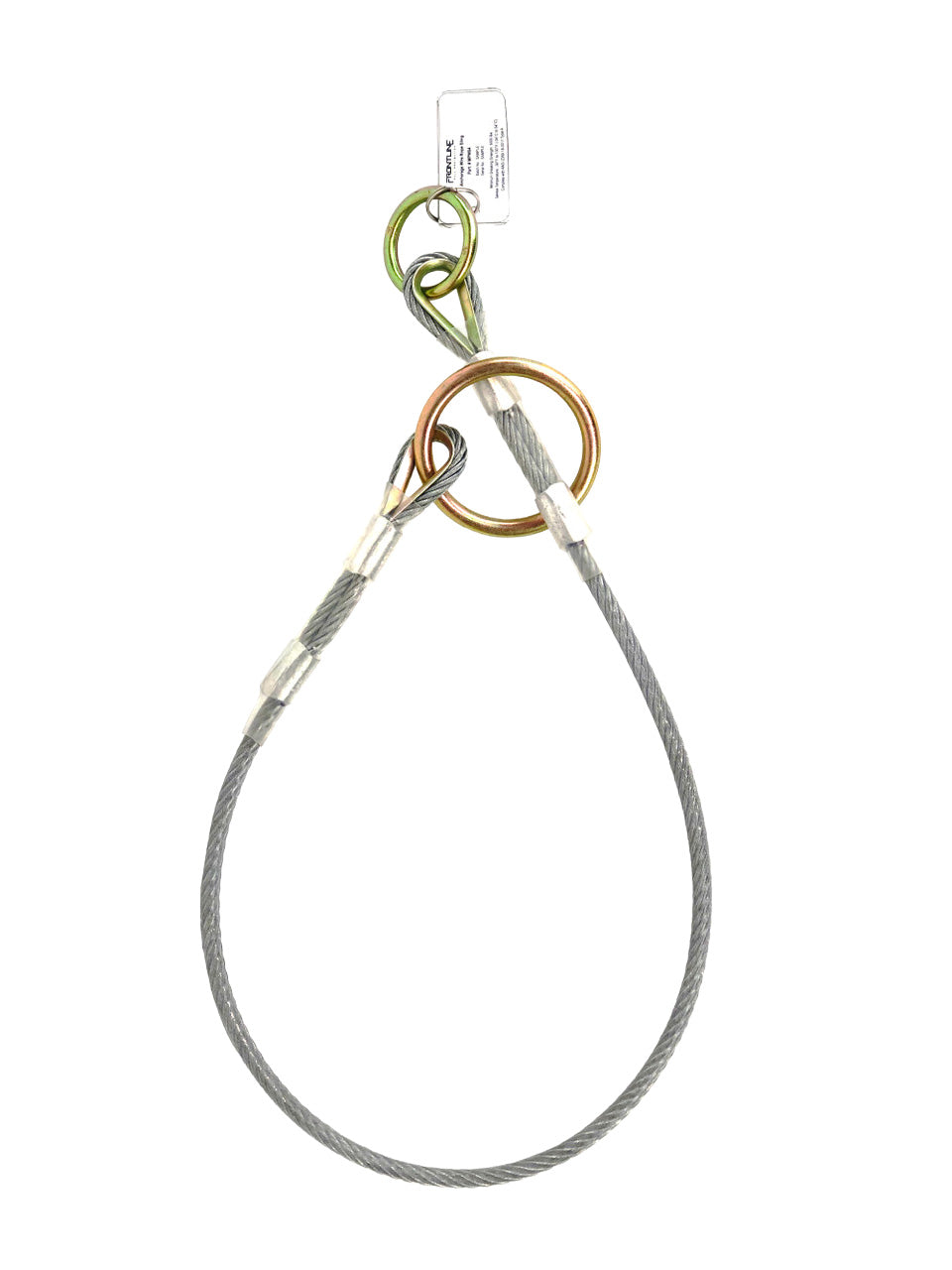

Frontline MPW Wire Rope Choker Anchor 4' / 6' | Canada. A 5/16 in galvanized wire rope choker for quick, non-penetrating tie-off wherever there is a beam, pipe or structural member to wrap. PVC coating runs the full length of the cable to protect the structure and the cable. No tools: wrap it, pass the small ring through the large ring, clip on your SRL or lanyard. 4 ft (MPW04) or 6 ft (MPW06), 5,000 lb connector strength.

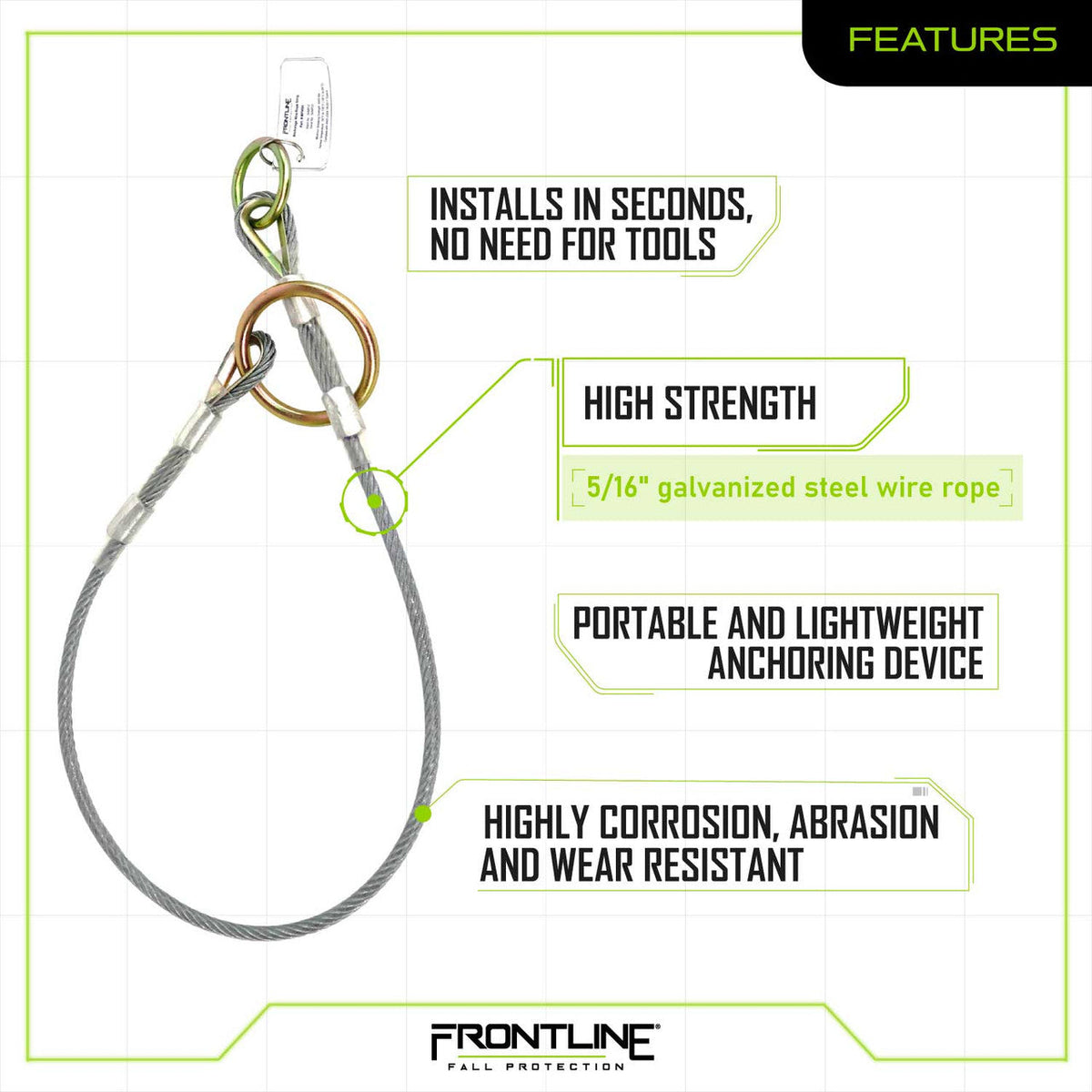

Frontline MPW wire rope choker anchor key features
- Installs in seconds without tools
- Portable and lightweight; lives in the gang box or truck
- High-strength galvanized steel wire rope, 5/16 in
- PVC coating over the full cable length protects the structure it wraps
- Resists corrosion, abrasion and wear
- Non-penetrating: nothing is drilled or welded

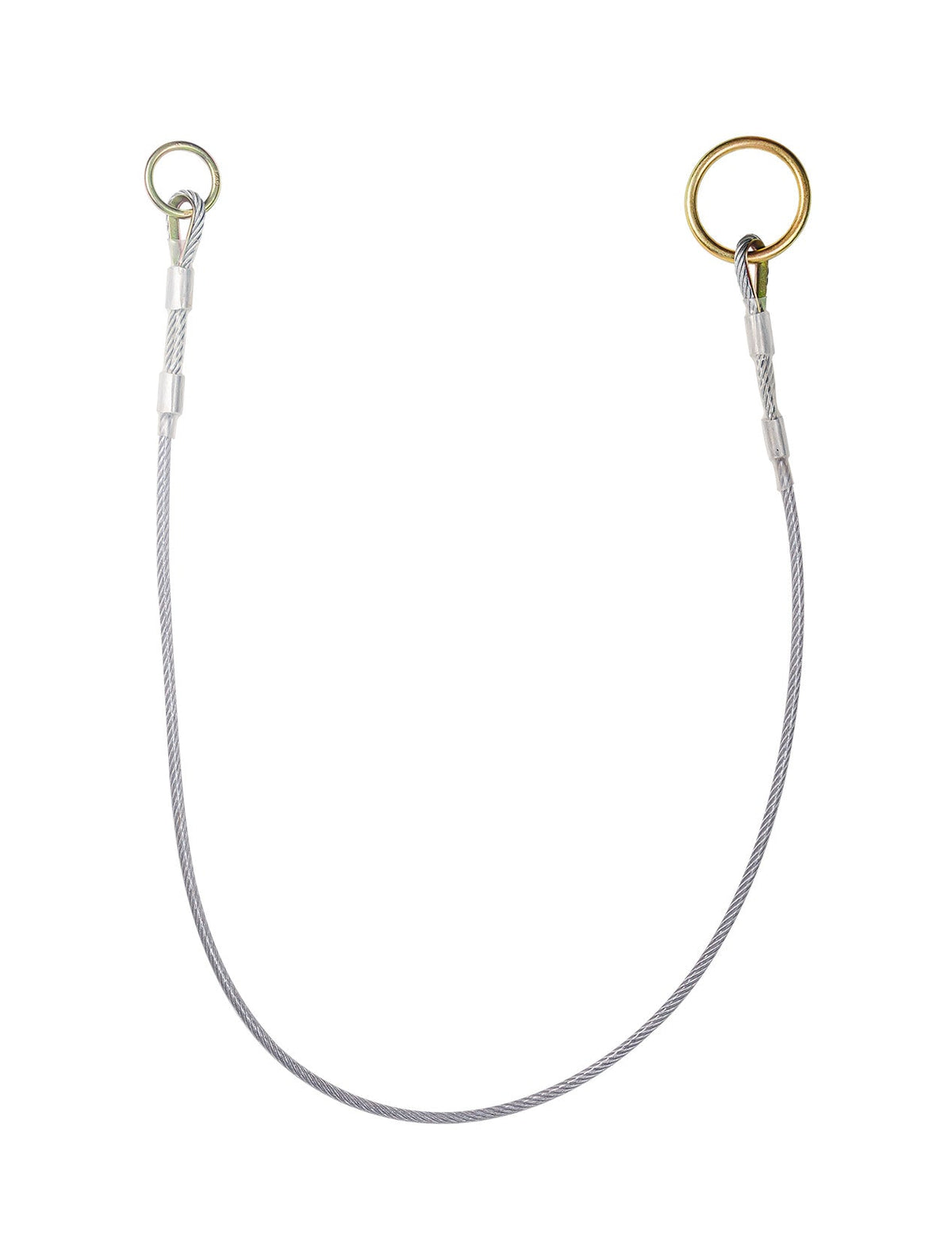

- Two lengths: 4 ft (MPW04) and 6 ft (MPW06)
Frontline MPW04 and MPW06 choker anchor specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | MPW04 (4 ft) · MPW06 (6 ft) |

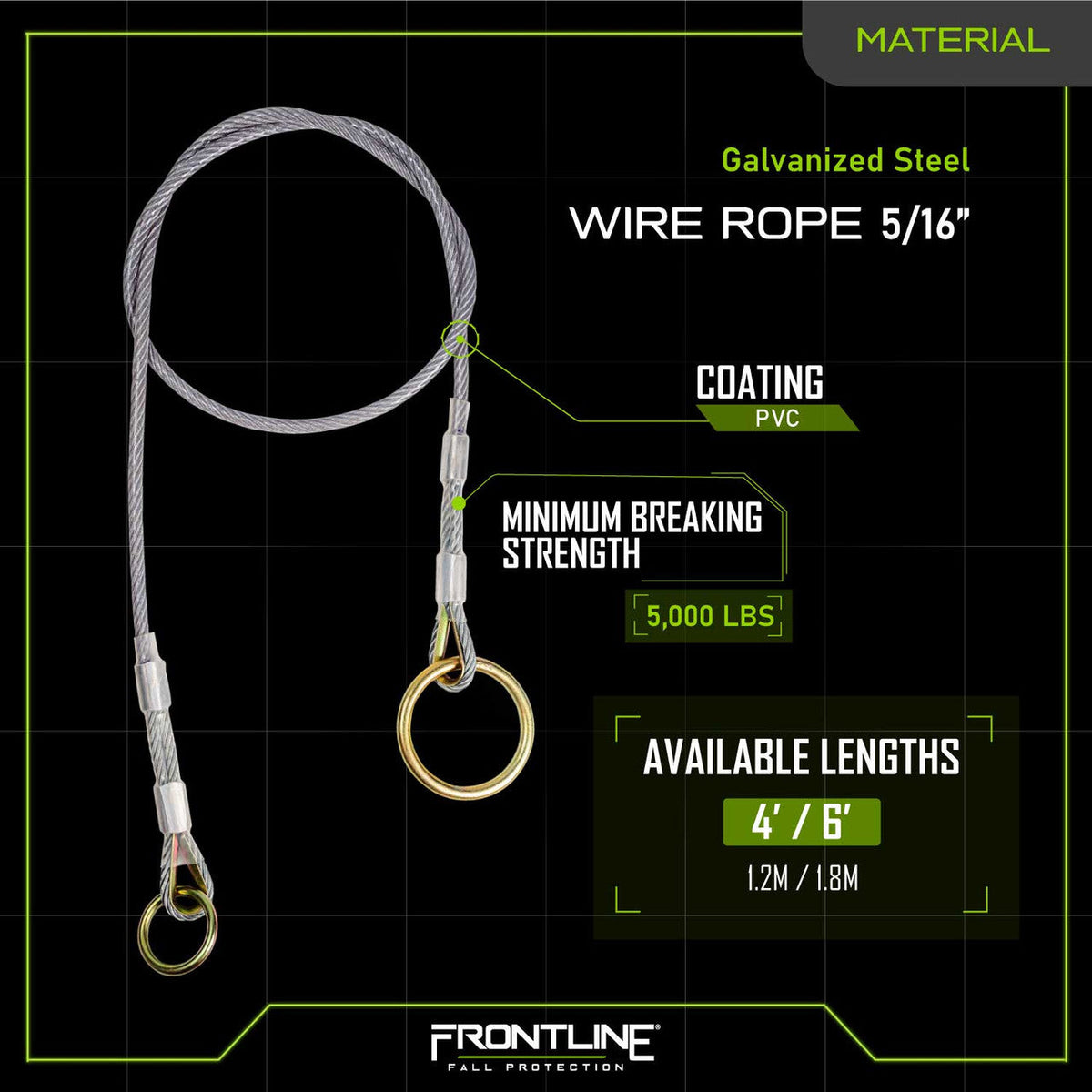

| Cable | Galvanized steel wire rope, 5/16 in diameter, PVC coated full length |
| Length | 4 ft or 6 ft |
| Connector strength | 5,000 lb |
| User capacity | 310 lb |

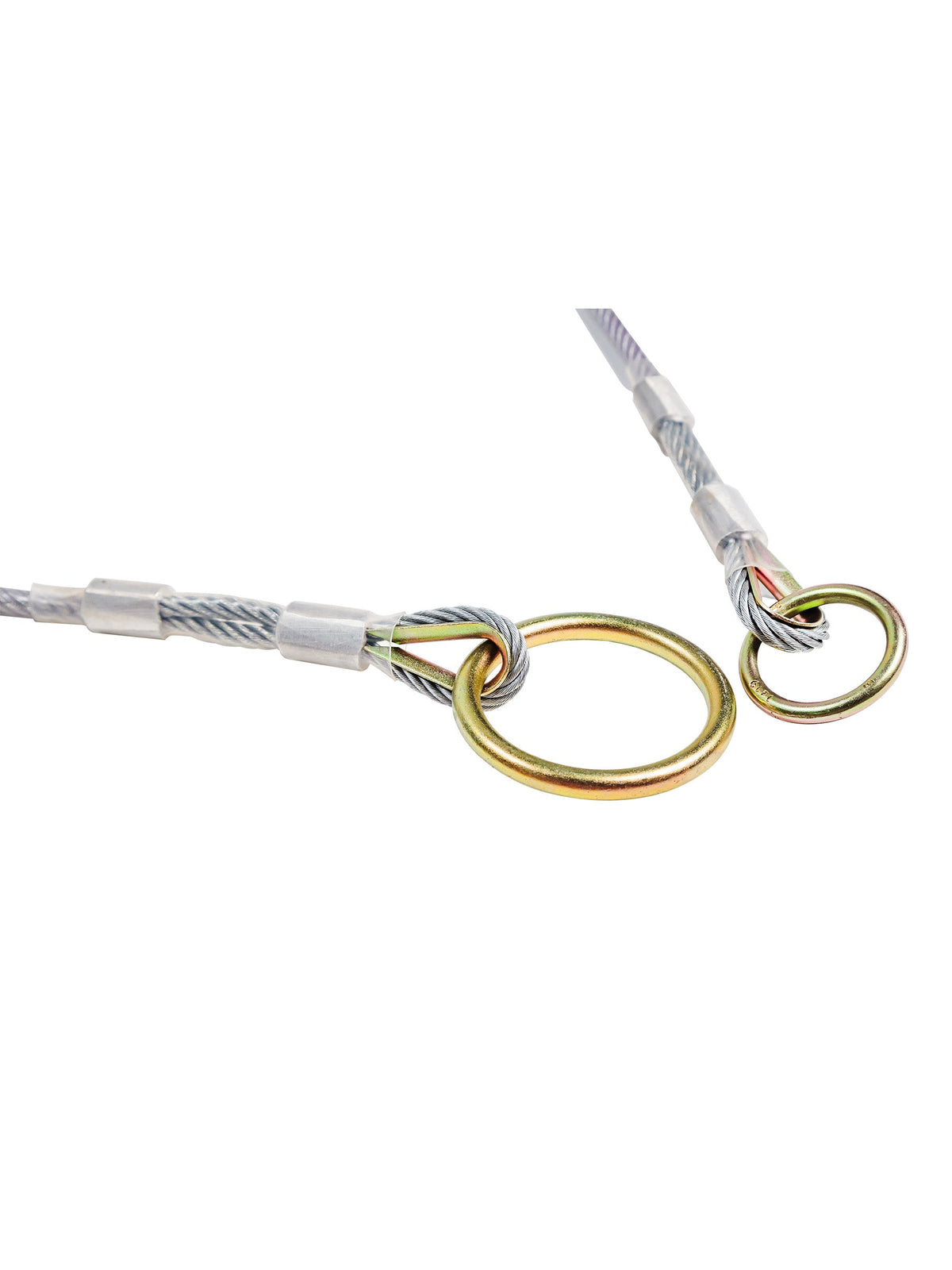

| Installation | Wrap the member, pass the small ring through the large ring, attach the SRL or lanyard; no tools |
| Standards | Meets or exceeds OSHA 1926 Subpart M and OSHA 1910; Frontline also states it meets ANSI standards but does not name the ANSI number on its page |
| Unit weight | Not published by Frontline; ask us |
| Region | Stocked in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline MPW choker anchor
Structural steel
Choke a beam or column for a quick overhead tie-off while an SRL does the work.
Scaffold and formwork
Wrap a leg, ledger or wall form member where no engineered anchor exists.
Plant and pipe racks
Non-penetrating anchor on pipe supports and racks, PVC coating keeps the paint intact.
Bridge and utility
Carry one in the truck for odd tie-offs on girders, poles and towers.
Is the Frontline MPW choker CSA certified? Compliance in Canada
Is the Frontline MPW choker anchor CSA certified?
No. Frontline rates it to OSHA 1926 Subpart M and OSHA 1910 and states it meets ANSI standards. For CSA-marked anchors, see our Safety Direct range.
How do I install the MPW wire rope choker?
Wrap the cable around a structural member that can take the load, pass the smaller ring through the larger ring, and attach your SRL or lanyard to the small ring. No tools.
MPW wire rope choker or MPS cross arm strap: which one?
The MPW is 5/16 in PVC-coated galvanized wire rope; the MPS is reinforced webbing. Both are non-penetrating wrap anchors rated 5,000 lb; the wire rope resists abrasion on sharp or hot steel, the web strap is lighter and kinder to finished surfaces.
Which length should I order, 4 ft or 6 ft?
Pick the length that wraps your member and still leaves the small ring free to pass through the large ring. Frontline does not publish a maximum member size; ask us if you are unsure.
How often should the MPW be inspected?
Before every use, and formally by a competent person at least once a year. Retire it after any fall or if the cable is kinked, frayed or the coating is cut through.
Pair the Frontline MPW choker with an SRL or lanyard
The MPW is the anchorage connector. Add a full-body harness and an SRL or shock-absorbing lanyard for a complete personal fall arrest system.
