Frontline RAW50-US Patriot 50 ft Material Retrieval Winch | Canada
$2,688.99

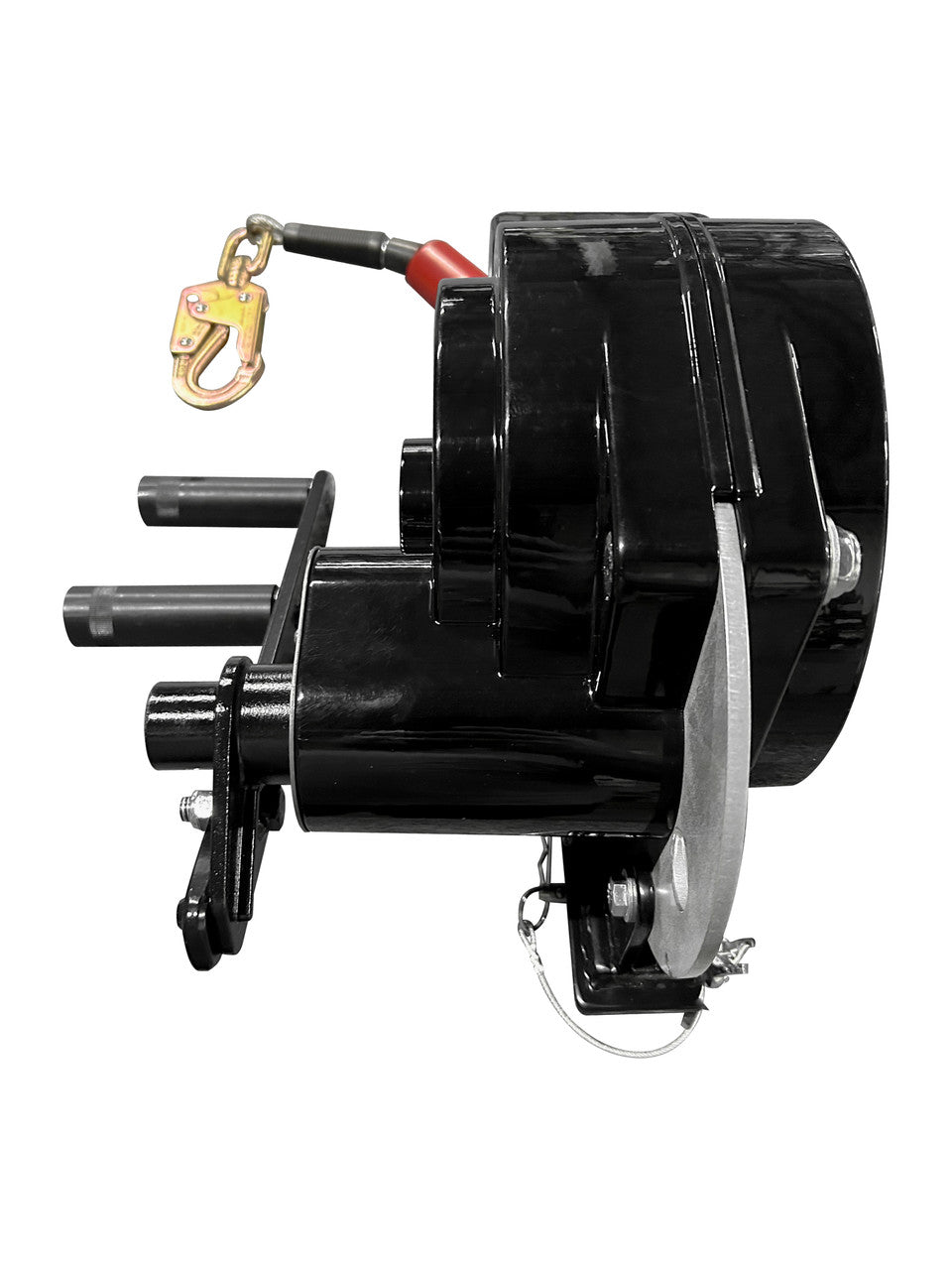

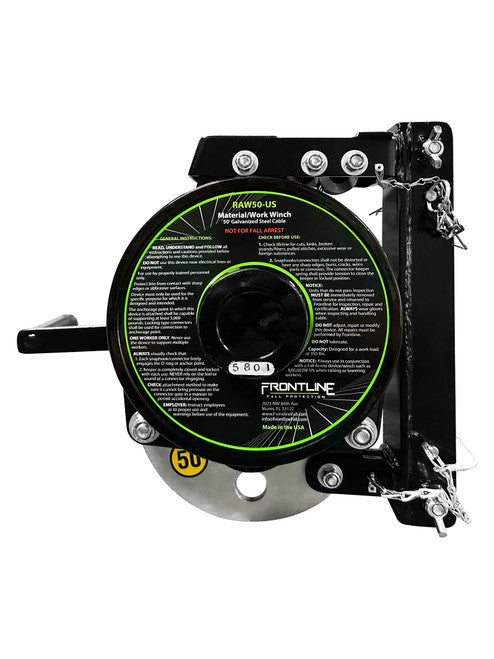

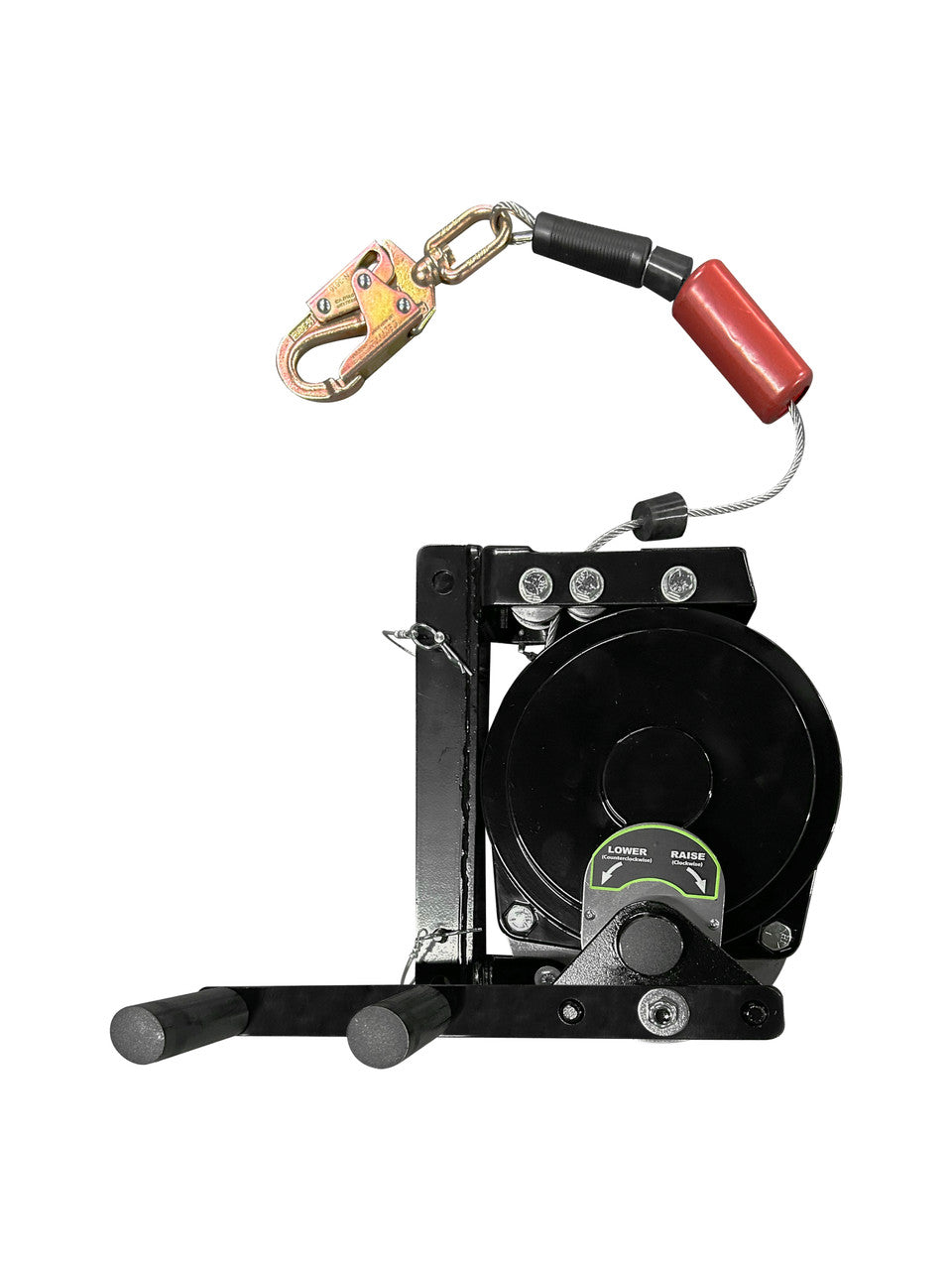

Frontline RAW50-US Patriot 50 ft winch. The 50 ft material retrieval winch from Frontline's Patriot line, for lowering and raising on a Patriot tripod, davit or quadpod. 3/16 in galvanized wire rope, 350 lb maximum workload, 4,200 lb lifeline breaking strength, 38 lb.
Compliance in Canada: OSHA / ANSI, not CSAFrontline rates the RAW50-US to the US standards listed below. It is not CSA certified. If your site or province requires CSA-marked equipment, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Inspect before each use.
Equipment type
Confined Space Winch
Weight
38 lbs
Cable Length
50'
Wire Rope Diameter
3/16"
Frontline RAW50-US Patriot 50 ft winch key features
- Swiveling steel snaphook connector for secure, flexible attachment

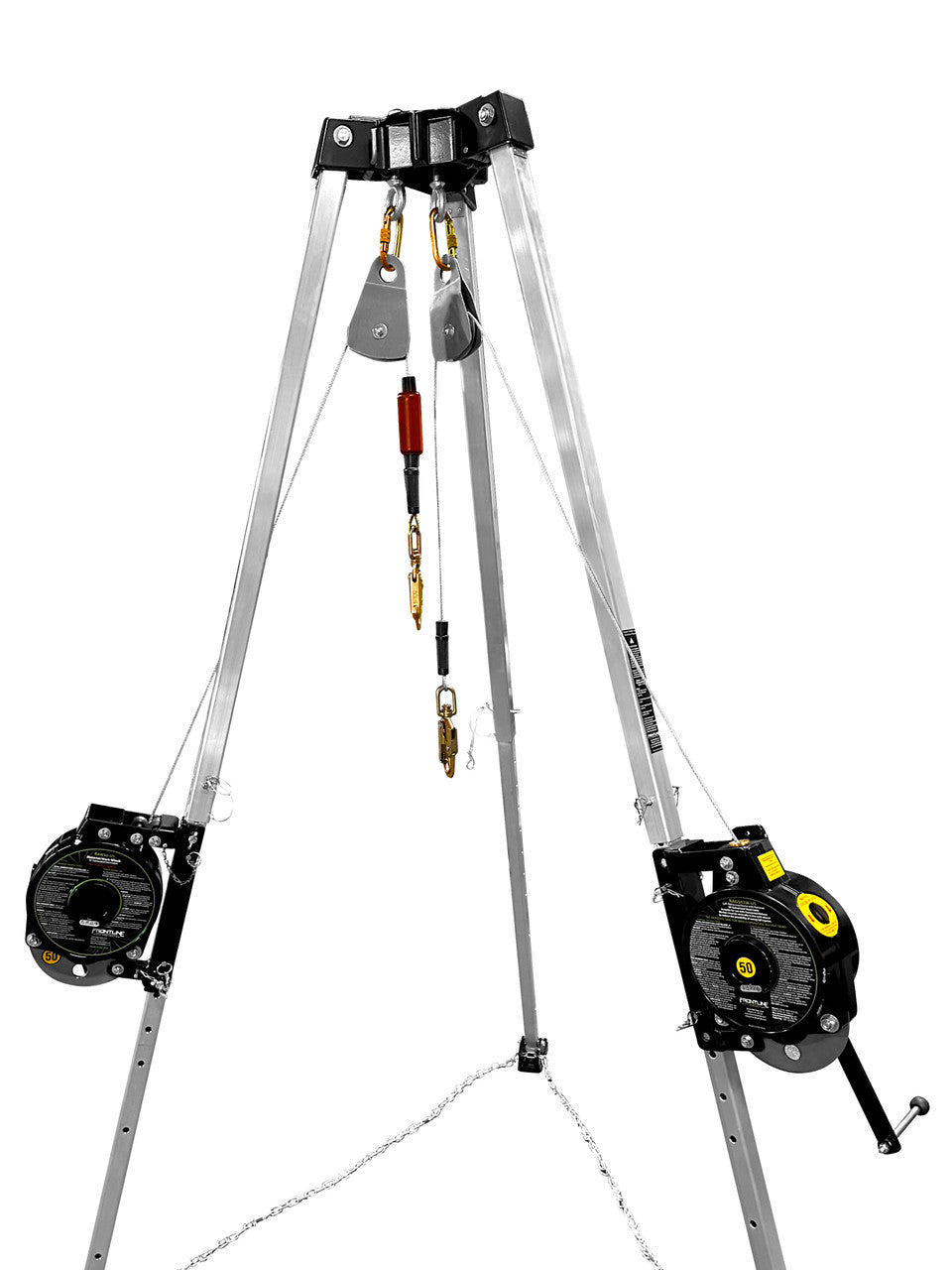

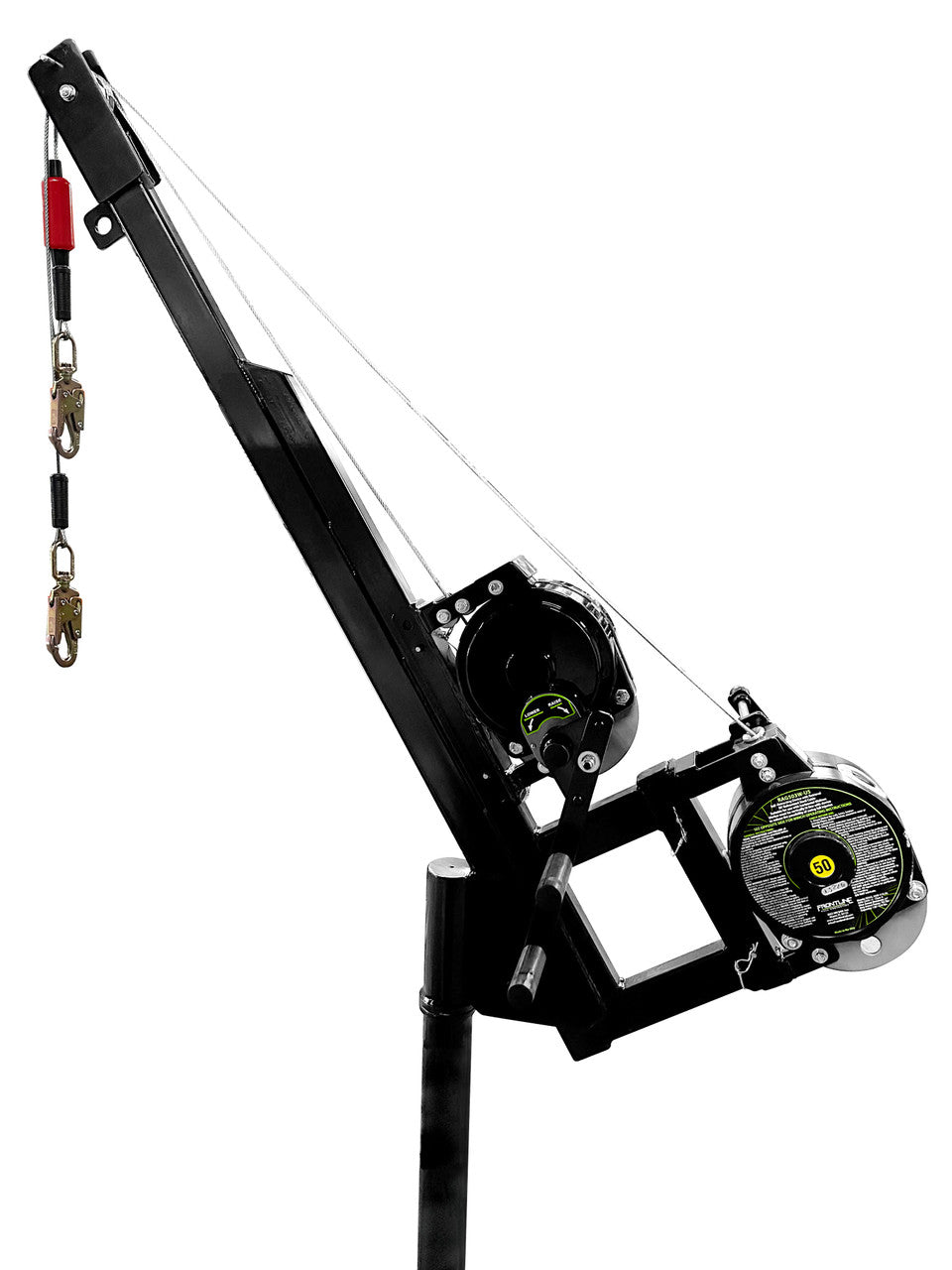

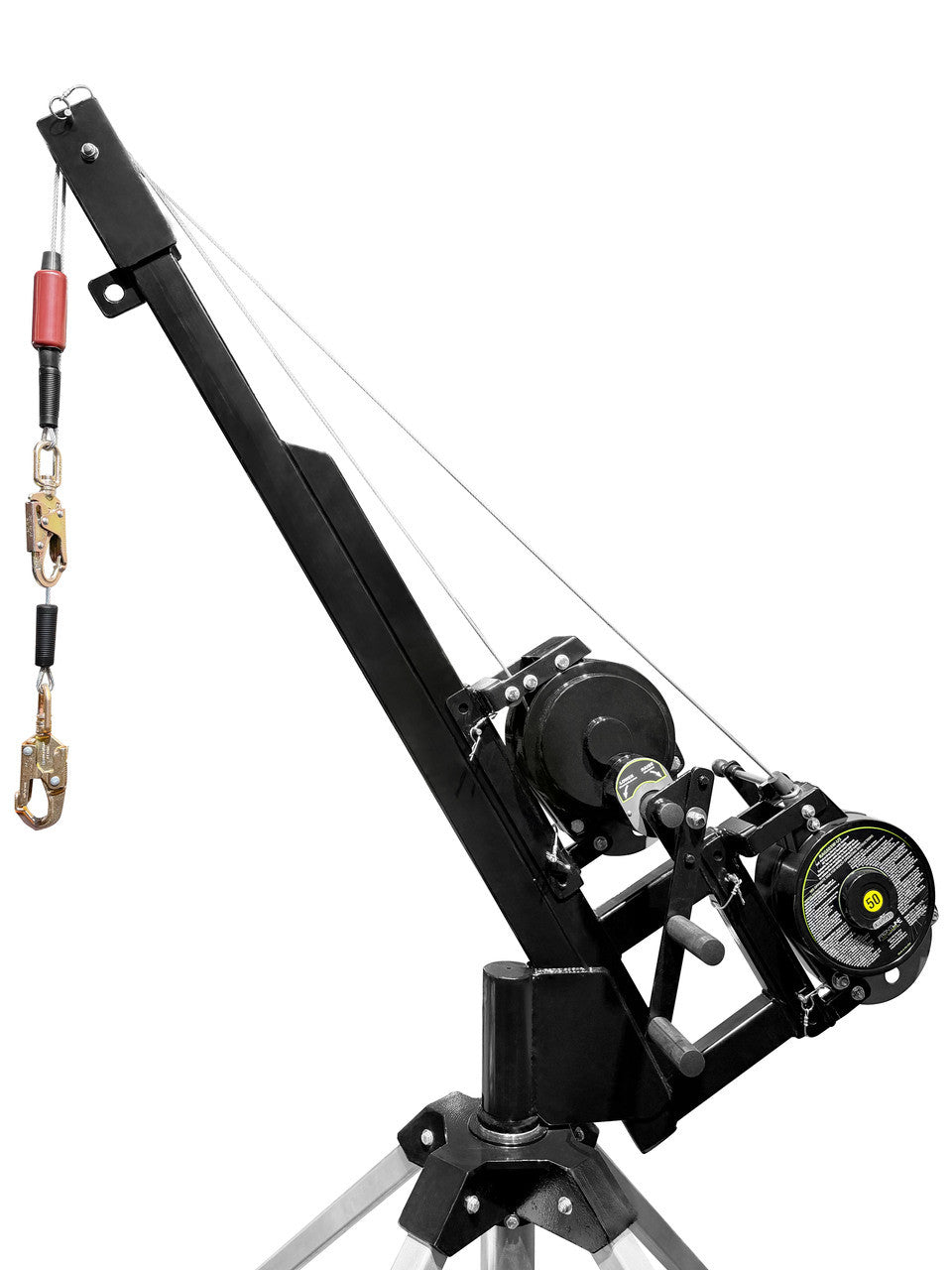

- Mounting plate with locking bolts for fast, dependable installation on Patriot tripod, quadpod and davit systems
- Smooth operation for controlled lifting and lowering
- 50' galvanized steel wire rope
Frontline RAW50-US Patriot 50 ft winch specifications
| Manufacturer | Frontline |
|---|---|
| Model / SKU | RAW50-US |
| Weight | 38 lbs |
| Cable Length | 50' |
| Wire Rope Diameter | 3/16" |
| Maximum Workload | 350 lbs |
| Lifeline Breaking Strength | 4,200 lbs |
| Standards | Frontline publishes no standard on this page; rated as part of the Frontline system it fits |
Where crews use the Frontline RAW50-US Patriot 50 ft winch
Manholes and vaults
Lower and retrieve entrants over an opening.
Tanks and pits
Permit-required confined space entry.
Non-entry rescue
Bring a worker out without sending anyone in.
Utility crews
Fast setup on site.
Canadian store
Sold by Fall Protection Canada, Paris, Ontario. CAD pricing, no duties, no border surprises, Canada-wide shipping.
Is the Frontline RAW50-US CSA certified? Compliance in Canada
Is the Frontline RAW50-US winch CSA certified?
No. Frontline rates the RAW50-US to US standards (ANSI/OSHA); it is not CSA certified. For CSA-marked equipment see our Safety Direct range.
What to pair with the Frontline RAW50-US Patriot 50 ft winch
Pair the RAW50-US with a Patriot tripod, davit or quadpod and a full-body harness, and train the crew on inspection and rescue.
