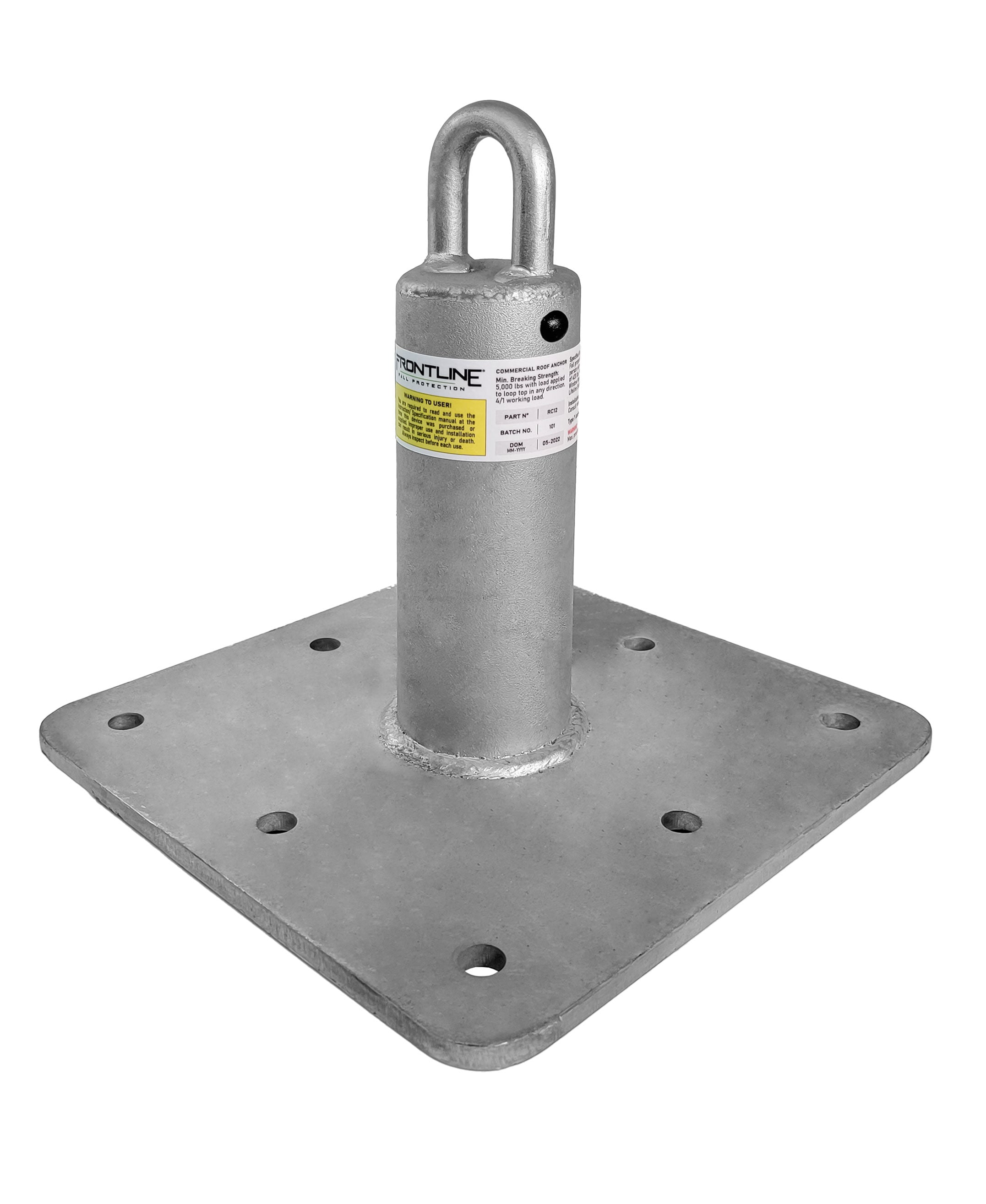

Frontline RC18 18" Concrete Roof Anchor | Canada
ROOF ANCHORANSI Z359.18MODEL RC18
The Frontline RC18 18 in concrete roof anchor bolts to structural concrete as a single-worker tie-off for fall arrest, fall restraint and window-washing tie-back — hot-dip galvanized to shrug off rooftop exposure.
Key features
Specifications
| Model | RC18 |
| Product type | Anchorage Connector |
| Classification | ANSI Z359.18 · OSHA 1926.502 |
| Brand | Frontline |
CERTIFICATION — ANSI Z359.18 · OSHA 1926.502
Certified to US standards for anchorage connectors. Need the CSA mark for your site? Ask us about our CSA-certified roof anchors.
Frequently asked questions
Is the Frontline RC18 CSA certified for Canadian jobsites?
No. The RC18 is certified to ANSI Z359.18 and OSHA 1926.502 — not CSA Z259. Many Canadian sites accept ANSI/OSHA-rated equipment, but confirm with your authority having jurisdiction (AHJ) before use.
How much load does this anchor hold?
It meets the 5,000 lb (22.2 kN) anchorage requirement for a single worker in fall arrest. The supporting structure must also be able to carry the rated load.
How often should the anchor be inspected?
Inspect the anchor and your full personal fall arrest system before each use, and remove it from service if you find any deformation, cracking, corrosion or other damage.
