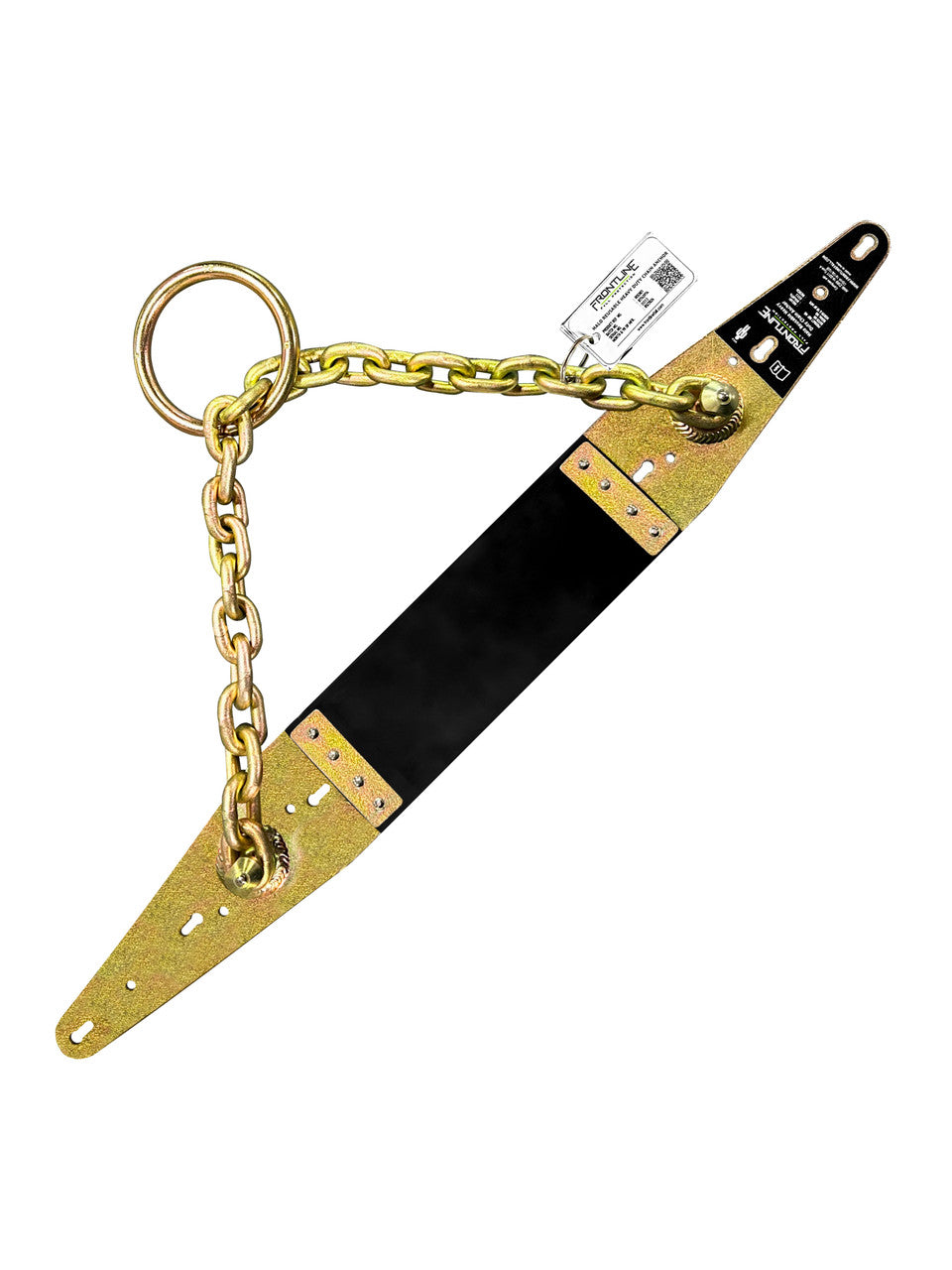

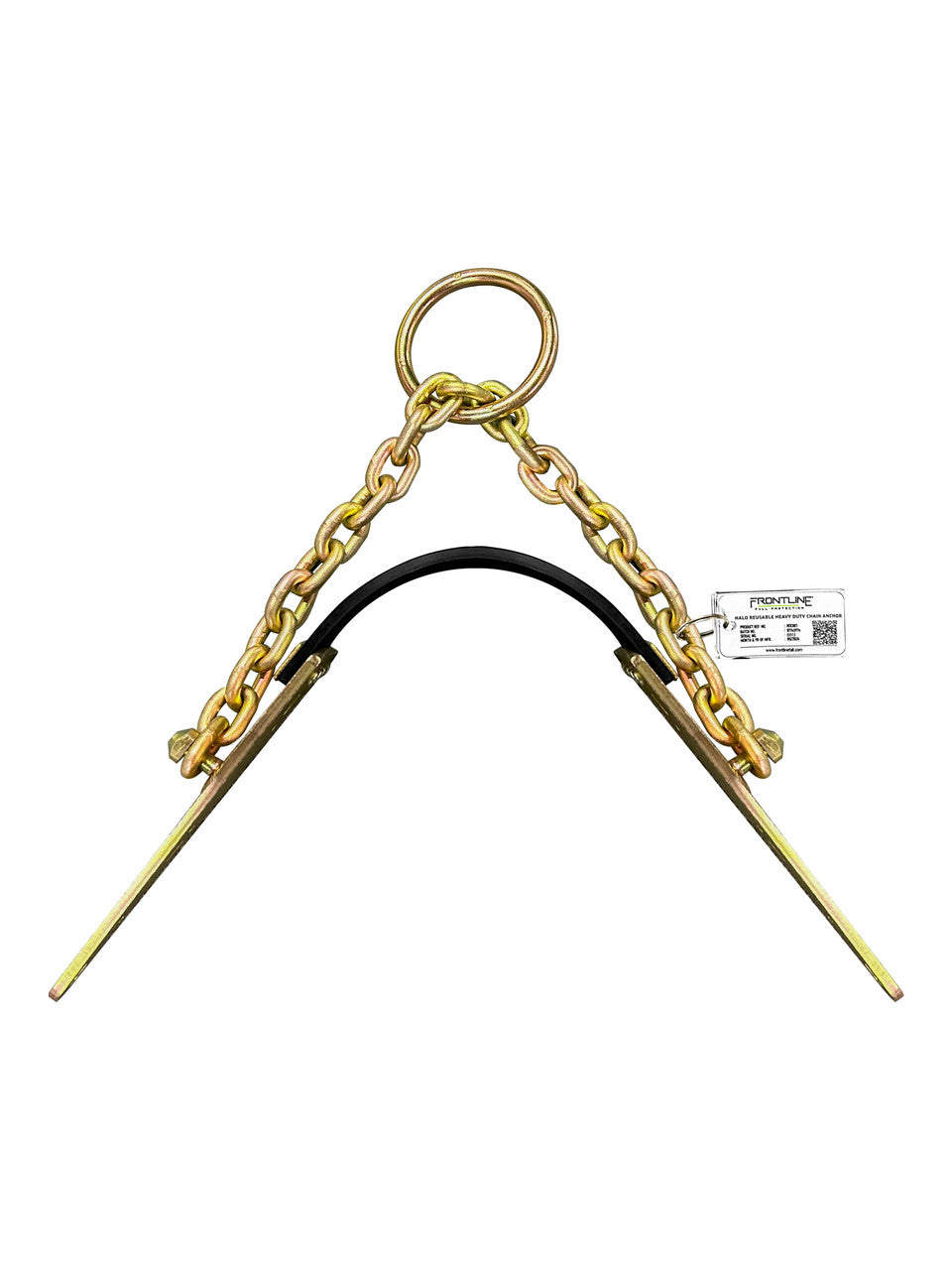

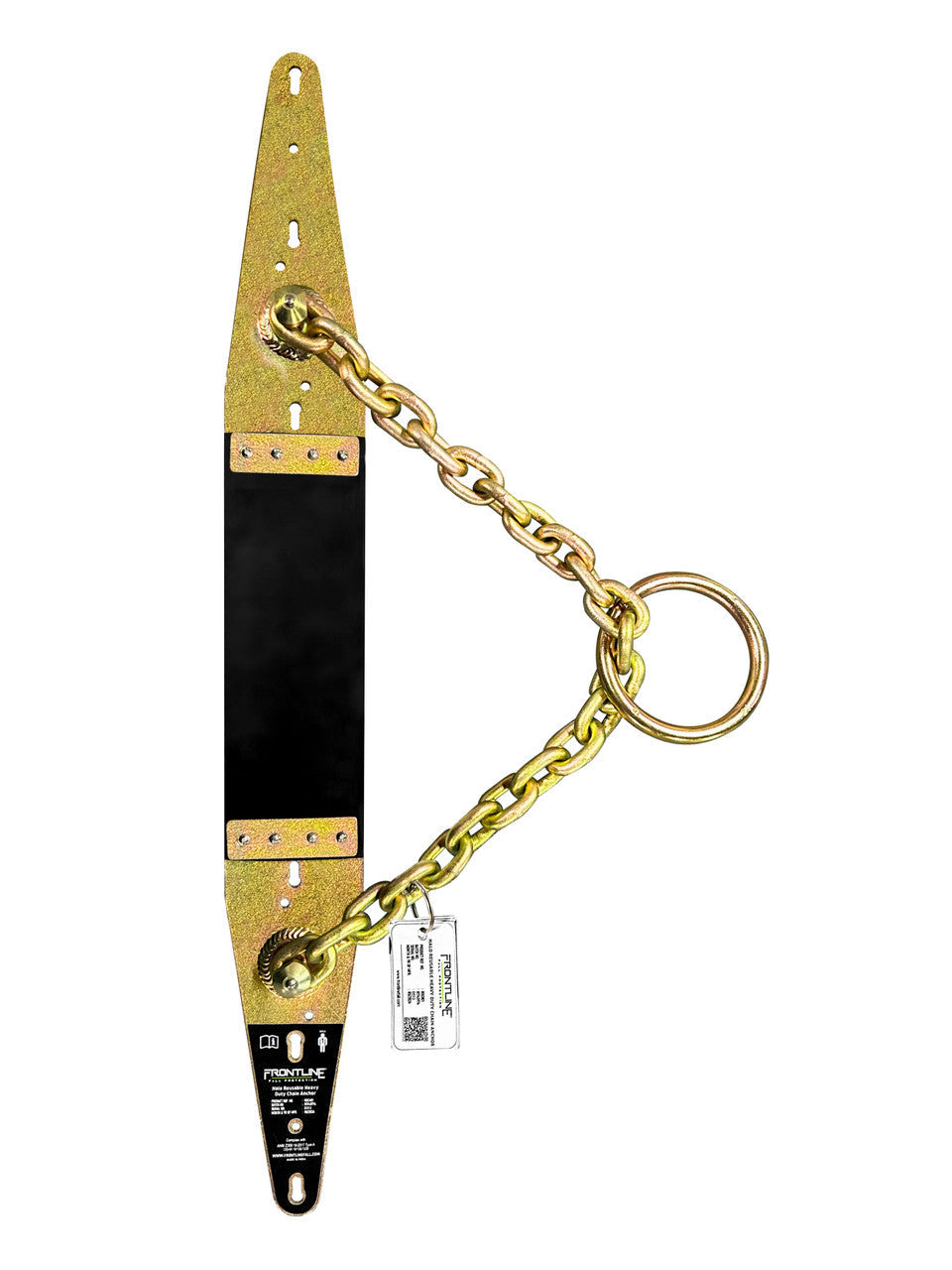

Frontline ROCH01 Halo Reusable Heavy-Duty Chain Anchor
Frontline ROCH01 Halo reusable anchor. A reusable roof anchor for wood structures. Two steel plates fasten to the roof with lag screws (6 holes) or nails (10 holes), and an integrated O-ring gives one worker a tie-off point. Light, reusable and quick to move between jobs.
Frontline ROCH01 Halo reusable roof anchor key features
- Fits a variety of wooden rooftop profiles
- Two steel plates with 6 holes for lag screws and 10 holes for nails
- Integrated O-ring tie-off point for one user at a time
- Lightweight, reusable and easy to install on job after job
Frontline ROCH01 Halo anchor specifications and materials
| Manufacturer | Frontline |
|---|---|
| Model / SKU | ROCH01 |
| Material | High-strength alloy steel |
| Finish | Shot blasted, yellow passivation |
| Breaking strength | 23 kN |
| Weight | About 5 lb (2.3 kg) |
| Fasteners | 6 lag-screw holes, 10 nail holes |
| Users | One at a time |
| Substrate | Wood structures |
| Standards | ANSI Z359.18-2017, OSHA (applicable standards) |

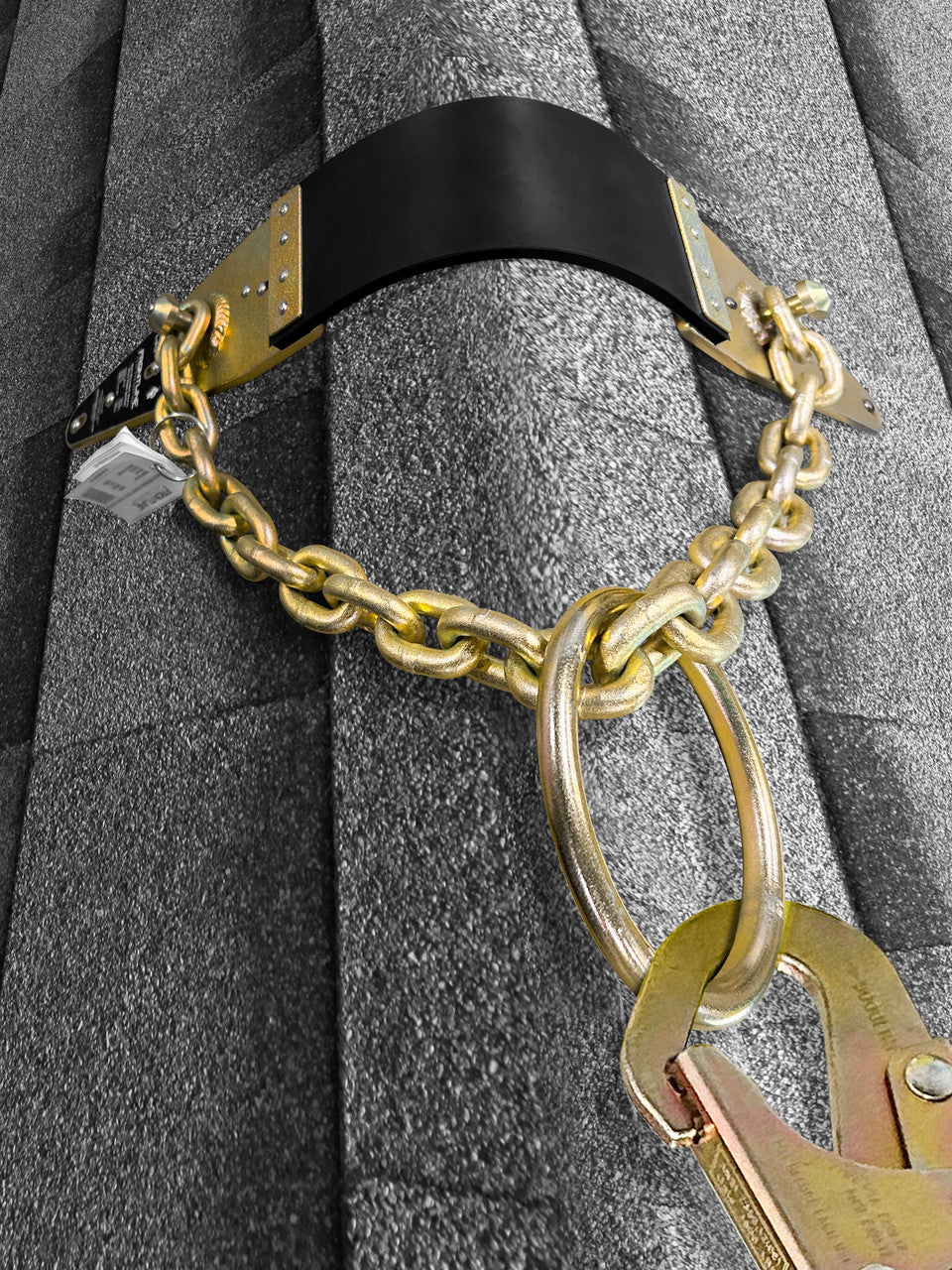

Where to use the Frontline ROCH01 Halo anchor on wood roofs
Residential re-roofs
Fasten to the wood deck and framing, then move to the next job.
Wood-framed new builds
Tie-off before the roofing goes on.
Shingle crews
One O-ring per worker on wooden roofs.
Repeat jobs
Reusable plates cut per-job anchor cost.
Frontline ROCH01 Halo anchor questions and CSA status
Is the Frontline ROCH01 Halo anchor CSA certified?
No. Frontline rates it to ANSI Z359.18-2017 and OSHA, not CSA Z259. If your site requires CSA-marked anchors, see our Safety Direct range.
What is the breaking strength of the Frontline ROCH01?
Frontline lists a 23 kN breaking strength. The wood structure it is fastened to must also carry the load; follow the installation manual.
What does the Frontline ROCH01 fasten to?
Wood structures. The two steel plates take lag screws (6 holes) or nails (10 holes).
How many workers can tie off to one ROCH01?
One worker at a time, on the integrated O-ring.
Pair the Frontline ROCH01 Halo anchor with a full system
Pair the ROCH01 with a full-body harness and a shock-absorbing lanyard, SRL or vertical lifeline to complete a personal fall arrest system.
