Frontline ROWT18 Roof Wood Truss Anchor | Canada
WOOD TRUSS ANCHOROSHA 1910.140 / 1926.502MODEL ROWT18

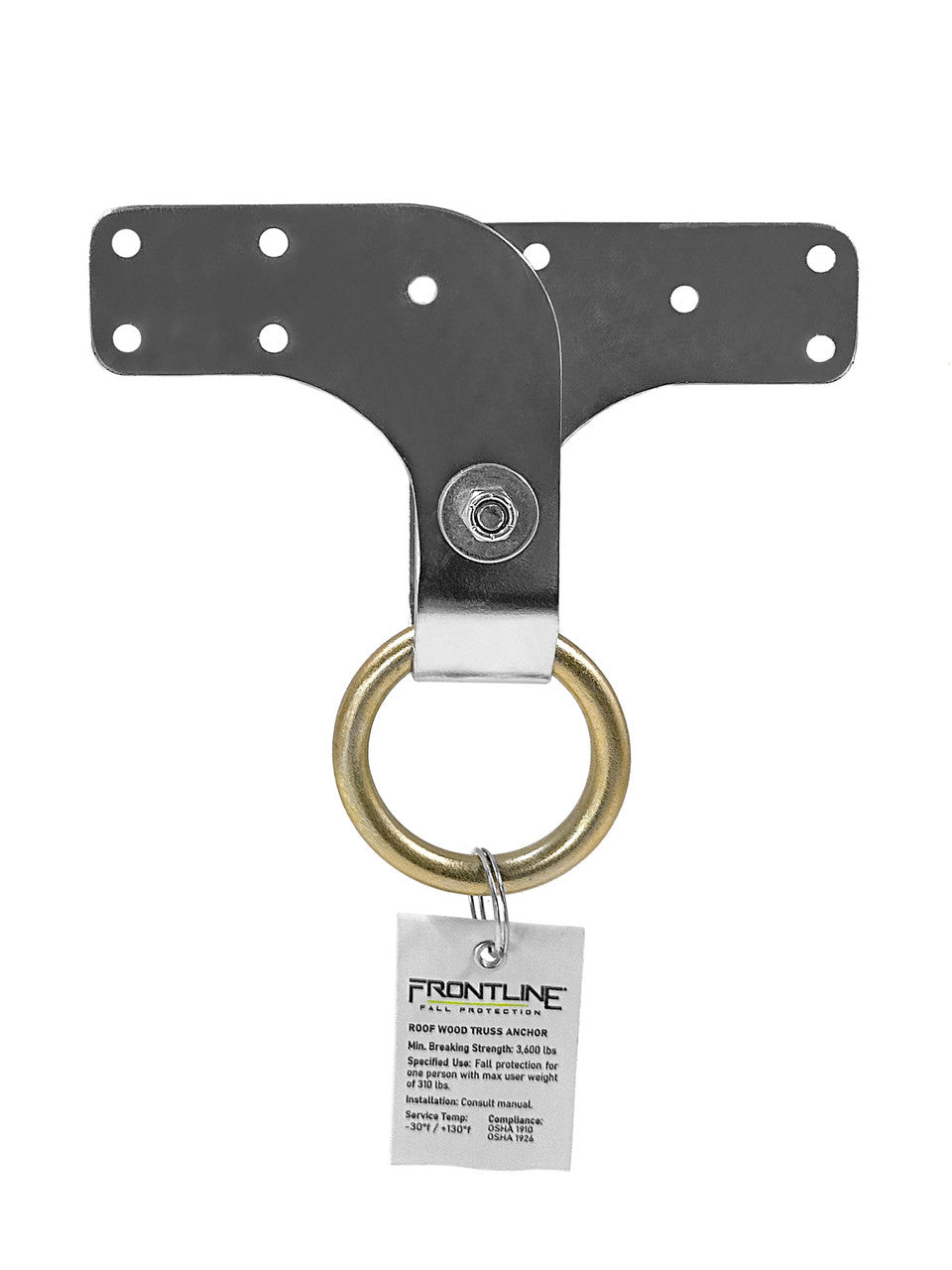

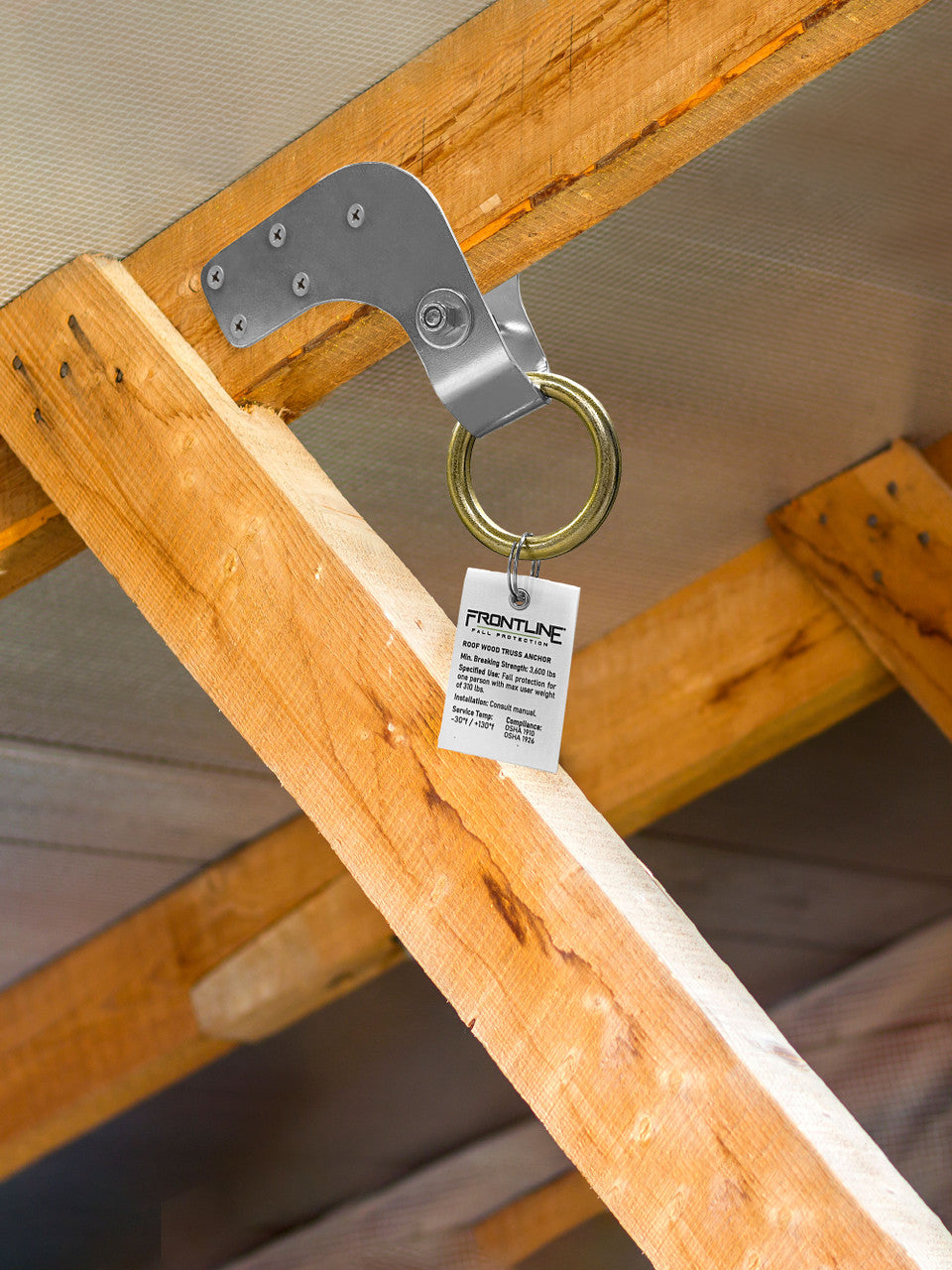

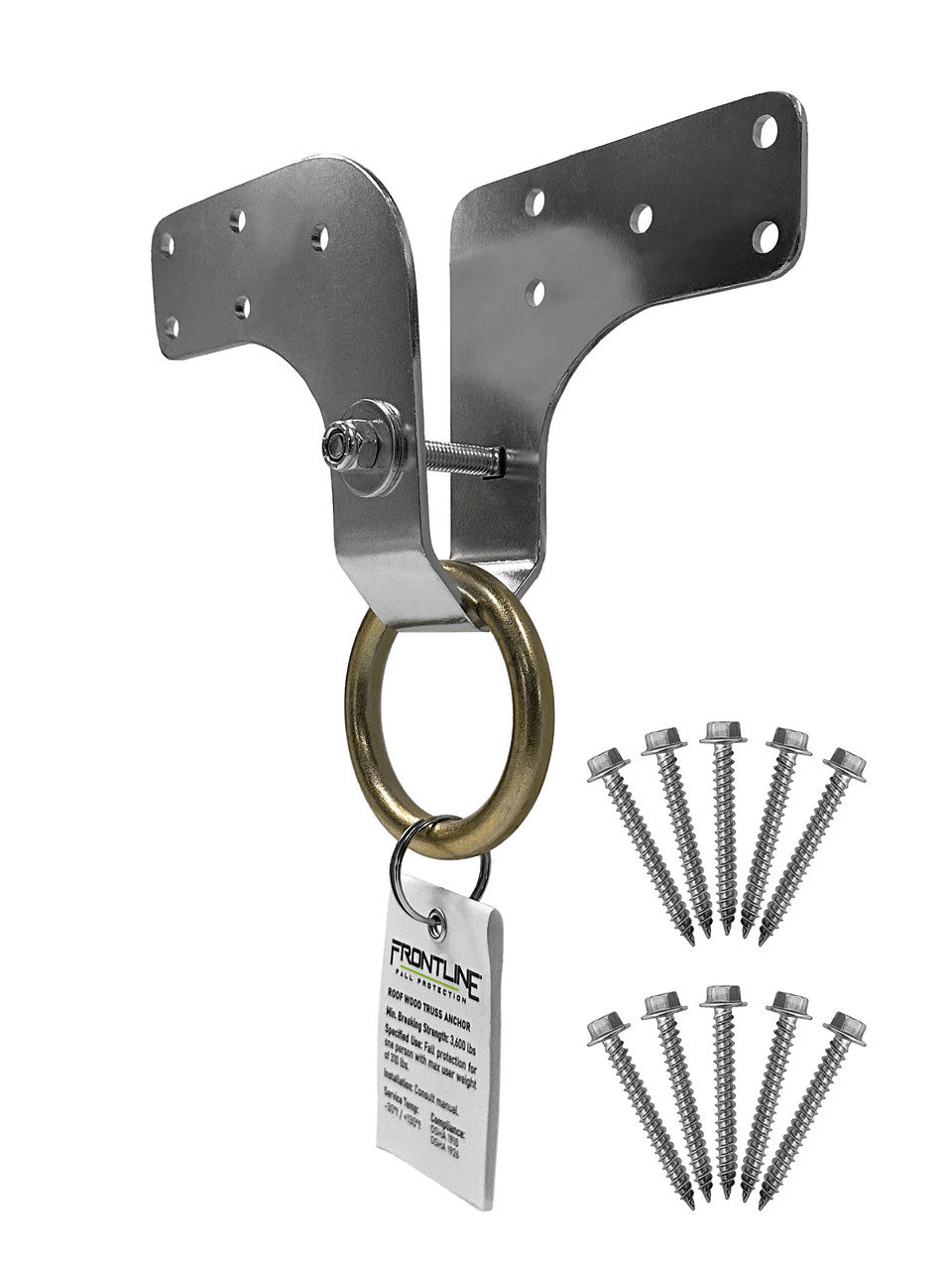

The Frontline ROWT18 is a small zinc-plated steel anchor that fastens to structural wood truss members at a range of angles, giving roofing crews a tie-off point on residential and light commercial roofs, in new construction or on existing structures. It weighs under a pound and installs in minutes with minimal tools once a sound truss member has been identified.

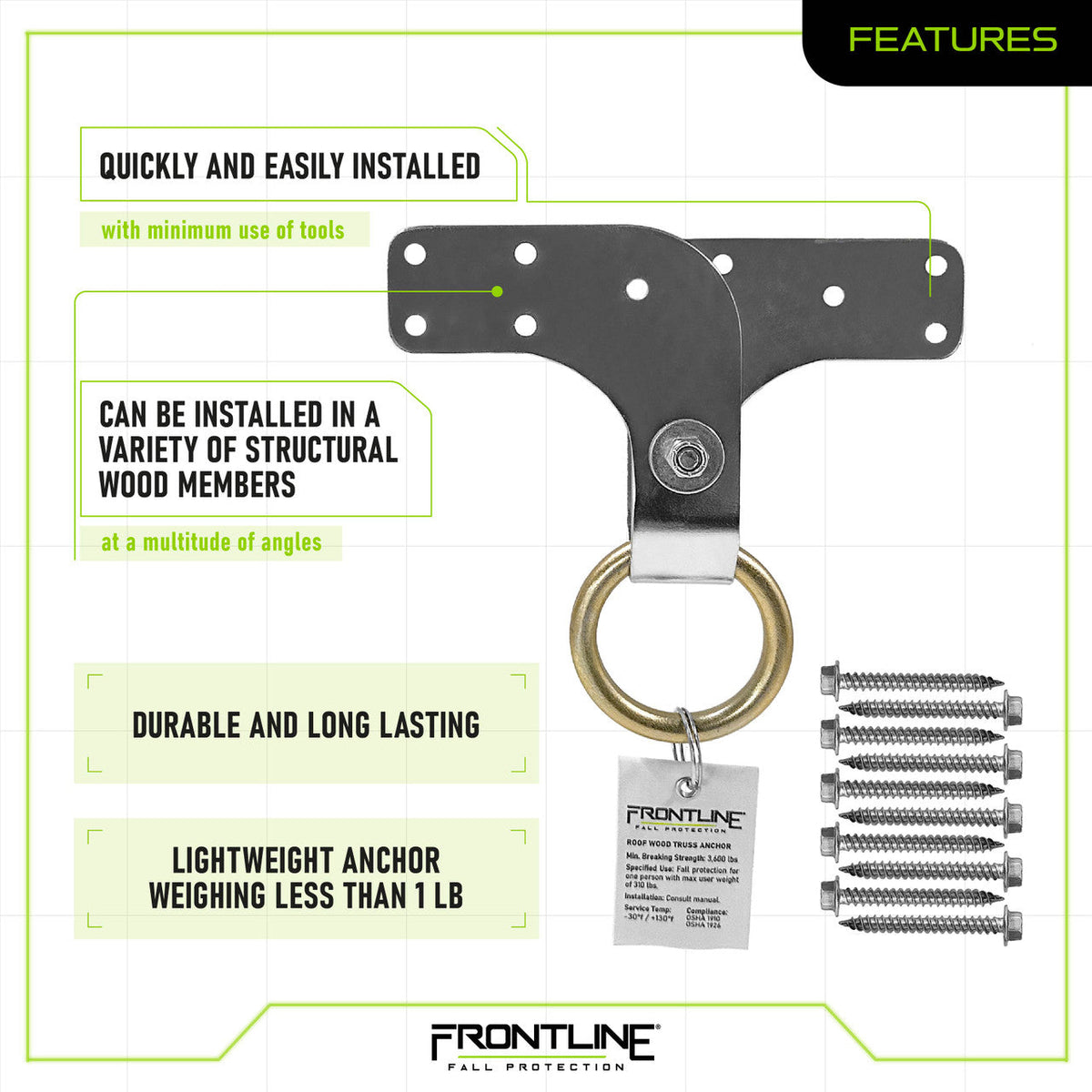

Frontline ROWT18 wood truss anchor key features

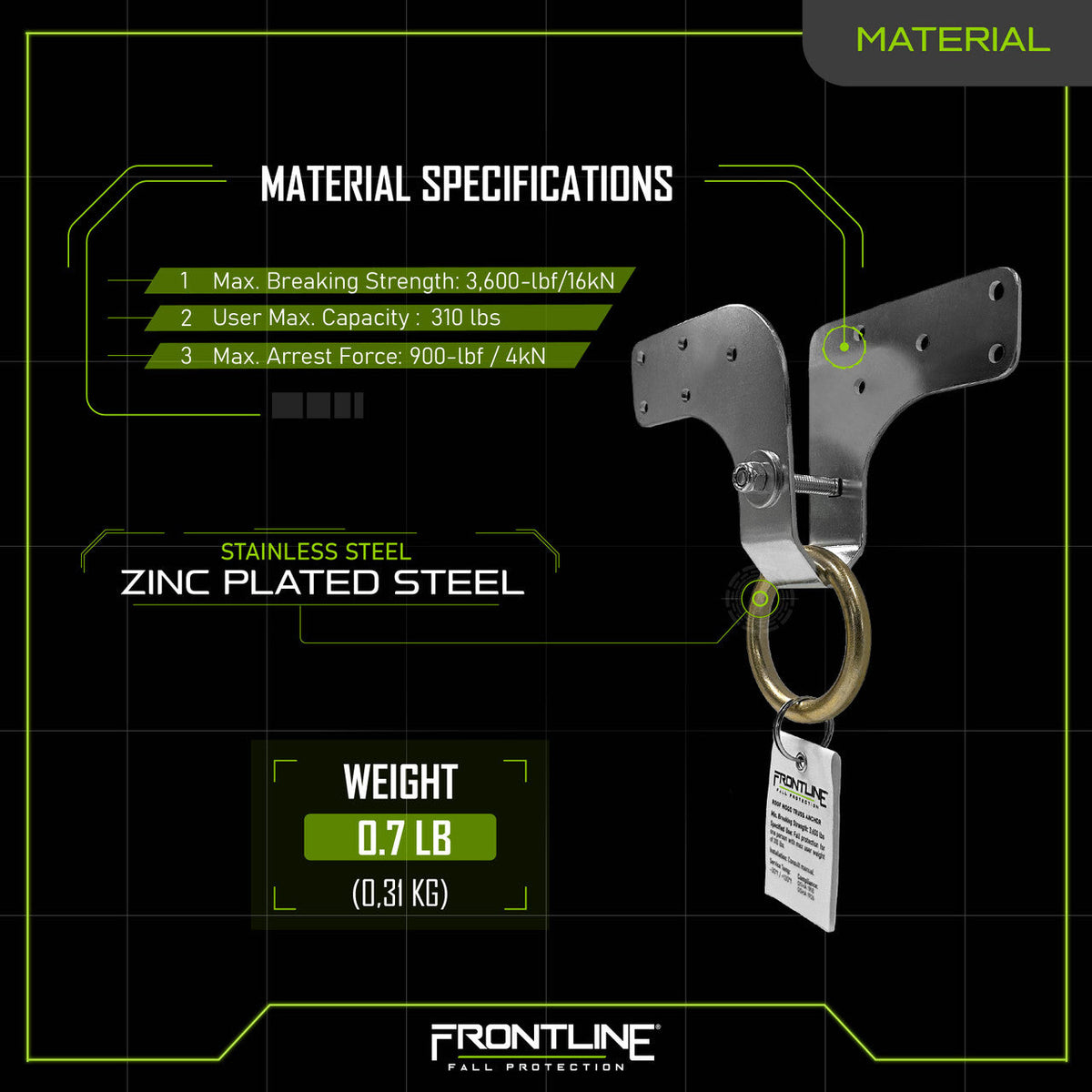

Frontline ROWT18 truss anchor specifications
| Model | ROWT18 · Roof Wood Truss Anchor |
| Mounting | Structural wood truss members, variety of angles |
| Material | Zinc-plated steel |
| Maximum breaking strength | 3,600 lbf / 16 kN |
| Maximum arrest force | 900 lbf / 4 kN |
| User capacity | 310 lb |
| Weight | Under 1 lb |
| Standards | Meets or exceeds OSHA 1910.140 and OSHA 1926.502 |
| Brand | Frontline Fall Protection |
CERTIFICATION — OSHA · NOT CSA
Frontline lists this product as tested to OSHA (and, where stated, ANSI) requirements by an independent lab accredited to ISO/IEC 17025. It is not CSA Z259 certified. If your site or jurisdiction requires CSA-marked fall protection, see our Safety Direct collection; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use.
Frontline ROWT18 wood truss anchor: common questions
Where does the ROWT18 mount?
On a structural wood truss member that can take the required forces. Frontline leaves the fastener selection and location to a competent person; the anchor itself fastens at a range of angles.
Is the Frontline ROWT18 CSA certified?
No. It is rated to OSHA 1910.140 and 1926.502. For a CSA-marked roof anchor, see our Safety Direct collection.
Is it a single-use anchor?
Frontline rates it for durable, long-lasting use, but any anchor that has arrested a fall must be removed from service.
What lanyard or lifeline goes with it?
A shock-absorbing lanyard, personal SRL or vertical lifeline with rope grab, rated for one worker up to 310 lb and limiting arrest force to 900 lbf.
