Frontline RPG Cable Single-Leg SRL, 30–100 ft, Steel Snap Hook | Canada

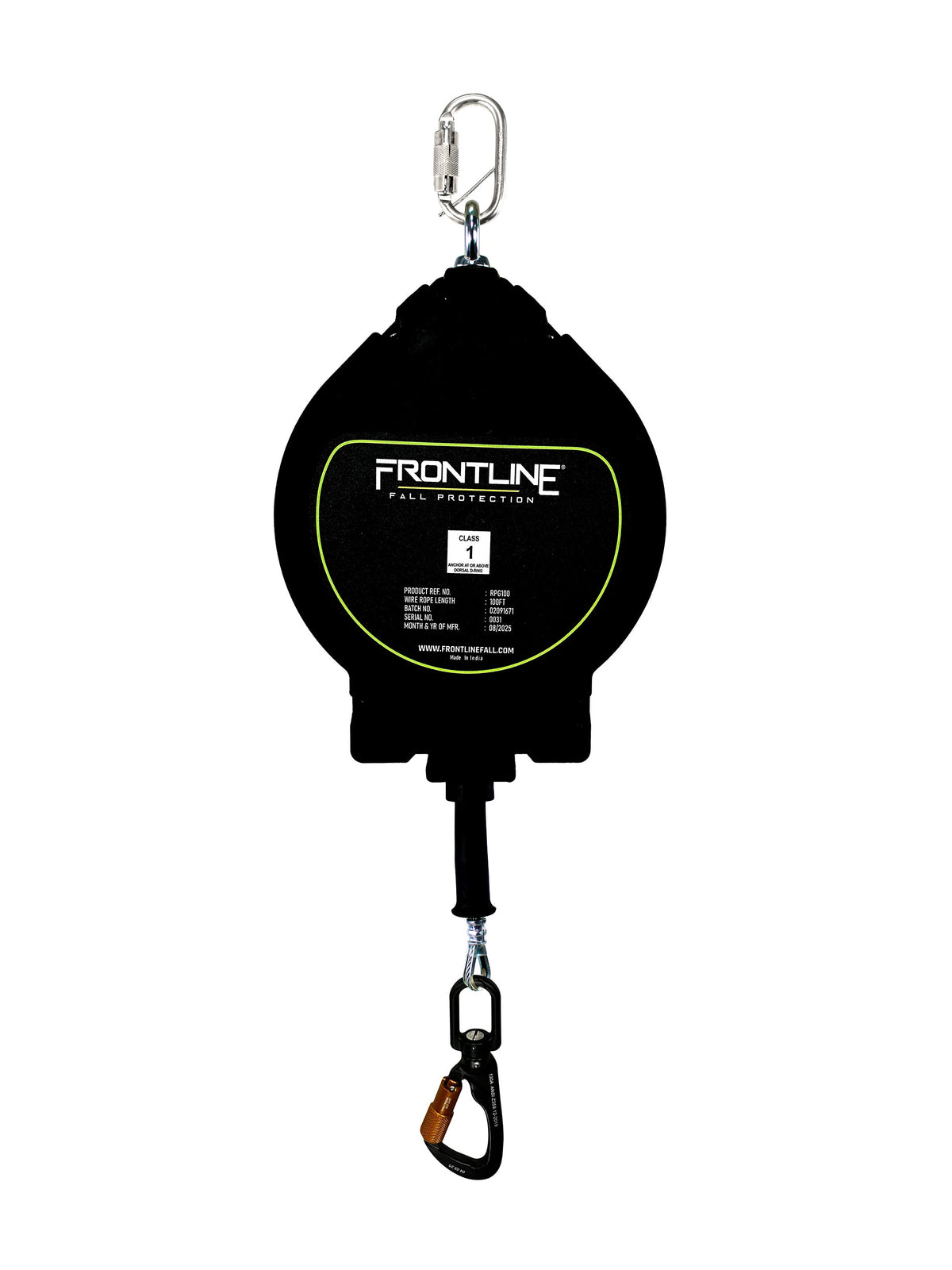

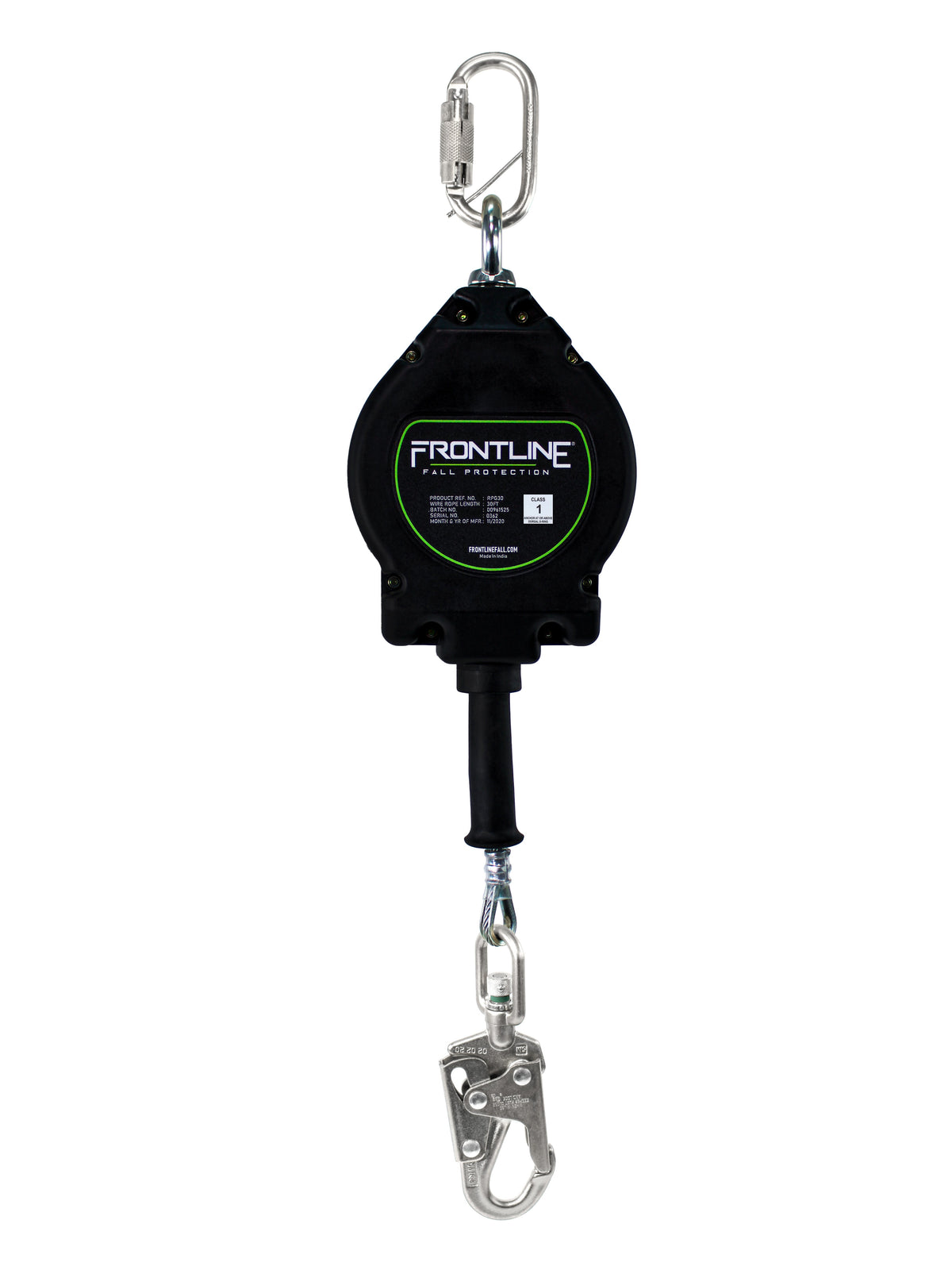

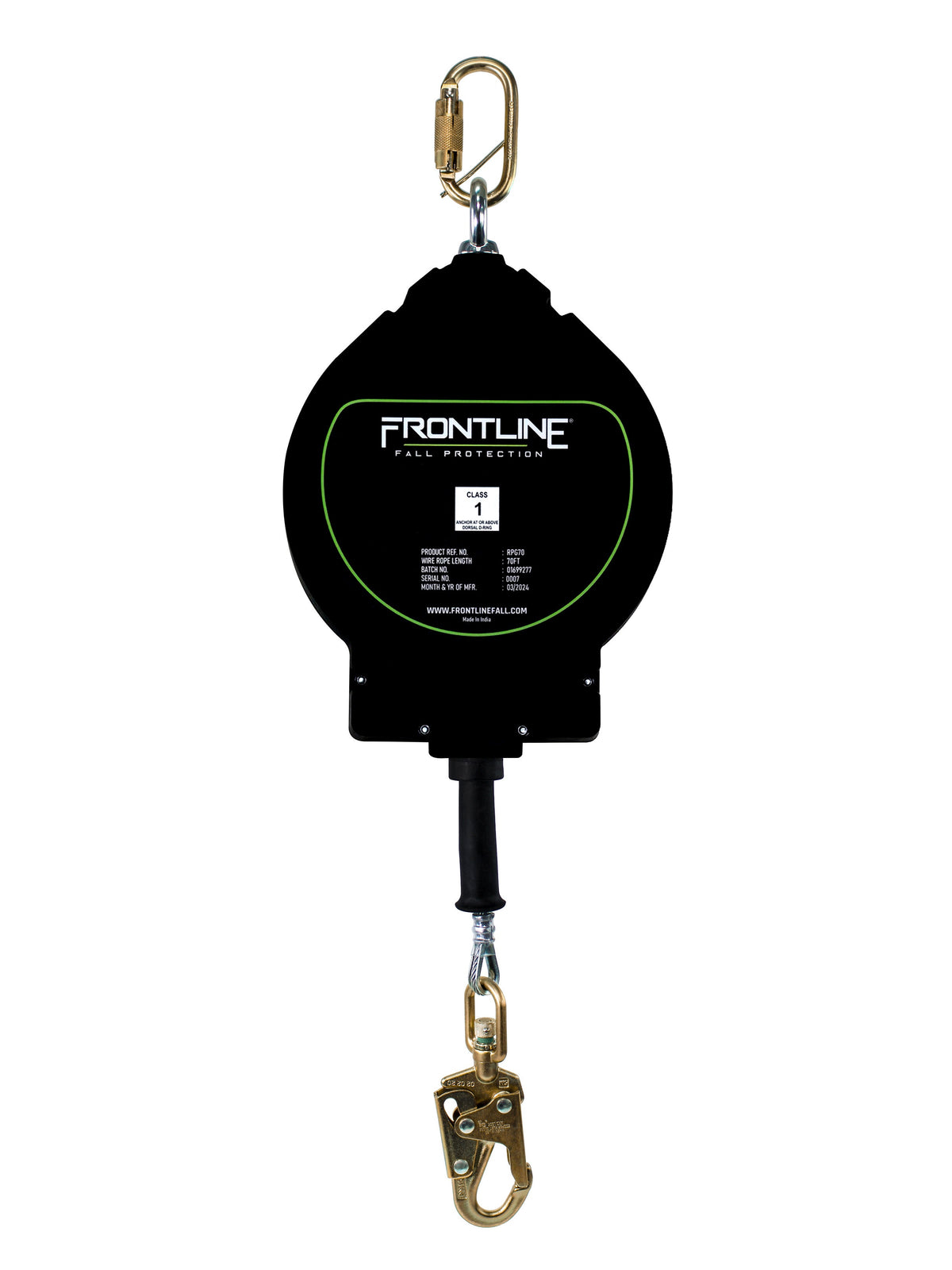

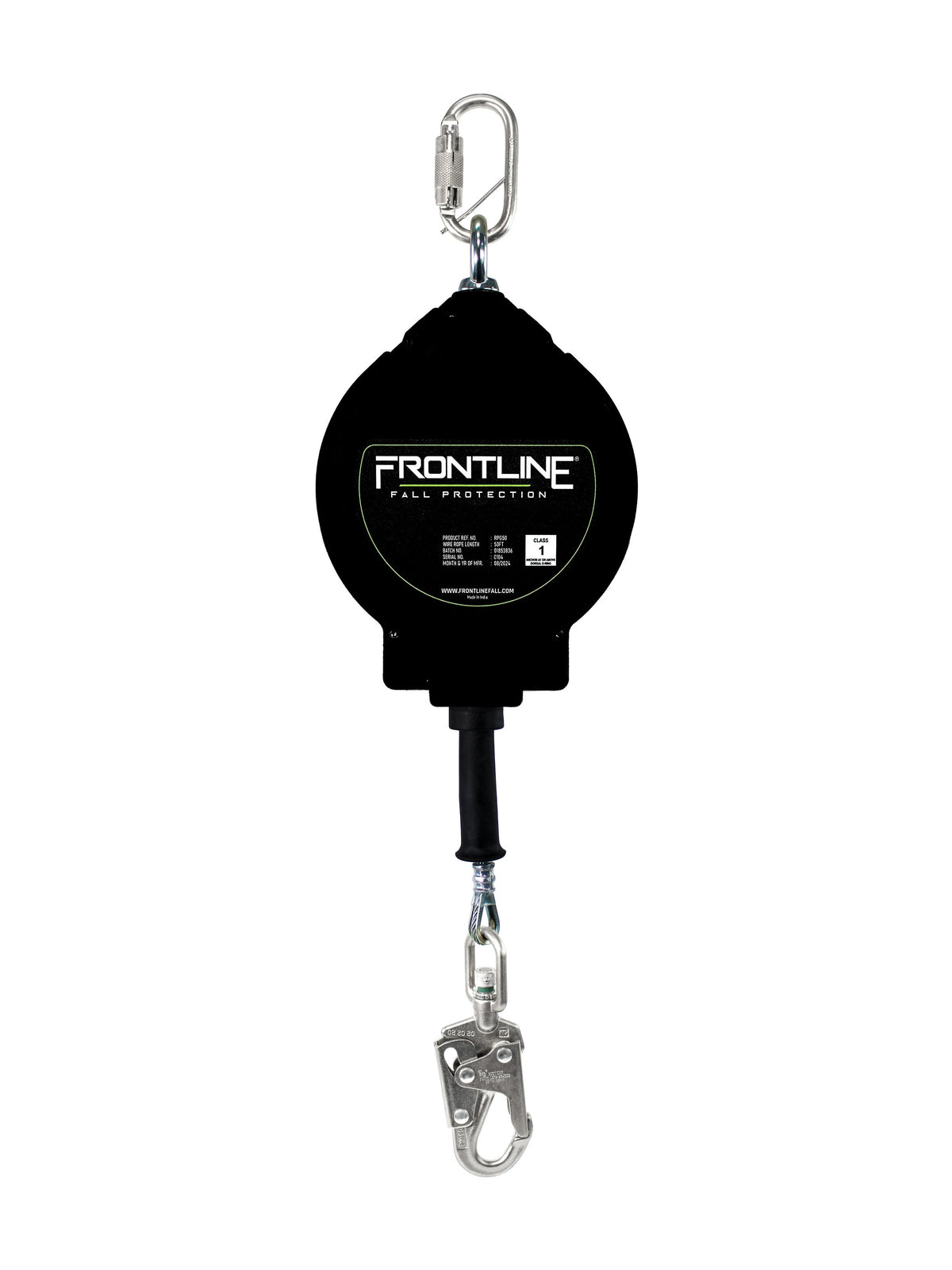

Frontline RPG Cable Single-Leg SRL, 30–100 ft, Steel Snap Hook | Canada. Frontline's galvanized-cable SRL for general construction and exterior work, in 30 ft (RPG30), 50 ft (RPG50), 70 ft (RPG70) and 100 ft (RPG100). The 3/16 in galvanized steel cable stands up to sharp objects and outdoor use, the high-impact polymer housing is built to take jobsite abuse, and the swivel anchorage eye comes with a self-locking carabiner. A steel snap hook with impact indicator ends the line; the internal energy absorber and quick-action brake engage within seconds of a fall. Tested by an independent ISO/IEC 17025:2017-accredited lab.

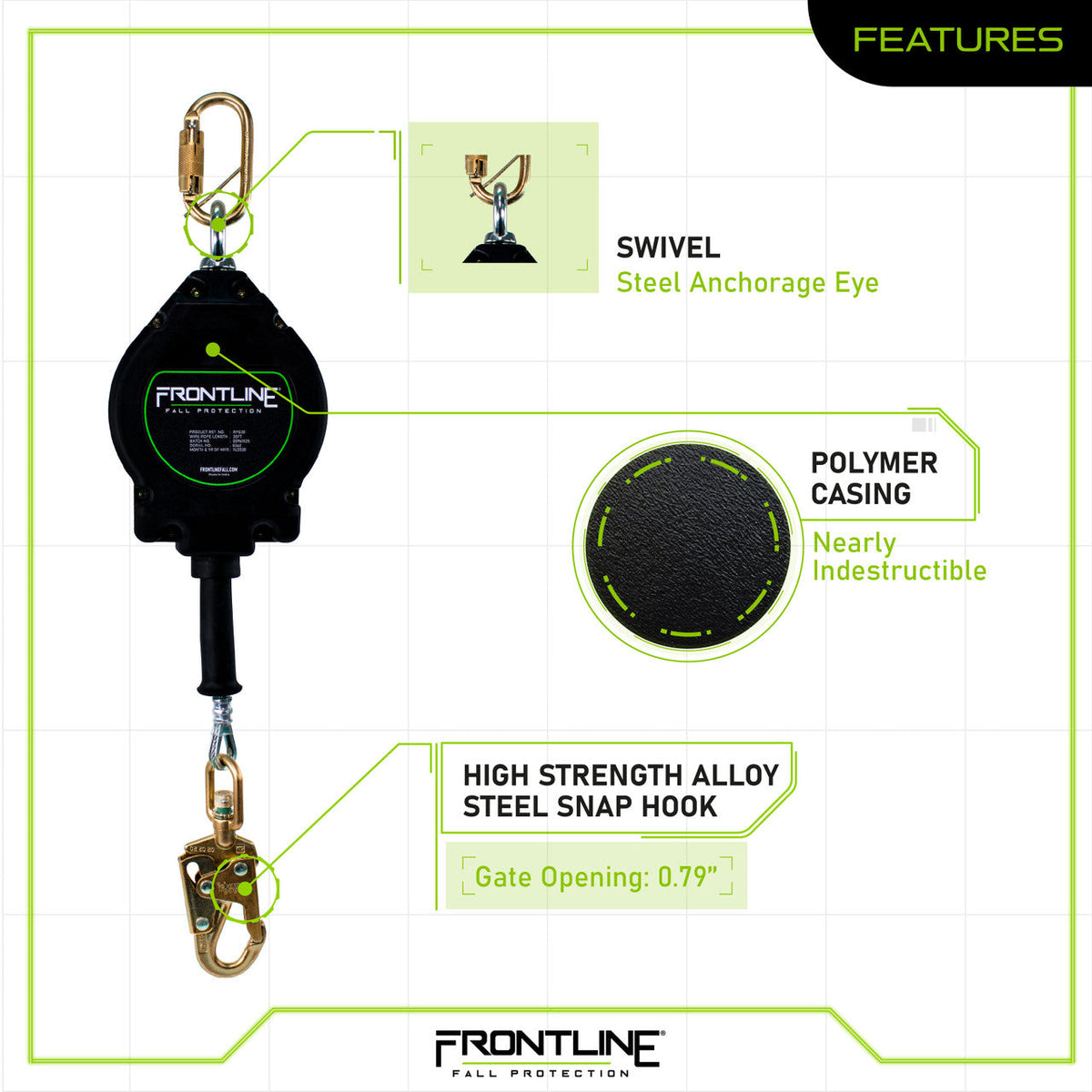

Frontline RPG galvanized cable SRL key features
- High-impact polymer housing Frontline describes as nearly indestructible; extremely rugged thermoplastic
- 3/16 in galvanized steel cable lifeline for sharp objects and exterior use
- Swivel anchorage eye with a self-locking carabiner on the housing
- Steel snap hook with impact indicator at the lifeline end
- Internal energy absorption system and quick-action braking system
- Extremely light in weight and compact, so it is easily carried
- 5,000 lb connector strength; 310 lb user capacity
- Four lengths from 30 ft to 100 ft
Frontline RPG cable SRL specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | RPG30 (30 ft) · RPG50 (50 ft) · RPG70 (70 ft) · RPG100 (100 ft) |

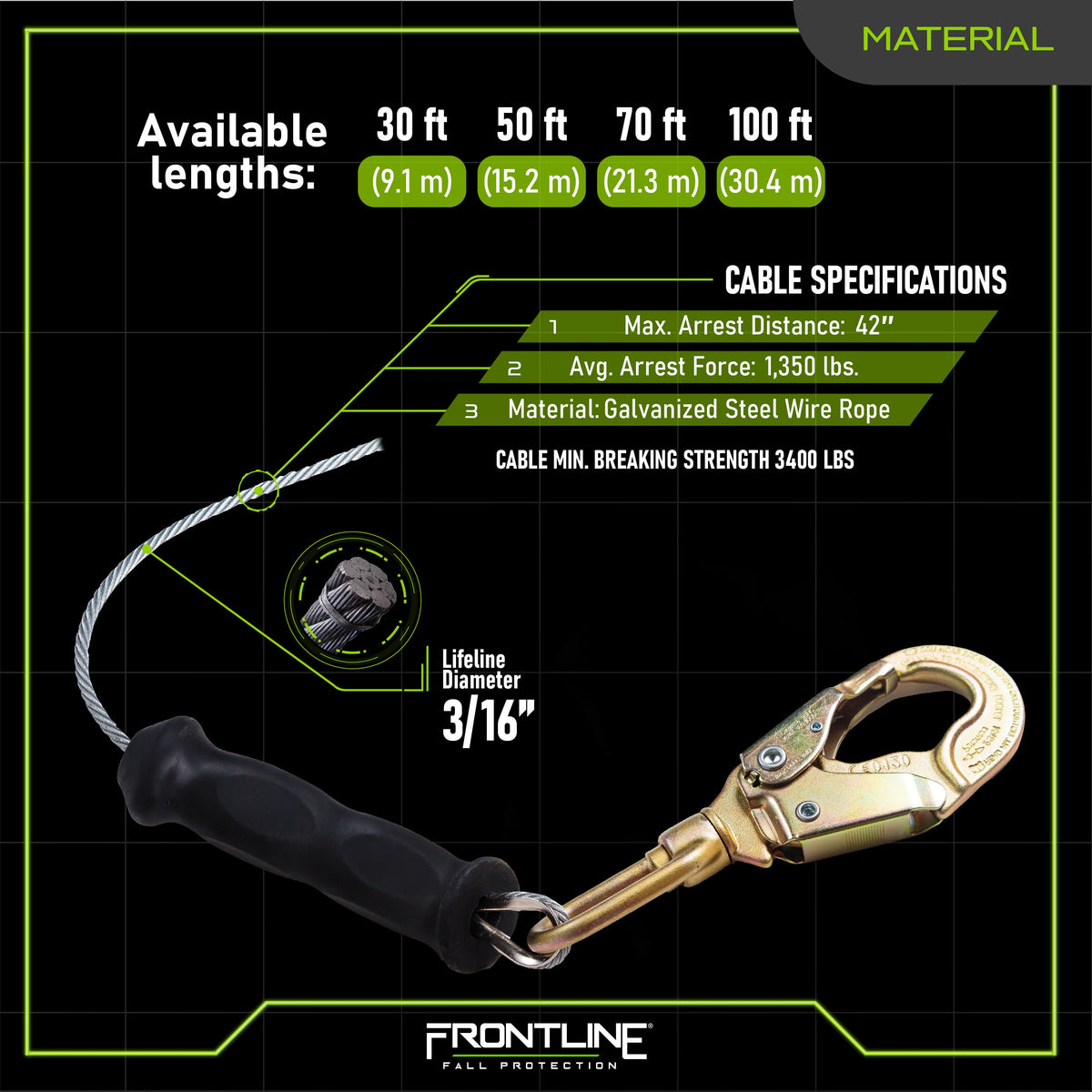

| Lifeline | 3/16 in galvanized steel cable |

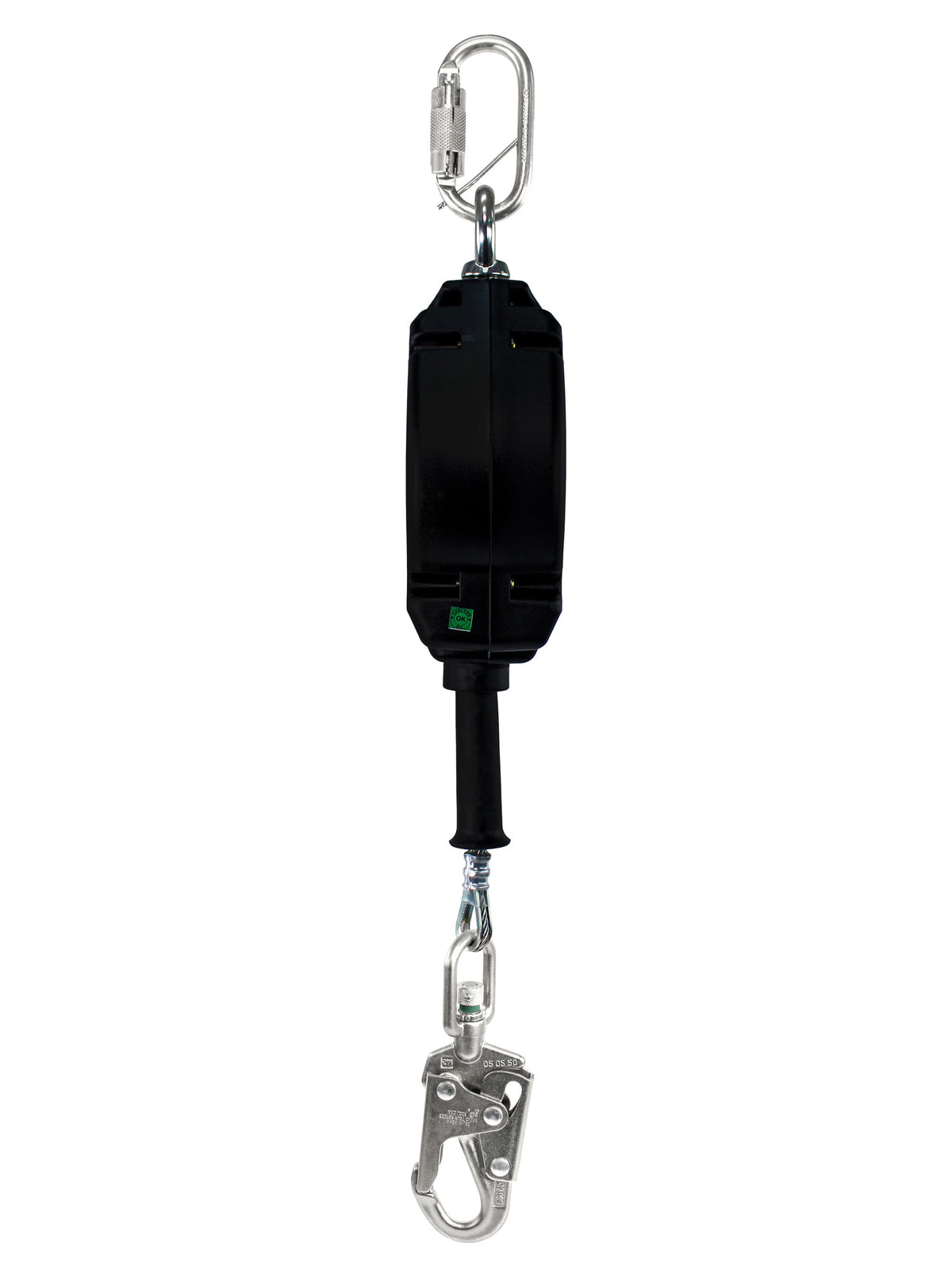

| Housing | High-impact polymer (thermoplastic) |

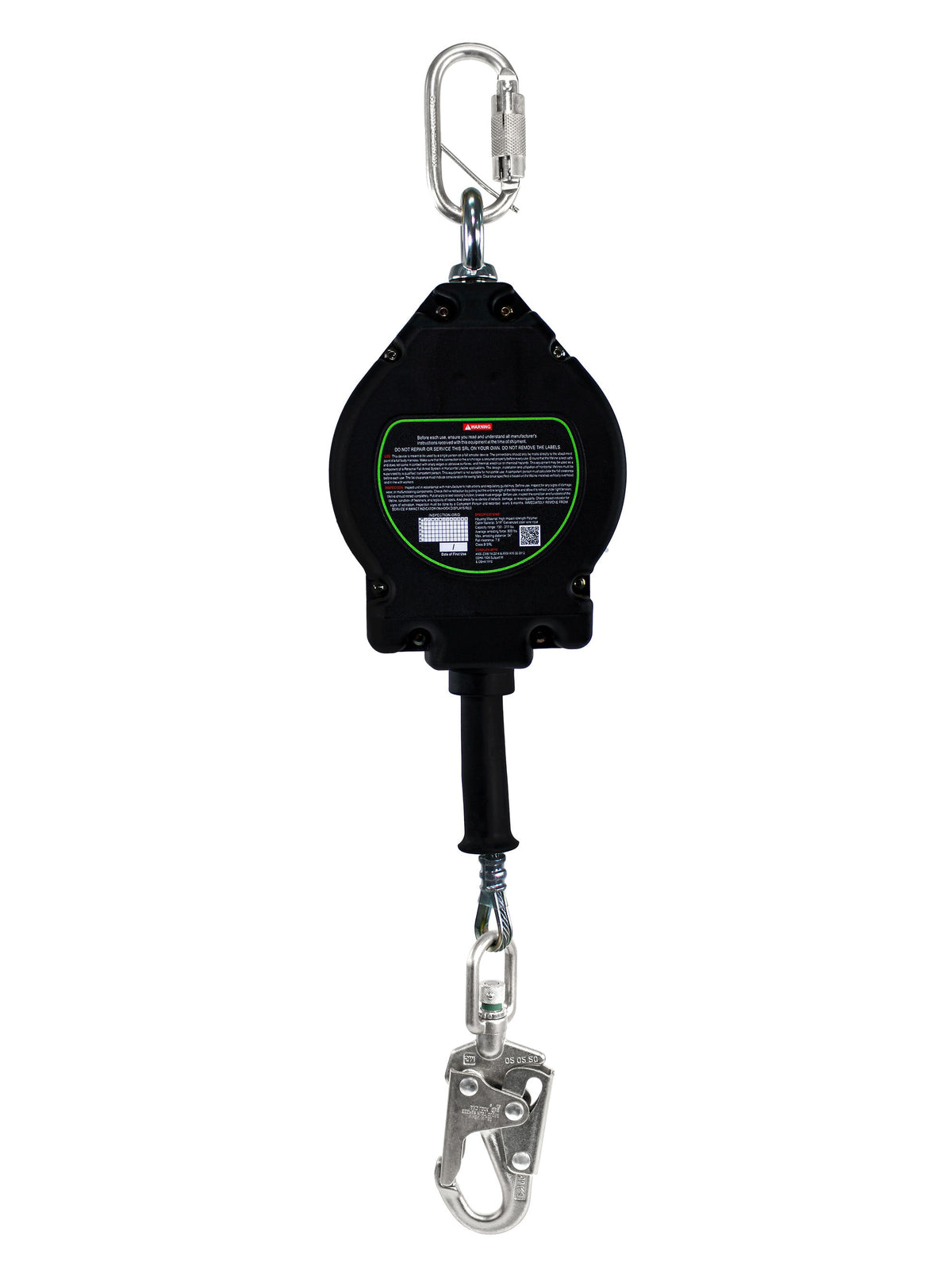

| Anchorage connection | Swivel eye with self-locking carabiner |

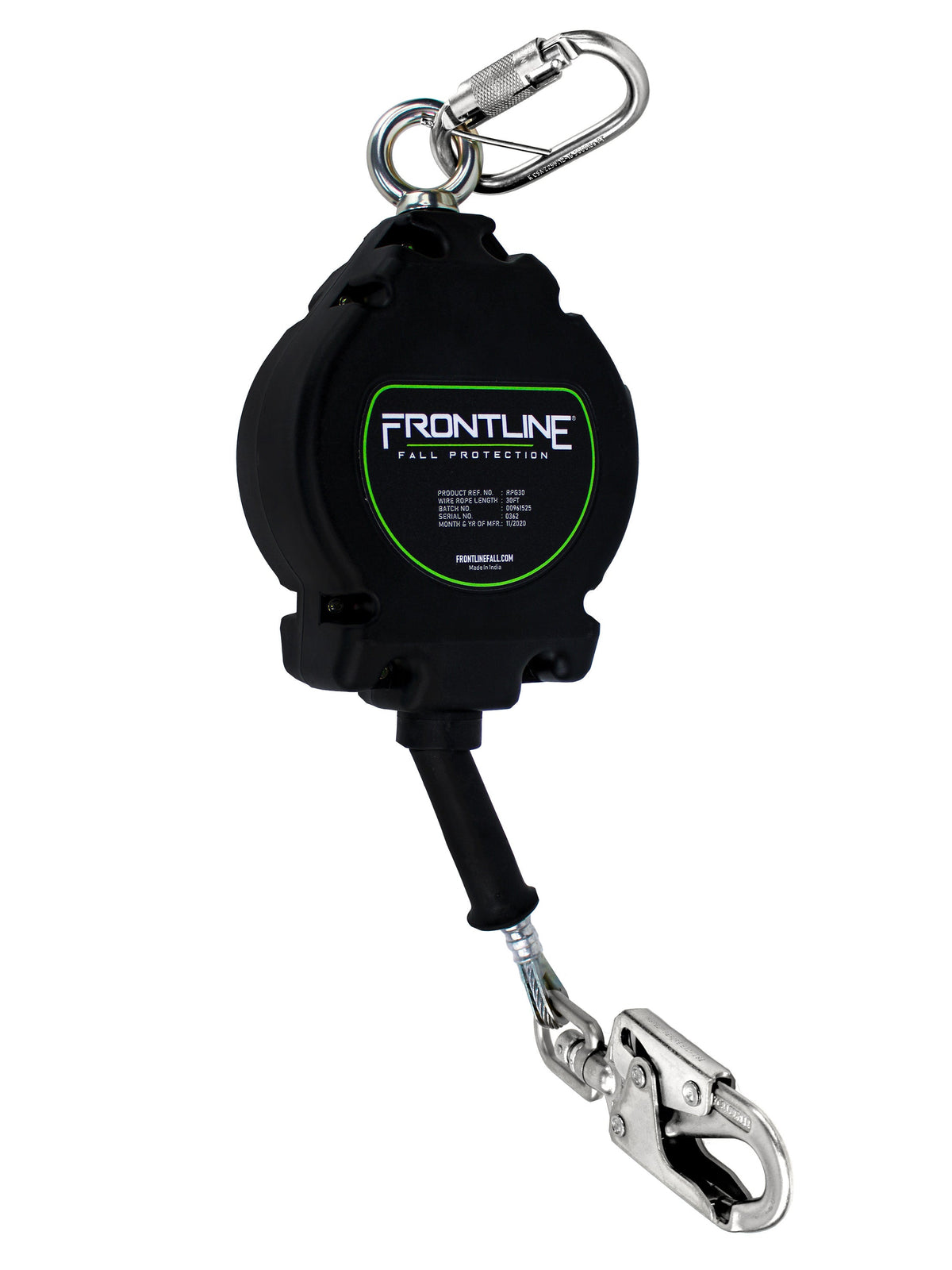

| Lifeline end | Steel snap hook with impact indicator |
| Energy management | Internal energy absorption system, quick-action brake |
| Connector strength | 5,000 lb |
| User capacity | 310 lb |
| Standards | Meets or exceeds ANSI Z359.14-2021, OSHA 1926 Subpart M and OSHA 1910 · tested by an ISO/IEC 17025:2017-accredited lab |
| Unit weight / arrest force / arrest distance | Not published by Frontline; ask us |
| Region | Stocked in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline RPG cable SRL
Steel erection and bridges
Overhead anchorage with long 50 to 100 ft lines for wide working areas.
Exterior and weather-exposed work
Galvanized cable for rain, grit and sharp edges where web lifelines wear.
Tanks, silos and towers
Mount at the top, climb and work the full height of the structure.
Plant maintenance
Long-reach cable SRL hung from a fixed anchor over conveyors, pits and platforms.
Is the Frontline RPG SRL CSA certified? Compliance in Canada
Is the Frontline RPG CSA certified?
No. Frontline rates it to ANSI Z359.14-2021, OSHA 1926 Subpart M and OSHA 1910 and tests it in an ISO/IEC 17025:2017-accredited lab. For a CSA-marked SRL, see our Safety Direct range.
RPG or RPGLE: which one do I need?
The RPG is Frontline's standard overhead cable SRL. The RPGLE (also on FPC, 25 ft and 50 ft) is the leading-edge version for foot-level tie-off over an edge. If the anchor is below the dorsal D-ring or the cable can run over an edge, you need the leading-edge unit.
Which length should I choose?
Match the length to the anchor height plus the working radius. 30 ft covers most single-storey overhead anchors; 50 ft, 70 ft and 100 ft are for tall structures and wide work areas.
What connects the RPG to the anchor?
A swivel anchorage eye fitted with a self-locking carabiner, so the housing hangs from a D-ring anchor, beam clamp or cross-arm strap without extra hardware.
How often should the RPG be inspected?
Before every use, and formally by a competent person at least once a year. Check the impact indicator on the snap hook; remove the unit from service after any fall and follow Frontline's service schedule.
Pair the Frontline RPG SRL with a harness and anchor
The RPG is the connecting device. Add a full-body harness and an overhead anchor rated for the system for a complete personal fall arrest system.
