Frontline RW Weld-On Commercial Roof Anchor, 12, 18, 24 in | Canada

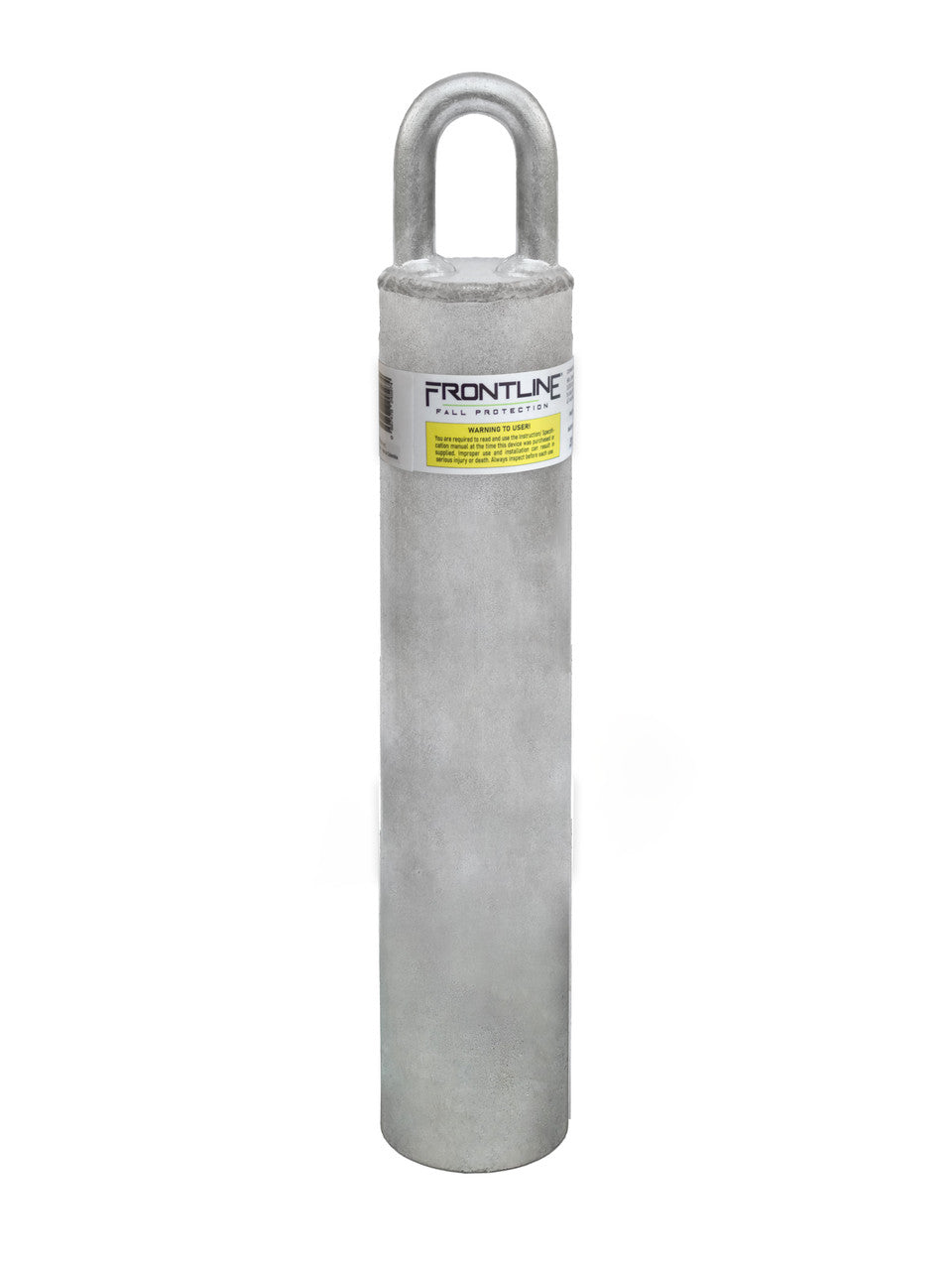

Frontline RW Weld-On Commercial Roof Anchor, 12, 18, 24 in. A weld-on commercial roof anchor in 12, 18 or 24 in heights for fall arrest, fall restraint, work positioning and rescue, indoors or outdoors. ASTM-rated steel with an ASTM-rated hot-dip galvanized finish, for use with self-retracting lifelines, shock-absorbing lanyards and vertical or horizontal lifelines. 5,000 lbf / 22 kN minimum breaking strength; 130 to 310 lb user capacity.
Frontline RW weld-on commercial roof anchor key features
- For fall arrest, fall restraint, work positioning and rescue
- Indoor or outdoor use
- ASTM-rated steel for high strength
- ASTM-rated hot-dip galvanized finish
- Works with self-retracting lifelines, shock-absorbing lanyards and vertical and horizontal lifelines
- Three heights: 12 in, 18 in and 24 in
Frontline RW weld-on anchor specifications and sizes
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | RW12 (12 in) · RW18 (18 in) · RW24 (24 in) |
| Mounting | Weld-on |
| Material | ASTM-rated steel, ASTM-rated hot-dip galvanized finish |
| Applications | Fall arrest, restraint, work positioning, rescue |
| Minimum breaking strength | 5,000 lbf / 22 kN |
| User capacity | 130 to 310 lb |
| Standards | Meets or exceeds ANSI Z359.18, ANSI A10.32, OSHA 1926 and OSHA 1910 |
| Testing | Independent third-party lab accredited to ISO/IEC 17025 |
| Region | Stocked by Fall Protection Canada in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline RW weld-on roof anchor

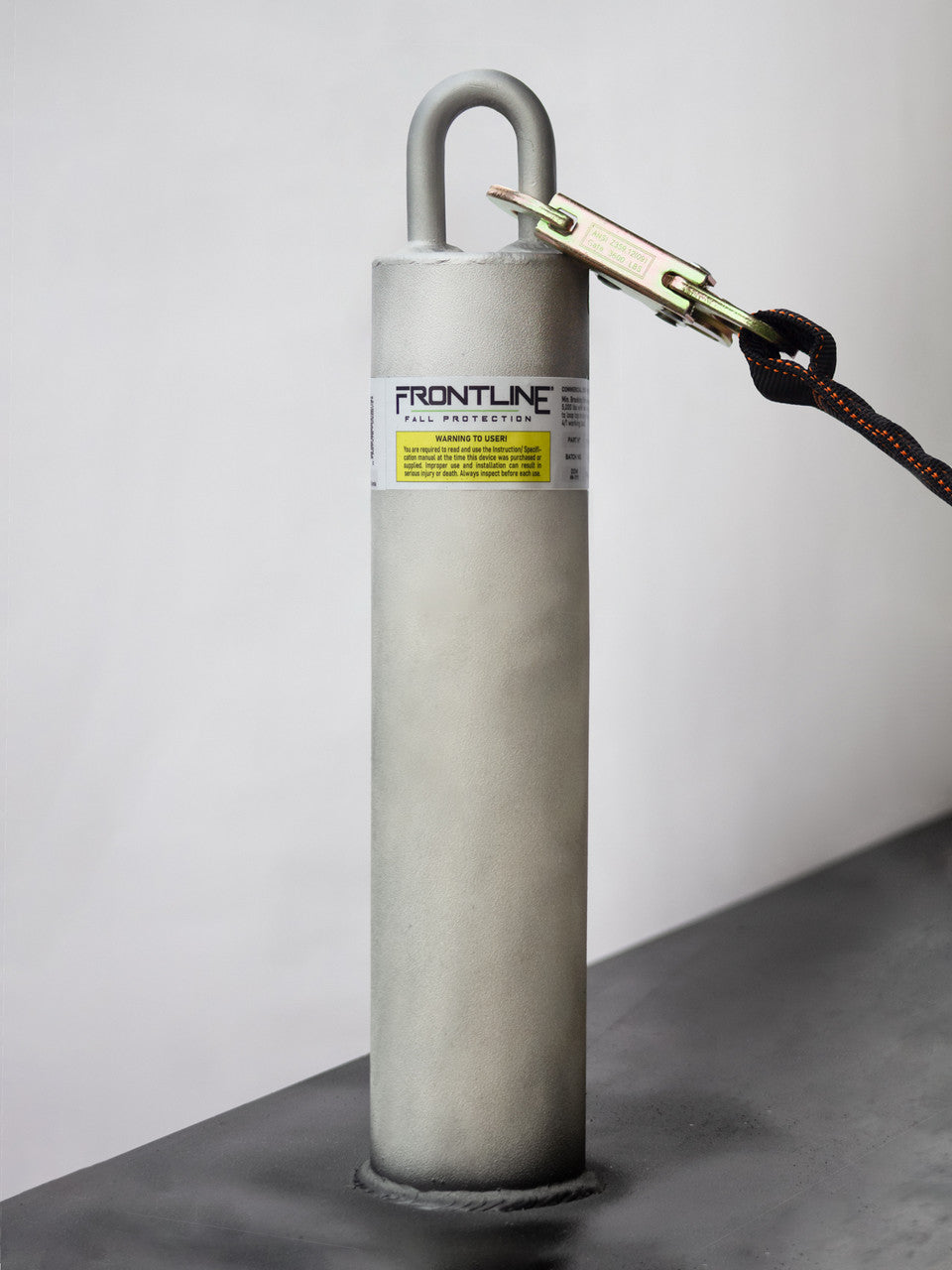

Commercial steel roofs
A permanent tie-off point welded to the roof structure.
Rooftop equipment service
Anchor points for HVAC and maintenance crews who return to the roof.
Lifeline end anchors
Use with vertical or horizontal lifelines as well as SRLs and lanyards.
Is the Frontline RW weld-on anchor CSA certified? Compliance in Canada
Is the Frontline RW weld-on anchor CSA certified?
No. Frontline states it meets or exceeds ANSI Z359.18, ANSI A10.32, OSHA 1926 and OSHA 1910. For CSA-marked anchors, see our Safety Direct range.
Which height should I choose?
Frontline makes it in 12 in, 18 in and 24 in. Choose the height that clears your roofing and insulation build-up.
What can I connect to it?
Self-retracting lifelines, shock-absorbing lanyards and vertical and horizontal lifelines.
How is it installed?
It welds on; install it to Frontline's instructions and have the weld and the structure checked by a qualified person.
Pair the Frontline RW anchor with roof fall protection gear
Add a full body harness and an SRL or shock-absorbing lanyard, or run a lifeline between anchors. Browse the rest of our roof anchors. Questions on fit or quantities? Contact Fall Protection Canada.
