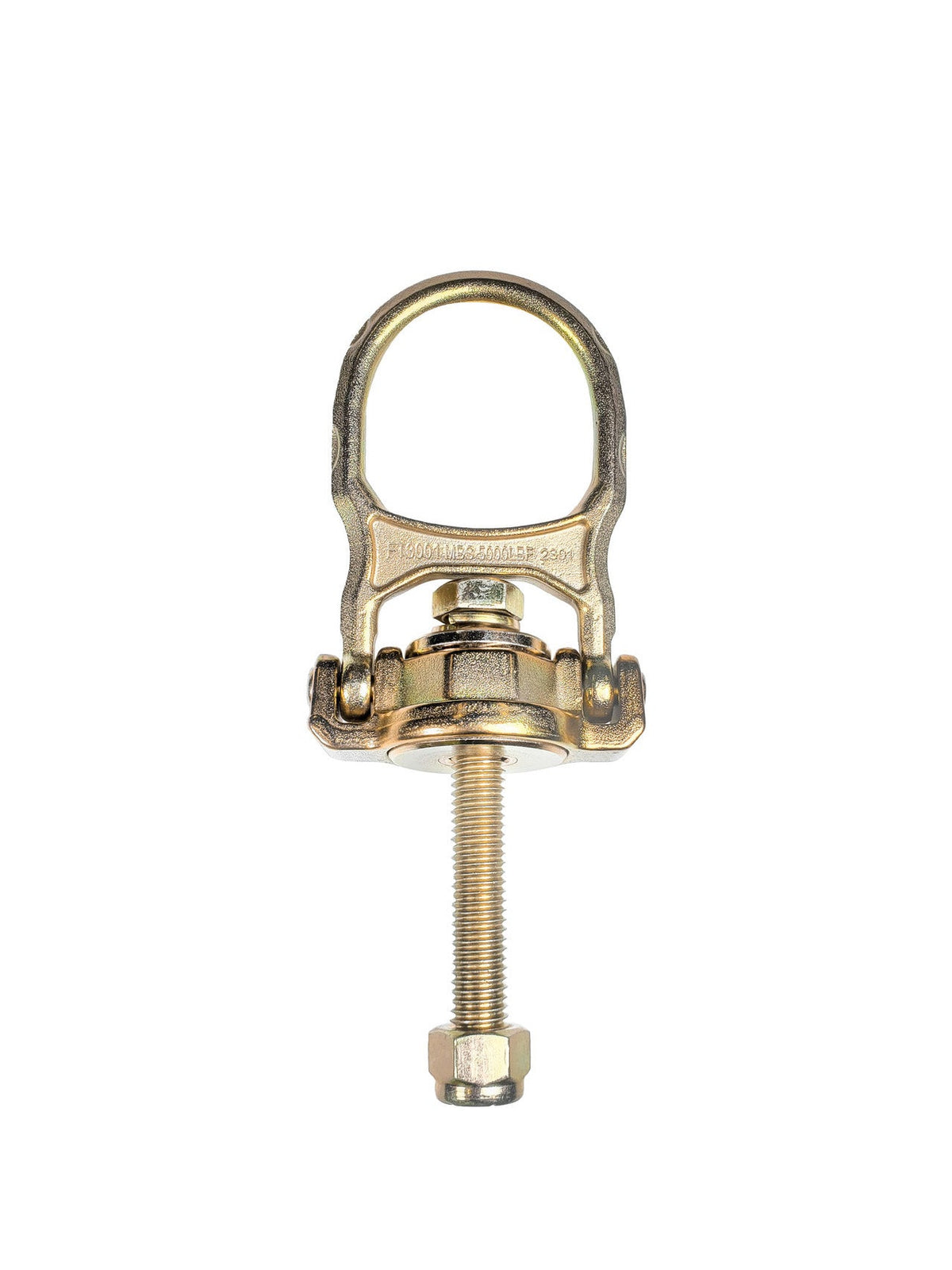

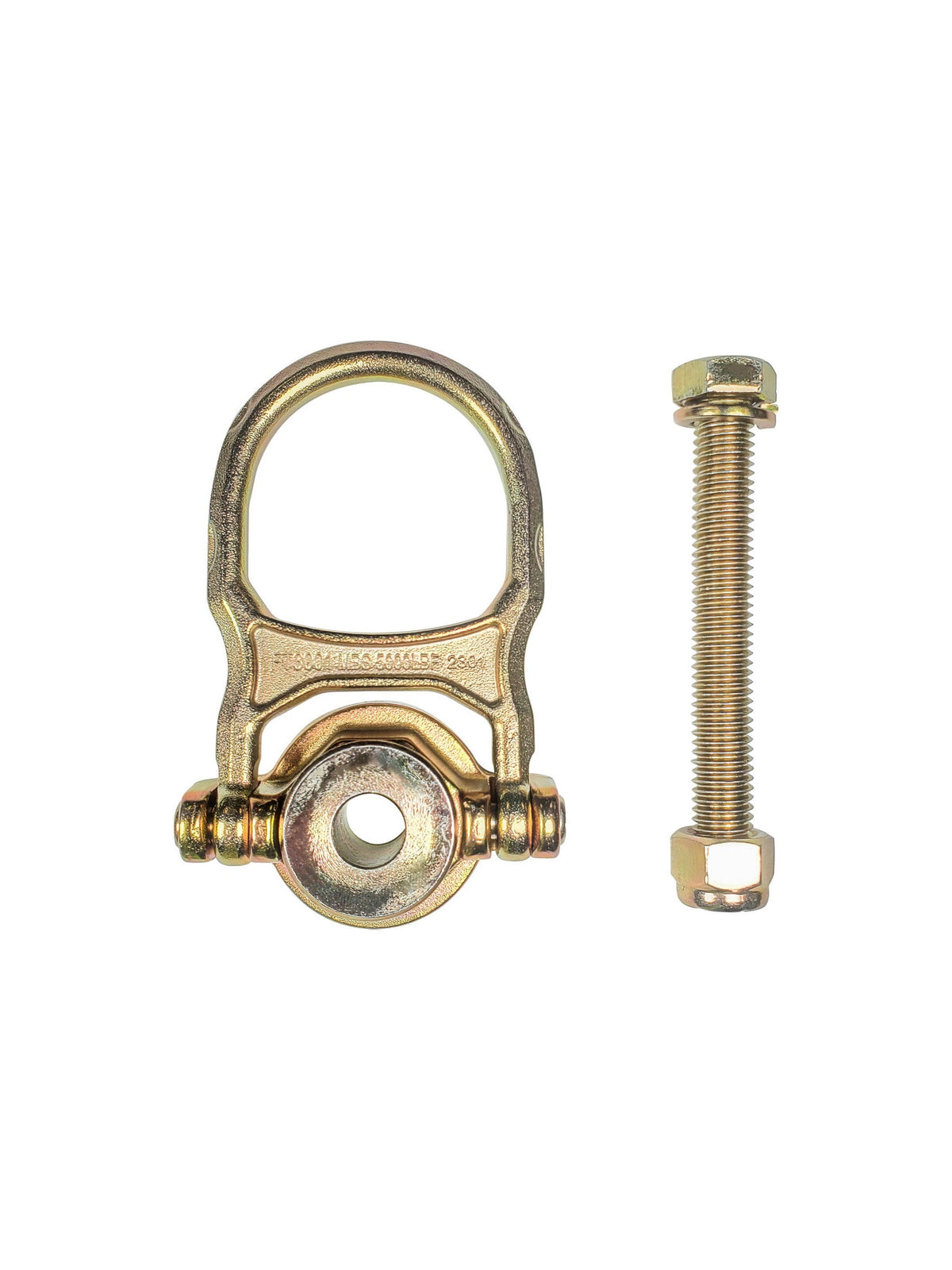

Frontline STB5K ALPHA Swivel 5K Steel Anchor | Canada. Frontline's ALPHA reusable anchor for steel structures: a 5,000 lb swivel D-ring anchor that rotates a full 360° and pivots 180° front to back, so the connector follows the worker instead of side-loading. Galvanized zinc with yellow passivation for indoor or outdoor use, small enough to pocket, and the bolt is in the box. The steel twin of the Frontline COB5K concrete anchor.
Frontline STB5K ALPHA swivel steel anchor key features

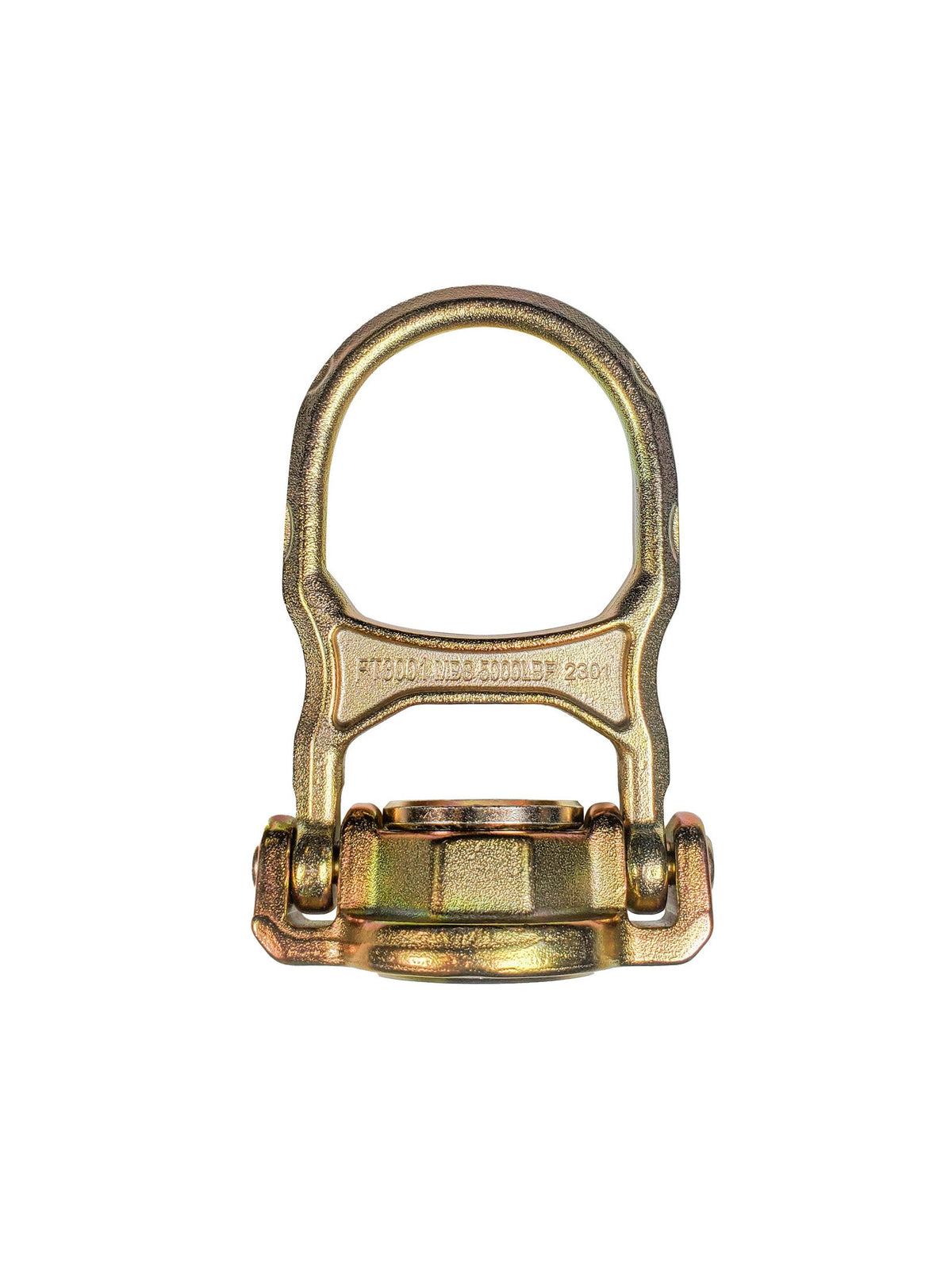

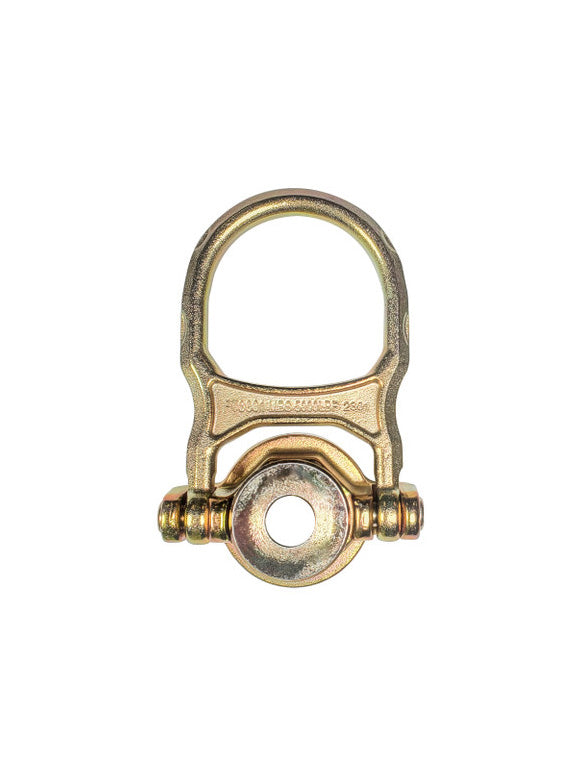

- D-ring rotates 360° and pivots 180°, which helps avoid side loading and accidental disengagement

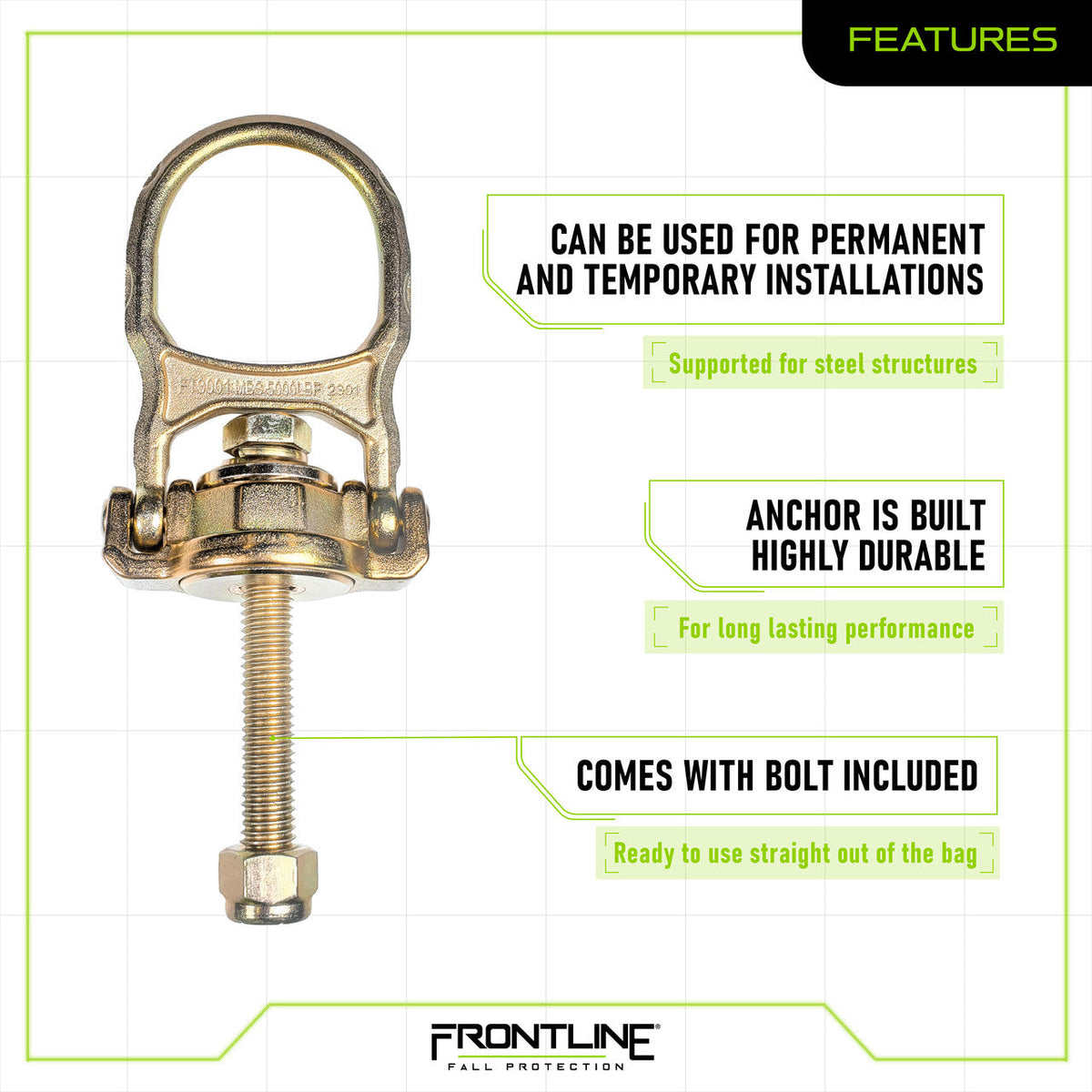

- For permanent or temporary installations on steel structures
- Single-user anchor point, or combined with other approved anchors in a temporary horizontal lifeline system

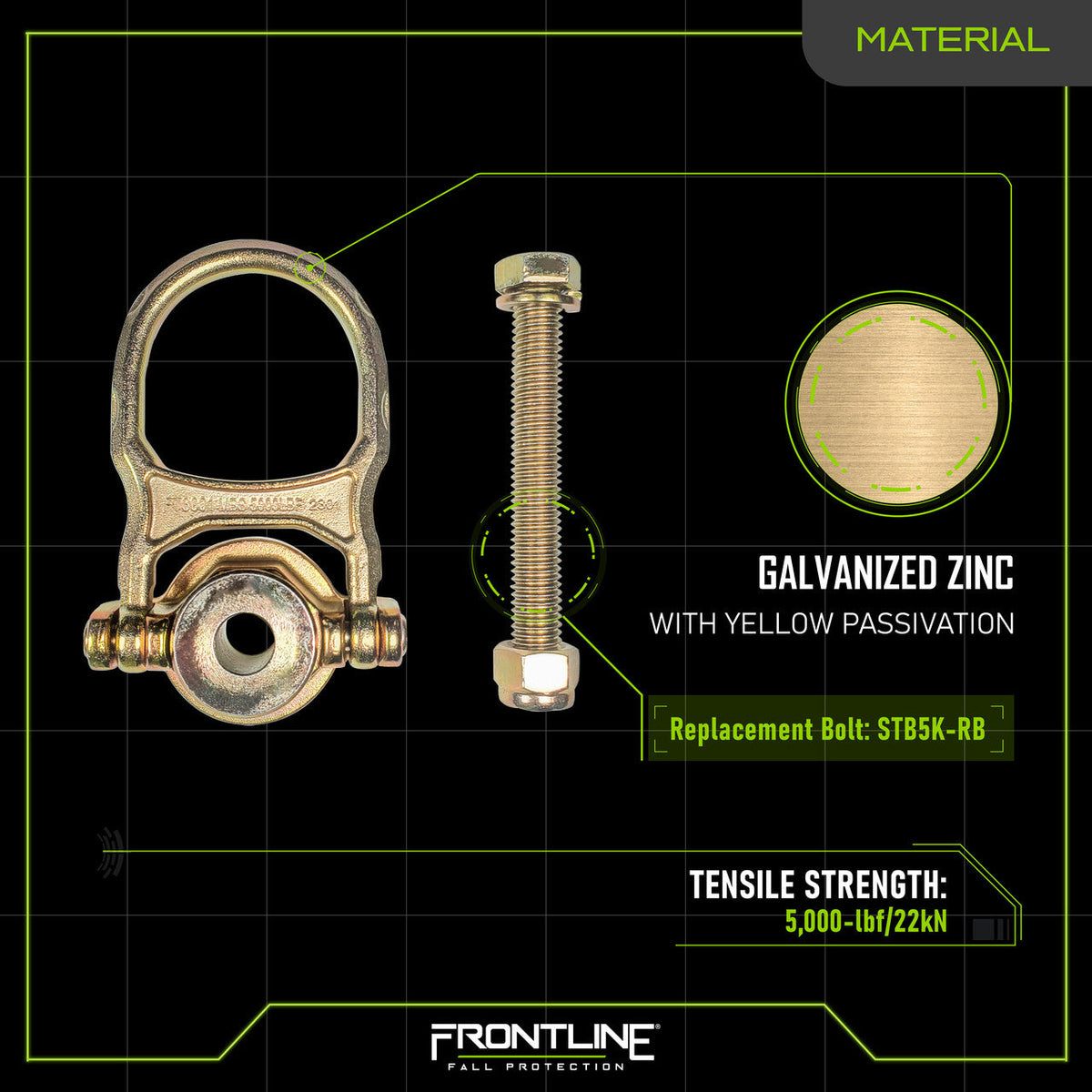

- Galvanized zinc finish with yellow passivation for corrosion protection, indoors or out
- Small and compact, built tough for jobsite conditions
- Fully reusable; vertical, horizontal or overhead applications
- Bolt included, ready to use out of the package
- 1.2 lb unit weight
Frontline STB5K 5K steel anchor specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | STB5K |
| Substrate | Steel structures |
| Static tensile strength | 5,000 lb |

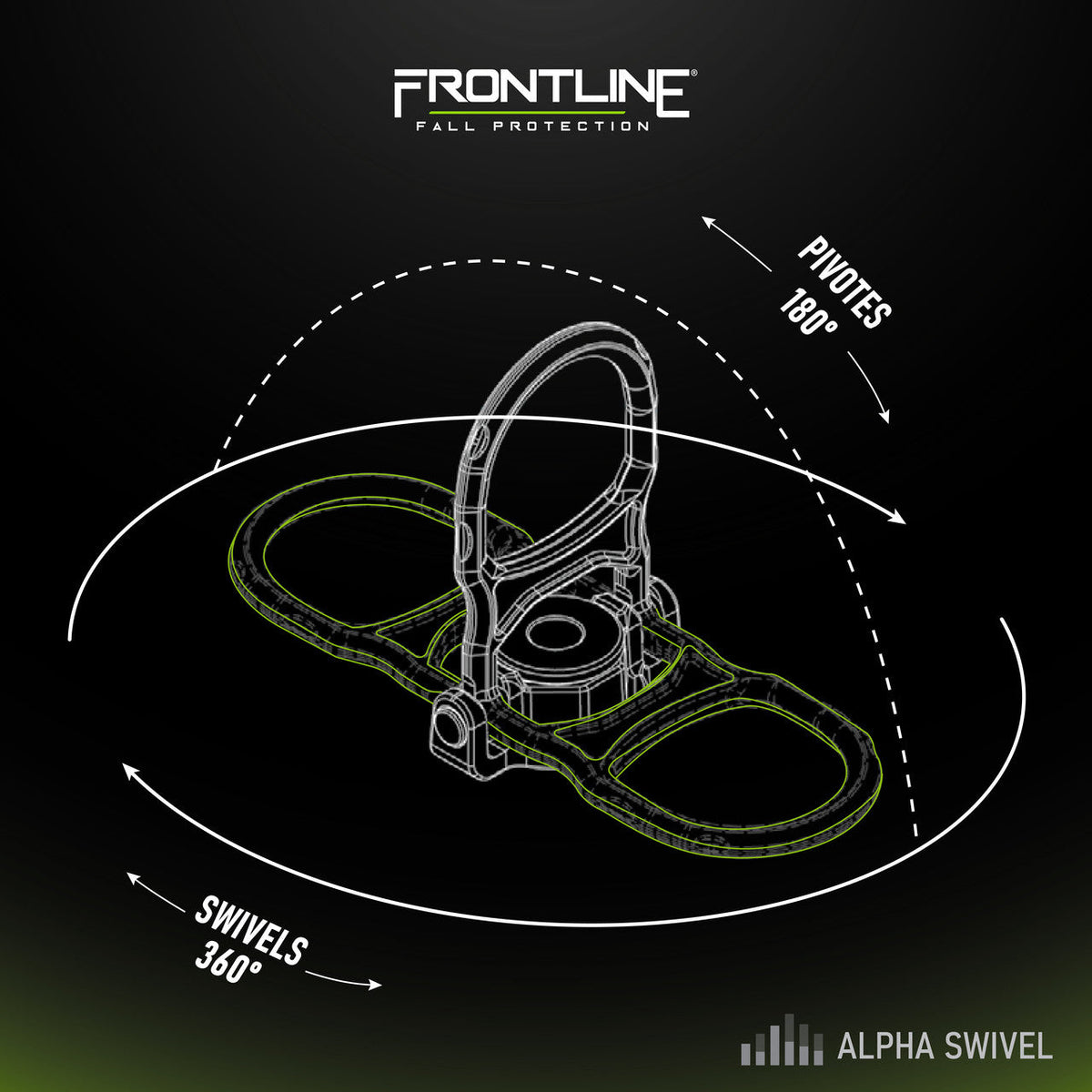

| D-ring | 360° swivel, 180° pivot |
| Finish | Galvanized zinc with yellow passivation |
| User capacity | 310 lb |
| Unit weight | 1.2 lb |
| Hardware | Mounting bolt included |

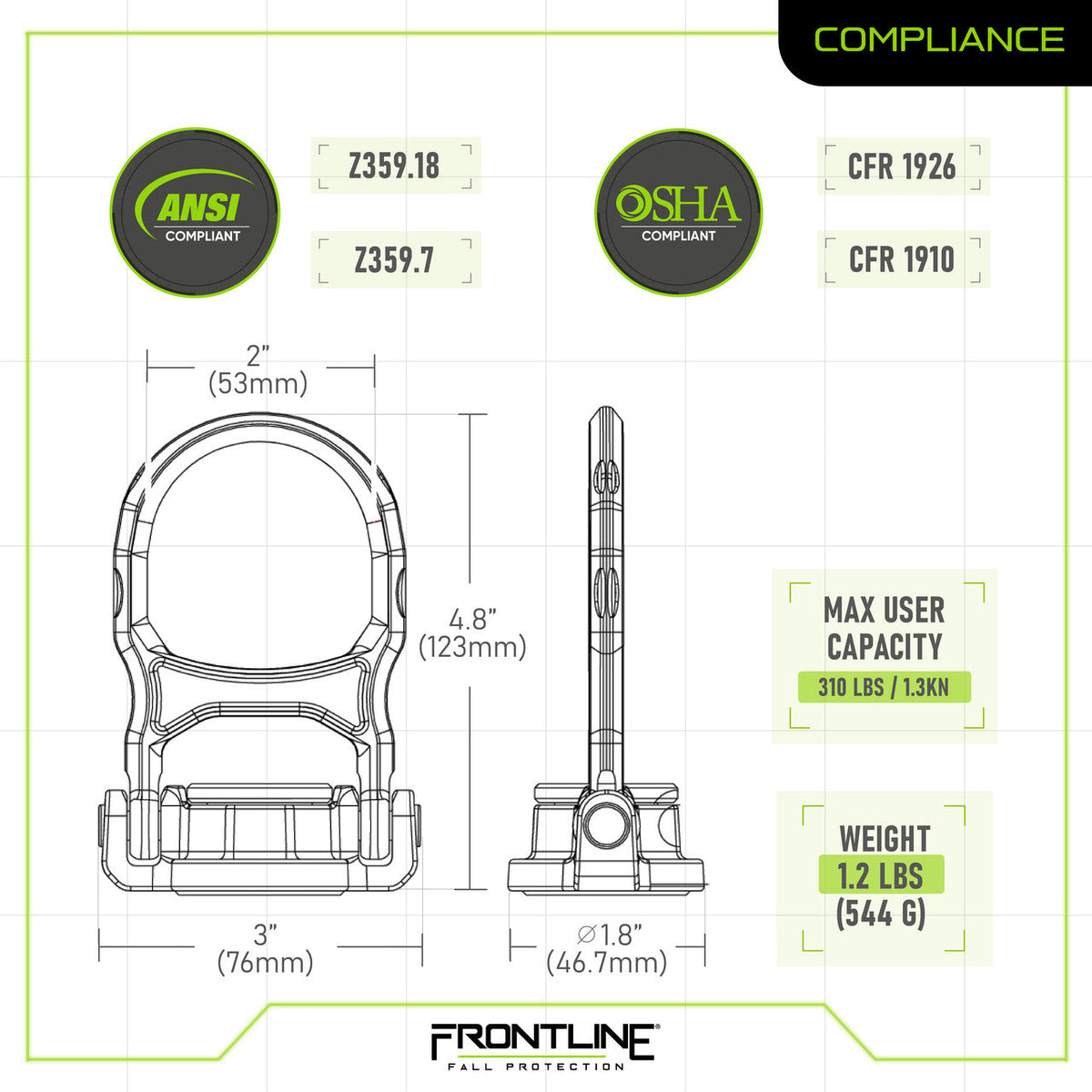

| Standards | Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910 and OSHA 1926 |
| Dimensions / thread size | Not published by Frontline; ask us |
| Region | Stocked in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline STB5K swivel anchor
Structural steel
Bolt to a beam, column or plate for a reusable single-user tie-off point.
Plant and industrial
Permanent anchors over tanks, conveyors and machinery, indoors or exposed.
Temporary horizontal lifelines
End anchor combined with other approved anchors, per Frontline's instructions.
Overhead and vertical work
Rated for vertical, horizontal or overhead orientation; the swivel keeps the connector aligned.
Is the Frontline STB5K CSA certified? Compliance in Canada
Is the Frontline STB5K CSA certified?
No. Frontline rates it to ANSI Z359.18, ANSI Z359.7, OSHA 1910 and OSHA 1926. For CSA-marked anchors, see our Safety Direct range.
Does the STB5K come with the bolt?

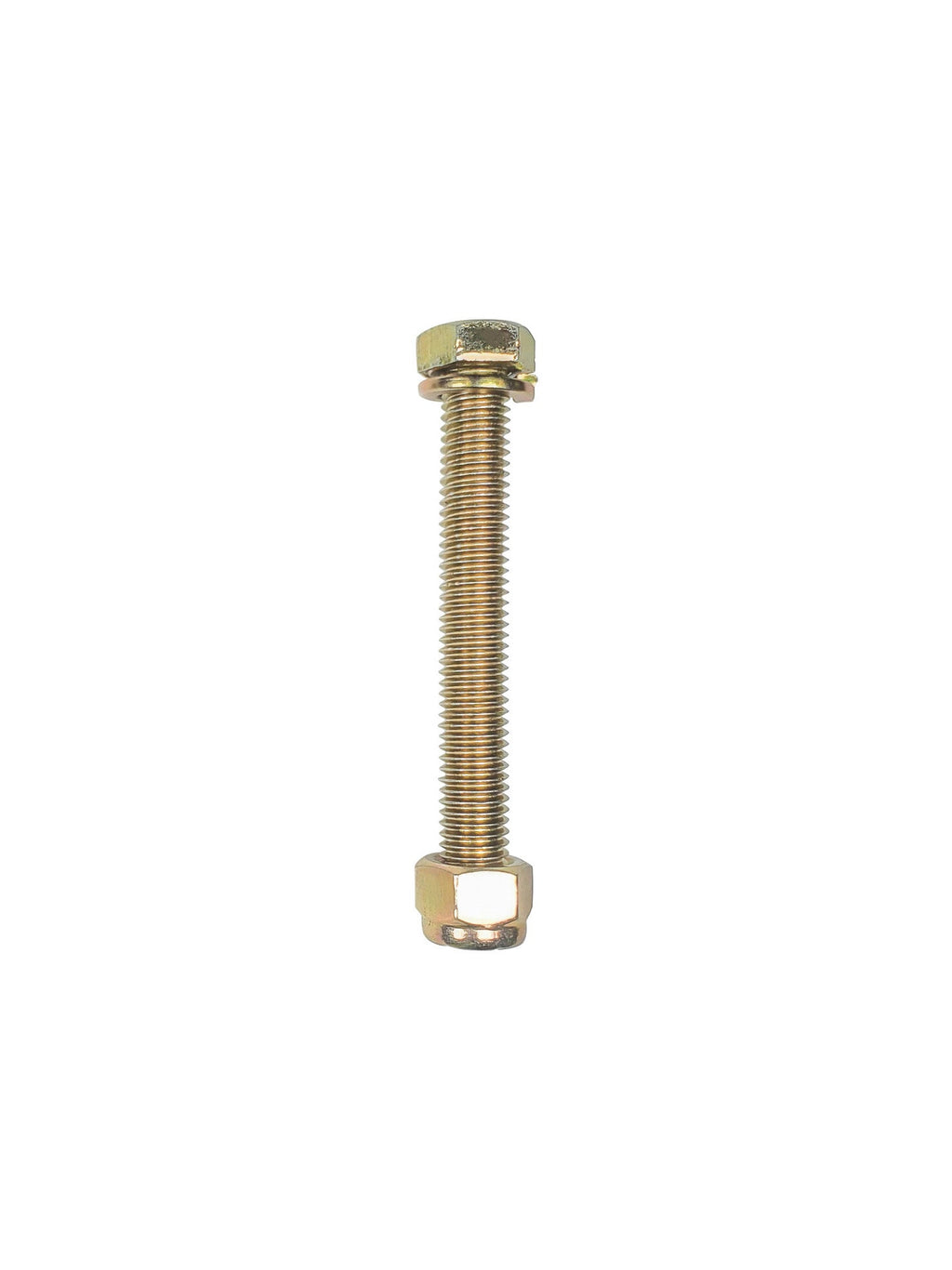

Yes. Frontline includes the mounting bolt, so it is ready to install out of the package.
Can I use the STB5K on concrete?
Frontline makes the STB5K for steel. For concrete, use the Frontline COB5K ALPHA Swivel 5K Concrete Anchor, which we also stock.
Can the STB5K anchor a horizontal lifeline?
Frontline says it can be combined with other approved anchors in a temporary horizontal lifeline system. Follow the lifeline manufacturer's anchor requirements.
Is the STB5K reusable?
Yes. Frontline lists it as fully reusable for permanent or temporary installations. Inspect before each use and retire it after any fall.
Pair the Frontline STB5K anchor with an SRL or lanyard
The STB5K is the anchorage connector. Add a full-body harness and an SRL or shock-absorbing lanyard for a complete personal fall arrest system.
