Frontline STMP10K-WO Weld-On Puck for MEGA Swivel 10K | Canada
Frontline STMP10K-WO Weld-on Puck for MEGA Swivel 10K. A weld-on mounting puck for Frontline's MEGA Swivel 10K anchors, supplied with a Grade 8 5/8"-11 bolt. The page warns that the welding procedure must be approved by an engineer or other qualified person for the chosen installation location.
Frontline STMP10K-WO weld-on puck for MEGA Swivel 10K key features
- 3" x 1" puck with 5/8" threaded hole
- Includes 5/8" x 4" plated Grade 8 bolt and nut
- Welding procedure must be approved by an engineer or other qualified person to suit the structural and operational characteristics of the installation location
Frontline STMP10K-WO weld-on puck for MEGA Swivel 10K specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | STMP10K-WO |
| Included | Weld-on puck (3" x 1", 5/8" threaded hole), Grade 8 5/8"-11 bolt with internal lock washer (features list says 5/8" x 4" bolt and nut). Swivel anchor itself not stated as included |
| ANSI User Capacity | 130 to 310 lbs Max. |
| OSHA User Capacity | 130 to 425 lbs Max. |
| Weld-on Puck | Unplated Mild Steel |
| Fasteners | Zinc Plated Steel, Grade 8 |
| Standards | Only ANSI and OSHA user capacities listed (ANSI User Capacity, OSHA User Capacity); no standard numbers, no CSA or Cal-OSHA mention |
Where crews use the STMP10K-WO weld-on puck for MEGA Swivel 10K
Structural steel
Bolt-on or weld-on tie-off on steel members.
Overhead tie-off
Install vertically, horizontally or overhead.
Temporary HLL ends
Use with other approved anchors in an HLL.
Rescue and rigging
Rescue, lifting, hoisting and tie-back points.
Is the Frontline STMP10K-WO CSA certified? Compliance in Canada
Is the Frontline STMP10K-WO 10K CSA certified?
No. Frontline rates the STMP10K-WO to ANSI and OSHA standards only; no CSA rating applies on our store. For CSA-marked equipment see our Safety Direct range.
What comes with the Frontline STMP10K-WO 10K?

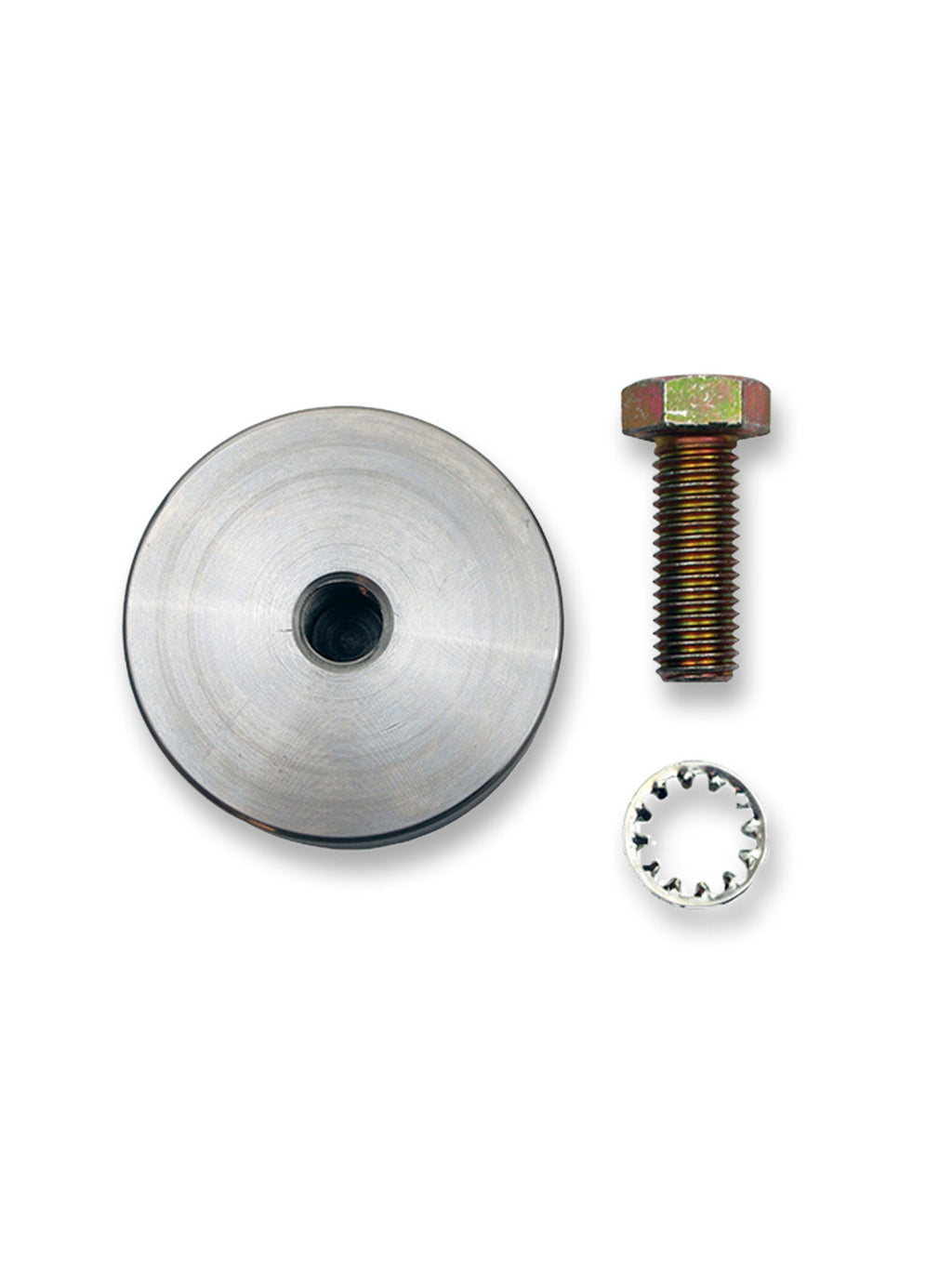

Weld-on puck (3" x 1", 5/8" threaded hole), Grade 8 5/8"-11 bolt with internal lock washer (features list says 5/8" x 4" bolt and nut). Swivel anchor itself not stated as included.
What is the user capacity of the Frontline STMP10K-WO?
Frontline lists 130 to 310 lbs Max..
What to pair with the Frontline STMP10K-WO
The STMP10K-WO is one part of a personal fall arrest system. Pair it with a self-retracting lifeline or shock-absorbing lanyard and an anchor rated for the load, and train the crew on inspection and rescue.
