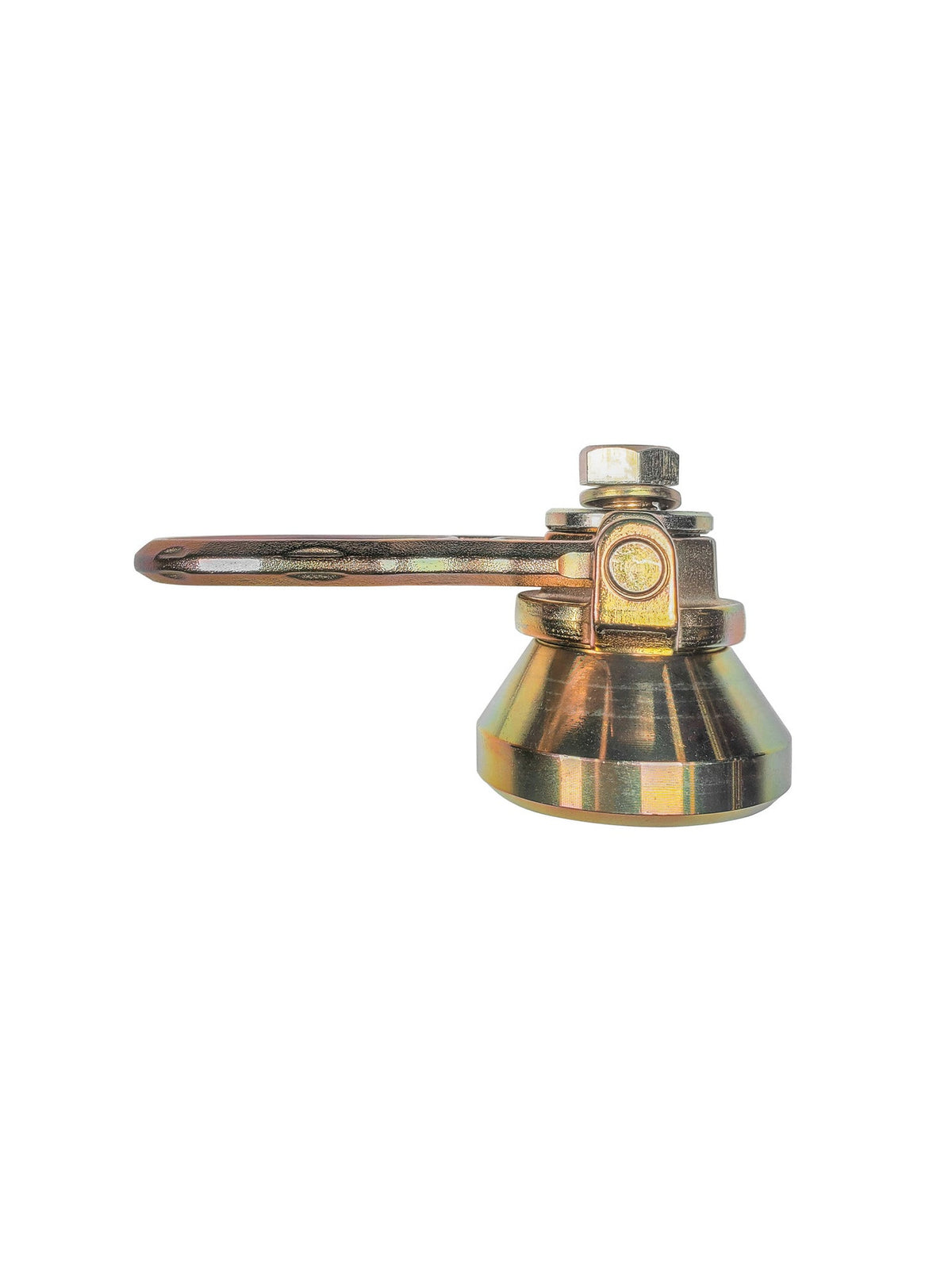

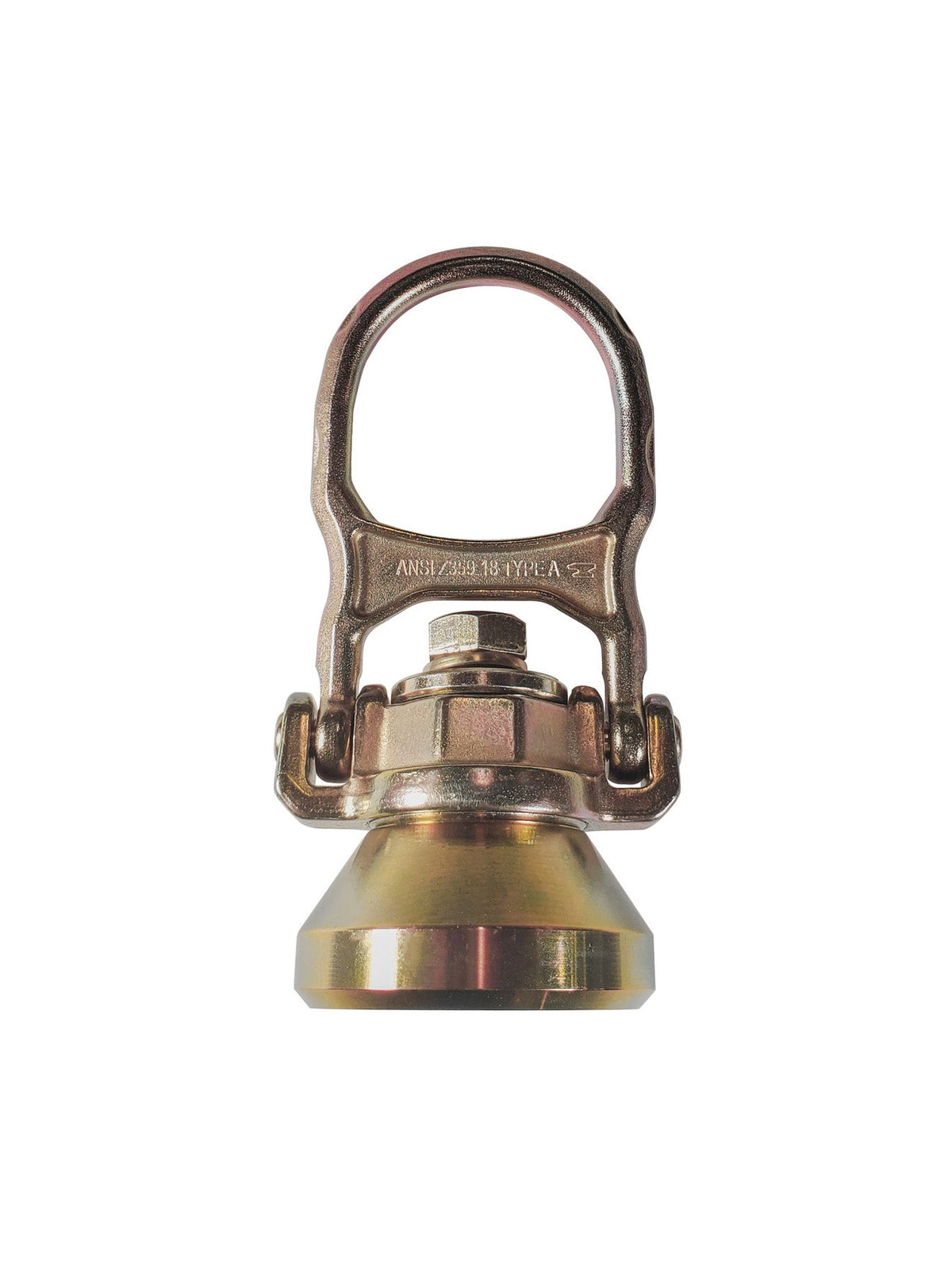

Frontline STWD5K ALPHA Swivel 5K Steel Anchor with Weld-On Puck | Canada. The Frontline ALPHA swivel anchor sold with its weld-on puck: weld the puck to a steel structure, bolt on the 5,000 lb swivel D-ring anchor, and move the anchor to a new puck when the work moves. The D-ring rotates 360° and pivots 180° front to back so the connector follows the worker. Galvanized zinc with yellow passivation for indoor or outdoor use, 1.2 lb, bolt included.

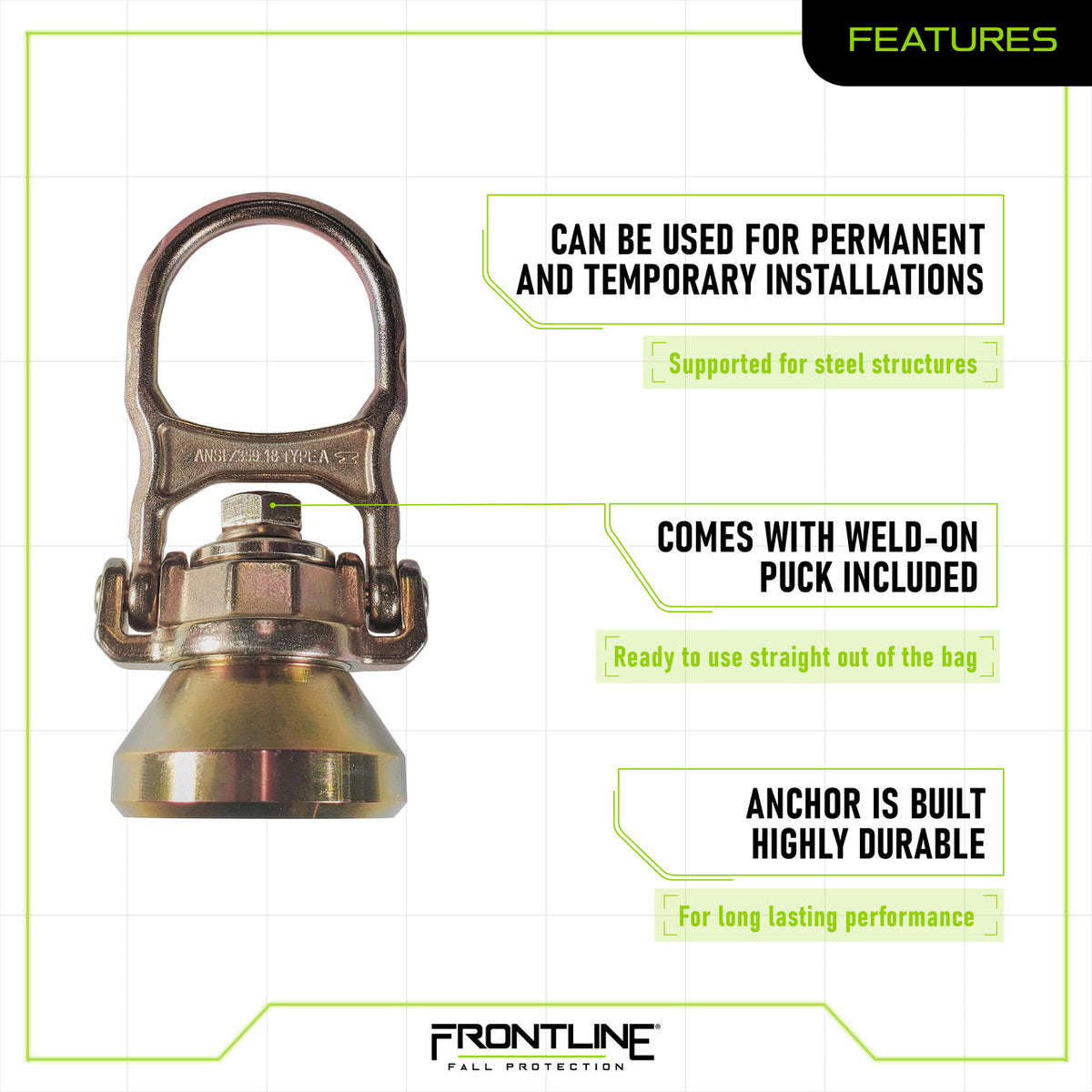

Frontline STWD5K weld-on swivel anchor key features

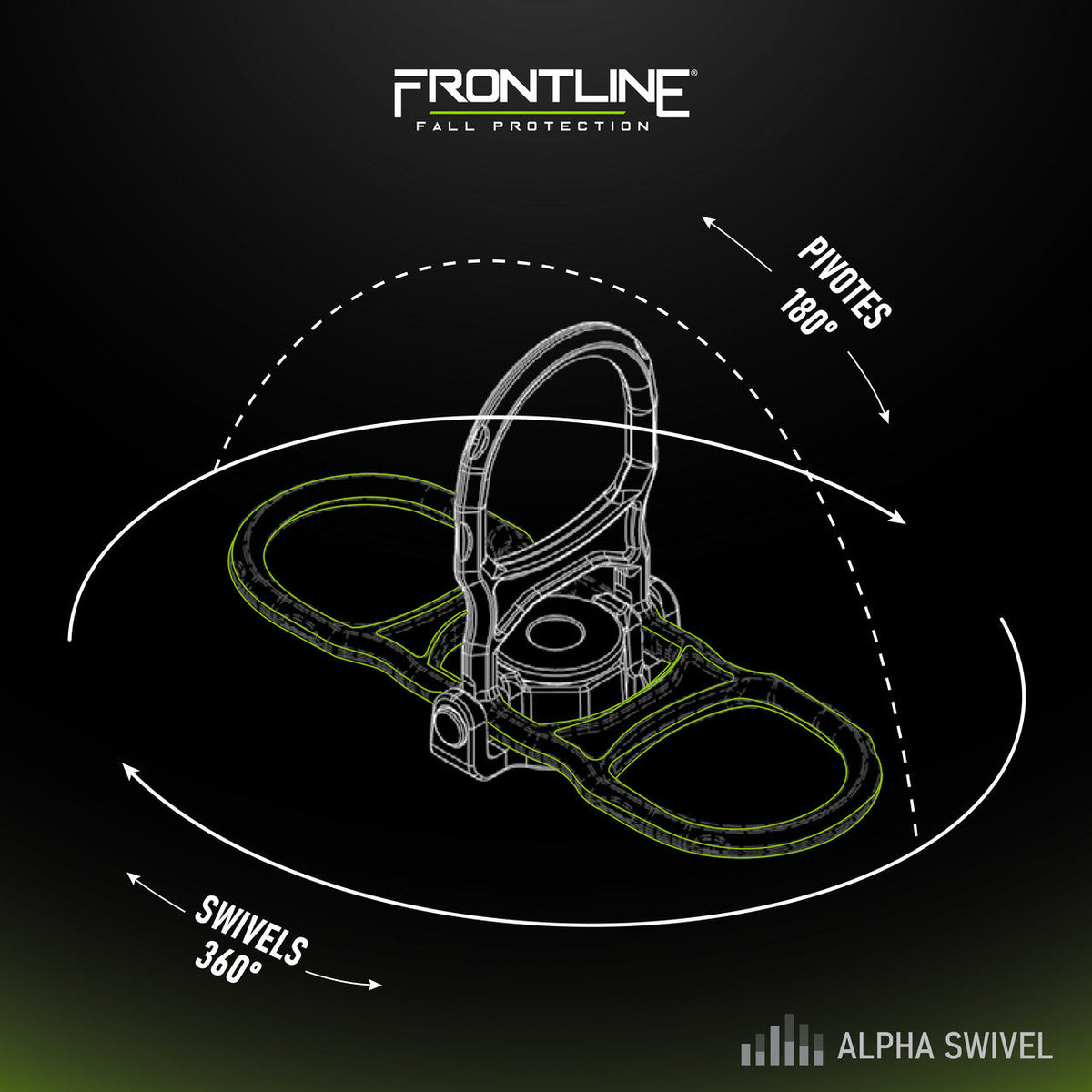

- D-ring rotates 360° and pivots 180°, which helps avoid side loading and accidental disengagement

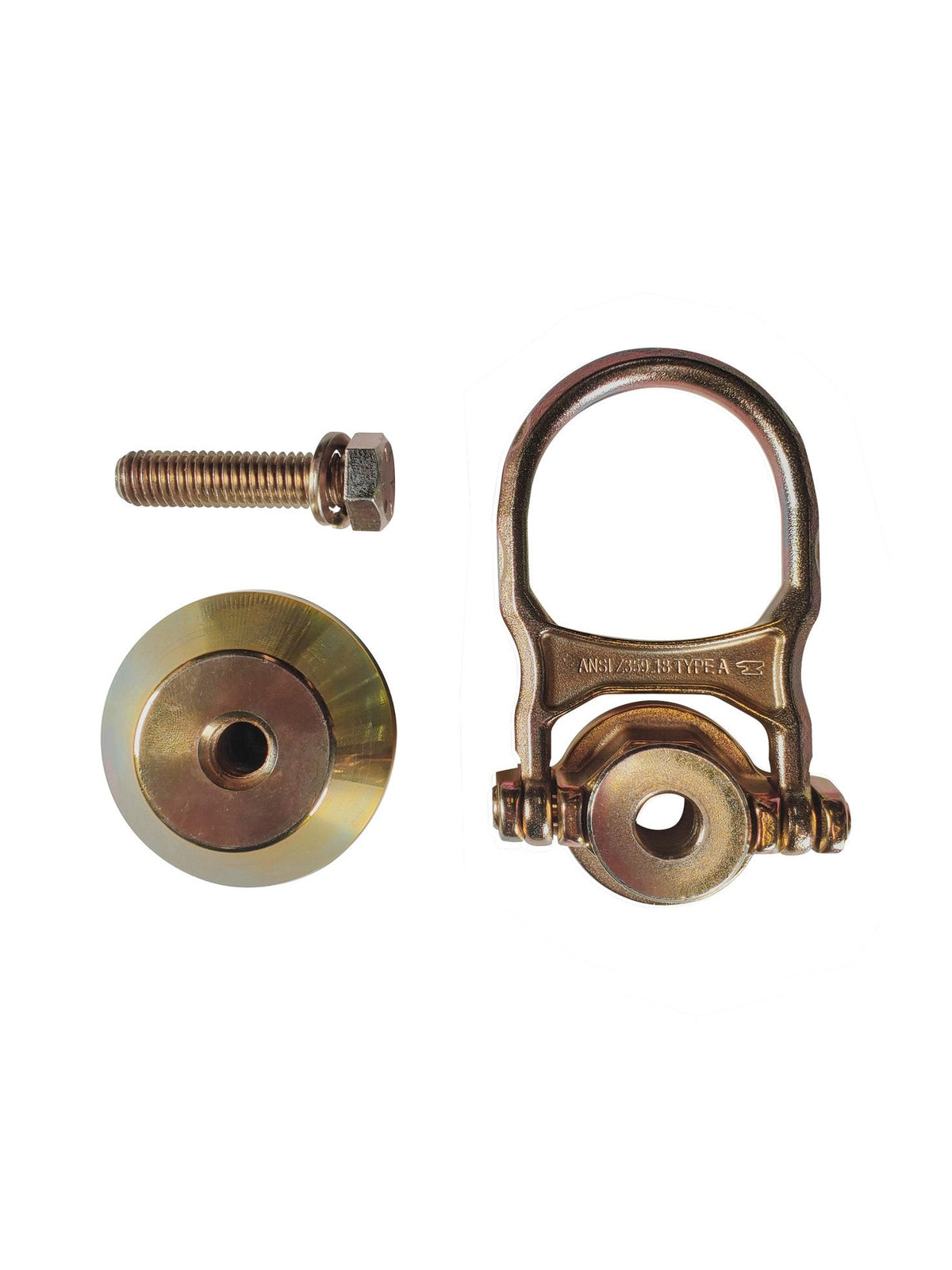

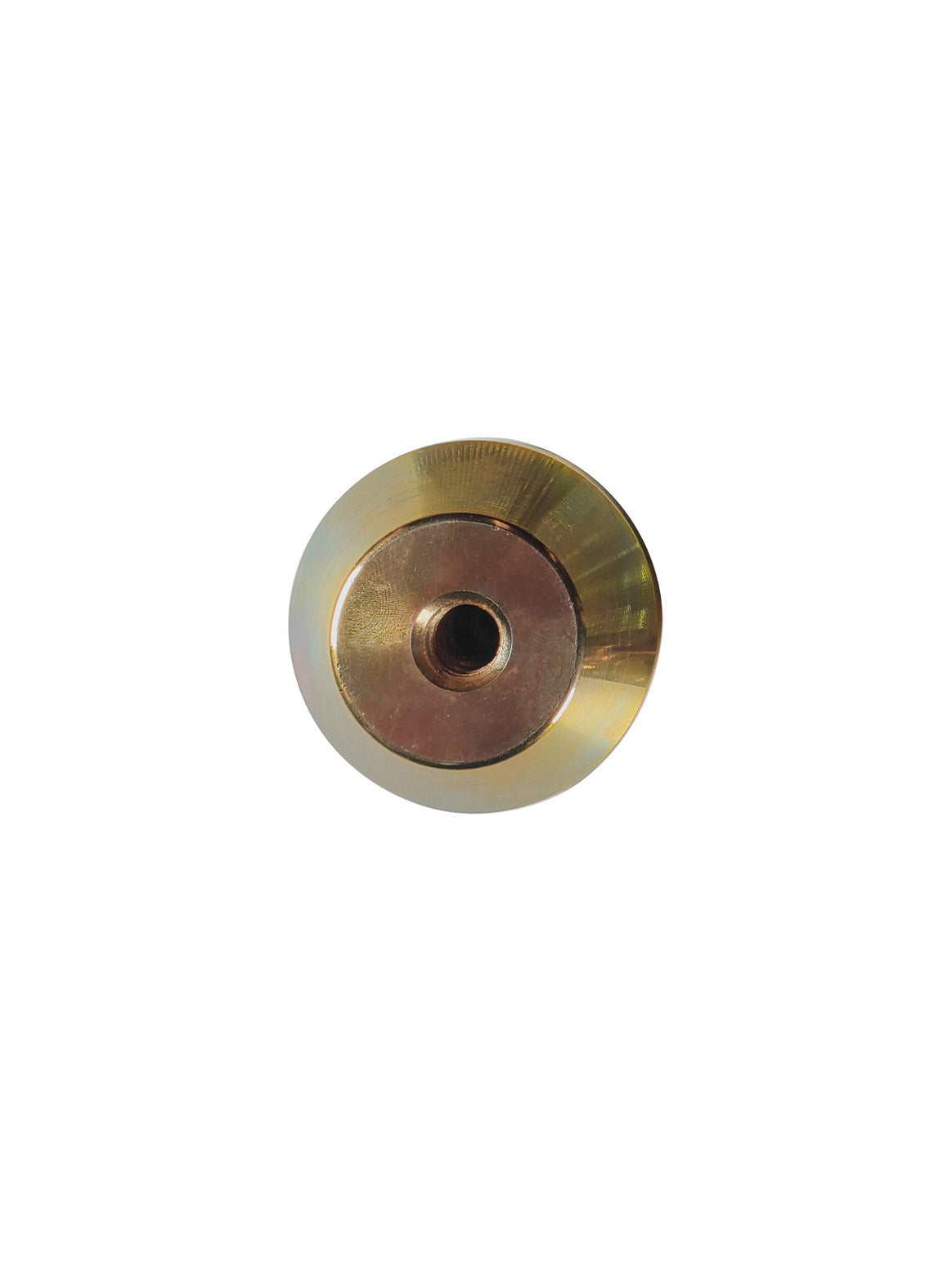

- Weld-on mounting puck: weld it to the structure, bolt the anchor on, and replace the puck when the anchor moves to a new work area
- For permanent or temporary installations on steel structures
- Single-user anchor point, or combined with other approved anchors in a temporary horizontal lifeline system
- Galvanized zinc with yellow passivation for corrosion protection, indoors or out
- Compact and built tough for jobsite conditions; vertical, horizontal or overhead applications
- Bolt included; 1.2 lb
Frontline STWD5K ALPHA anchor and puck specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | STWD5K |
| Mounting | Weld-on puck to steel, swivel anchor bolted to the puck |
| Static tensile strength | 5,000 lb |

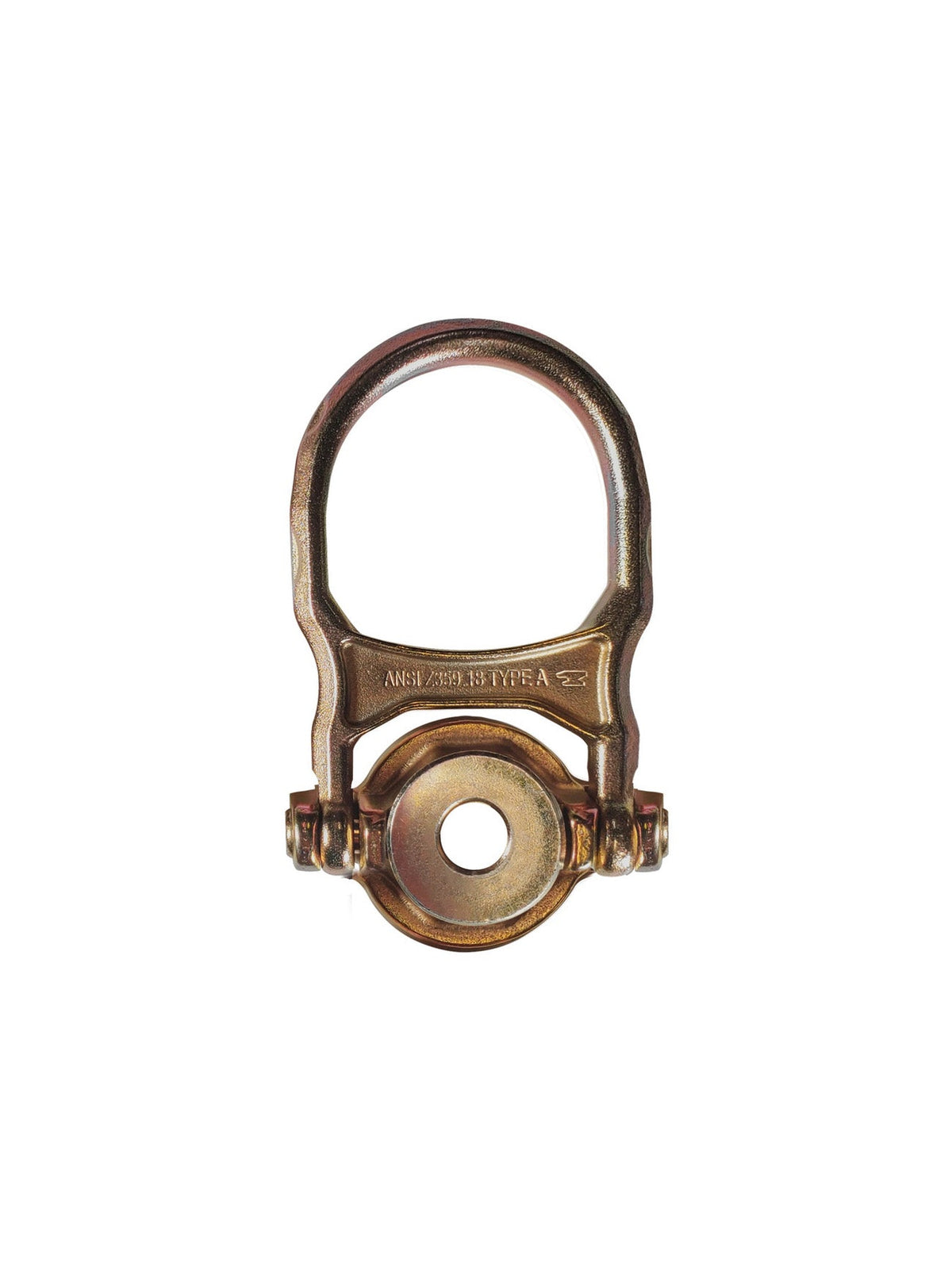

| D-ring | 360° swivel, 180° pivot |

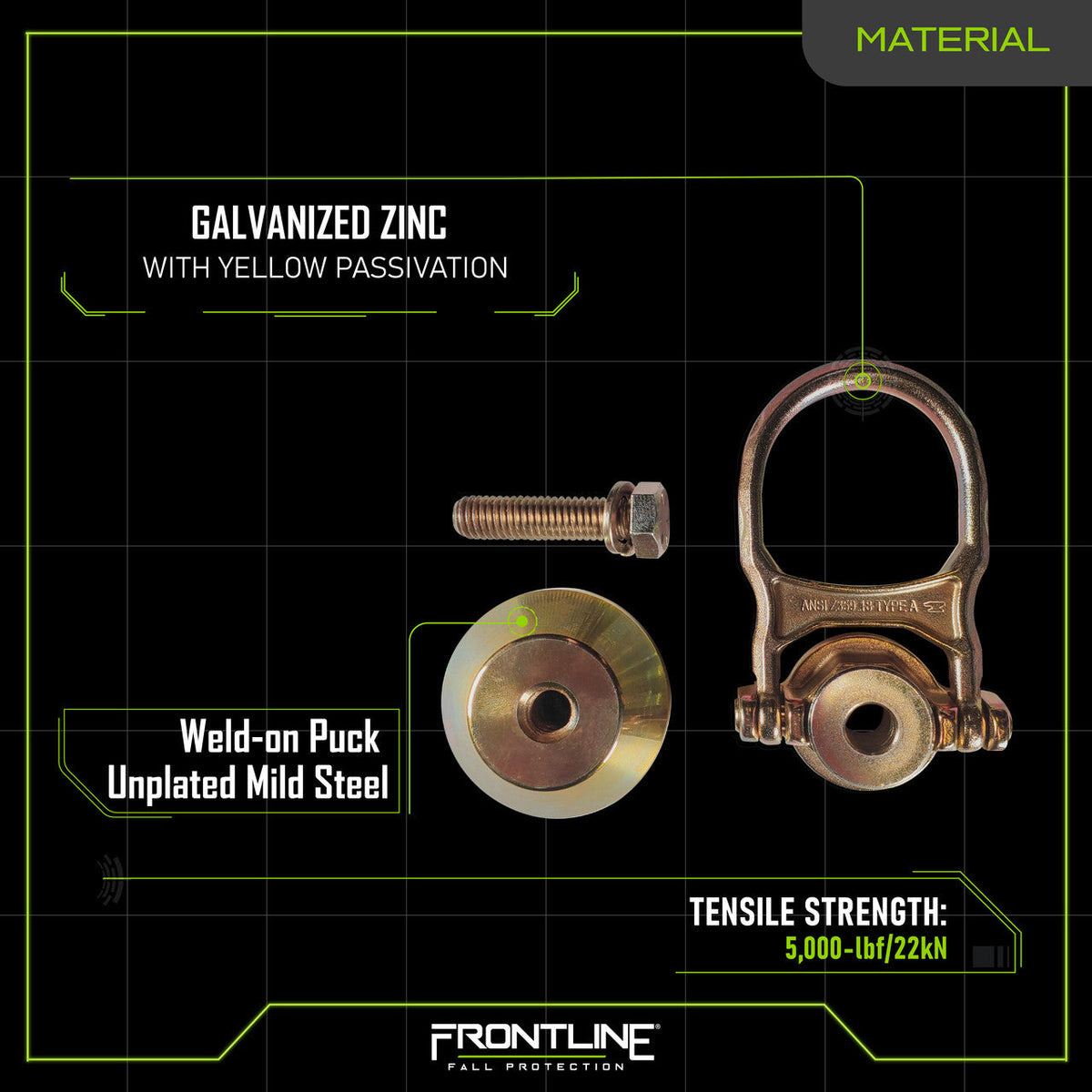

| Finish | Galvanized zinc with yellow passivation |
| User capacity | 310 lb |
| Unit weight | 1.2 lb |
| Hardware | Mounting bolt included |

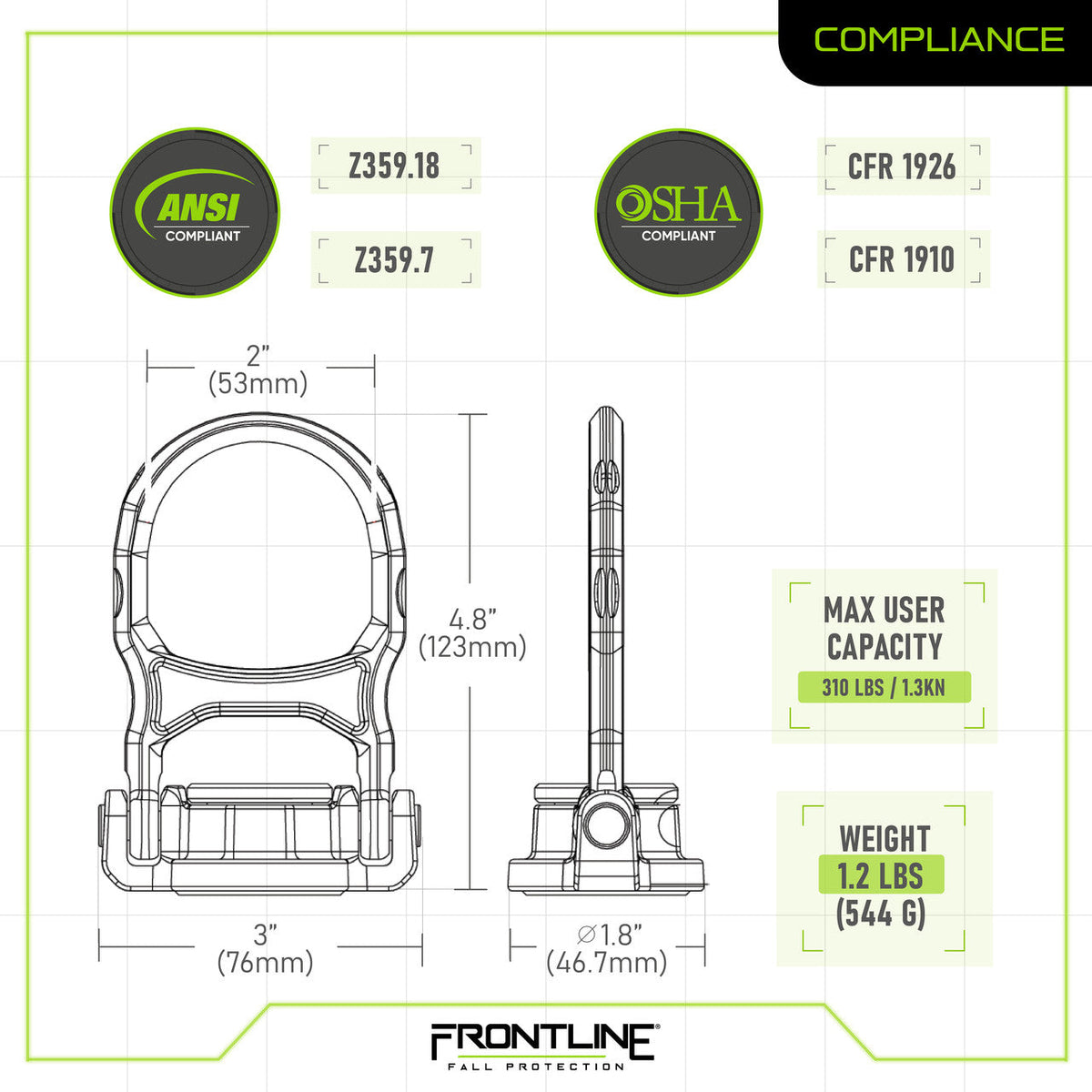

| Standards | Meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910 and OSHA 1926 |
| Puck dimensions / weld spec | Not published by Frontline; ask us |
| Region | Stocked in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline STWD5K weld-on anchor
Structural steel
Weld pucks along the job and carry one swivel anchor from puck to puck.
Plant and industrial
Permanent weld-on anchor points over tanks, conveyors and machinery.
Temporary horizontal lifelines
End anchor combined with other approved anchors, per Frontline's instructions.
Overhead and vertical work
Rated for vertical, horizontal or overhead orientation; the swivel keeps the connector aligned.
Is the Frontline STWD5K CSA certified? Compliance in Canada
Is the Frontline STWD5K CSA certified?
No. Frontline rates it to ANSI Z359.18, ANSI Z359.7, OSHA 1910 and OSHA 1926. For CSA-marked anchors, see our Safety Direct range.
STWD5K or STB5K: which one?
The STWD5K comes with a weld-on puck for structures you cannot drill; the STB5K is the same ALPHA swivel anchor bolted straight to the steel. Both are 5,000 lb, 310 lb user.
Who should weld the puck?
A qualified welder, to the structure's engineer or Frontline's instructions. We do not publish the weld spec; ask us for Frontline's instruction sheet.
Can the STWD5K anchor a horizontal lifeline?
Frontline says it can be combined with other approved anchors in a temporary horizontal lifeline system. Follow the lifeline manufacturer's anchor requirements.
Is the STWD5K reusable?
Yes. Frontline lists the anchor as reusable, with the weld-on mounting kit replaced when it moves to a new work area. Inspect before each use and retire it after any fall.
Pair the Frontline STWD5K anchor with an SRL or lanyard
The STWD5K is the anchorage connector. Add a full-body harness and an SRL or shock-absorbing lanyard for a complete personal fall arrest system.
