Frontline TAN07-US Patriot 7 ft Confined Space Tripod | Canada

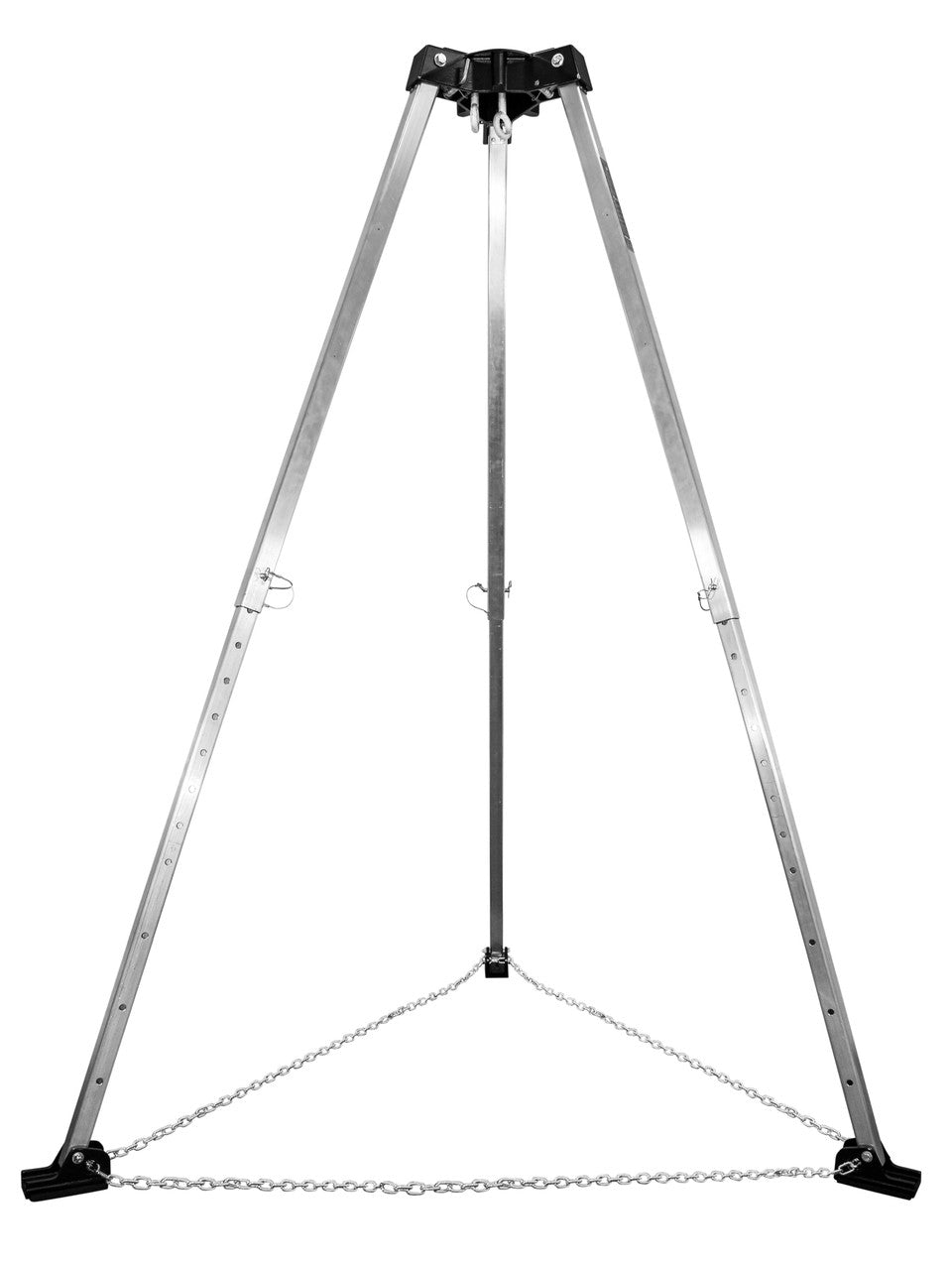

Frontline TAN07-US Patriot 7 ft tripod. The 7 ft aluminum confined space tripod from Frontline's Patriot line, the anchor structure for entry over manholes, hatches and vaults. 5,000 lb minimum breaking strength, 350 lb maximum user capacity. Winch and 3-way retrieval unit sold separately (the TAN07RA-US kit bundles the 3-way).
Frontline TAN07-US Patriot 7 ft tripod key features
- Lightweight aluminum tripod with auto-locking telescoping legs
- Sets up in seconds by one person with no tools

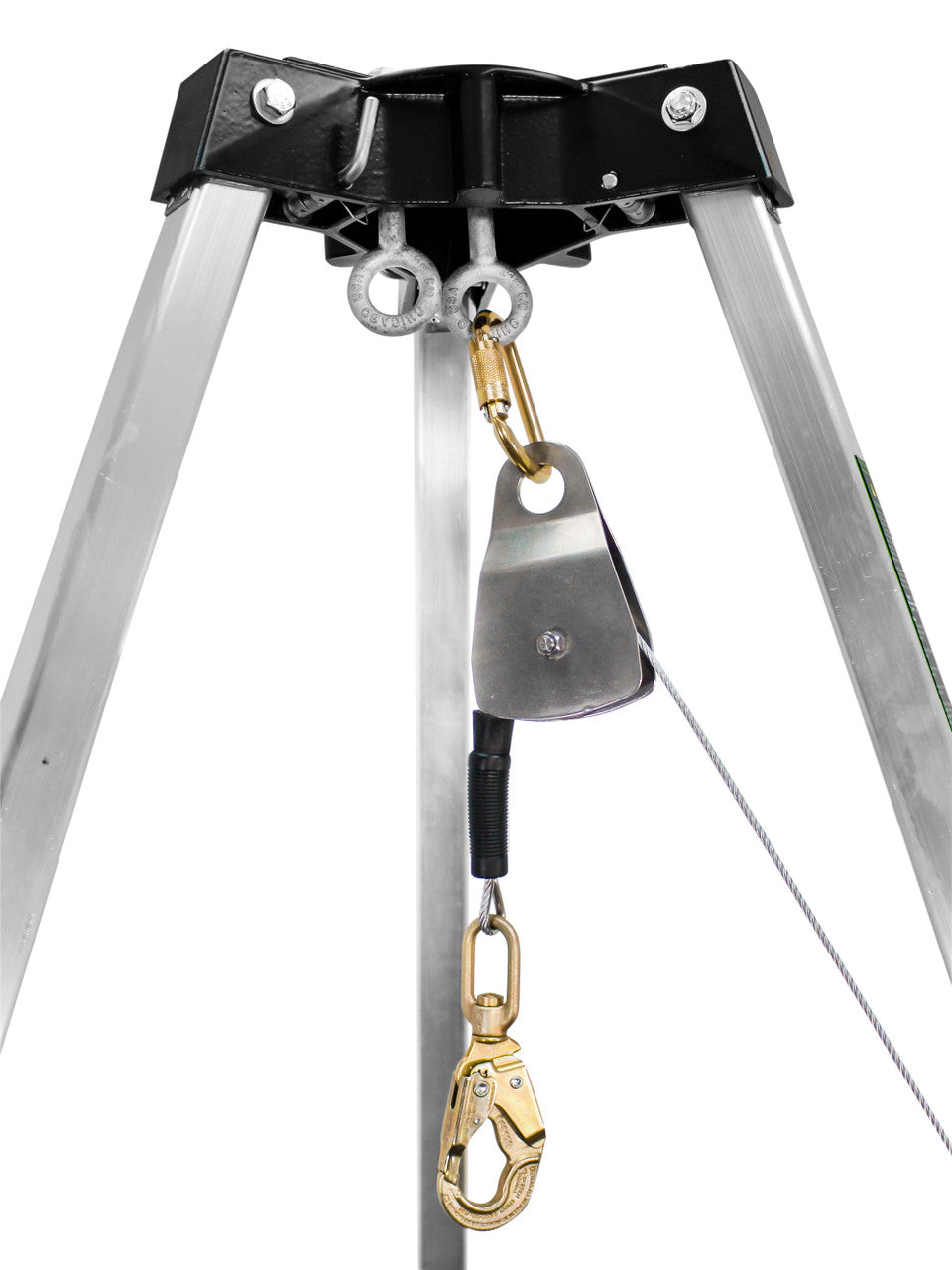

- Cast aluminum head with two integrated eye bolts for pulleys or auxiliary equipment
- Each leg adjusts independently for uneven terrain using quick-insert locking pins

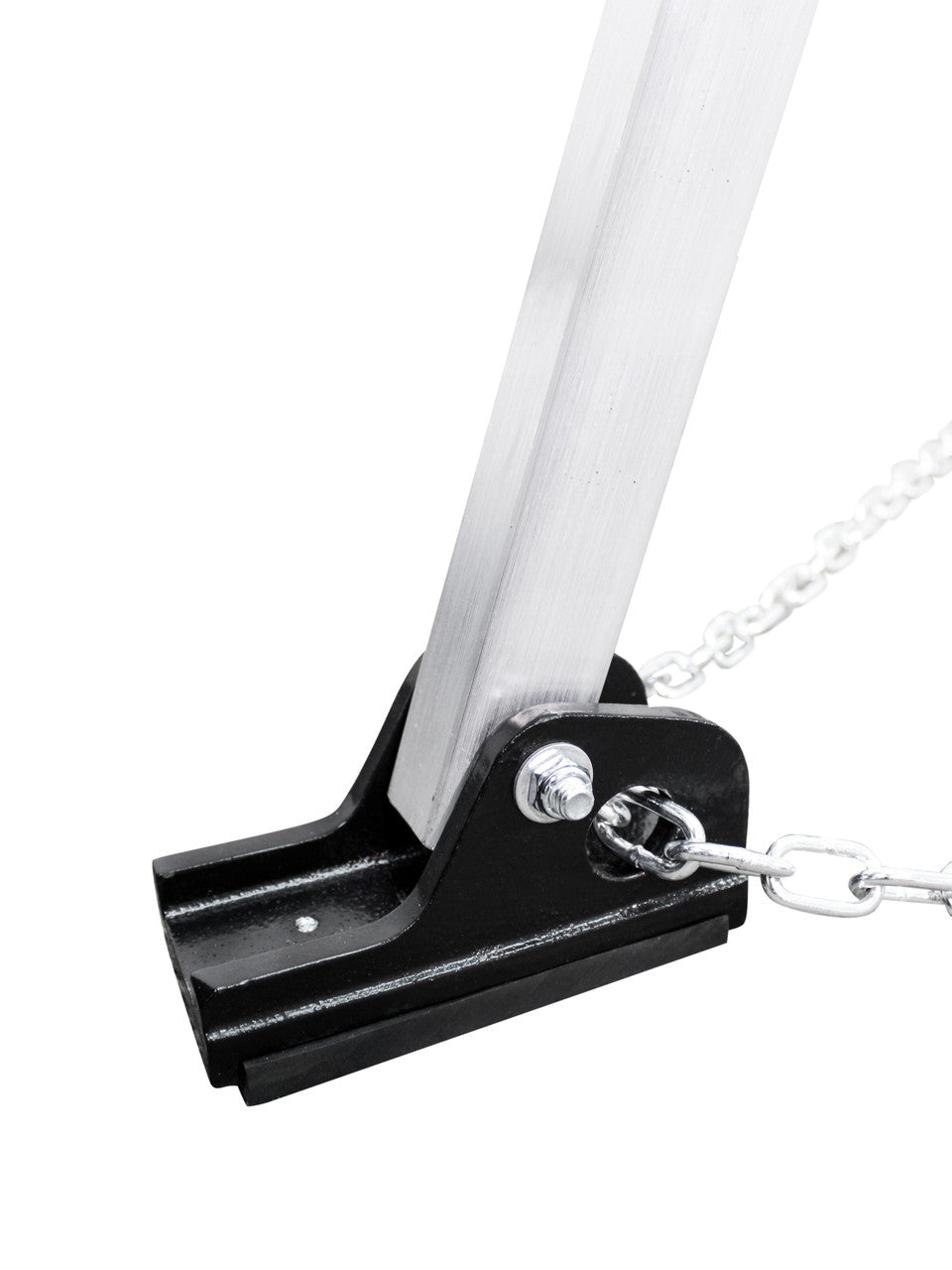

- Anti-skid rubber feet and safety leg chains for added stability
Frontline TAN07-US Patriot 7 ft tripod specifications
| Manufacturer | Frontline |
|---|---|
| Model / SKU | TAN07-US |
| Minimum Breaking Strength | 5,000 lbs |
| Maximum User Capacity | 350 lbs |
| Standards | Meets or exceeds OSHA and ANSI Z359.1, ANSI Z359.4, ANSI Z359.18 (per Frontline) |
Where crews use the Frontline TAN07-US Patriot 7 ft tripod
Manholes and vaults
Lower and retrieve entrants over an opening.
Tanks and pits
Permit-required confined space entry.
Non-entry rescue
Bring a worker out without sending anyone in.
Utility crews
Fast setup on site.
Is the Frontline TAN07-US CSA certified? Compliance in Canada
Is the Frontline TAN07-US tripod CSA certified?
No. Frontline rates the TAN07-US to US standards (ANSI/OSHA); it is not CSA certified. For CSA-marked equipment see our Safety Direct range.
What is the capacity of the Frontline TAN07-US tripod?
Frontline lists 350 lbs.
What to pair with the Frontline TAN07-US Patriot 7 ft tripod
Pair the TAN07-US with a Patriot RAW50-US winch or RAG503W-US 3-way retrieval SRL and a full-body harness, and train the crew on inspection and rescue.
