Frontline TAN07RURP MEGApod 7 ft Tripod, Winch & 3-Way SRL | Canada

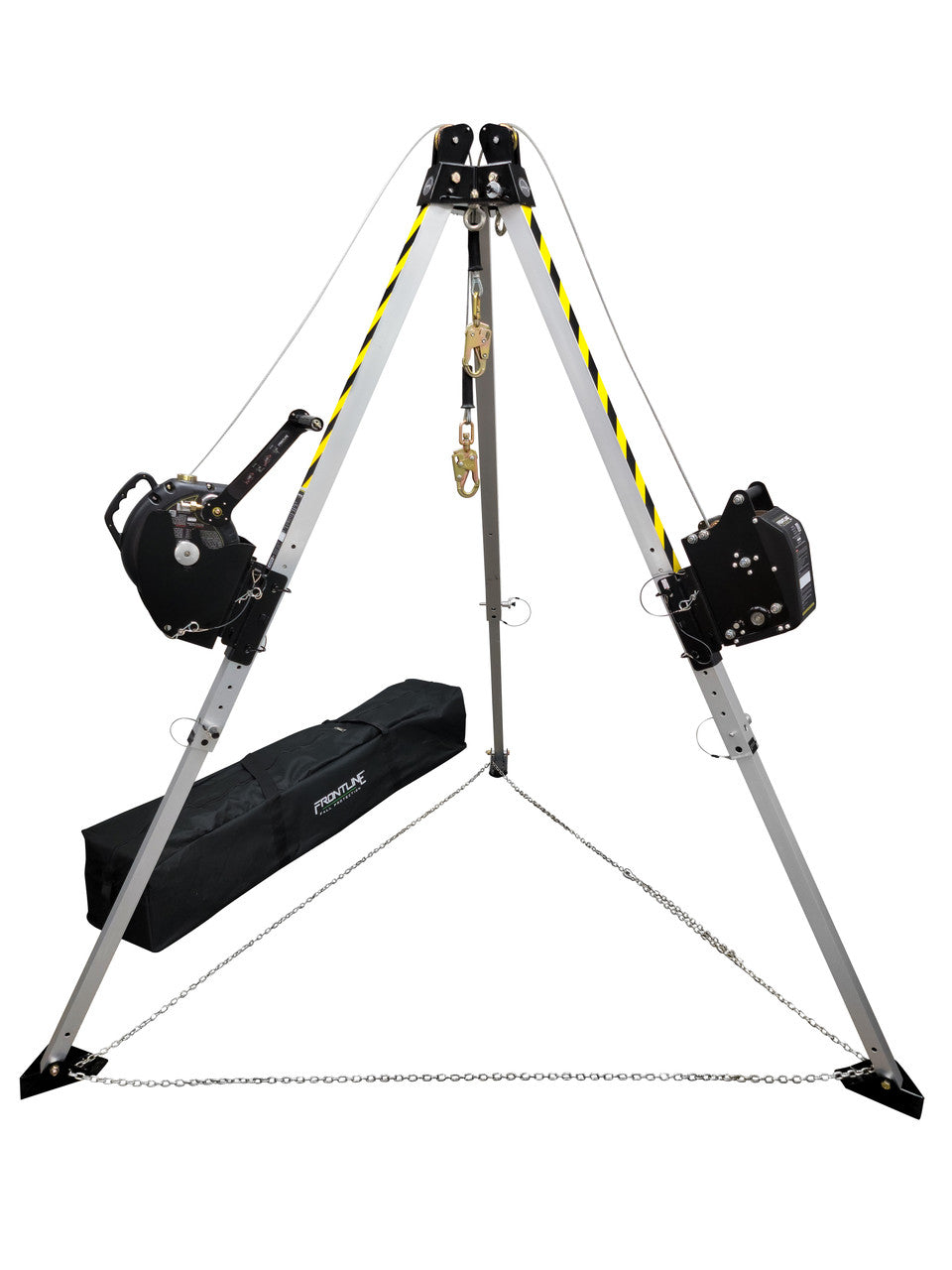

Frontline TAN07RURP MEGApod Confined Space 7' Aluminum Tripod with 60' Winch and 3-Way SRL. A complete confined space entry and non-entry rescue kit: the MEGApod aluminum tripod (4 to 7 ft adjustable), the RUW60 60 ft winch and the RPG603W 60 ft 3-way SRL, with a storage and carry bag. One person can set it up without tools. 310 lb maximum lifting load.
Frontline TAN07RURP MEGApod 7 ft tripod kit key features
- Aluminum tripod: light, portable, set up by one person without tools

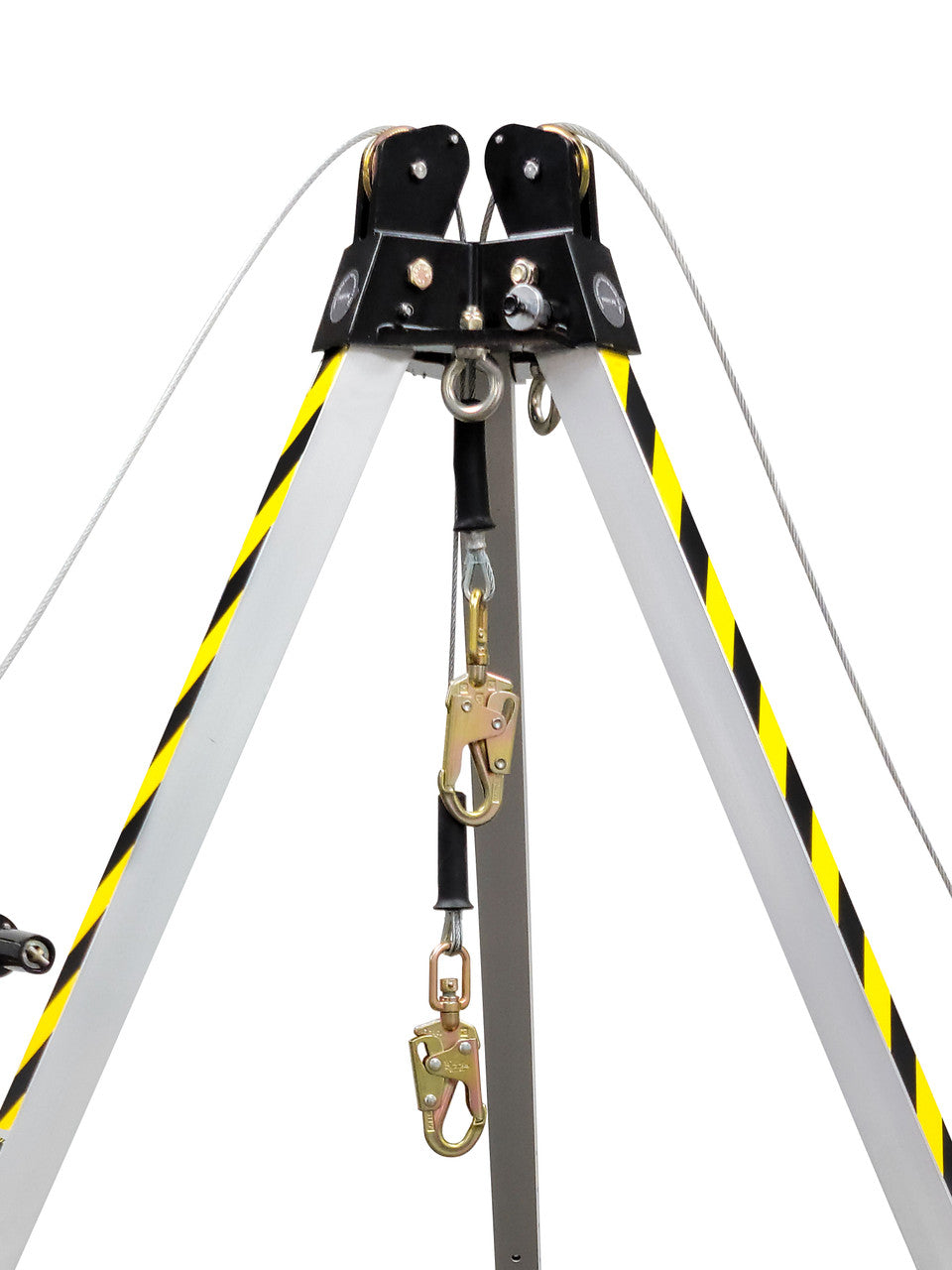

- Cast aluminum head with built-in double pulley so winch and SRL run independently
- Sliding telescopic legs for inner and outer adjustment

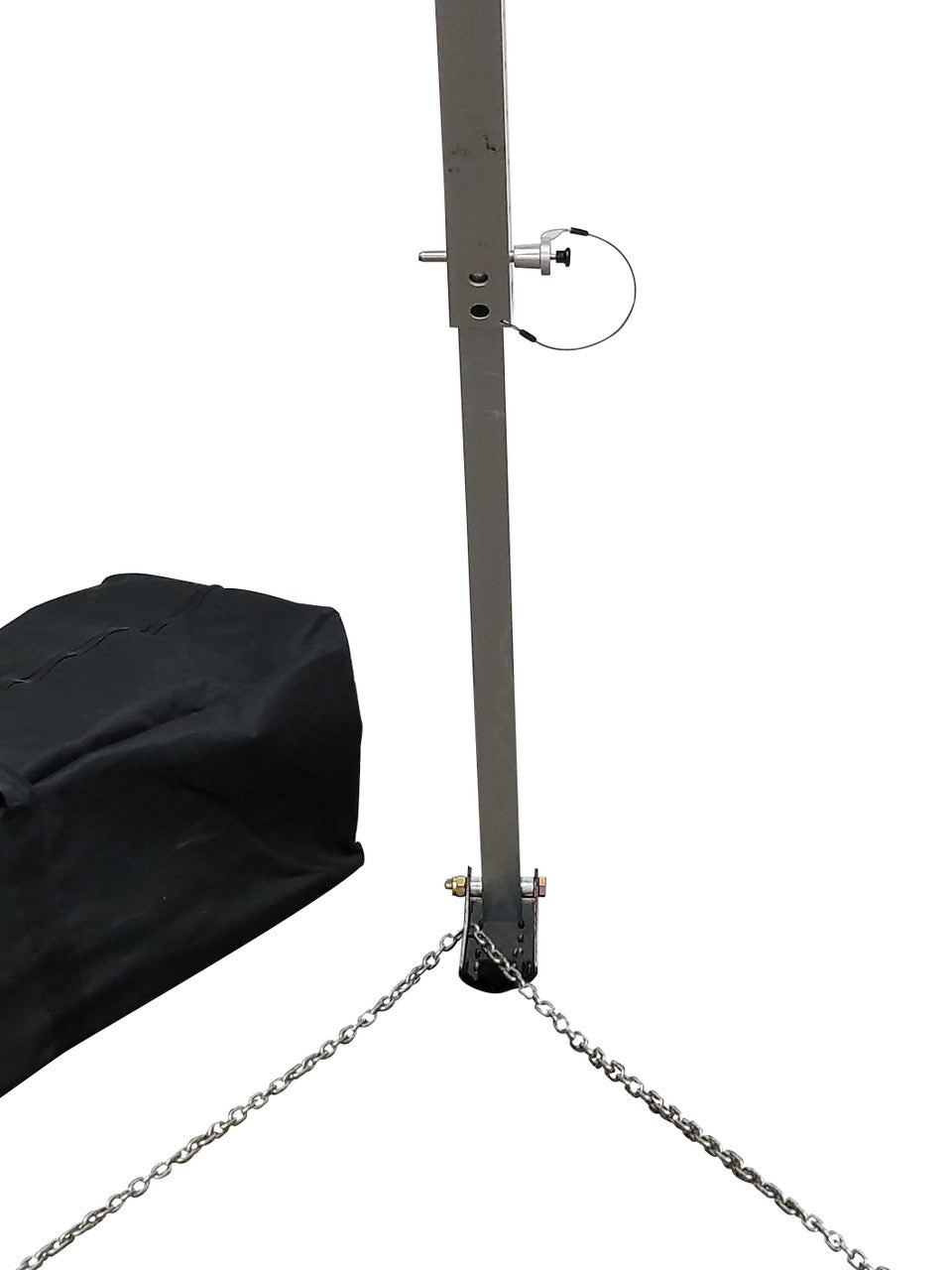

- Safety shoes with rubber soles for flat surfaces and spiked edges for slippery ones
- Safety chain and 2 auxiliary eye bolts

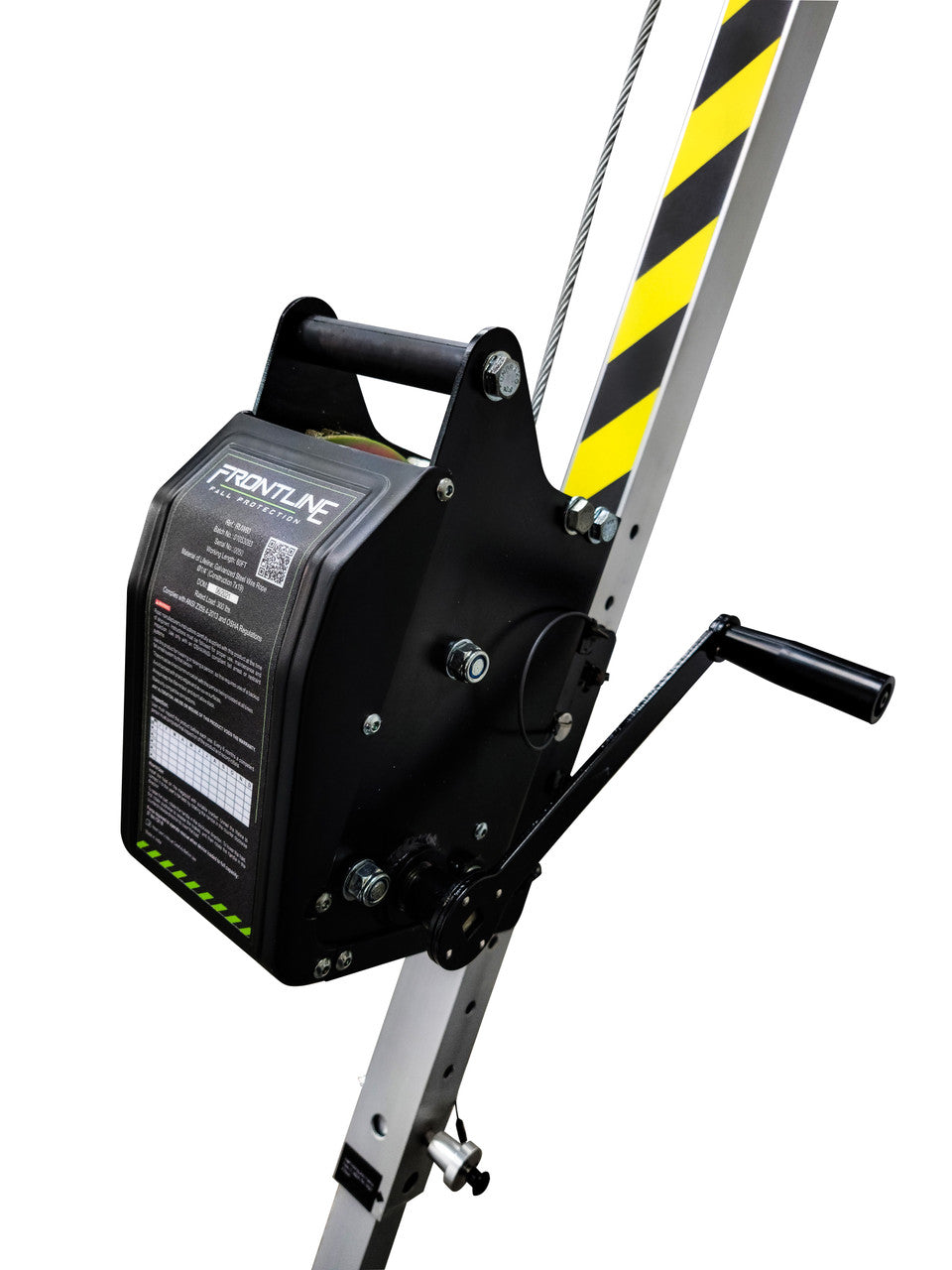

- RUW60 winch: 60 ft of 15/64 in galvanized wire rope, mounting plate with two pin-locking bolts

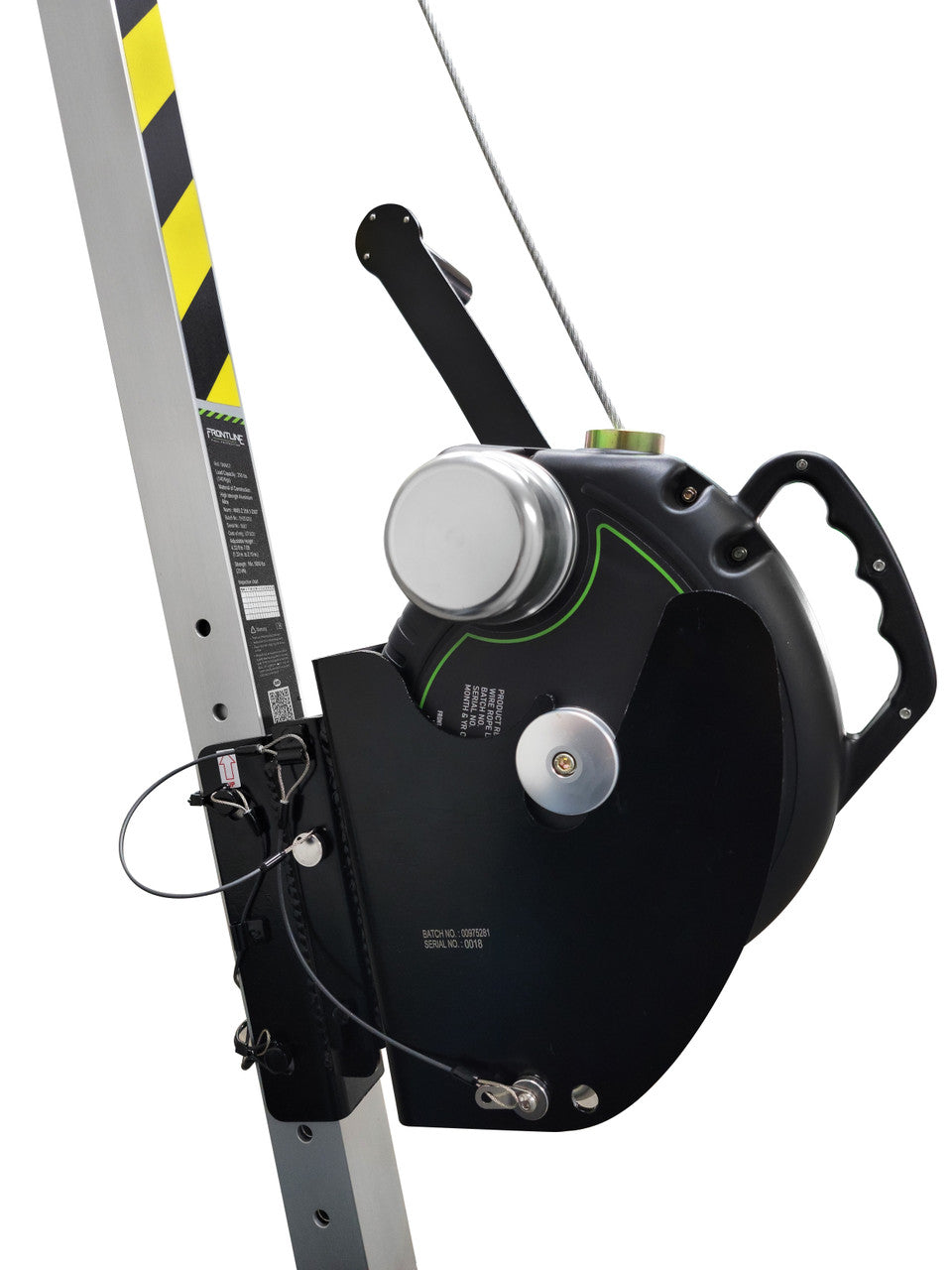

- RPG603W 3-way SRL: 60 ft of 3/16 in galvanized wire rope, retractable and winch modes with a side locking pin
- Swivelling steel snap hooks on winch and SRL
- MEGApod storage and carry bag
Frontline TAN07RURP MEGApod tripod kit specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | TAN07RURP |
| Kit contents | MEGApod tripod, safety chain and shoes, 2 auxiliary eye bolts, RPG603W 3-way SRL, RUW60 winch with mounting plate, storage and carry bag |
| Tripod material | Aluminum, cast aluminum head |
| Tripod height | 4 ft min to 7 ft max |
| Winch lifeline | 60 ft galvanized steel wire rope, 15/64 in |
| SRL lifeline | 60 ft galvanized steel wire rope, 3/16 in |
| Shock absorption | Built into SRL and winch |
| Maximum lifting load | 310 lb |
| Standards | Meets or exceeds OSHA and ANSI standards (per Frontline) |
| Weight / leg spread | Not published by Frontline; ask us |
Where crews use the Frontline TAN07RURP MEGApod kit
Manholes and vaults
Lower and retrieve entrants over a manhole.
Tanks and pits
Permit-required confined space entry.
Non-entry rescue
Bring a worker out without sending anyone in.
Utility crews
One-person setup from the carry bag.
Is the Frontline TAN07RURP CSA certified? Compliance in Canada
Is the Frontline TAN07RURP MEGApod kit CSA certified?
No. Frontline states it meets or exceeds OSHA and ANSI standards; no CSA rating is published. For CSA-marked equipment see our Safety Direct range.
What comes in the Frontline TAN07RURP MEGApod kit?
Tripod, safety chain and shoes, 2 eye bolts, RPG603W 3-way SRL, RUW60 winch with plate and a carry bag.
How tall does the Frontline TAN07RURP tripod adjust?
Frontline lists 4 ft minimum to 7 ft maximum, by sliding telescopic legs.
How much can the Frontline TAN07RURP kit lift?
Frontline lists a maximum lifting load capacity of 310 lb.
Pair the Frontline TAN07RURP kit with a full-body harness
The TAN07RURP covers the tripod, winch and fall arrest. Add a full-body harness with a back or shoulder D-ring for the entrant, and train the crew on your rescue plan.
