Frontline TRG120 Trench Guardrail System, 120 Linear Ft
TRENCH GUARDRAILOSHA 1910 / 1926MODEL TRG120

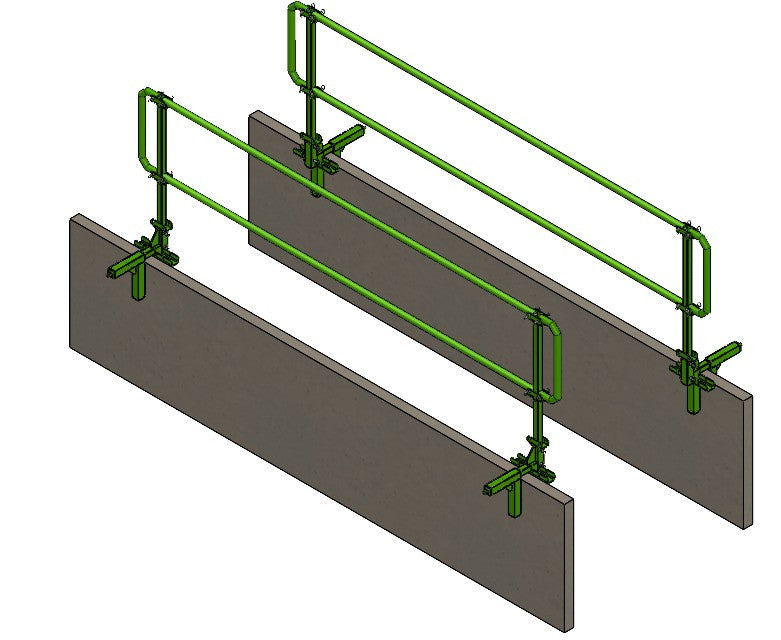

The Frontline TRG120 Trench Guardrail System protects 120 linear feet of open trench or excavation edge with twelve 10 ft guardrail sections. It ships complete with guardrails, trench clamps, posts, end curves and safety pins, built from powder-coated high-strength steel with a tubular post design that goes together with minimal tools. The modular sections run as one continuous barrier and pick up and reset as the dig moves down the line.
Frontline TRG120 trench guardrail key features
Where the Frontline TRG120 trench guardrail is used
Along open trenches, excavations and other open-edge work areas on civil, utility and construction jobsites, to keep workers, inspectors and the public back from the drop. Pair it with the Frontline GUM manhole guardrail for below-grade access points.
Frontline TRG120 trench guardrail system specifications
| Model | TRG120 |
| Product type | Trench guardrail system |
| Coverage | 120 linear ft (twelve 10 ft sections) |
| Included | Guardrails, trench clamps, posts, end curves, safety pins |
| System weight | 721 lb |
| Material | High-strength steel, powder coated |
| Standards | Meets or exceeds OSHA 1910 or 1926 requirements (Frontline) |
| Brand | Frontline Fall Protection |
COMPLIANCE — OSHA GUARDRAIL · NOT CSA Z259 PPE
Frontline lists the TRG120 as meeting or exceeding OSHA 1910 or 1926 requirements. It is a structural guardrail system, not CSA Z259 personal fall protection equipment. Confirm it against your province's excavation and guardrail requirements and with your authority having jurisdiction before use.
Frontline TRG120 trench guardrail system FAQ
How much trench edge does the TRG120 cover?
120 linear feet, in twelve 10 ft guardrail sections that link into one continuous barrier.
What comes in the Frontline TRG120 system?
It ships complete with guardrails, trench clamps, posts, end curves and safety pins.
Can the TRG120 move as the trench progresses?
Yes. The sections are portable, so crews pick them up and reset them as the dig moves down the line or to the next site.
How heavy is the Frontline TRG120 guardrail system?
The full 120 ft system weighs 721 lb, so it ships by freight from Paris, Ontario.
Is the Frontline TRG120 guardrail CSA certified?
No. It is a structural guardrail system that Frontline lists as meeting or exceeding OSHA 1910 or 1926 requirements, not CSA Z259 PPE. Confirm it against your province's excavation and guardrail rules.
