Frontline VLRS SecuRail Pro Vertical Lifeline Rail, 20–40 ft | Canada

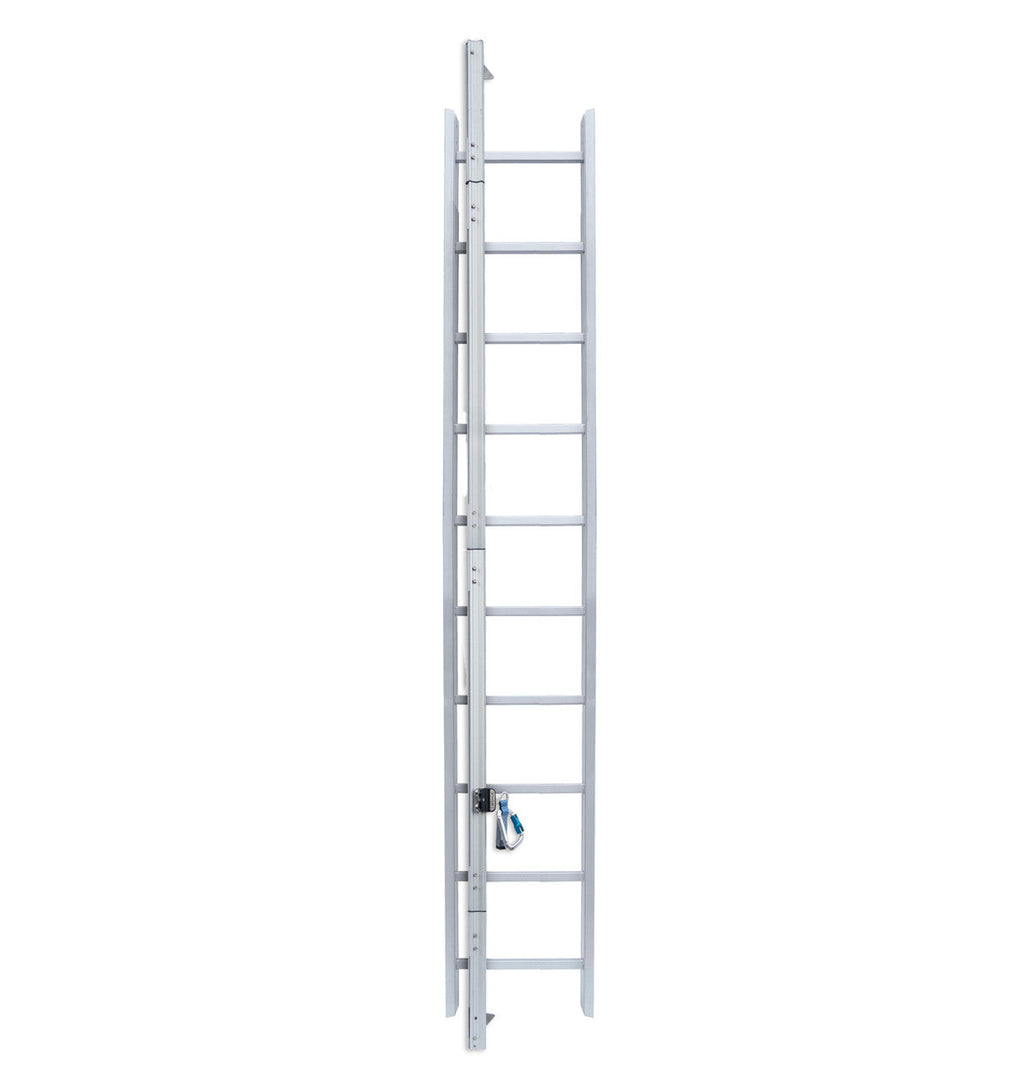

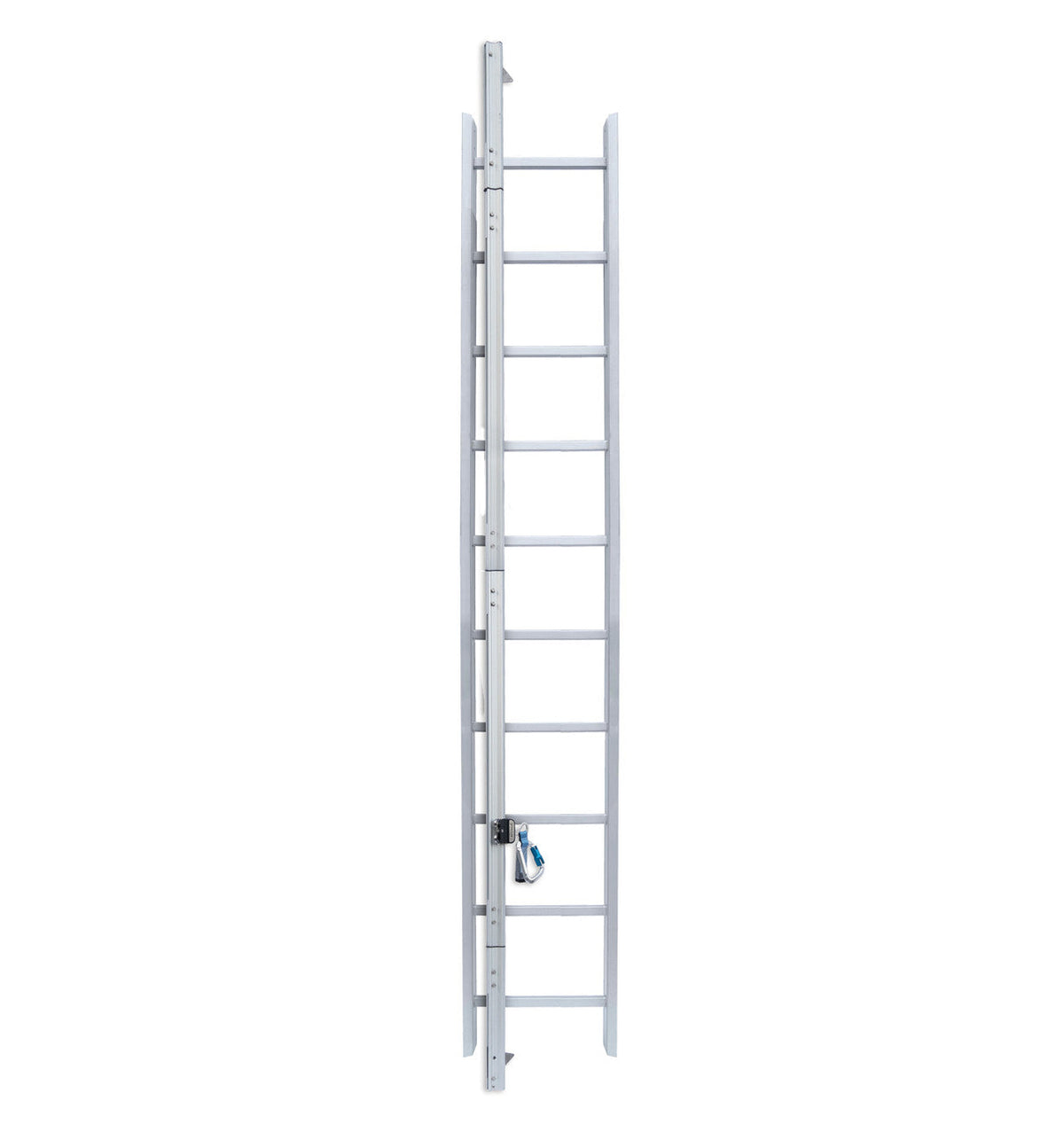

Frontline VLRS SecuRail Pro Vertical Lifeline Rail, 20–40 ft. A rigid aluminum vertical lifeline rail that clamps onto an existing roof access ladder, with stainless steel brackets connecting the ladder to the structure. A trolley with an energy absorber (sold separately) travels along the rail and protects the climber continuously going up and down, hands-free. Light, rigid and retrofittable, in 20, 30 or 40 ft; up to 2 users per system; 3,300 lb system breaking strength.
Frontline VLRS SecuRail Pro vertical lifeline key features
- Rigid lifeline for secure access to structures and roofs

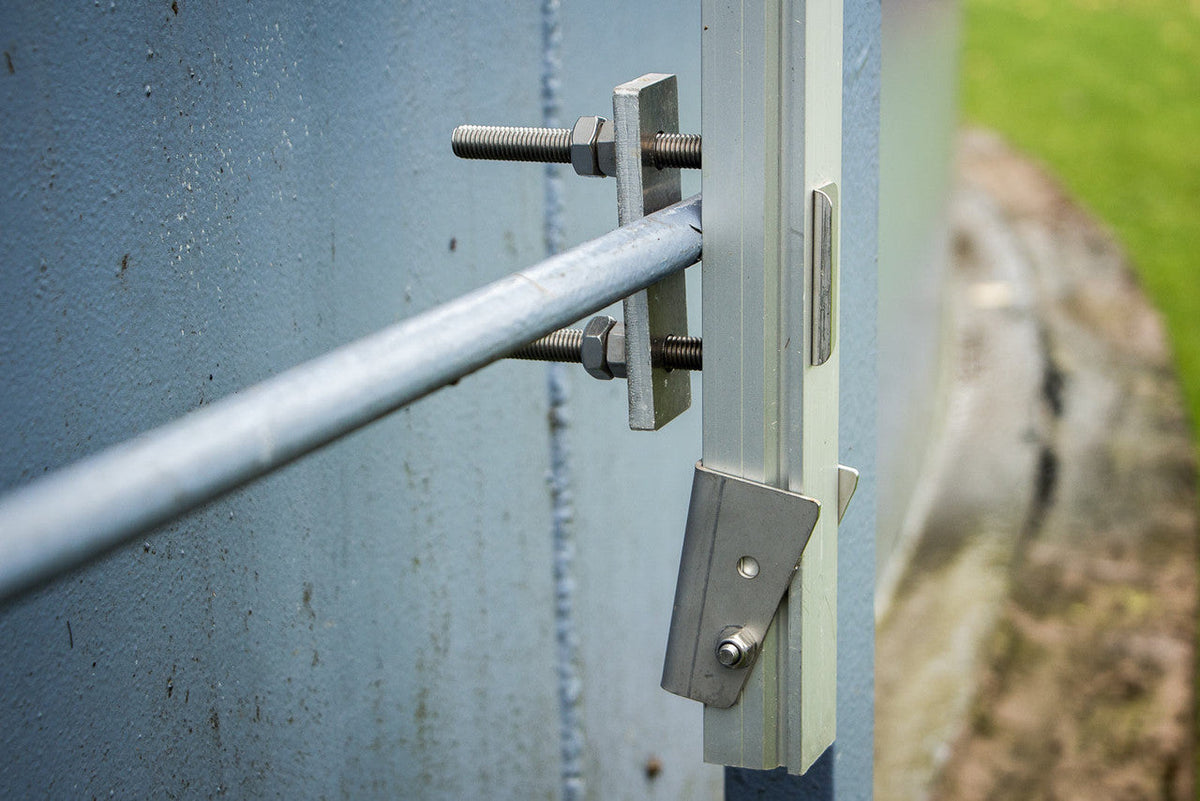

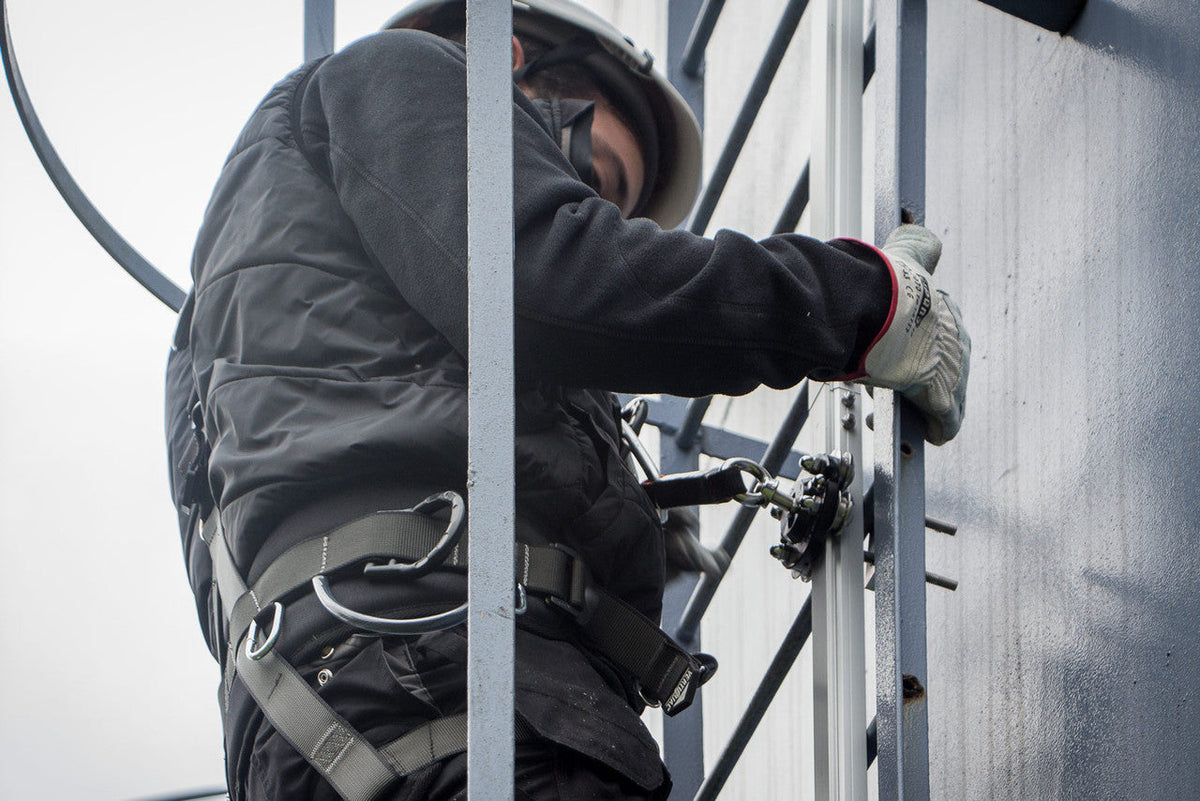

- Clamps onto an existing roof access ladder; retrofits existing ladders

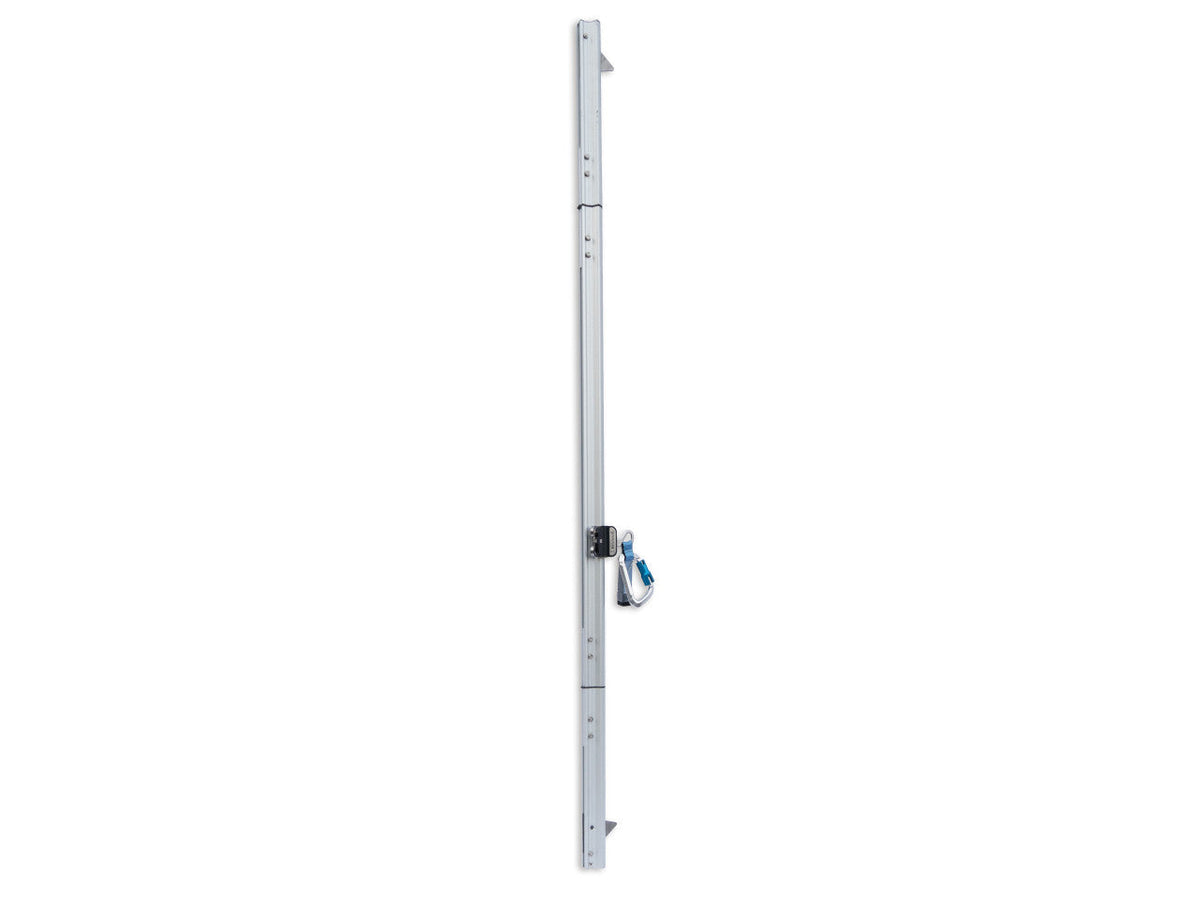

- Light, rigid, undeformable aluminum rail

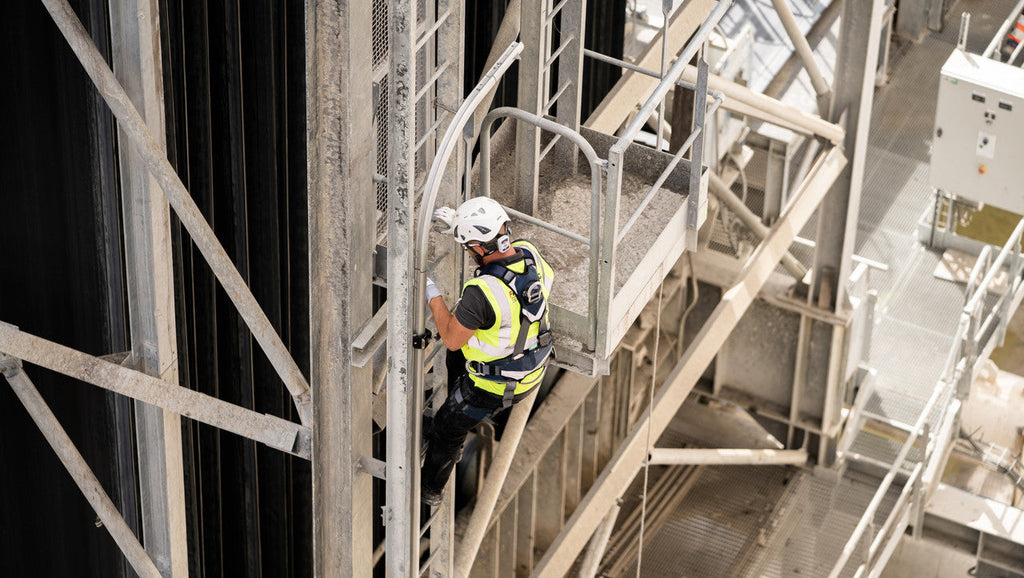

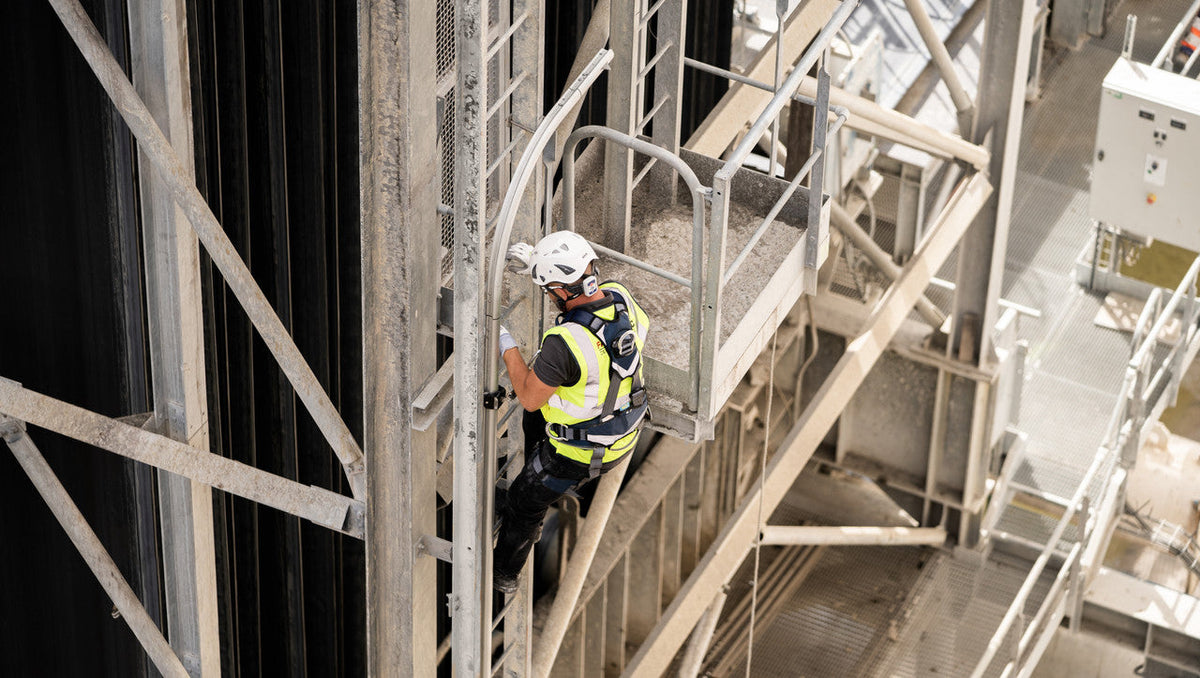

- Stainless steel brackets connect the ladder to the structure
- Hands-free system: the trolley travels along the rail for continuous protection
- Trolley with energy absorber, sold separately
- Compatible with safe roof access extensions
- Lengths: 20 ft, 30 ft and 40 ft
Frontline VLRS SecuRail Pro rail system specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | VLRS20 (20 ft) · VLRS30 (30 ft) · VLRS40 (40 ft) |
| Rail | High-grade aluminum |
| Brackets | Stainless steel |
| Users per system | Up to 2 |
| System breaking strength | 3,300 lb |
| System standards | Meets or exceeds ANSI A14.3, OSHA 1910.29 Subpart D and EN 353-1:2017 |
| Trolley (sold separately) | 110 to 310 lb capacity, 3,330 lb breaking strength, energy absorber; same standards |
| Connector | 5,395 lb breaking strength; meets or exceeds ANSI and OSHA standards |
| Region | Stocked by Fall Protection Canada in Paris, Ontario · ships Canada-wide |
Where crews use the Frontline VLRS SecuRail Pro rail

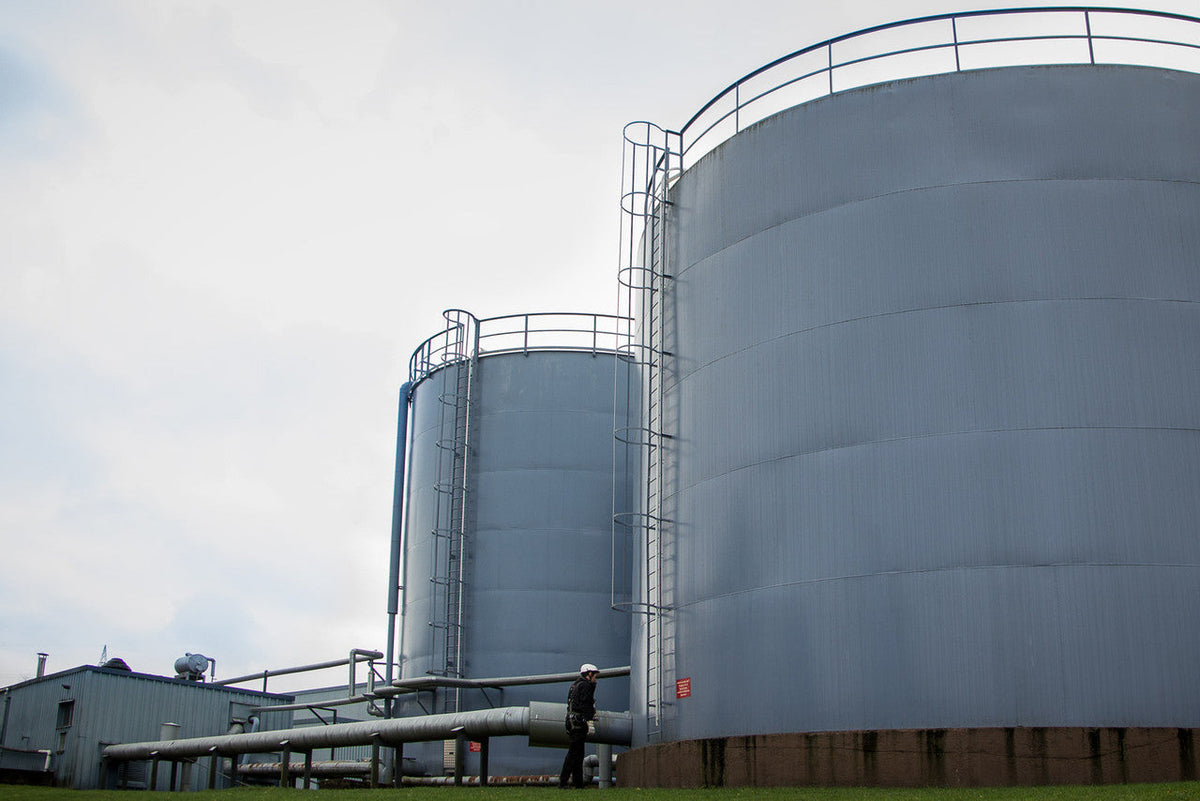

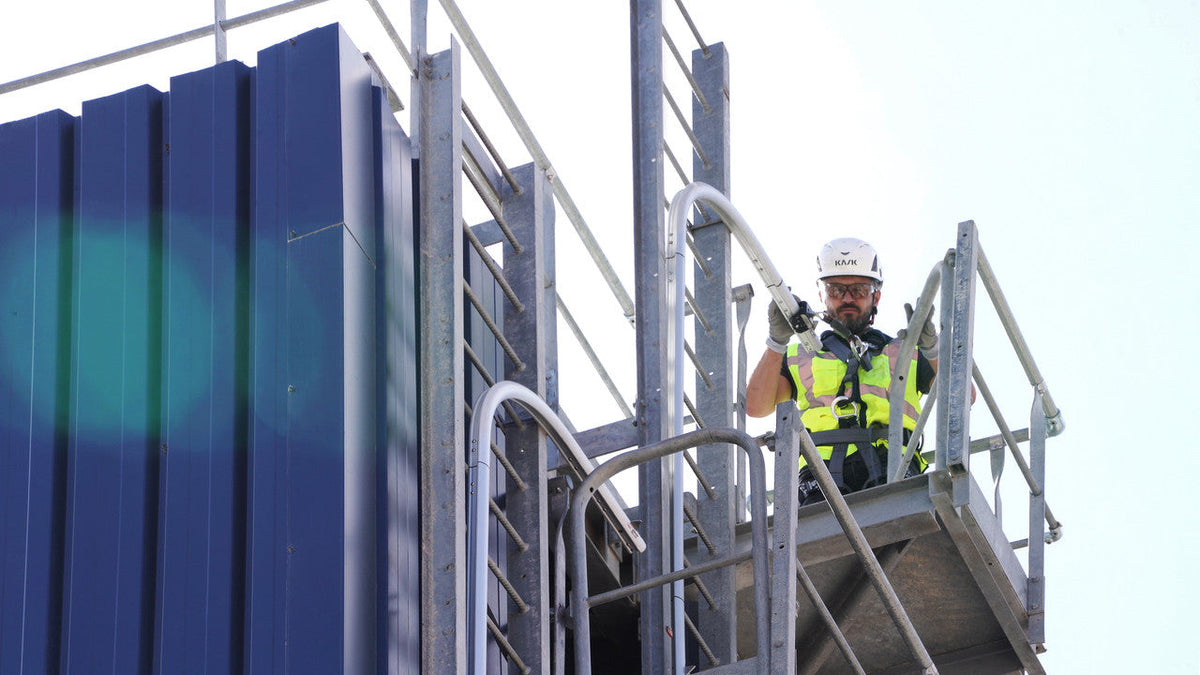

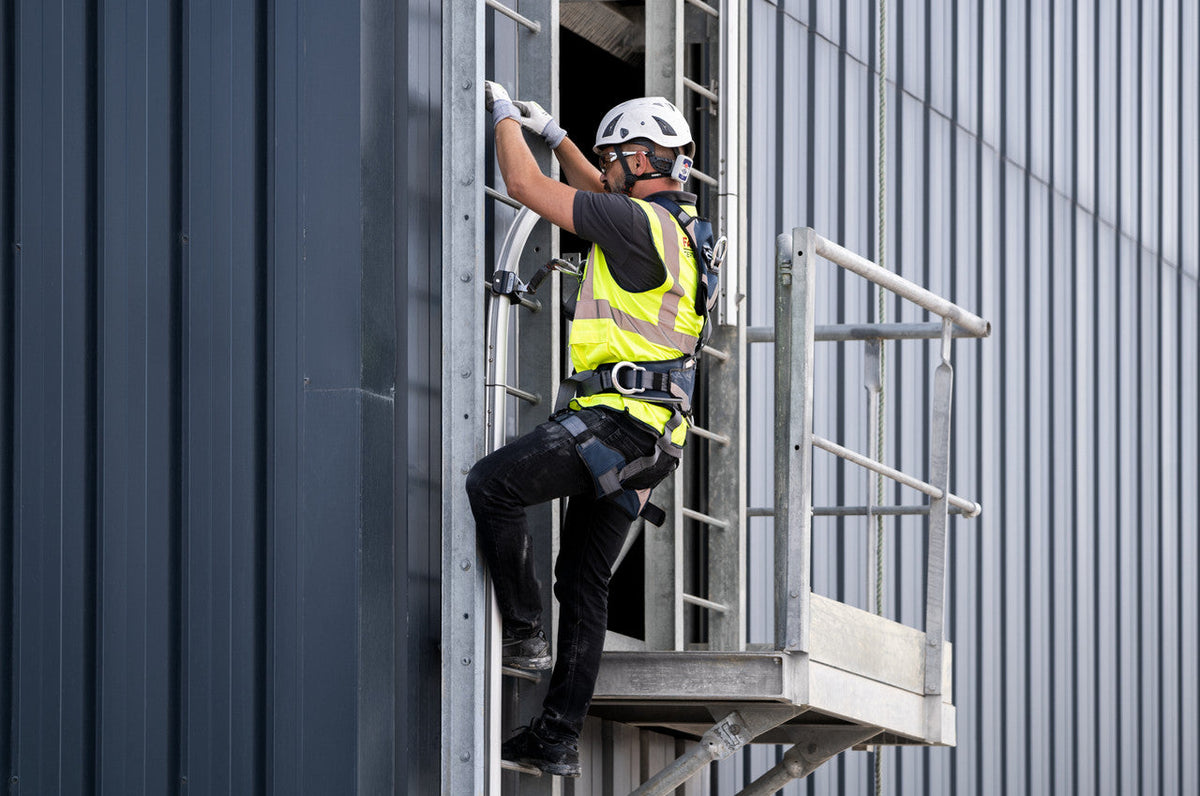

Fixed roof access ladders
Retrofit an existing ladder with continuous protection.
Pylons and towers
Rigid rail protection for repeated climbs.
Confined spaces and industrial halls
Secure vertical access where a cage or hoop is not enough.
Is the Frontline VLRS SecuRail Pro CSA certified? Compliance in Canada
Is the Frontline VLRS SecuRail Pro CSA certified?
No. Frontline states the system meets or exceeds ANSI A14.3, OSHA 1910.29 Subpart D and EN 353-1:2017. For CSA-marked fall protection, see our Safety Direct range.
Is the trolley included?
No. The trolley with its energy absorber is sold separately; contact us and we will quote it with the rail.
Can it go on a ladder we already have?
Yes. The SecuRail Pro clamps onto an existing roof access ladder and can be retrofitted.
How many people can climb at once?
Up to 2 users per system.
Which length do I need?
Frontline makes it in 20 ft, 30 ft and 40 ft. Match the rail to your ladder height.
Pair the Frontline VLRS rail with a harness and the trolley
The climber wears a full body harness with a front attachment and connects to the rail trolley (sold separately). Send us your ladder height and we will quote the full system. Questions on fit or quantities? Contact Fall Protection Canada.
