Guardian 00500 Ridge-It Roof Anchor 9.75 in, 3-Pack | Canada

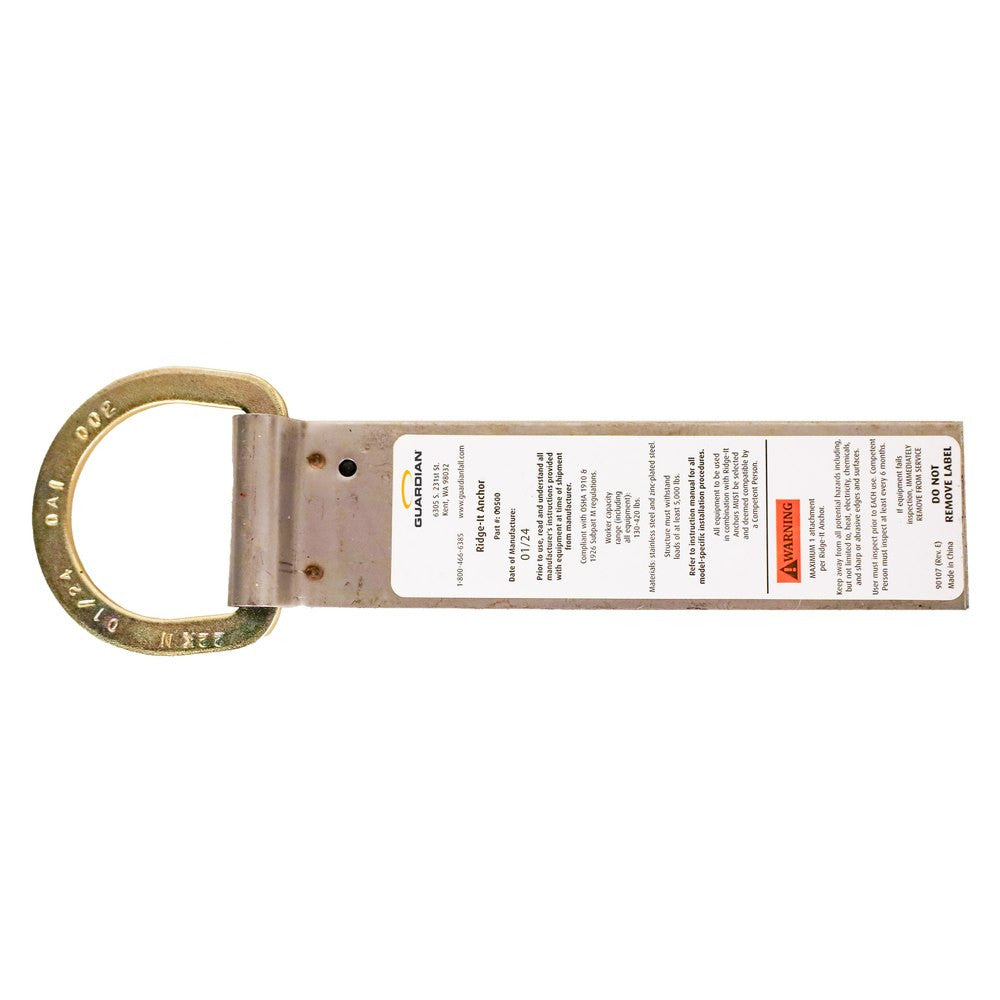

Guardian 00500 Ridge-It permanent roof anchor, 9 3/4 in, single D-ring, 3-pack. A permanent anchor for wood-framed roofs: stainless and zinc-plated steel with butyl strips for weatherproofing, so it can go straight onto the roof surface without removing ridge cap or shingles. Shingles cover the anchor body and only the D-ring stays exposed for future tie-off. 0.8 lb each, 8 stainless spiral nails provided per anchor.
Guardian 00500 Ridge-It roof anchor key features
- Permanent tie-off point for wood-framed roofs; Ridge-It anchors are never reinstalled
- Single D-ring on a 9 3/4 in anchor
- Stainless steel and zinc-plated steel with butyl strips for weatherproofing

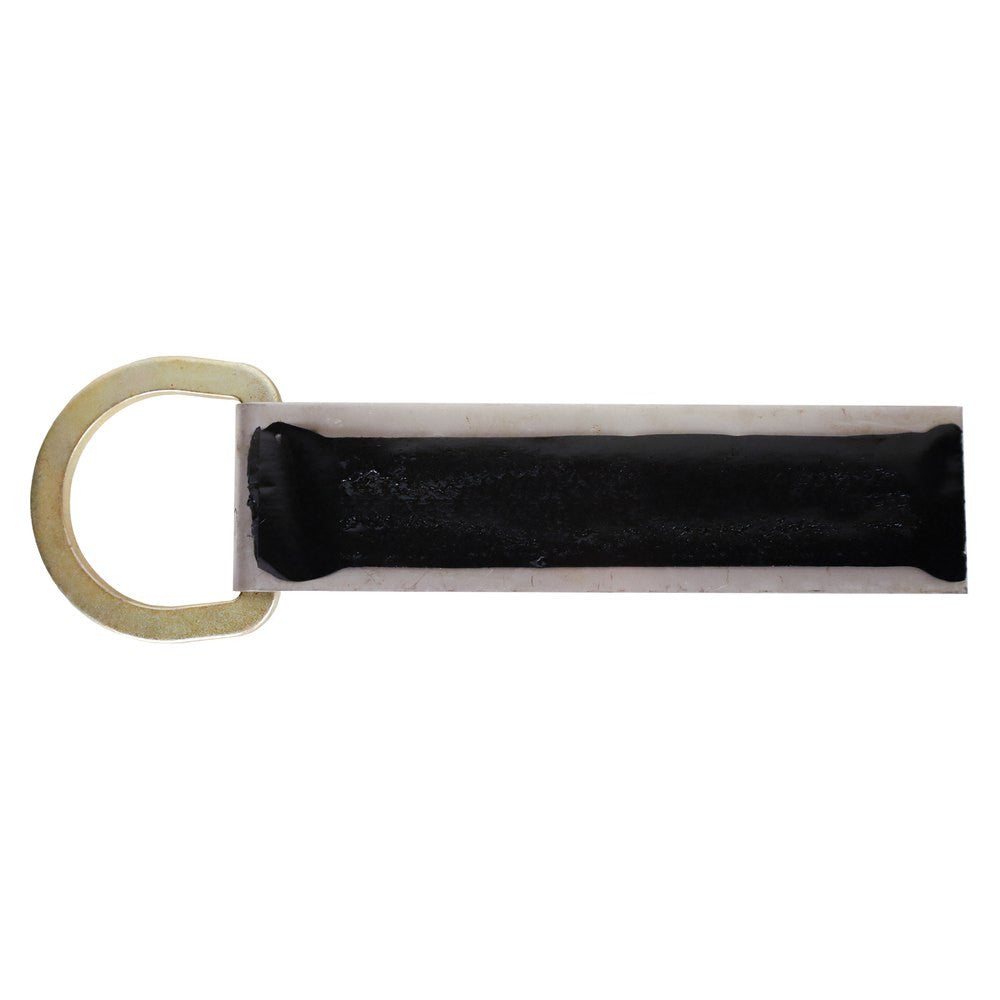

- Butyl strips let it install directly on the roof surface without removing ridge cap or shingles

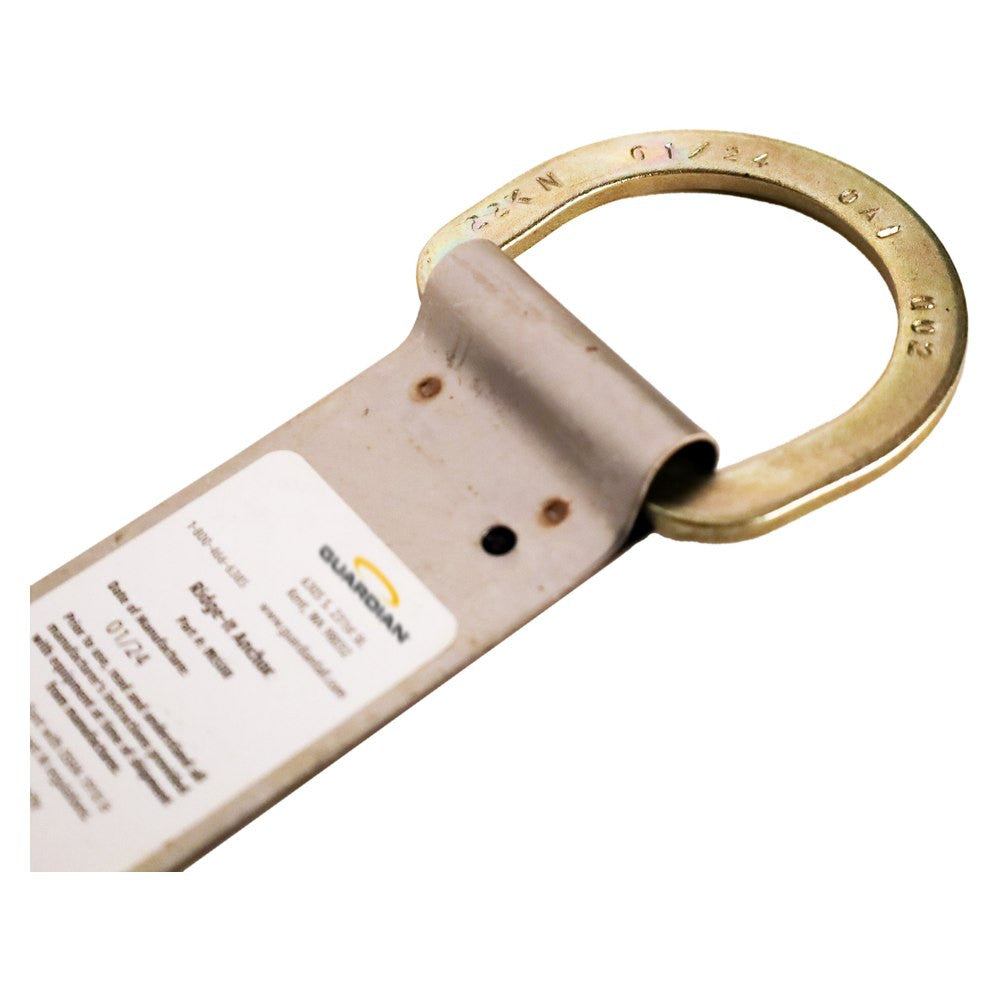

- Shingles fully cover the anchor body; the D-ring stays uncovered

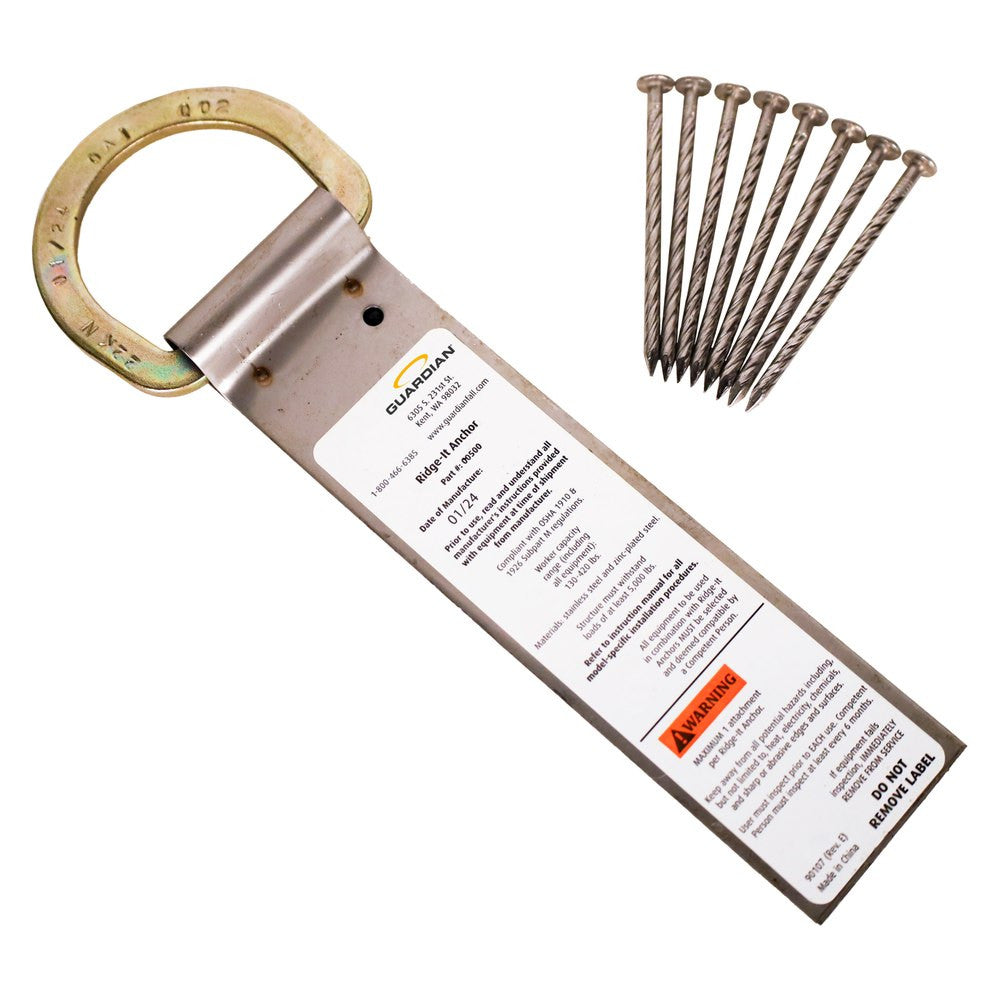

- 8 x 3.5 in 16d stainless steel spiral nails provided with each anchor
- Fits roof pitches from 0/12 to sheer
Guardian 00500 Ridge-It roof anchor specifications
| Manufacturer | Guardian Fall Protection |
|---|---|
| Model | 00500 Ridge-It Anchor 9 3/4 in Single D-Ring (sold here as a 3-pack) |
| Length | 9 3/4 in |
| D-rings | 1 |
| Weight | 0.8 lb each |
| Material | Stainless steel, zinc-plated steel and butyl |
| Minimum breaking strength | 5,000 lb |
| Worker capacity | 130-420 lb, 1 user |
| Roof pitch | 0/12 to sheer |
| Substrate | Wood 3.5 in total thickness; metal 20 gauge |
| Fasteners | 8 x 3.5 in 16d stainless steel spiral nails provided (wood); 2 in #14-10 sheet metal screws for metal, not provided |
| Use | Permanent installation only; never reinstall; never for horizontal lifelines |
| Standards | OSHA 1926 Subpart M, OSHA 1910 |
Where the 00500 Ridge-It roof anchor earns its keep
New home builds

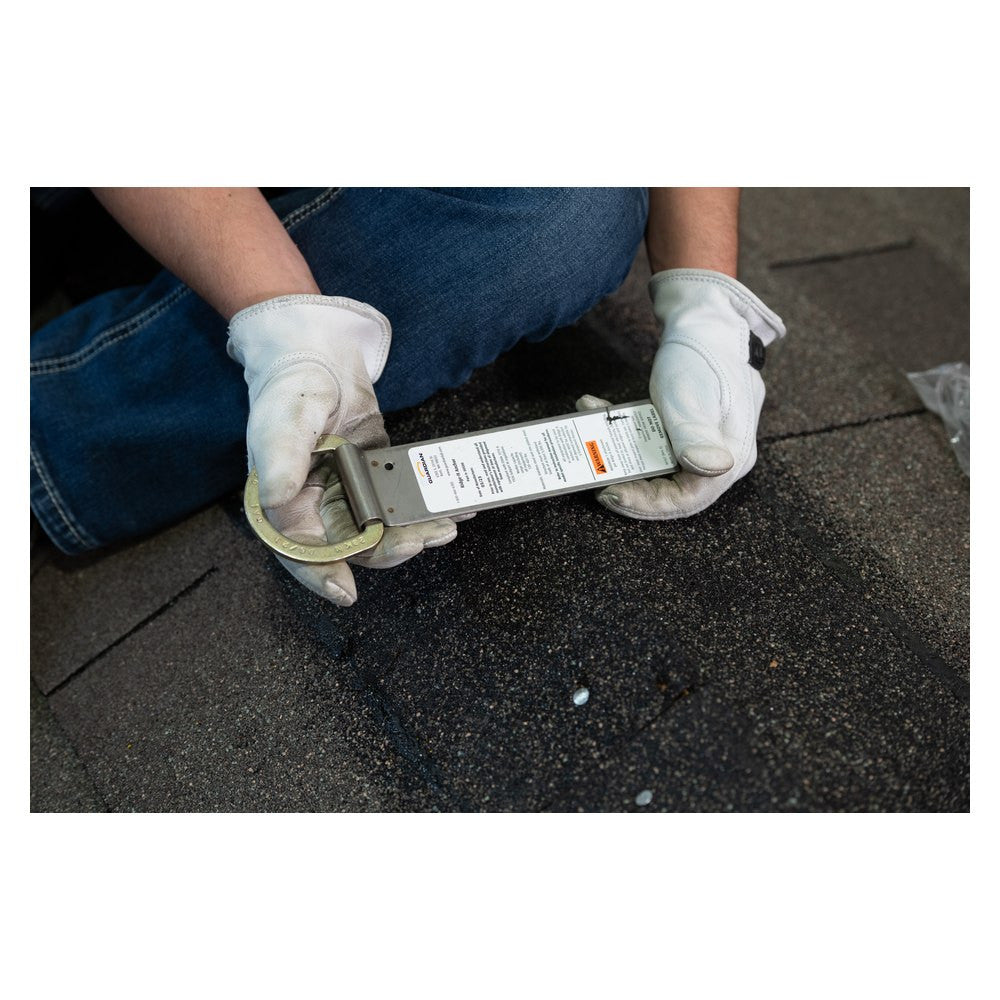

Install during roofing and leave a permanent tie-off point under the shingles.
Future roof service
Exposed D-ring ready for gutter, chimney and solar crews later.
Re-roofing
Butyl strips allow install on the roof surface without stripping shingles.
Fall restraint
Restraint use on slopes up to 4/12 per Guardian.
00500 Ridge-It roof anchor questions and CSA status
Is the Guardian 00500 Ridge-It roof anchor CSA certified?
No. Guardian lists OSHA 1926 Subpart M and OSHA 1910, not CSA Z259. For CSA-marked anchors see our Safety Direct range.
Can the Guardian Ridge-It anchor be moved to another roof?
No. Guardian says Ridge-It anchors are for permanent applications only and must never be reinstalled.
How is the 00500 loaded on the roof?
In line with the anchor plate. Guardian does not permit over-the-ridge loading for the 00500, and Ridge-It anchors are never used with horizontal lifelines.
What fasteners come with the Guardian 00500 Ridge-It?
8 x 3.5 in 16d stainless steel spiral nails per anchor for wood. For 20 gauge metal, 2 in #14-10 sheet metal screws are needed and are not provided.
Pair the 00500 Ridge-It roof anchor with a full system
Pair the Ridge-It with a full-body harness and a rope lifeline or SRL rated for roof work for a complete fall arrest system.
