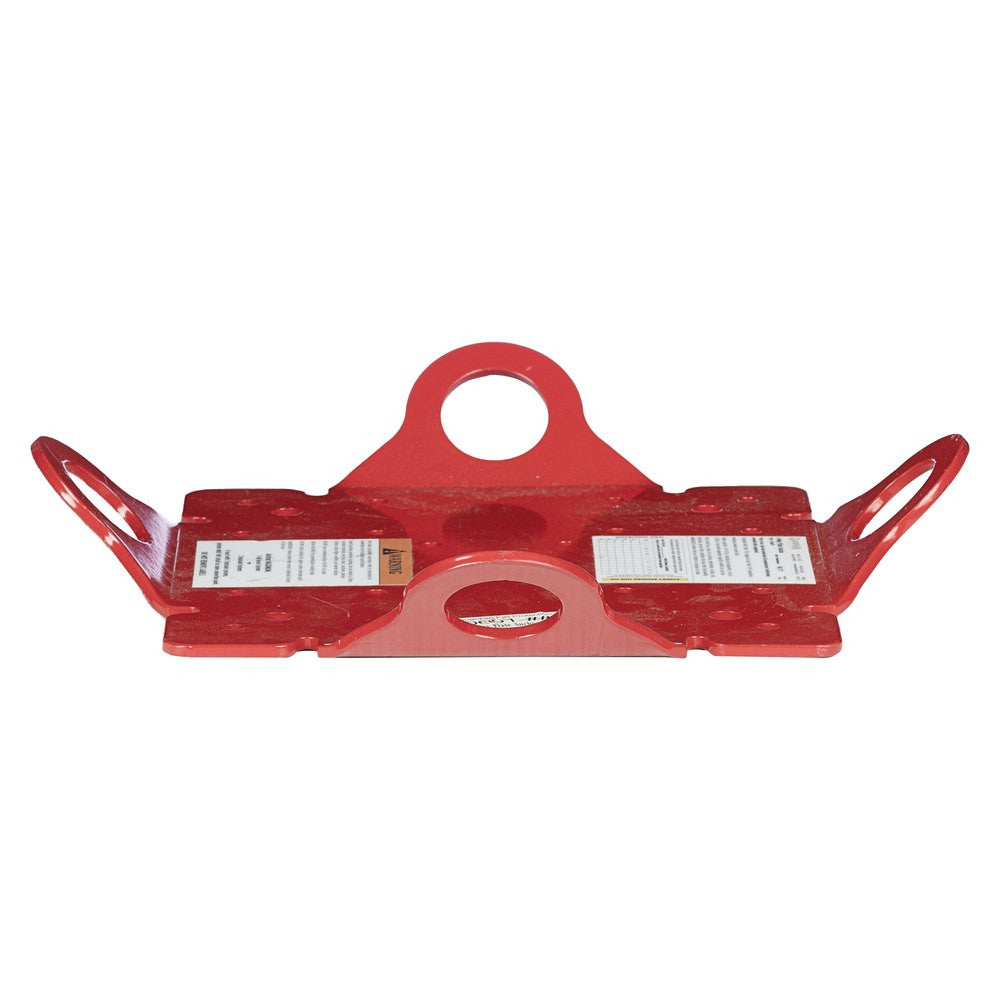

  • Guardian 00691 4-way plate anchor, front view

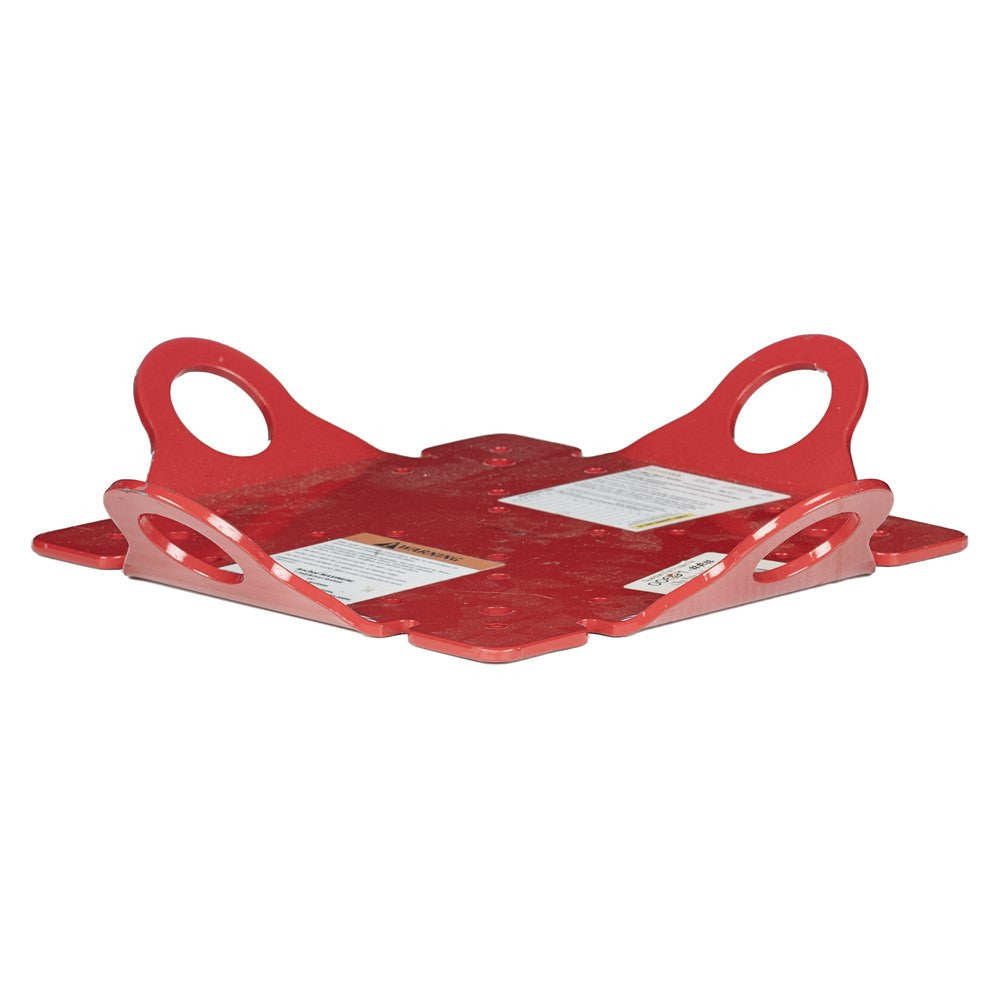

  • Guardian 00691 4-way plate anchor, quarter-left view
Guardian 00691 4-Way Plate Anchor | Canada

Guardian 00691 4-Way Plate Anchor | Canada

$602.99

Guardian 00691 4-Way Plate Anchor. Guardian's low-profile powder-coated steel plate anchor with four connection points set at 90 degrees, for wood, metal or concrete substrates. It takes one worker in fall arrest or two in restraint, and serves as an end or corner anchor for horizontal lifelines.

⚠
Compliance in Canada: OSHA only, not CSAGuardian lists OSHA 1910.140 and OSHA 1926.502 (Subpart M) for the 00691. It is not CSA Z259 certified. If your site or province requires CSA-marked fall protection, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Inspect before each use and remove from service after any fall.
Equipment type
Plate anchorage connector
Connection points
4
Minimum breaking strength
5,000 lb
Weight
13 lb

Guardian 00691 4-way plate anchor key features

  • Four connection points widen the working range from one installation
  • 90 degree angles between points make it a rooftop corner for horizontal lifeline systems
  • Endpoint for single or multi-span horizontal lifeline systems
  • Low profile; installs on metal as thin as 24 ga, suited to pan decking and form work
  • Different sized holes for a variety of fasteners
  • Powder-coated steel construction
  • Takes most SRLs up to 50 ft, or up to 65 ft with an additional extension attachment

Guardian 00691 4-way plate anchor specifications

Manufacturer Guardian Fall Protection
Model 00691 4-Way Plate Anchor
Material Powder-coated steel
Substrates Wood, metal and concrete
Minimum wood substrate 3/4 in CDX
Minimum metal 24 ga
Weight 13 lb
Length 17 in
Height 2 in
Minimum breaking strength 5,000 lb
Worker capacity 130-420 lb
Users 1 in fall arrest or 2 in restraint; with an HLL, 2 in fall arrest or 4 in restraint
Maximum free fall 6 ft
Standards OSHA 1910.140, OSHA 1926.502 (Subpart M)

Where the Guardian 00691 4-way plate anchor works

Pan decking and form work

Low profile and fastens to metal as thin as 24 ga.

Horizontal lifeline corners

The 90 degree connection points turn an HLL around a rooftop corner.

Restraint crews

Two workers in restraint on slopes up to 4/12, with no free fall.

Wood roof decks

Fastens to 3/4 in CDX or thicker.

Canadian store
Sold by Fall Protection Canada, Paris, Ontario. CAD pricing, no duties, no border surprises, Canada-wide shipping.

Guardian 00691 plate anchor questions and CSA status

Is the Guardian 00691 4-way plate anchor CSA certified?

No. Guardian lists OSHA 1910 and OSHA 1926 Subpart M, not CSA Z259. For CSA-marked anchors see our Safety Direct range.

How many workers can use the Guardian 00691 at once?

One in fall arrest or two in restraint. Used as part of a horizontal lifeline, two in fall arrest or four in restraint.

What substrates does the Guardian 4-way plate anchor fit?

Wood (minimum 3/4 in CDX), metal (as thin as 24 ga) and concrete, fastened per the Guardian manual.

What SRL length works with the Guardian 00691?

Most SRLs up to 50 ft, or up to 65 ft with an additional extension attachment.

Pair the Guardian 00691 plate anchor with a full system

Pair the 4-way plate anchor with a full-body harness and an SRL or shock-absorbing lanyard for a complete fall arrest system.
