Guardian CR5 1400204 self-retracting lifeline, front view
$628.99
Passer aux informations sur le produit
Guardian CR5 1400204 self-retracting lifeline, front view
1/2

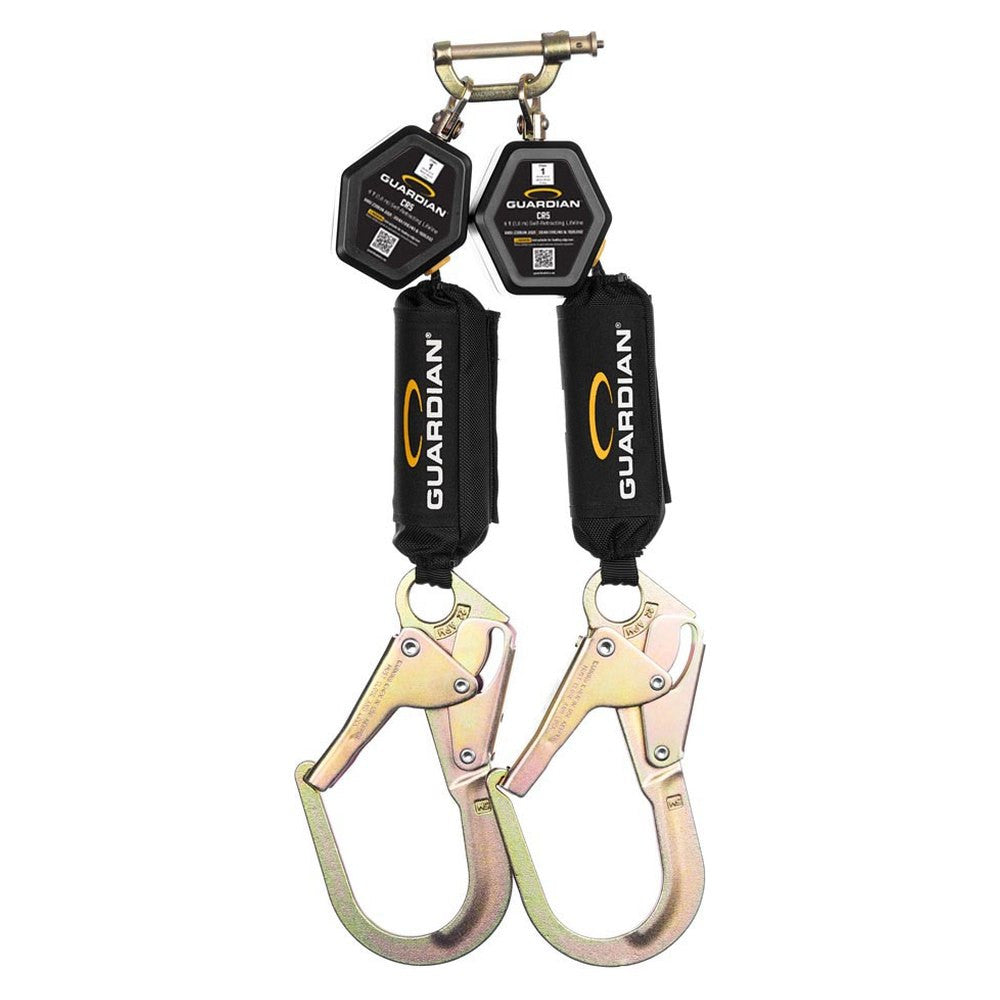

  • Guardian CR5 1400204 self-retracting lifeline, front view

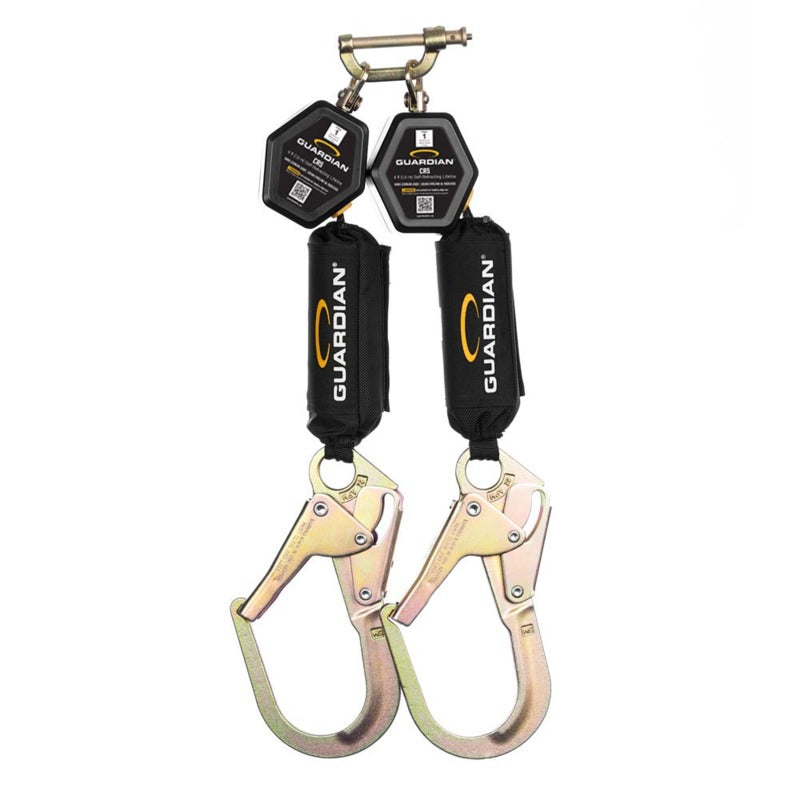

  • Guardian CR5 1400204 self-retracting lifeline, maker front view
Guardian CR5 Class 1 Dual Leg Web SRL-P 6 ft, Rebar Hooks | Canada

Guardian CR5 Class 1 Dual Leg Web SRL-P 6 ft, Rebar Hooks | Canada

$628.99

Guardian CR5 1400204 Class 1 Dual Leg Web SRL-P, 6 ft, steel rebar hooks. Guardian's dual leg personal self-retracting lifeline: two 6 ft HMPE web lifelines in an impact-modified thermoplastic housing, with a 360 degree swivel top and steel rebar hooks. Class 1 to ANSI Z359.14-2021 and rated for fall arrest and travel restraint.

⚠
Compliance in Canada: OSHA / ANSI, not CSAGuardian lists ANSI Z359.14-2021 (Class 1), OSHA 1910.140 and OSHA 1926.502 for the CR5 1400204. It is not CSA Z259 certified. If your site or province requires CSA-marked fall protection, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Inspect before each use and remove from service after any fall.
Equipment type
Dual leg personal SRL, Class 1
Lifelines
2 x 6 ft web
Hooks
Steel rebar
Max arrest distance
3 ft

Guardian CR5 1400204 dual leg web SRL-P key features

  • Two 6 ft HMPE web lifelines, Class 1 personal SRL (SRL-P)
  • Steel rebar hooks
  • Impact-modified thermoplastic housing, lightweight and impact resistant
  • Swivel top connection rotates 360 degrees to reduce twisting and snagging
  • Reinforced webbing guide adds strength and reduces friction
  • QR code labels link to product and inspection information
  • Shock pack cover with integrated fall clearance charts
  • For fall arrest and travel restraint

Guardian CR5 1400204 dual leg SRL-P specifications

Manufacturer Guardian Fall Protection
Model CR5 SRL-P, part 1400204 (dual leg, steel rebar hooks)
Class Class 1, ANSI Z359.14-2021
Lifelines 2 x 6 ft HMPE webbing
Housing Impact-modified thermoplastic
Average arrest force 1,150 lb
Maximum arrest force 1,350 lb
Maximum arrest distance 3 ft
Worker capacity 130-310 lb (ANSI), 100-420 lb (OSHA)
Anchorage At or above the dorsal D-ring
Size 14 in long x 4 in high
Testing ANSI/ASSP Z359.7 at an ISO 17025 accredited lab
Standards ANSI Z359.14-2021, OSHA 1910.140, OSHA 1926.502

Where the Guardian CR5 dual leg 6 ft SRL-P works

Rebar and formwork

Steel rebar hooks on both legs.

Travel restraint

Guardian rates the CR5 for restraint as well as fall arrest.

General industry and renewables

Both are on Guardian's list of industries for the CR5.

Tighter clearances

3 ft maximum arrest distance; check the clearance chart on the shock pack cover.

Canadian store
Sold by Fall Protection Canada, Paris, Ontario. CAD pricing, no duties, no border surprises, Canada-wide shipping.

Guardian CR5 1400204 dual SRL questions and CSA status

Is the Guardian CR5 1400204 dual leg SRL CSA certified?

No. Guardian lists ANSI Z359.14-2021 and OSHA, not CSA Z259. For CSA-marked SRLs see our Safety Direct range.

What hooks does the Guardian CR5 1400204 have?

Steel rebar hooks. Guardian's other 6 ft dual leg CR5 versions are 1400203 (steel snap), 1400205 (steel tie-back), 1400206 (aluminum snap) and 1400207 (aluminum rebar).

Where should the Guardian CR5 dual leg SRL-P be anchored?

At or above the dorsal D-ring, per Guardian's data sheet.

What worker weight does the Guardian CR5 dual leg cover?

130-310 lb under ANSI and 100-420 lb under OSHA.

Pair the Guardian CR5 dual leg SRL-P with a full system

Pair the dual leg CR5 with a full-body harness with a dorsal D-ring and rated anchors for a complete fall arrest system.
