Guardian CR5 1400198 self-retracting lifeline, three-quarter view
$261.99
Passer aux informations sur le produit
Guardian CR5 1400198 self-retracting lifeline, three-quarter view
1/5

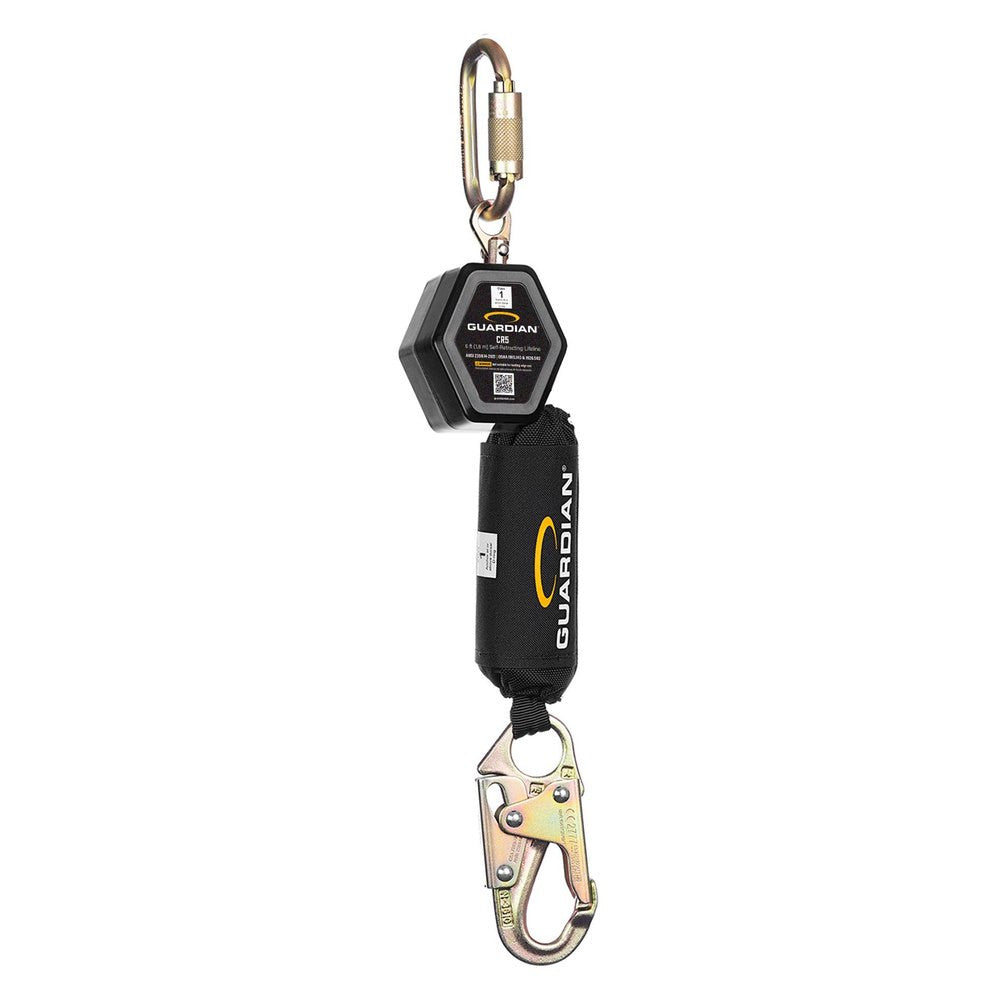

  • Guardian CR5 1400198 self-retracting lifeline, three-quarter view

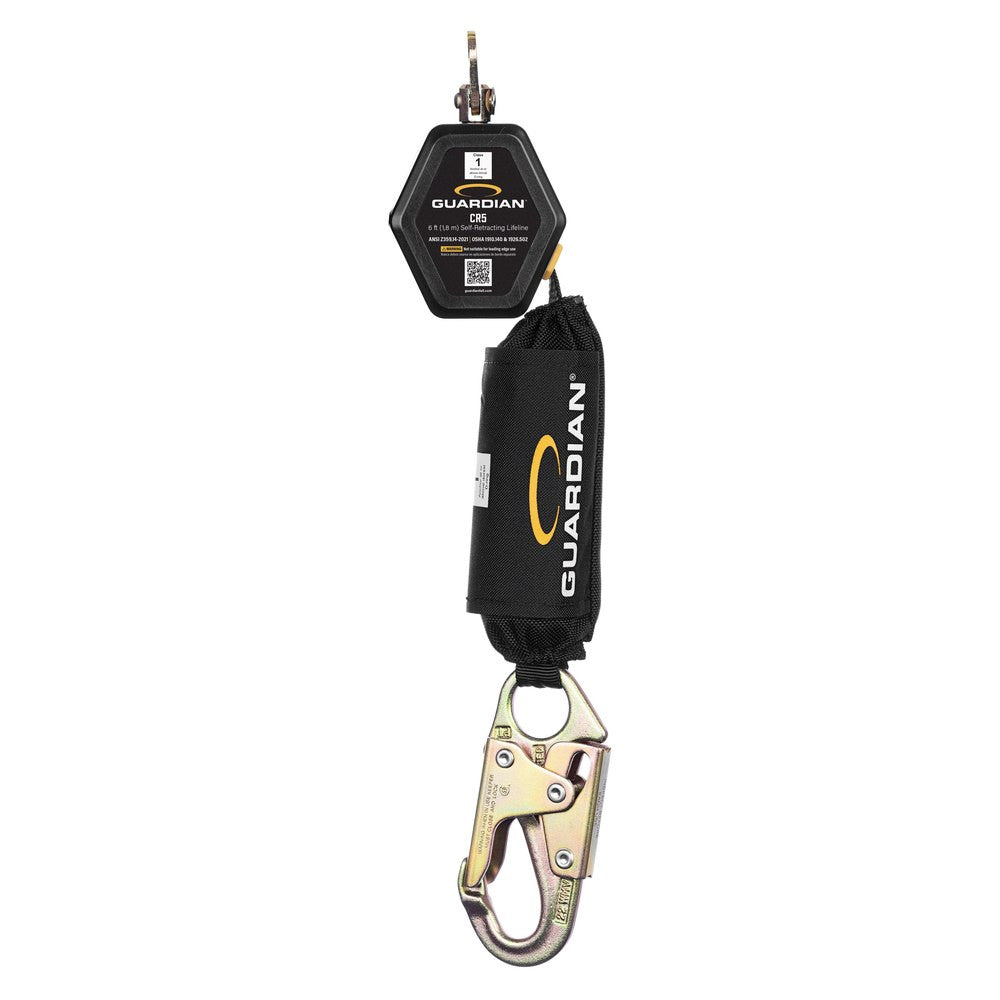

  • Guardian CR5 1400198 self-retracting lifeline, front view

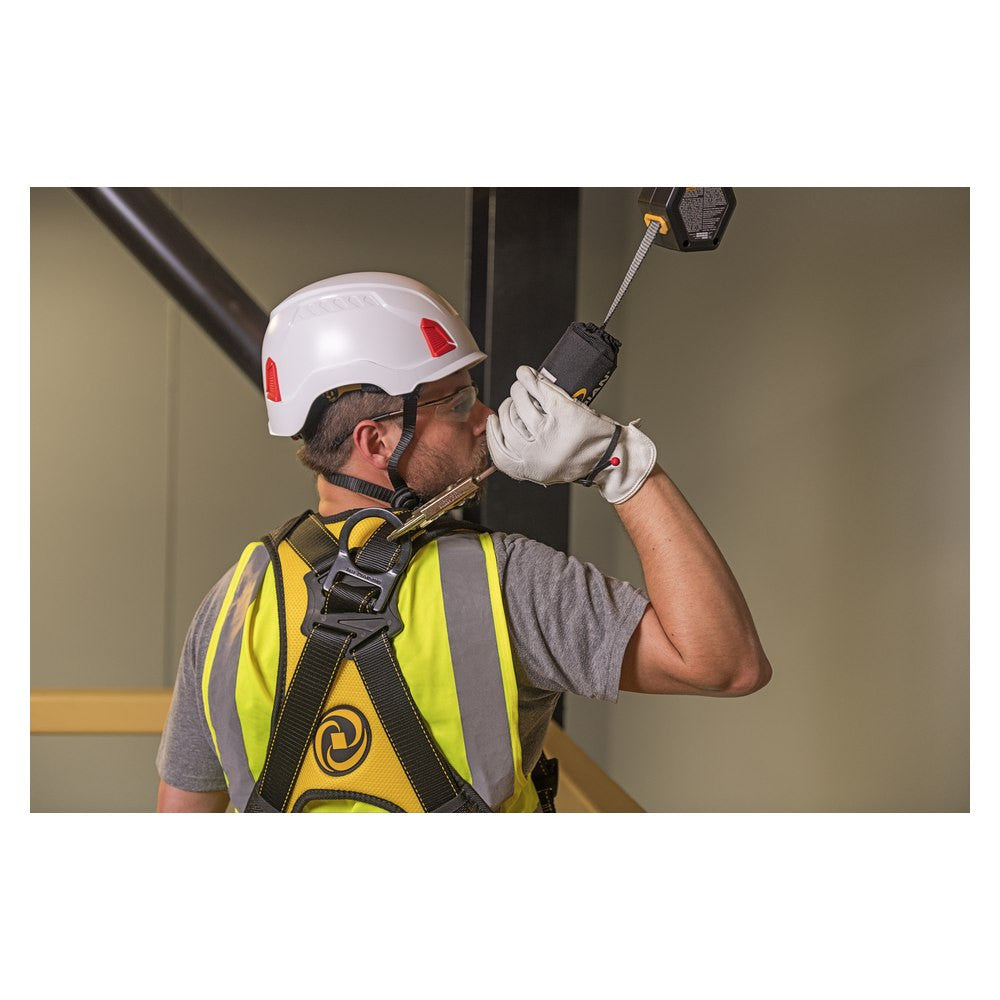

  • Guardian CR5 1400198 self-retracting lifeline, checking the connection

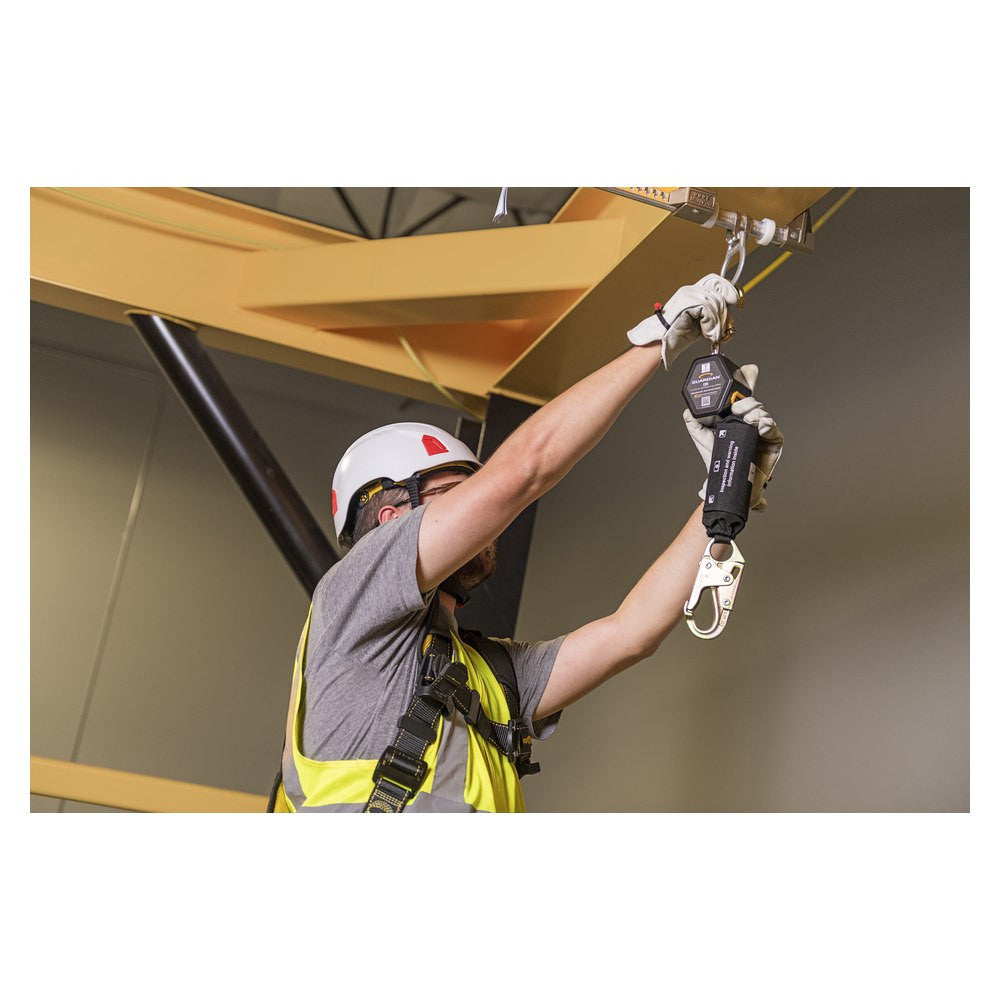

  • Guardian CR5 1400198 self-retracting lifeline, hooking up

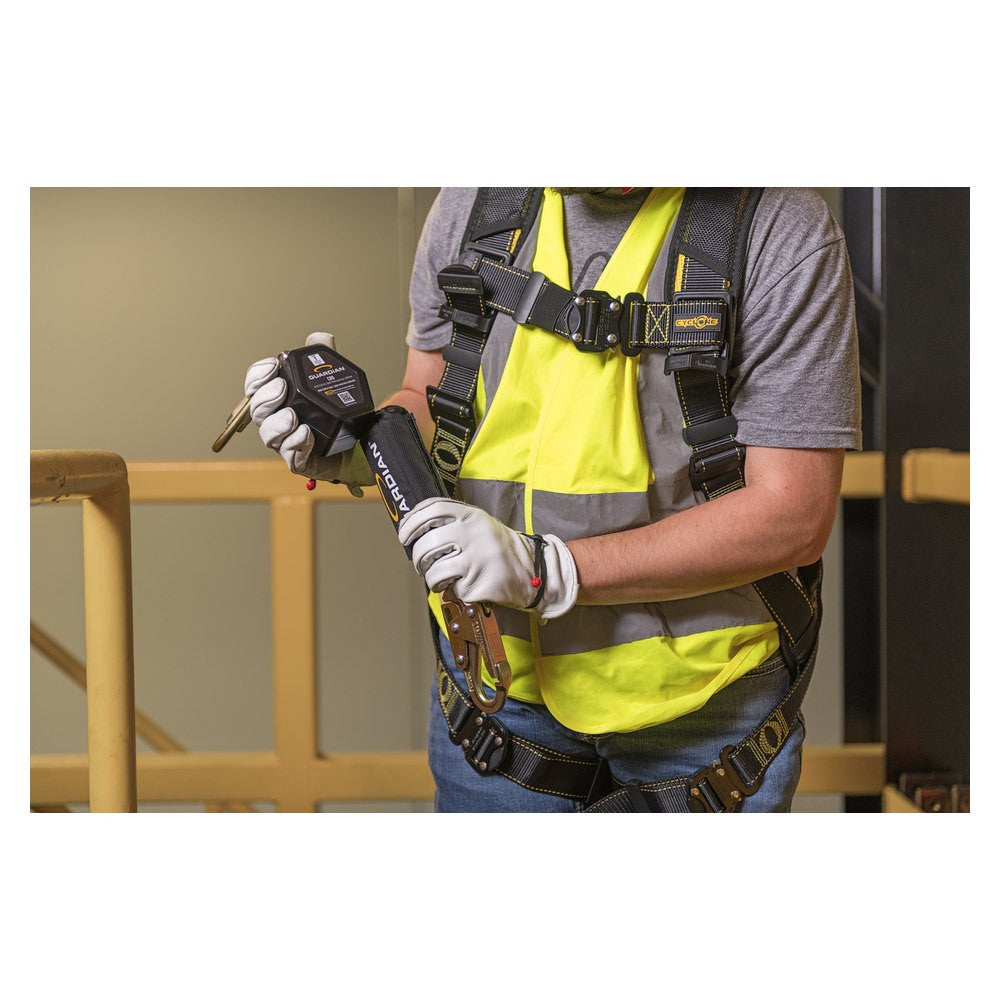

  • Guardian CR5 1400198 self-retracting lifeline, inspecting the housing
Guardian CR5 Class 1 Web SRL-P 6 ft, Steel Snap Hook | Canada

Guardian CR5 Class 1 Web SRL-P 6 ft, Steel Snap Hook | Canada

$261.99

Guardian CR5 1400198 Class 1 Web SRL-P, 6 ft, steel snap hook. Guardian's personal self-retracting lifeline: a 6 ft HMPE web lifeline in an impact-modified thermoplastic housing, with a 360 degree swivel top and a steel snap hook. Class 1 to ANSI Z359.14-2021 and rated for fall arrest and travel restraint.

⚠
Compliance in Canada: OSHA / ANSI, not CSAGuardian lists ANSI Z359.14-2021 (Class 1), OSHA 1910.140 and OSHA 1926.502 for the CR5 1400198. It is not CSA Z259 certified. If your site or province requires CSA-marked fall protection, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Inspect before each use and remove from service after any fall.
Equipment type
Personal SRL, Class 1
Lifeline
6 ft web
Max arrest distance
3 ft
Weight
3.26 lb

Guardian CR5 1400198 6 ft web SRL-P key features

  • 6 ft HMPE web lifeline, Class 1 personal SRL (SRL-P)
  • Steel snap hook
  • Impact-modified thermoplastic housing, lightweight and impact resistant
  • Swivel top connection rotates 360 degrees to reduce twisting and snagging
  • Reinforced webbing guide adds strength and reduces friction
  • QR code labels link to product and inspection information
  • Shock pack cover with integrated fall clearance charts
  • For fall arrest and travel restraint

Guardian CR5 1400198 web SRL-P specifications

Manufacturer Guardian Fall Protection
Model CR5 SRL-P, part 1400198 (single leg, steel snap hook)
Class Class 1, ANSI Z359.14-2021
Lifeline 6 ft HMPE webbing
Housing Impact-modified thermoplastic
Average arrest force 1,150 lb
Maximum arrest force 1,350 lb
Maximum arrest distance 3 ft
Worker capacity 130-310 lb (ANSI), 100-420 lb (OSHA)
Anchorage At or above the dorsal D-ring
Weight 3.26 lb
Size 8.66 in long x 3.94 in high
Testing ANSI/ASSP Z359.7 at an ISO 17025 accredited lab
Standards ANSI Z359.14-2021, OSHA 1910.140, OSHA 1926.502

Where the Guardian CR5 6 ft single leg SRL-P works

Construction

A Class 1 personal SRL anchored at or above the dorsal D-ring.

Travel restraint

Guardian rates the CR5 for restraint as well as fall arrest.

General industry and renewables

Both are on Guardian's list of industries for the CR5.

Tighter clearances

3 ft maximum arrest distance; check the clearance chart on the shock pack cover.

Canadian store
Sold by Fall Protection Canada, Paris, Ontario. CAD pricing, no duties, no border surprises, Canada-wide shipping.

Guardian CR5 1400198 SRL questions and CSA status

Is the Guardian CR5 1400198 SRL CSA certified?

No. Guardian lists ANSI Z359.14-2021 and OSHA, not CSA Z259. For CSA-marked SRLs see our Safety Direct range.

Where should the Guardian CR5 SRL-P be anchored?

At or above the dorsal D-ring, per Guardian's data sheet.

What worker weight does the Guardian CR5 cover?

130-310 lb under ANSI and 100-420 lb under OSHA.

What other hooks does Guardian make the CR5 single leg with?

Guardian also makes the 6 ft single leg with a steel rebar (1400199), steel tie-back (1400200), aluminum snap (1400201) or aluminum rebar hook (1400202). This listing is the 1400198 steel snap hook.

Pair the Guardian CR5 6 ft SRL-P with a full system

Pair the CR5 with a full-body harness with a dorsal D-ring and an overhead anchor for a complete fall arrest system.
