Malta Dynamics X1000 Mobile Grabber, 2 Workers, 22 ft Manual | Canada

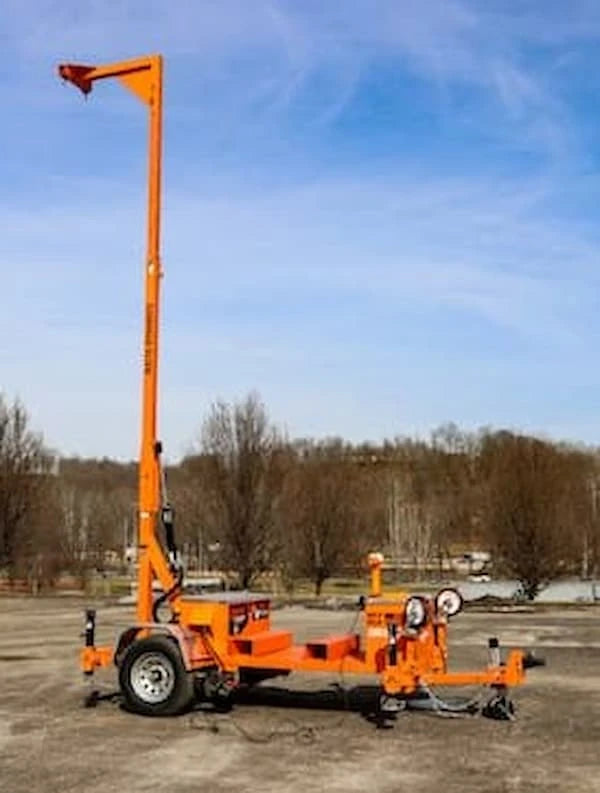

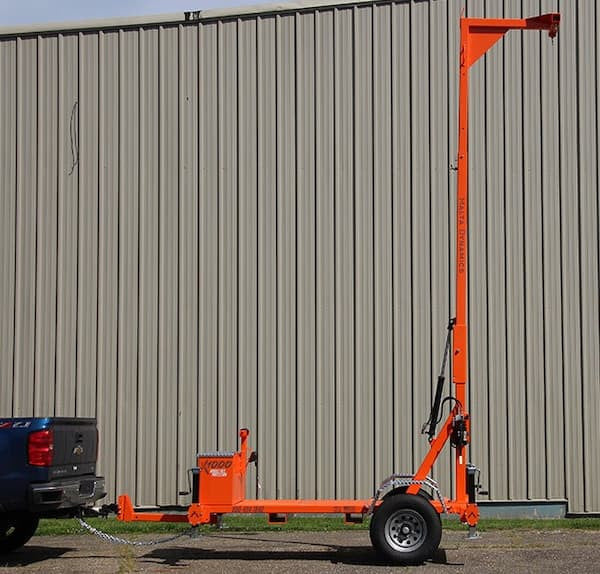

Malta Dynamics X1000 Mobile Grabber. The X1000 is a road-towable mobile fall protection unit that gives two workers overhead anchor points between 17 and 22 feet. It raises the mast with a manual hand-pump hydraulic system and is presented as the most cost-effective mobile option in the range. It suits fall arrest and fall restraint on sites with no permanent anchorage.
Malta Dynamics X1000 Mobile Grabber key features
- Road-towable, for 2 workers
- Overhead anchor points from 17 to 22 feet
- Manual hand-pump hydraulic system; described as the most cost-effective mobile option

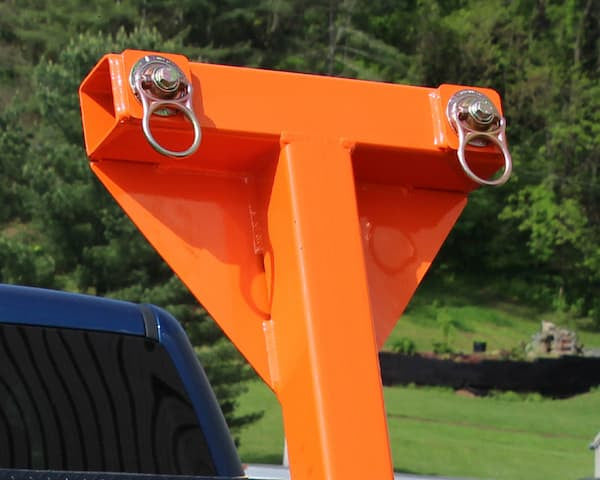

- Dual overhead anchorage points, up to 310 lbs each
- Fall arrest and fall restraint where permanent anchorage is unavailable
- 4 manually adjustable outrigger jacks to stabilize the unit and set tie-off points
- No additional lifting equipment needed for setup
- Compact for quick setup on roofs, work areas and remote job sites

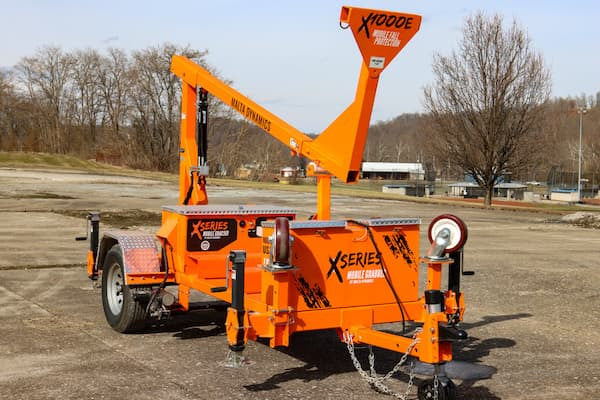

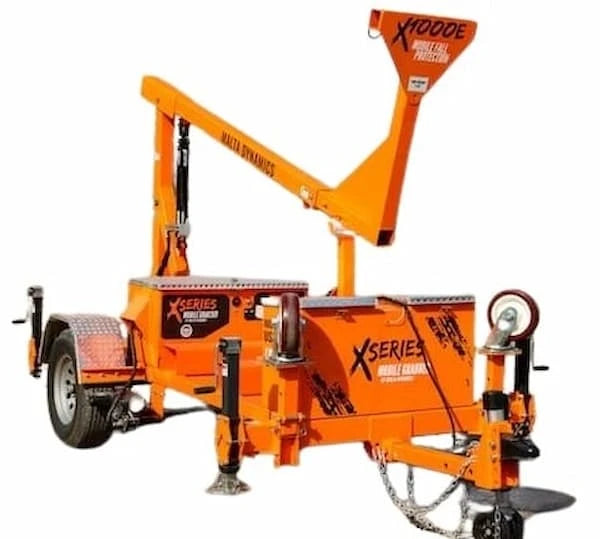

- Electric/remote version available as the X1000E
- 1-Year Unlimited Warranty and 5-Year Structural Warranty
Malta Dynamics X1000 Mobile Grabber specifications
| Manufacturer | Malta Dynamics |
|---|---|
| Model / SKU | X1000 |
| Weight | 2200 lbs |
| Max. Working Height | 22' (6.7m) |
| Min. Working Height | 17' (5.18m) |
| Max. Folded Height | 7'10" (2.38m) |
| Towing Width | 5'8" (1.73m) |
| Overall Length | 12'9" (3.89m) |
| Max. Arm Reach Out | 3' (.91m) |
| Max. Anchor Point Capacity | 310 lbs per Anchor |
| Max. Allowable Users | 2 |
| Max. Towing Speed | Posted Highway Speed |
| Trailer Plug Wiring | 4-Pole Blade |
| Actuating Method | Manual Operating System |
| Outrigger System | 4 Manually Adjustable Jacks |
| Warranty | 1yr + 5yr Structural |
| Standards | Meets or exceeds OSHA fall protection requirements (per Malta Dynamics); not CSA certified |
Where crews use the Malta Dynamics X1000 Mobile Grabber
Fleet and trucking
Overhead tie-off for work on trucks and trailers.
Rail and docks
Anchorage beside rail cars and loading docks.
Construction sites
Tie-off where no fixed anchor exists.
Plants and hangars
Overhead anchor for maintenance at height.
Is the Malta Dynamics X1000 CSA certified? Compliance in Canada
Is the Malta Dynamics X1000 unit CSA certified?
No. Malta Dynamics rates the X1000 to US standards (ANSI/OSHA and the ratings listed above); it is not CSA certified. For CSA-marked equipment see our Safety Direct range.
What is the capacity of the Malta Dynamics X1000 unit?
Malta Dynamics lists 310 lbs per Anchor.
How is the Malta Dynamics X1000 unit delivered?
It ships by freight from our team after order; we coordinate delivery and lead time with you. Ask us for a quote on accessories and rescue kits.
What to pair with the Malta Dynamics X1000 Mobile Grabber
Pair the X1000 with a self-retracting lifeline and a full-body harness, and train the crew on inspection and rescue.
