Malta Dynamics X525 Floor-Mounted Overhead Anchor, Single Worker | Canada
$32,815.99
Passer aux informations sur le produit
Malta Dynamics X525 Floor-Mounted Overhead Anchor, Single Worker | Canada
1/2
  • Malta Dynamics X525 Floor-Mounted Overhead Anchor, Single Worker | Canada
  • Malta Dynamics X525 Floor-Mount Davit Anchor, 25 ft | Canada
Malta Dynamics X525 Floor-Mount Davit Anchor, 25 ft | Canada

Malta Dynamics X525 Floor-Mount Davit Anchor, 25 ft | Canada

$32,815.99

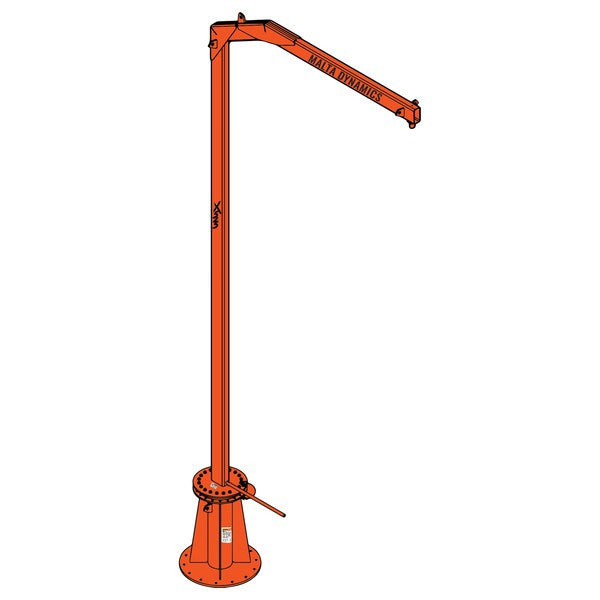

Malta Dynamics X525 overhead anchor. The X525 is a davit system that is mounted with structural fasteners to a concrete pad, giving one user a fall arrest anchor. Its boom rotates 360 degrees and reaches a maximum working height of 25 feet, with a multi-position boom lock for placing the anchor.

⚠
Compliance in Canada: ANSI Z359 / OSHA, not CSAMalta Dynamics rates the X525 to the US standards listed below. It is not CSA certified. If your site or province requires CSA-marked equipment, see our Safety Direct CSA range; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use. Inspect before each use.
Equipment type
Mobile Fall Protection
Weight
1784 lbs

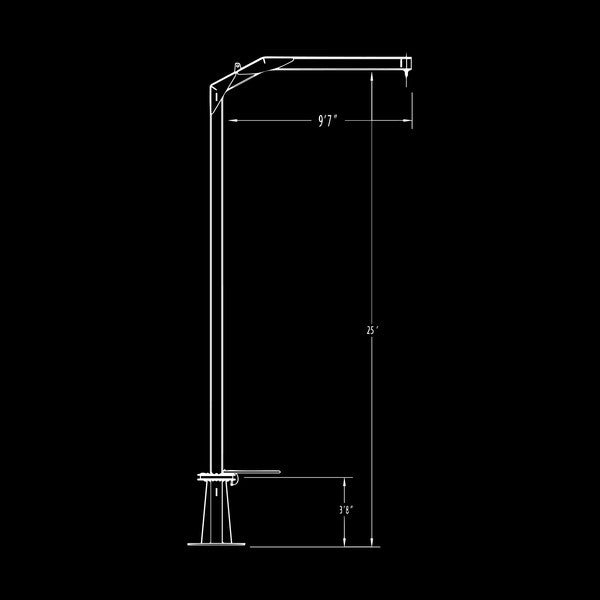

Max. Working Height
25' (7.62m)
Reach
9'7" (2.92m)

Malta Dynamics X525 overhead anchor key features

  • Mounts to a concrete pad with structural fasteners for fall arrest of 1 user
  • Maximum height of 25 feet
  • 360-degree rotation of the anchorage
  • Multi-position boom lock to set the anchor position
  • Must be installed by or under direction of a Qualified Person (OSHA 1926.32)
  • 1-Year Unlimited Warranty and 5-Year Structural Warranty

Malta Dynamics X525 overhead anchor specifications

Manufacturer Malta Dynamics
Model / SKU X525
Weight 1784 lbs
Max. Working Height 25' (7.62m)
Reach 9'7" (2.92m)
Max. Anchor Point Capacity 310 lbs
Max. Allowable Users 1
Warranty 1yr + 5yr Structural
Standards Meets or exceeds OSHA fall protection requirements (per Malta Dynamics); not CSA certified

Where crews use the Malta Dynamics X525 overhead anchor

Fleet and trucking

Overhead tie-off for work on trucks and trailers.

Rail and docks

Anchorage beside rail cars and loading docks.

Construction sites

Tie-off where no fixed anchor exists.

Plants and hangars

Overhead anchor for maintenance at height.

Canadian store
Sold by Fall Protection Canada, Paris, Ontario. CAD pricing, no duties, no border surprises, freight delivery coordinated after order.

Is the Malta Dynamics X525 CSA certified? Compliance in Canada

Is the Malta Dynamics X525 unit CSA certified?

No. Malta Dynamics rates the X525 to US standards (ANSI/OSHA and the ratings listed above); it is not CSA certified. For CSA-marked equipment see our Safety Direct range.

What is the capacity of the Malta Dynamics X525 unit?

Malta Dynamics lists 310 lbs.

How is the Malta Dynamics X525 unit delivered?

It ships by freight from our team after order; we coordinate delivery and lead time with you. Ask us for a quote on accessories and rescue kits.

What to pair with the Malta Dynamics X525 overhead anchor

Pair the X525 with a self-retracting lifeline and a full-body harness, and train the crew on inspection and rescue.
