Malta Dynamics X550 Truck-Counterweight Anchor, 22 ft | Canada

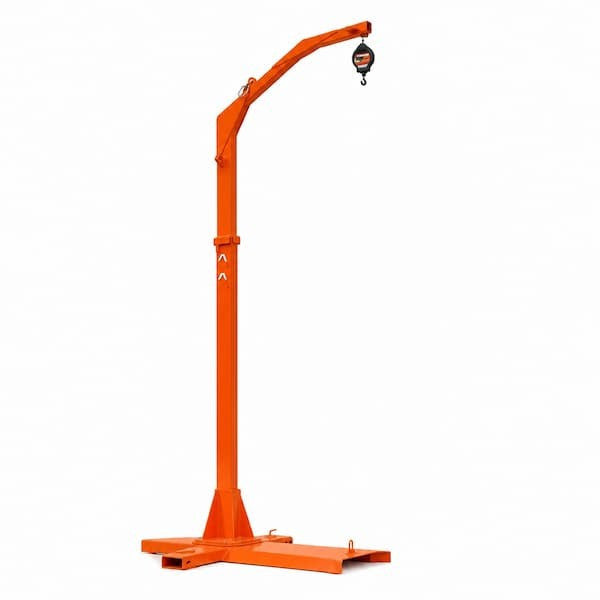

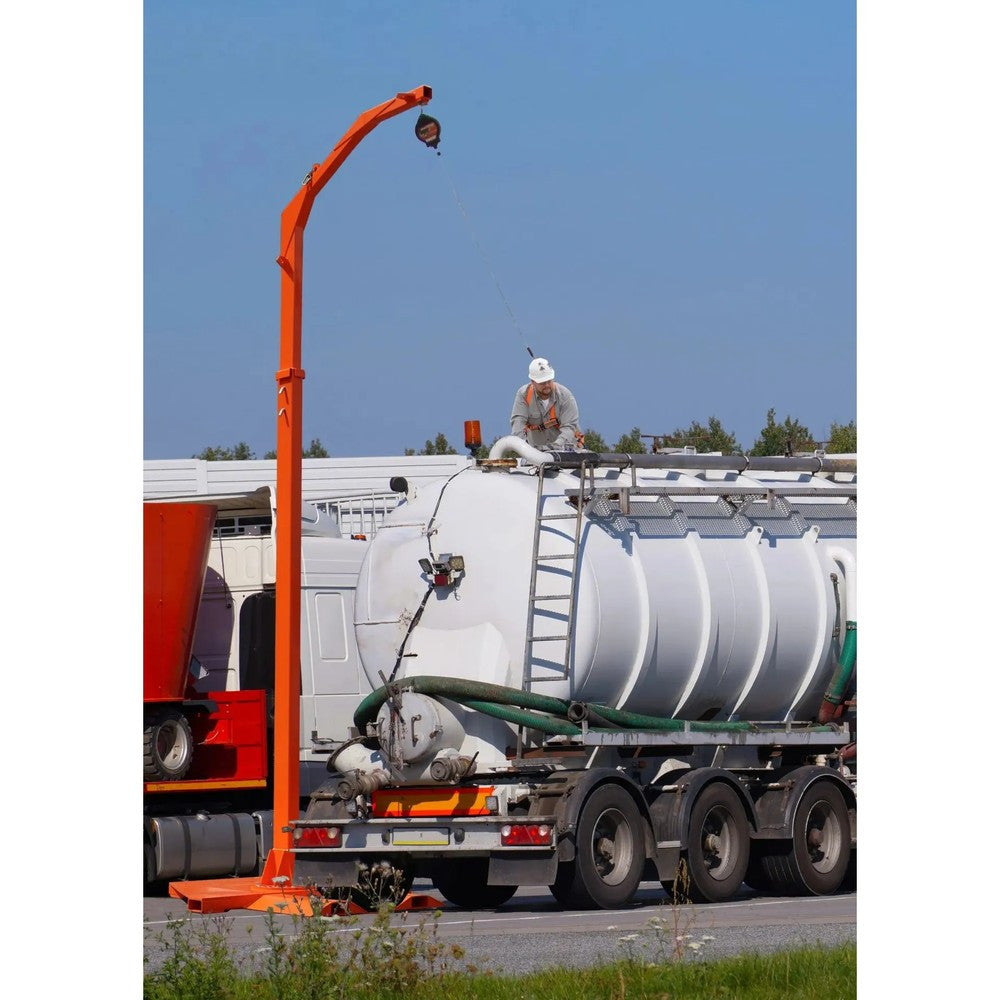

Malta Dynamics X550 overhead anchor. The X550 is a truck-counterweighted davit system for fall protection while loading and unloading flatbeds, tankers and trailers. A vehicle drives onto its thresholds and its weight stabilizes the unit, so it needs no separate ballast or permanent installation. It gives one user a fixed anchor point up to 22 feet above ground.
Malta Dynamics X550 overhead anchor key features
- Drive-over thresholds let the loaded vehicle act as the counterweight; no separate ballast or permanent installation
- Fixed anchor point up to 22 feet from ground level, designed for 1 user
- For flatbed trailers, tanker trucks, platforms and confined spaces where rigid rails are impractical
- Fork pockets in the base for moving it indoors with a standard forklift
- Stainless steel components for outdoor yards, maintenance bays and loading platforms
- Compatible with electric winch equipment for rescue and retrieval
- Pre-bend mast extensions to reach the work area from different angles
- 1-Year Unlimited Warranty and 5-Year Structural Warranty
Malta Dynamics X550 overhead anchor specifications
| Manufacturer | Malta Dynamics |
|---|---|
| Model / SKU | X550 |
| Weight | 2271 lbs |
| Max. Working Height | 22' (6.71m) |

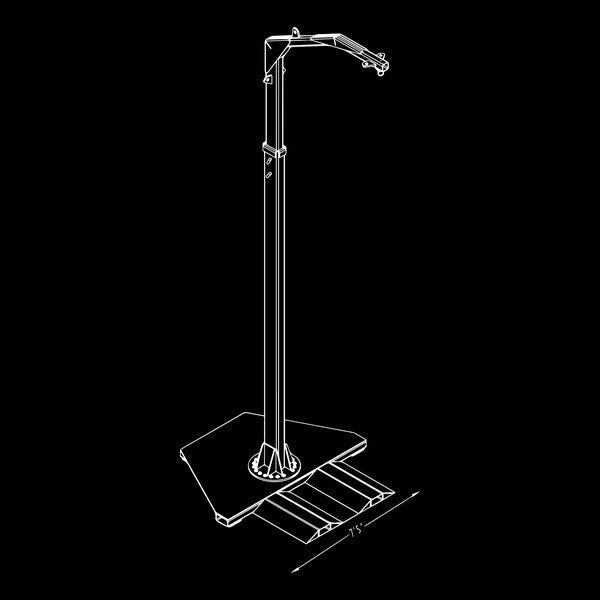

| Width | 7'5" (2.26m) |
| Reach | 7'6" (2.29m) |
| Max. Anchor Point Capacity | 310 lbs |
| Max. Allowable Users | 1 |
| Standards | Meets or exceeds OSHA fall protection requirements (per Malta Dynamics); not CSA certified |
Where crews use the Malta Dynamics X550 overhead anchor
Fleet and trucking
Overhead tie-off for work on trucks and trailers.
Rail and docks
Anchorage beside rail cars and loading docks.
Construction sites
Tie-off where no fixed anchor exists.
Plants and hangars
Overhead anchor for maintenance at height.
Is the Malta Dynamics X550 CSA certified? Compliance in Canada
Is the Malta Dynamics X550 unit CSA certified?
No. Malta Dynamics rates the X550 to US standards (ANSI/OSHA and the ratings listed above); it is not CSA certified. For CSA-marked equipment see our Safety Direct range.
What is the capacity of the Malta Dynamics X550 unit?
Malta Dynamics lists 310 lbs.
How is the Malta Dynamics X550 unit delivered?
It ships by freight from our team after order; we coordinate delivery and lead time with you. Ask us for a quote on accessories and rescue kits.
What to pair with the Malta Dynamics X550 overhead anchor
Pair the X550 with a self-retracting lifeline and a full-body harness, and train the crew on inspection and rescue.
