Safety Direct MALINGUARD RDC020P 20 ft galvanized cable self-retracting lifeline
20 ft
$673.99
Passer aux informations sur le produit
Safety Direct MALINGUARD RDC020P 20 ft galvanized cable self-retracting lifeline
1/3

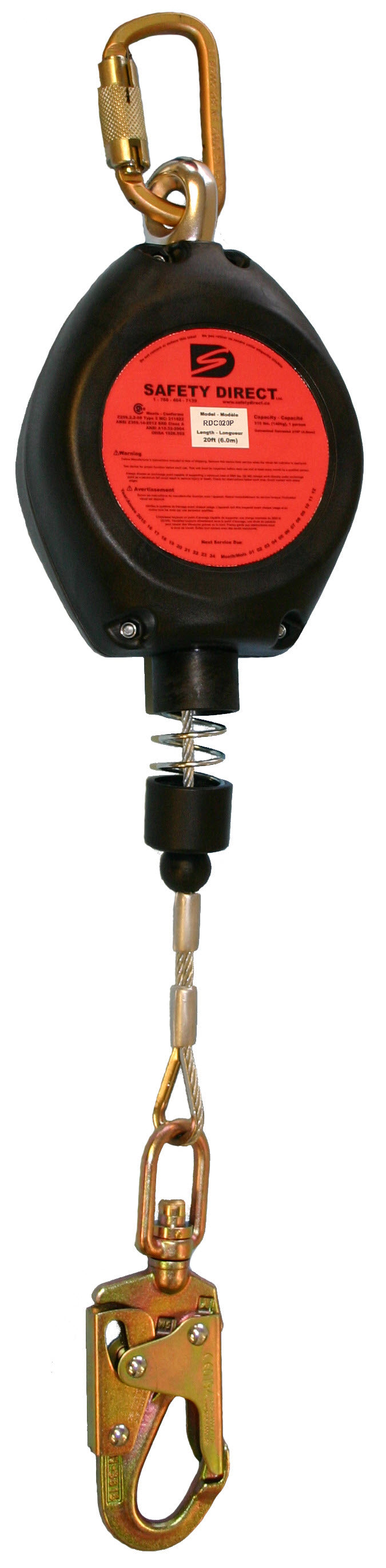

  • Safety Direct MALINGUARD RDC020P 20 ft galvanized cable self-retracting lifeline

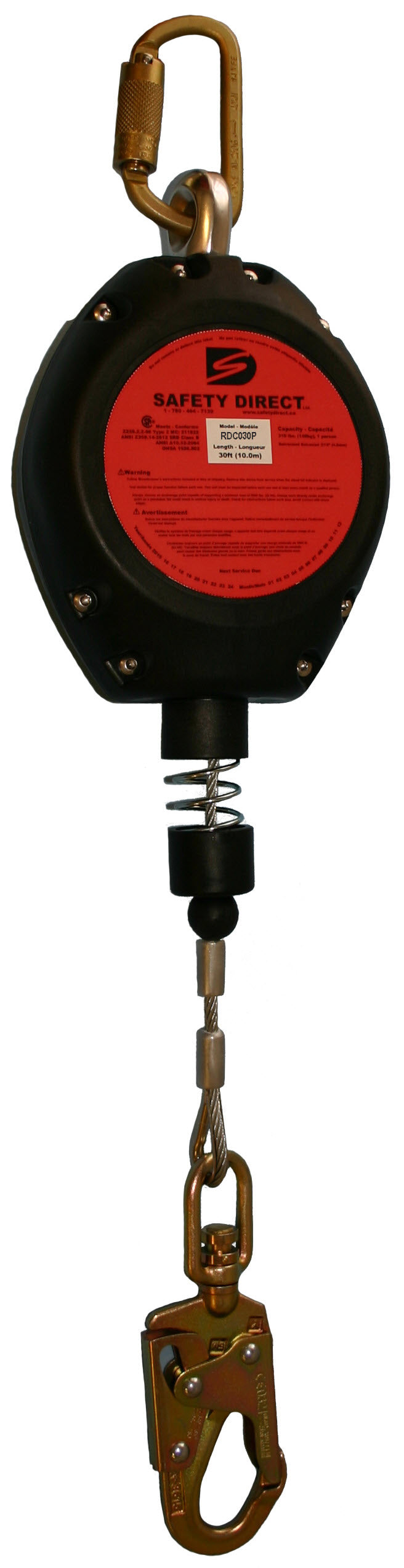

  • Safety Direct MALINGUARD RDC030P 30 ft galvanized cable self-retracting lifeline

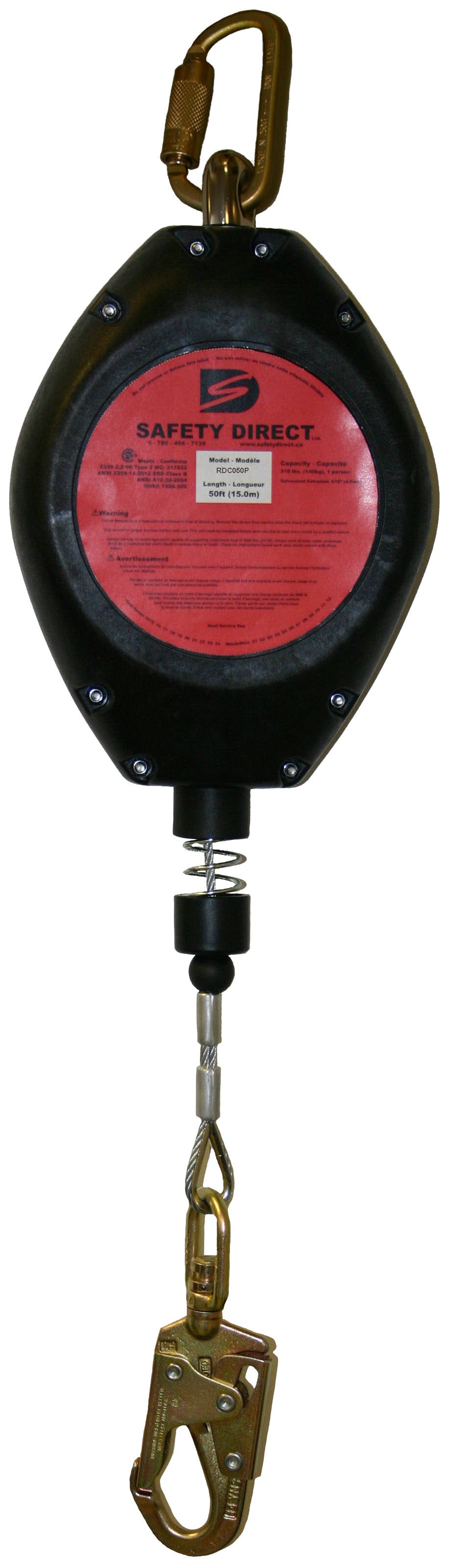

  • Safety Direct MALINGUARD RDC050P 50 ft galvanized cable self-retracting lifeline
Safety Direct MALINGUARD Galvanized Cable SRD, 20 to 50 ft | CSA

Safety Direct MALINGUARD Galvanized Cable SRD, 20 to 50 ft | CSA

$673.99
Length

Safety Direct MALINGUARD galvanized cable self-retracting device (SRD), 20, 30 or 50 ft. A single-person self-retracting lifeline for vertical fall arrest. The 0.19 in. galvanized steel cable pays out and retracts as you move, and the braking system reduces the forces on the body if a fall happens. A swivel eye gives freedom of movement, and it comes with a load-indicating swivel snap hook and a double-locking steel carabiner. Made by Safety Direct Ltd. of Sherwood Park, Alberta.

✓
Compliance in Canada: CSA Z259.2.2-17Safety Direct certifies the MALINGUARD to CSA Z259.2.2-17; the maker's instructions also cite ANSI Z359.14, ANSI A10.32 and OSHA 1926.502. Rated working capacity is 310 lb (140 kg) including clothing and tools. Check clearance below the work surface, inspect before each use and remove from service after any fall.
Lifeline
0.19 in. galvanized cable
Lengths
20, 30 or 50 ft
Capacity
One worker, 310 lb
Standard
CSA Z259.2.2-17

Safety Direct MALINGUARD cable SRD key features

  • High-strength polymer housing
  • 0.19 in. (4.82 mm) galvanized steel cable
  • Braking system that reduces forces on the body in a fall
  • Swivel eye for freedom of movement
  • Load-indicating swivel snap hook, 3,600 lb (16 kN) gate rated
  • Double-locking steel carabiner included
  • 5,000 lb (23 kN) tensile strength

Safety Direct MALINGUARD RDC020P / RDC030P / RDC050P specifications

Manufacturer Safety Direct Ltd., Sherwood Park, AB
Model / SKU RDC020P (20 ft), RDC030P (30 ft), RDC050P (50 ft)
Lifeline 0.19 in. (4.82 mm) galvanized steel cable
Housing High-strength polymer
Hook Load-indicating swivel snap hook, 3,600 lb (16 kN) gate
Connector Double-locking steel carabiner
Tensile strength 5,000 lb (23 kN)
Capacity One person, 310 lb (140 kg) rated working capacity incl. clothing and tools
Standards CSA Z259.2.2-17 (instructions also cite ANSI Z359.14, ANSI A10.32, OSHA 1926.502)

When to use a Safety Direct MALINGUARD cable SRL

Vertical fall arrest

Work below an overhead anchor with the cable paying out as you go.

Rough jobsite conditions

Galvanized steel cable instead of web.

Longer reach

Pick 30 or 50 ft for more working range.

Structural steel and platforms

Anchor overhead and keep moving freely.

Canadian store
Sold by Fall Protection Canada, Paris, Ontario. CAD pricing, no duties, no border surprises, Canada-wide shipping.

Is the Safety Direct MALINGUARD SRL CSA certified? Common questions

Is the Safety Direct MALINGUARD cable SRD CSA certified?

Yes. Safety Direct certifies it to CSA Z259.2.2-17.

20, 30 or 50 ft MALINGUARD: which length should I buy?

Pick the shortest length that covers your work area: RDC020P is 20 ft, RDC030P 30 ft and RDC050P 50 ft.

What is the weight rating of the MALINGUARD SRD?

One person, 310 lb (140 kg) rated working capacity including clothing and tools.

How much clearance does the MALINGUARD cable SRL need?

Safety Direct's instructions call for more than 6 ft (1.8 m) of clearance, plus 3 ft more for falls from kneeling or crouching.

Safety Direct MALINGUARD SRD instructions (PDF)

Spec sheet & instructions: the maker's own documents, hosted on our store.

Pair the Safety Direct MALINGUARD SRD with an anchor and a CSA harness

Mount the SRD to an overhead anchor and connect the snap hook to the back D-ring of a CSA Z259.10 full-body harness.
