Super Anchor 2801-D ARS 2x8 Permanent Roof Anchor Kit | Canada
Super Anchor 2801-D ARS 2x8 Permanent Roof Anchor

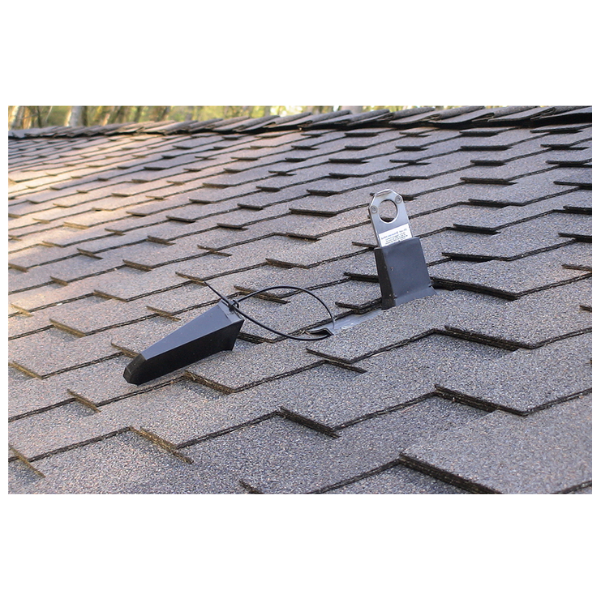

The ARS is the residential permanent roof anchor the industry has relied on for over 25 years. The 2801-D kit mounts over the top chord of a 2x4, 2x6 or 2x8 truss or rafter during framing or re-roof, then flashes into asphalt shingle or wood shake with the included base flashing and stem cover. Once it is in, every roofer, chimney sweep, solar installer and maintenance tech who follows has a watertight, permanent tie-off point waiting for them.
Why Choose the Super Anchor ARS 2x8 Roof Anchor
- Permanent stainless steel roof anchor rated to 5,000 lb (22 kN) minimum
- Fits 2x4, 2x6 and 2x8 top chords; drill-through mount for 2x10 and 2x12

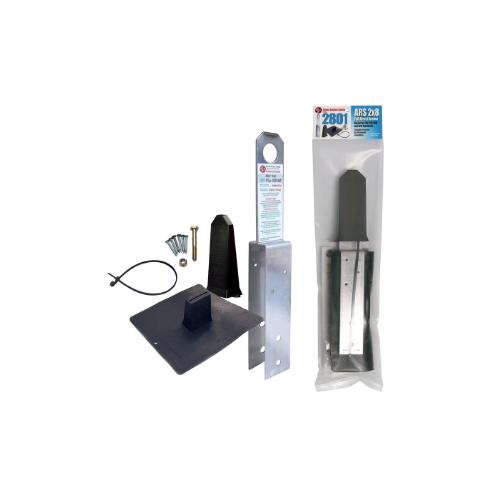

- Complete kit: anchor, flashing base, stem cover and Grade 8 bolt with locknut
- Flashes into asphalt shingle and wood shake for a watertight, low-profile install
- Rated for fall arrest and fall restraint — one worker per anchor
- Ideal for new builds, re-roofs, chimney, solar and rooftop service work
ARS 2x8 Roof Anchor Specifications — Fit, Strength & Hardware
| Specification | Detail |
|---|---|
| Model | 2801-D ARS 2x8 Anchor Kit |
| Material | 430 stainless steel |
| Minimum Breaking Strength | 5,000 lb (22 kN) |
| Capacity | 1 worker, max 340 lb incl. tools |
| Framing Fit | 2x4, 2x6, 2x8 top chord; drill-through for 2x10/2x12 |
| Roof Types | Asphalt shingle and wood shake |
| Hardware | 5/16-18 × 2-1/4" Grade 8 bolt with locknut + positioning nails |
| Included | Anchor, PVC flashing base (~8" × 10"), tethered stem cover |
| Installed Stem Height | ~6–6.5" above finished roof |
| Service Zone | Fall arrest within ±30° of vertical; 360° in restraint |
| Temperature Range | −30 °F to 120 °F |
| Typical Placement | 12–18" below ridge, over a structural member |
| Brand | Super Anchor Safety |
How to Install the ARS 2x8 Permanent Roof Anchor
- Seat the anchor over the truss or rafter top chord before the roof covering goes on
- Bolt through the framing with the supplied Grade 8 bolt and locknut
- Set the positioning nails per the manufacturer's instructions
- Fit the flashing base and lap it into the underlayment
- Finish roofing, install the stem cover, and inspect before every use
Is the Super Anchor ARS 2x8 Approved for Use in Canada?
The ARS is certified to ANSI Z359 and OSHA 1926.502 / 1910.66. In Canada, roof anchors must also meet provincial OHS anchorage requirements (typically 22.2 kN / 5,000 lb per worker), which the ARS meets when installed over sound structural framing per the manual. Confirm acceptance with your authority having jurisdiction before use. Inspect before each use and remove from service after any fall.
Buy the Super Anchor ARS 2x8 Roof Anchor — Shipped Across Canada
Outfitting a whole subdivision? Contact us for jobsite quantity pricing.
