Frontline HLK1004 Système de ligne de vie horizontale de 30,5 m | 4 personnes | 22,2 kN | Canada
TEMPORARY HORIZONTAL LIFELINEANSI Z359.1 · EN 795 TYPE CMODEL HLK1004
The Frontline HLK1004 4-Person 100' Adjustable Horizontal Lifeline System is a temporary lifeline built on 5/8 in kernmantle rope with an aluminum and stainless steel tensioner integrated into the line. It adjusts to any span from 15 ft to 100 ft, takes up to four workers on its four alloy steel O-ring mobile anchors, and comes with two 6 ft cross arm straps for the end anchorages. The whole assembly lives in a carry bag that stays attached to the system, so unused rope stays stowed and protected from cuts, abrasion and contaminants.
Frontline HLK1004 horizontal lifeline key features
What comes in the Frontline HLK1004 lifeline kit

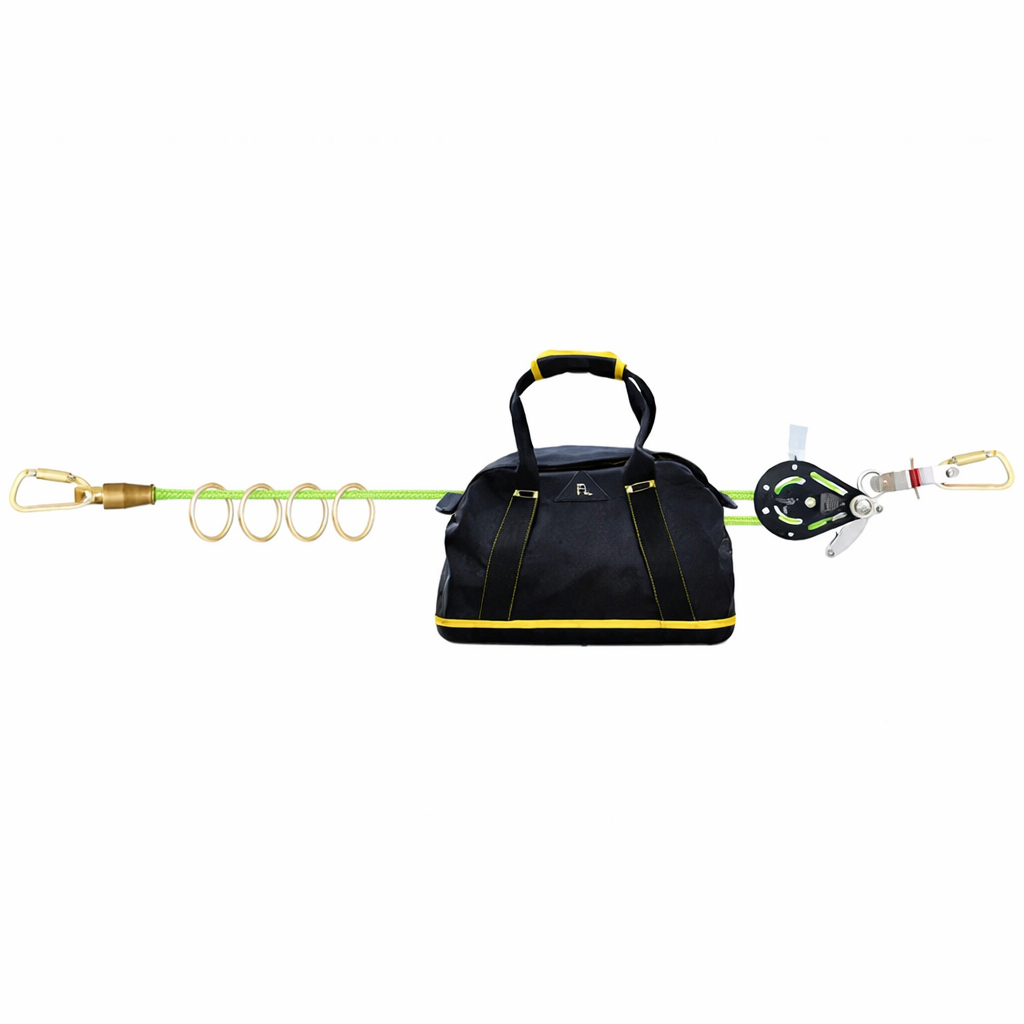

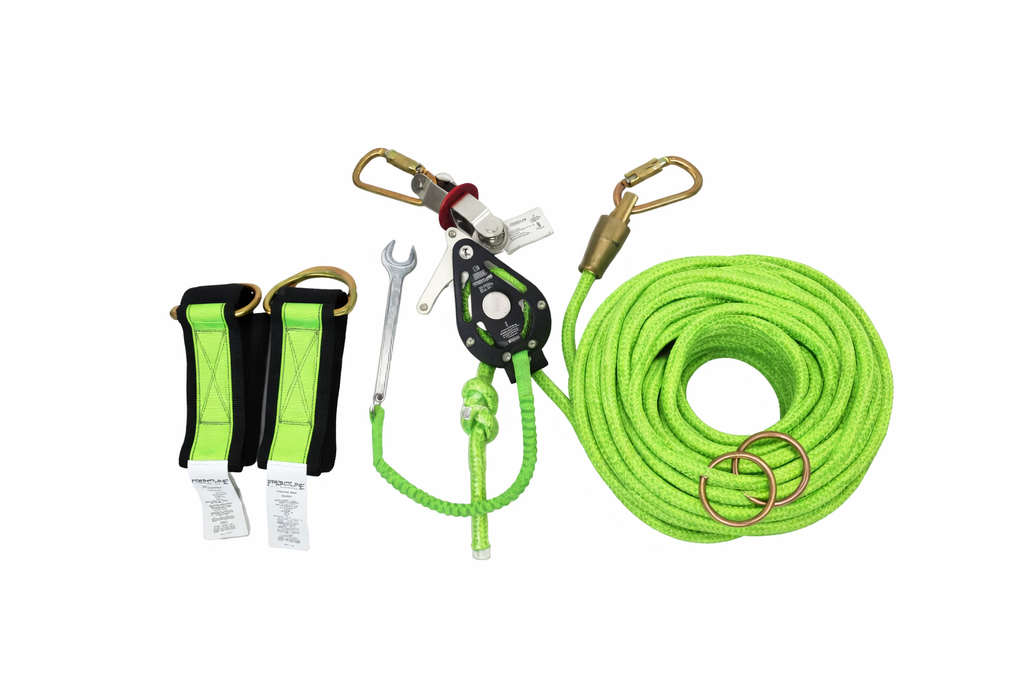

One 100 ft adjustable lifeline of 5/8 in kernmantle rope with the integrated tensioner and tension indicator, four high-strength alloy steel O-ring mobile anchors, two 6 ft cross arm straps for anchoring each end, and the carry bag that stays attached to the line.
Frontline HLK1004 4-person lifeline specifications
| Model | HLK1004 |
| System type | Temporary horizontal lifeline |
| Users | Up to 4 |
| Span | 15 ft to 100 ft, adjustable |
| Rope | 5/8 in kernmantle |
| Mobile anchors | 4 high-strength alloy steel O-rings |
| Anchorage | Two 6 ft cross arm straps included |
| Minimum breaking strength | 5,620 lb |
| Hardware | Aluminum and stainless steel pulley and tensioner, swivel brass connector |
| Standards | ANSI Z359.1-2007, EN 795:2012 Type C, TS16415:2013 Type C (Frontline) |
| Brand | Frontline Fall Protection |
CERTIFICATION — ANSI / EN 795 · NOT CSA
Frontline lists the HLK1004 as conforming to ANSI Z359.1-2007, EN 795:2012 Type C and TS16415:2013 Type C. It is not CSA Z259 certified. A horizontal lifeline must be installed under the supervision of a qualified person, who checks anchor structure strength, span, number of users and fall clearance against your provincial regulations (OHSA, WorkSafeBC, Alberta OHS, CNESST). Confirm with your authority having jurisdiction before use.
Frontline HLK1004 horizontal lifeline FAQ
Is the Frontline HLK1004 lifeline CSA certified?
No. Frontline rates it to ANSI Z359.1-2007, EN 795:2012 Type C and TS16415:2013 Type C, not CSA Z259. Check with your authority having jurisdiction whether it is accepted on your site, and ask us if your site specifies CSA-marked equipment.
How long a span can the Frontline HLK1004 cover?
Any span from 15 ft up to 100 ft. The integrated pulley and tensioner take up the slack, and the tension indicator swivels freely once the line is tight enough.
How many workers can use the HLK1004 at once?
Up to four, each on one of the four steel O-ring mobile anchors, used under a properly engineered fall protection plan.
What does the HLK1004 horizontal lifeline anchor to?
Each end attaches with one of the two included 6 ft cross arm straps, wrapped around a structural member a qualified person has confirmed can carry the load.
Who should install a horizontal lifeline?
Install it under the supervision of a qualified person, who checks the anchors, span, number of users and fall clearance before anyone ties off.
