Frontline TAN10RURP MEGApod 10 ft Tripod, Winch & 3-Way SRL | Canada

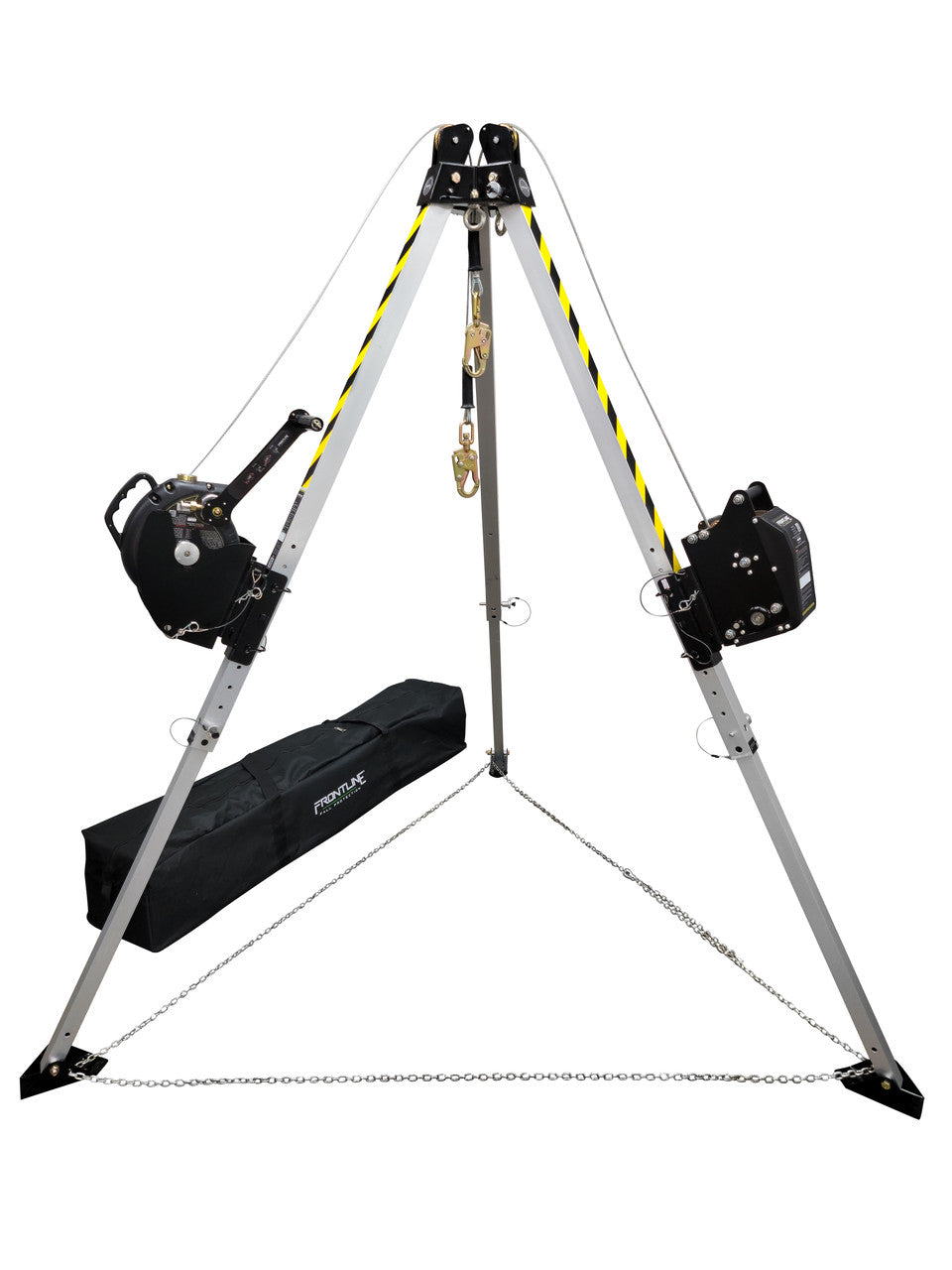

Frontline TAN10RURP MEGApod Confined Space 10' Aluminum Tripod with 60' Winch and 3-Way SRL. The complete 10 ft confined space entry and non-entry rescue kit: the MEGApod 10 ft aluminum tripod, the RUW60 60 ft winch and the RPG603W 60 ft 3-way SRL, with a storage and carry bag. One person can set it up without tools. 310 lb maximum lifting load.
Frontline TAN10RURP MEGApod 10 ft tripod kit key features
- Aluminum tripod: light, portable, set up by one person without tools
- Cast aluminum head with a built-in double pulley so the winch and retrieval cables pass independently
- Sliding telescopic legs for inner and outer height adjustment

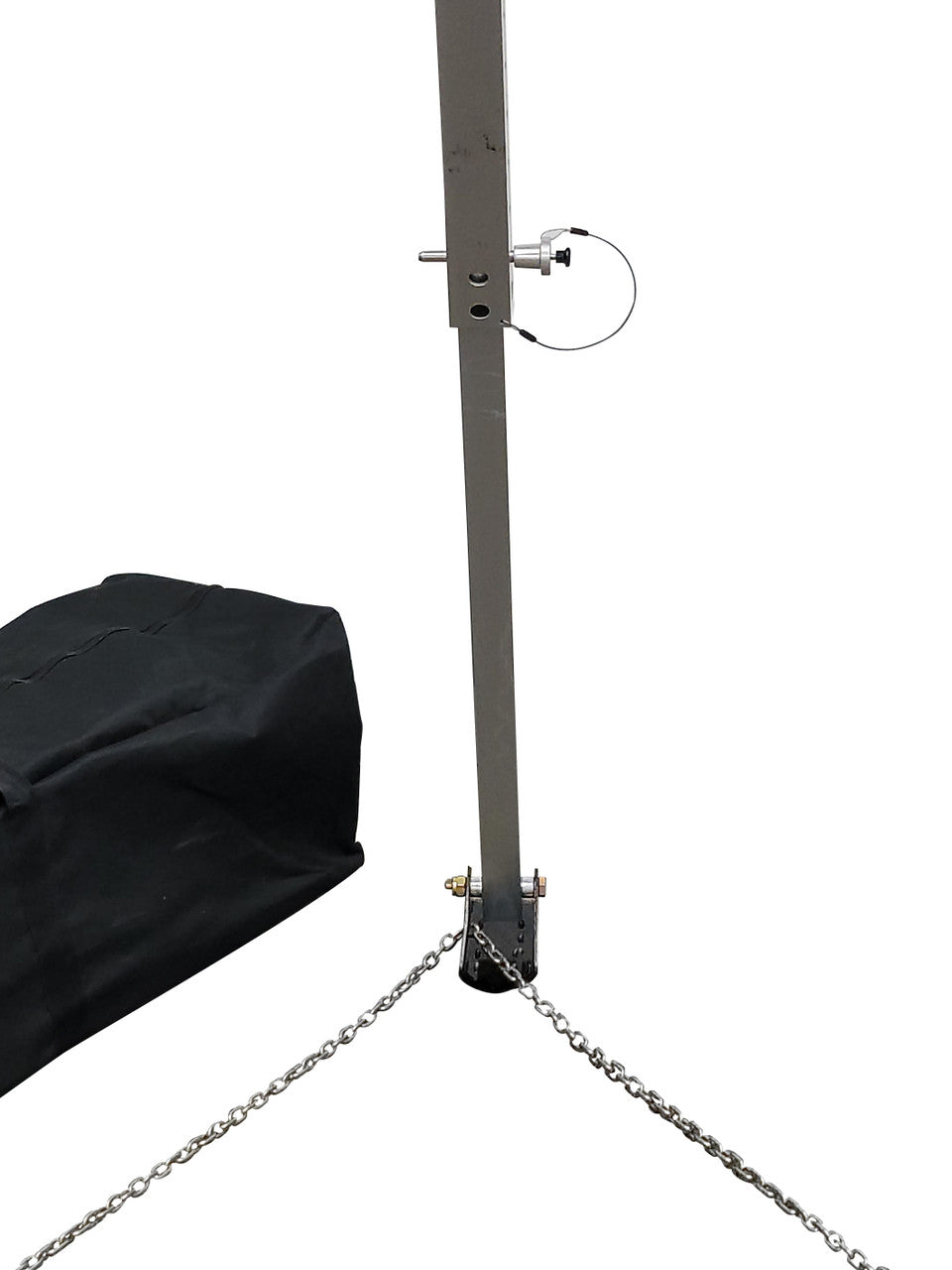

- Safety shoes with rubber soles for flat surfaces and spiked edges for slippery ones
- Safety chain and 2 auxiliary eye bolts for winch and/or 3-way overhead anchorage
- MEGApod storage and carry bag

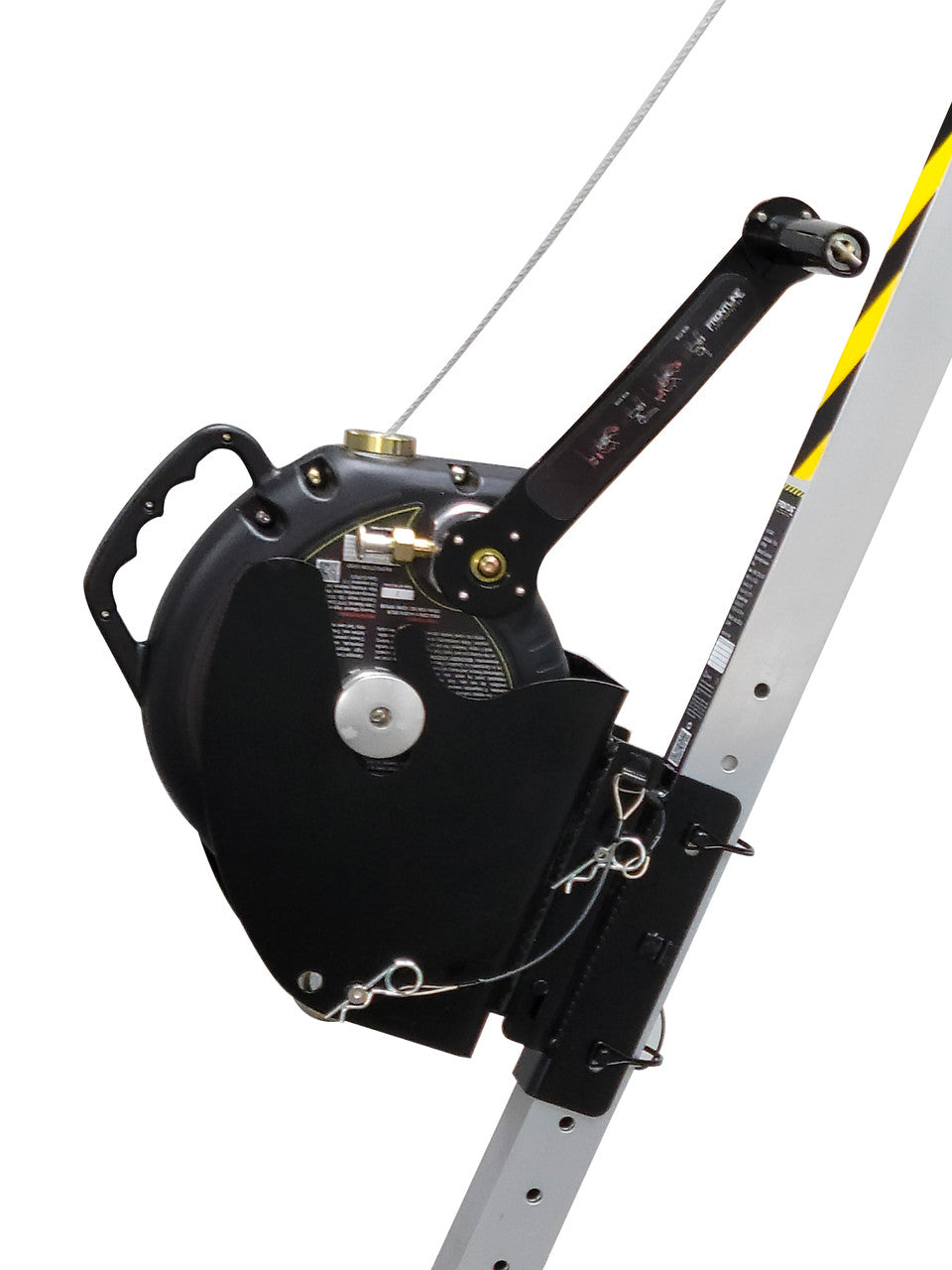

- RUW60 winch: 60 ft of 15/64 in galvanized steel wire rope, built-in shock absorption
- RUW60 mounting plate with two pin-locking bolts to fix it to a tripod leg
- Swivelling steel snap hook on the winch line for the harness connection

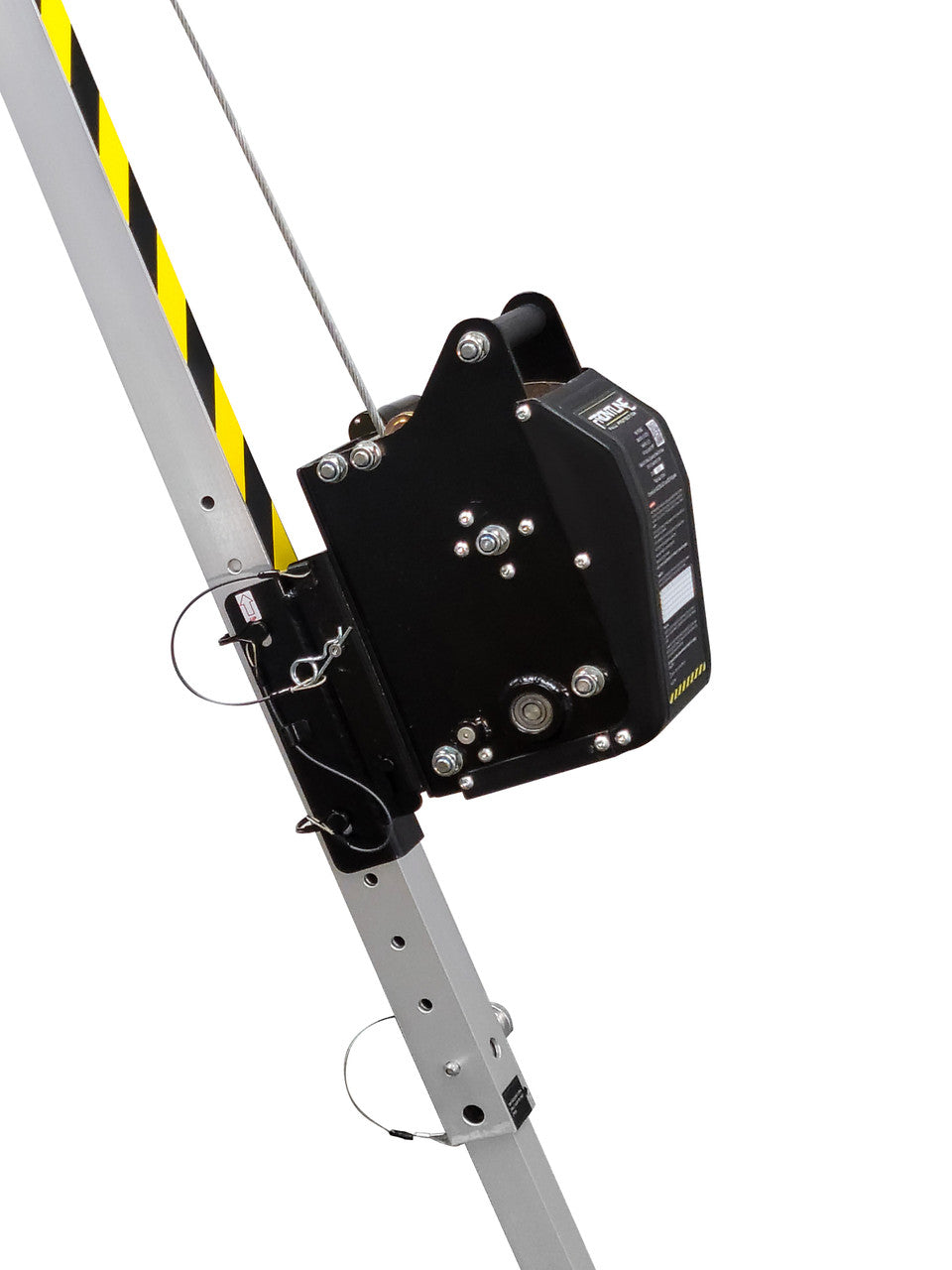

- RPG603W 3-way SRL: 60 ft of 3/16 in galvanized steel wire rope with built-in shock absorption
- RPG603W retractable mode for fall protection while moving, winch mode to lower, raise or retrieve a worker
- Side locking pin switches the RPG603W between modes in seconds; swivelling steel snap hook
Frontline TAN10RURP MEGApod 10 ft tripod kit specifications
| Manufacturer | Frontline Fall Protection |
|---|---|
| Model / SKU | TAN10RURP |
| Contents | MEGApod 10 ft tripod, safety chain, safety shoes, 2 auxiliary eye bolts, RPG603W 60 ft 3-way SRL, RUW60 60 ft winch with mounting plate, storage and carry bag |
| Tripod material | Aluminum, cast aluminum head |
| Tripod height | 10 ft |
| Winch lifeline | 60 ft galvanized steel wire rope, 15/64 in |
| SRL lifeline | 60 ft galvanized steel wire rope, 3/16 in |
| Shock absorption | Built into SRL and winch |
| Maximum lifting load | 310 lb |
| Standards | Meets or exceeds OSHA and ANSI standards (per Frontline) |
| Weight / leg spread | Not published by Frontline; ask us |
Where crews use the Frontline TAN10RURP MEGApod kit
Manholes and vaults
Lower and retrieve entrants over a manhole or vault.
Tanks and pits
Permit-required confined space entry where 10 ft of head height helps.
Non-entry rescue
Bring a worker out without sending anyone in.
Utility crews
One-person setup from the carry bag.
Is the Frontline TAN10RURP CSA certified? Compliance in Canada
Is the Frontline TAN10RURP MEGApod kit CSA certified?
No. Frontline states it meets or exceeds OSHA and ANSI standards; no CSA rating is published. For CSA-marked equipment see our Safety Direct range.
What comes in the Frontline TAN10RURP MEGApod kit?
Tripod, safety chain and shoes, 2 eye bolts, the RPG603W 3-way SRL, the RUW60 winch with plate and a carry bag.
TAN10RURP or TAN07RURP: which MEGApod kit do I need?
Same winch and 3-way SRL; the TAN10RURP has the 10 ft tripod, the TAN07RURP the 7 ft one. Pick by the head height your opening needs.
How much can the Frontline TAN10RURP kit take?
Frontline lists a maximum lifting load of 310 lb.
Pair the Frontline TAN10RURP kit with a full-body harness
The TAN10RURP covers the tripod, winch and fall arrest. Add a full-body harness with a back or shoulder D-ring for the entrant, and train the crew on your rescue plan.
