Super Anchor 1017 Floor Joist Safety Bar | Canada
FLOOR JOIST ANCHOR · 2 WORKERSANSI Z359.18-17 TYPE D · OSHA 1926.502PARTS 1017-A · 1017-B · 1017-C

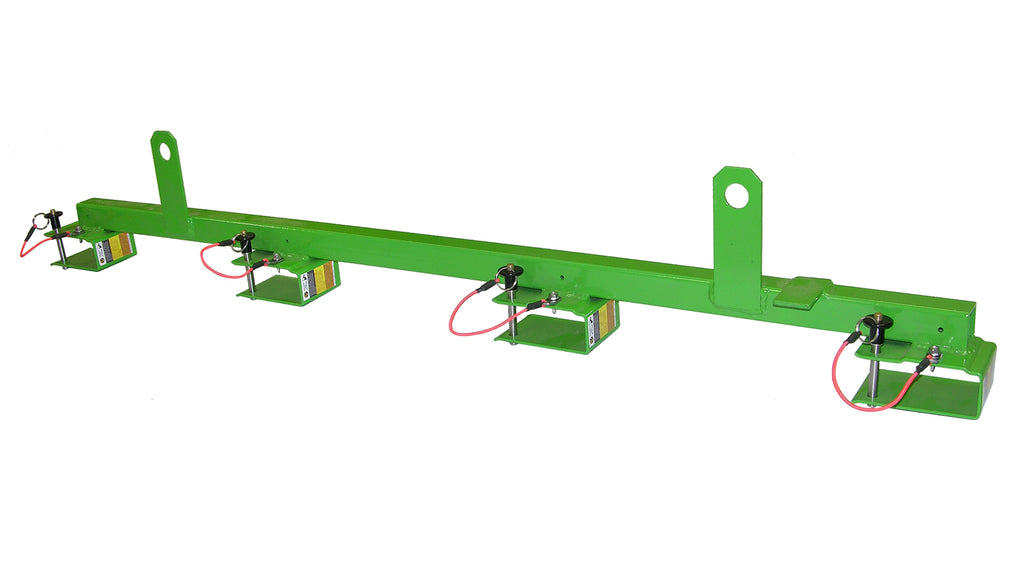

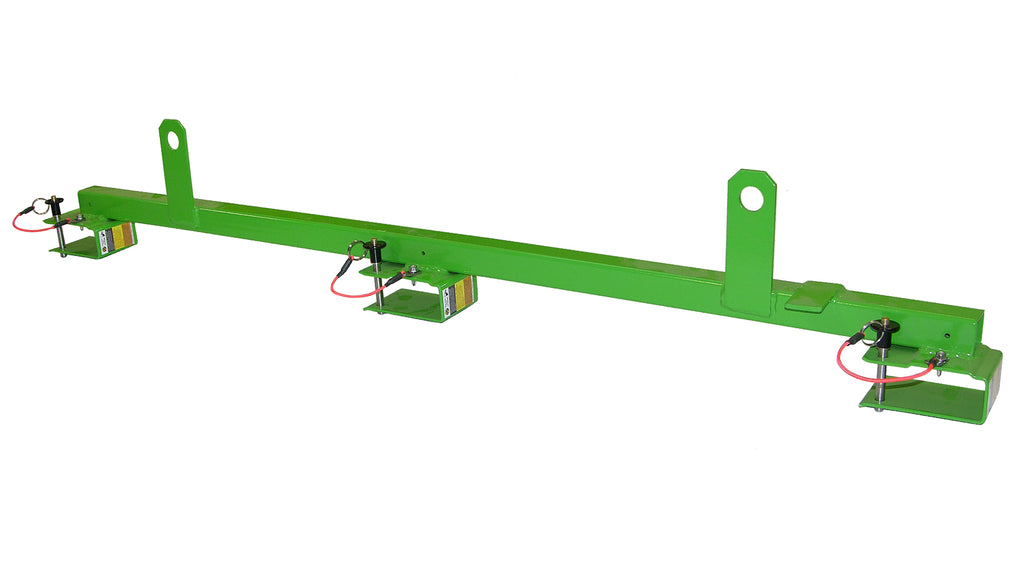

The Super Anchor Floor Joist Safety Bar is a temporary fall protection anchor for crews installing and decking engineered 2x4 floor joists. It follows the same design as the Safety Bar: it spans three trusses, locks in with stainless detent pins, and moves quickly as the deck goes down. Two workers tie off to it with energy-absorbing lanyards or SRLs. Three models: 1017-A for 24 in on centre, 1017-B for 16 in on centre, and the adjustable 1017-C for 12, 16 or 24 in.
Super Anchor 1017 Floor Joist Safety Bar key features
How to use the Floor Joist Safety Bar while decking floors

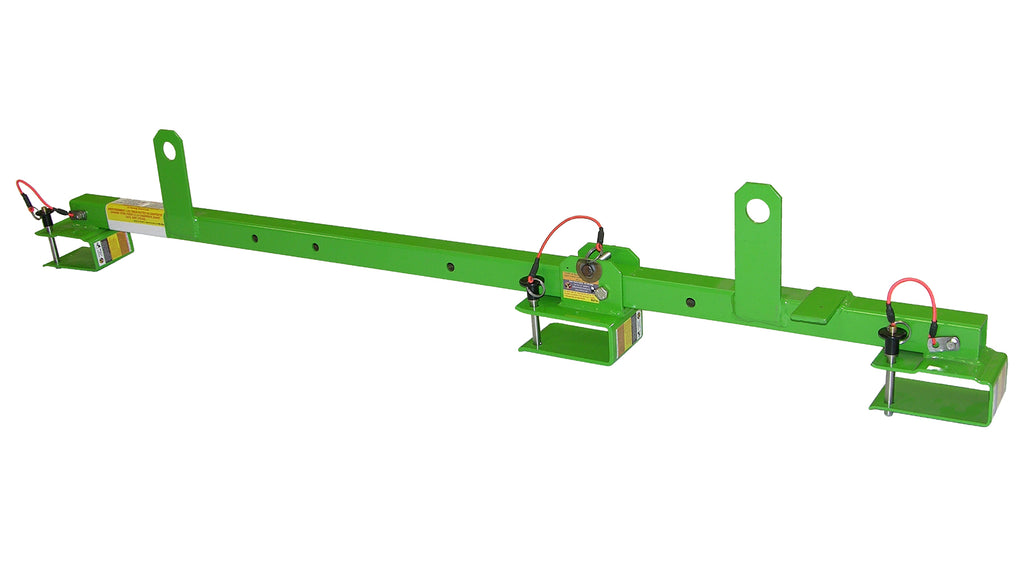

Set the bar across three engineered 2x4 floor joists and lock each leg with its stainless detent pin, following Super Anchor's Safety Bar instruction manual. Tap it square with a hammer on the 3/16 in bump bar. Two workers connect energy-absorbing lanyards or SRLs to it, then pull the pins and move it along as the decking advances. The 1017-C takes the 1017-G adjustable leg; replacement detent pin is 2015-2.2-6 for all models.
Super Anchor 1017-A, 1017-B and 1017-C specifications

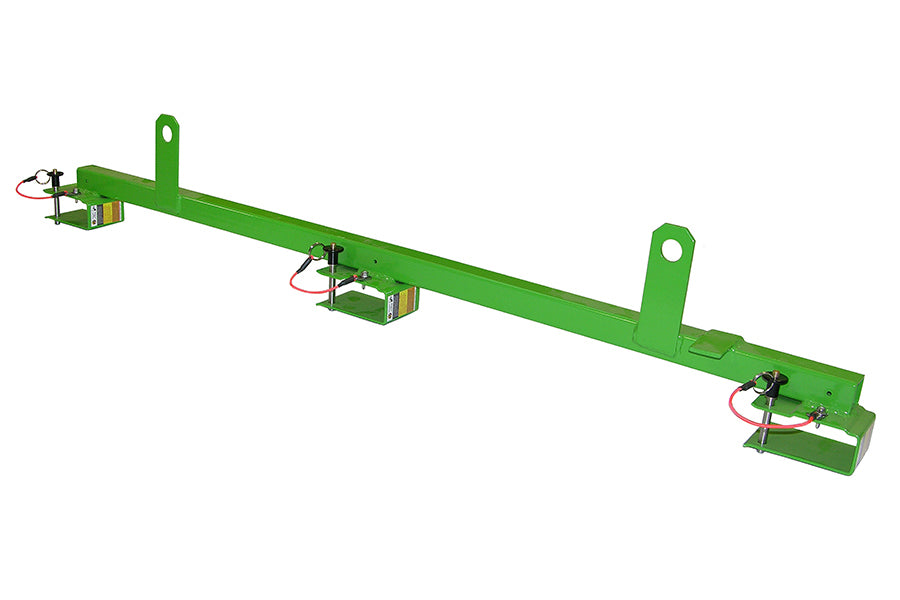

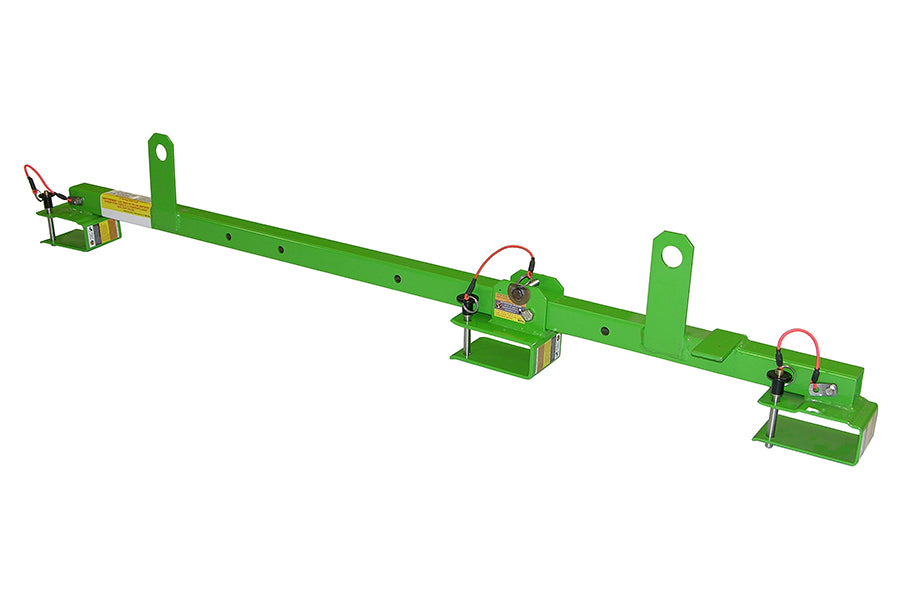

| Parts | 1017-A · 24 in on centre, 48 in total length (UPC 786158101713); 1017-B · 16 in on centre, 48 in total length (786158101720); 1017-C · adjustable 12, 16 and 24 in, 48 in total length (786158101737) |
| Device | 3-truss anchor, temporary use, up to 2 persons |
| Rating | Fall arrest and fall restraint |
| Structure | Engineered 2x4 floor trusses |
| Minimum breaking strength | 5,000 lb (average tensile 5,000 lb) |
| Maximum user weight | 310 lb including tools and equipment, per worker |
| Material | Mild steel, powder coated (safety green) |
| Hardware | Stainless steel detent pins (2015-2.2-6, 2.2 in x 3/8 in) |
| Standards | OSHA 1926.502 · ANSI Z359.18-17 Type D |
CERTIFICATION — ANSI Z359.18 TYPE D / OSHA 1926.502 · NOT CSA
Super Anchor Safety lists this product to ANSI Z359.18-17 Type D and OSHA 1926.502 (US fall protection standards). Its page shows no CSA Z259 mark, so treat it as not CSA certified. If your site or jurisdiction requires CSA-marked equipment, see our Safety Direct collection; otherwise confirm acceptance with your site safety officer and provincial OHS authority (Ontario MLITSD, Alberta OHS, WorkSafeBC, CNESST) before use.
Super Anchor Floor Joist Safety Bar questions and answers
Which Floor Joist Safety Bar fits my joist spacing?
1017-A for 24 in on centre, 1017-B for 16 in on centre, and 1017-C adjusts for 12, 16 or 24 in.
How many workers can tie off to one Floor Joist Safety Bar?
Two, each up to 310 lb including tools and equipment, using an energy-absorbing lanyard or SRL.
Is the Super Anchor Floor Joist Safety Bar CSA certified?
Super Anchor lists OSHA 1926.502 and ANSI Z359.18-17 Type D; its page shows no CSA mark. See Safety Direct for CSA anchors.
Can I move the bar as the floor deck goes down?
Yes. It is a temporary anchor held by detent pins; pull the pins and reset it on the next three joists.
